3Com TMX 10031161 Getting Started Manual page 23

Connecting the Cable Modem to Your Computer
to an analog
phone jack
Plug a phone cord into the analog modem's TELCO
jack (marked with a
modem's case) and a wall phone jack. If you
purchased the TMX Dialup Kit, use the phone cord
included with the analog modem. If you would like
to use a phone on the same wall jack you intend to
use with the analog modem, plug your phone's cord
into the jack marked with a

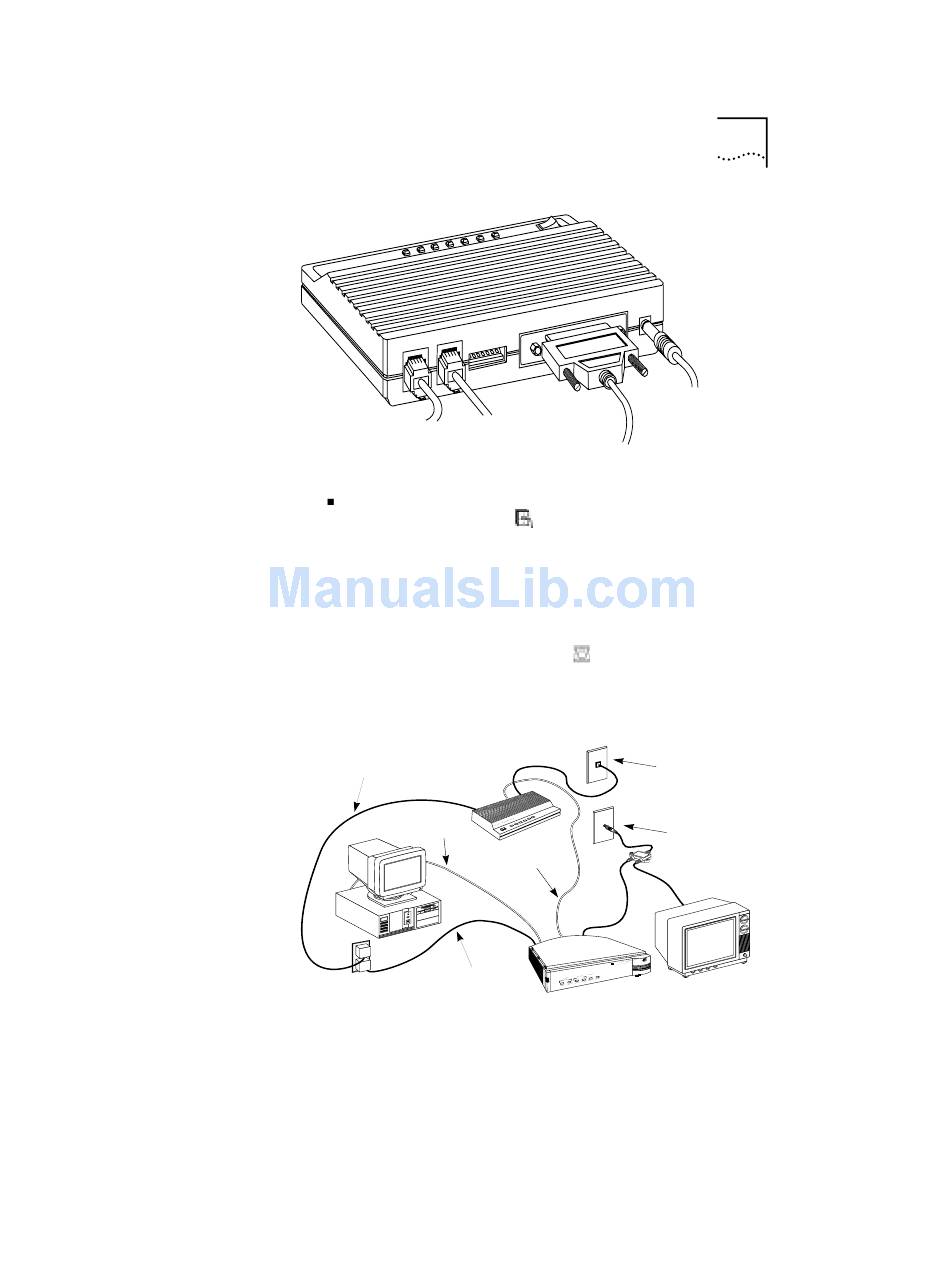

modem's case. When you are finished making all of
the necessary connections, your setup should
resemble the following diagram.
power supply cable
(to wall outlet)
RJ-45 cable
(to NIC)
power supply cable
(to wall outlet)
3 Turn the analog modem on. The power switch is located on
the top front of the modem's case.
4 Turn your computer on. You are now ready to configure
your Cable Modem TMX using our Web-based
configuration software. See the next chapter for details.
to a telephone
to serial jack on
the cable modem
on the bottom of the
on the bottom of the
RS-232 cable
17
to an electrical
outlet
phone outlet
cable outlet
