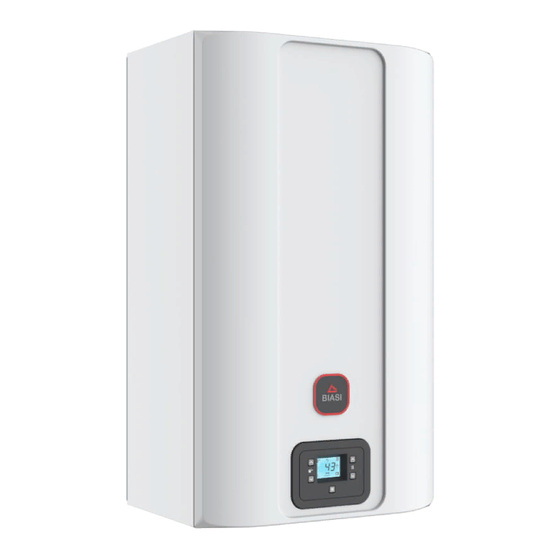

Wall hung, fanflue, roomsealed, high efficiency gas boiler
User manual and
Installation instructions
RINNOVA ADAPTIVE
Models
M300V.2025 SM
M300V.2530 SM
M300V.3035 SM
G.C. Appl. No.
47-583-46
47-583-47
47-583-48
COMBI BOILER
COMBI BOILER
COMBI BOILER
