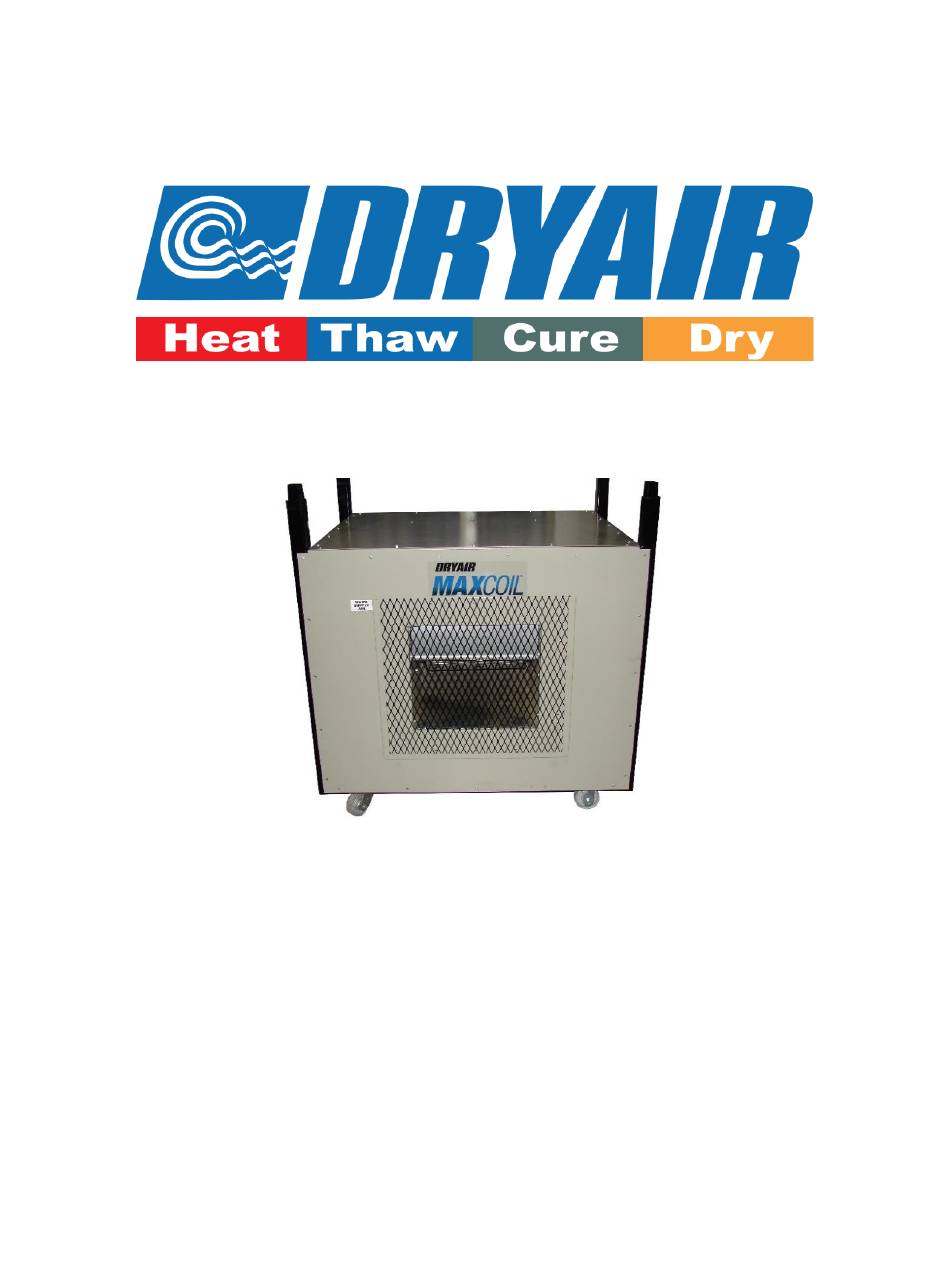

- Page 1 Operator Manual HEFA 600 MAX S.N. 1546-01 - DRYAIR Manufacturing Corp Box 126, 400 Service Road St. Brieux, SK, Canada S0K 3V0 Tel: (306) 275-4848 1-888-750-1700 Fax: (306) 275-4664...
-
Page 3: Table Of Contents
Table of Contents 1. Warranty Policies & Claim Procedures ................... 1-1 Warranty Policies ........................1-1 Basic Warranty Policy ......................1-1 Extended Warranty Policy ....................1-1 Exceptions to the Warranty Policies ..................1-1 Owner Obligations ....................... 1-2 Manufacturer Obligations ....................1-2 Warranty Claim Procedure ...................... - Page 4 Table of Figures Figure 2-1: Safety Decals......................2-1 Figure 3-1: "Stacked" Maxcoils ....................3-1 Figure 7-1: Maxcoil Electrical Schematic ................... 7-1 Figure 7-2: Maxcoil Dimensions ....................7-2 Table of Tables Table 1: Glycol/Water Mixture Chart ..................2-2...
-
Page 5: Warranty Policies & Claim Procedures
Warranty Policies Basic Warranty Policy • DRYAIR will repair or replace, at its option, without charge, any defective part of the equipment for a period of twelve (12) months from delivery to the first retail purchaser, F.O.B St. Brieux, SK, Canada. -
Page 6: Owner Obligations
• It is the responsibility of the owner to read, understand and implement the maintenance, safety, and operational guidelines as laid out in the Operation and Maintenance Guide. • All parts are to be tagged with a warranty claim number and shipped prepaid to DRYAIR within 30 days. -
Page 7: Warranty Claim Procedure
Warranty Claim Procedure • All warranty credits must be processed with the DRYAIR Warranty Claim Form. • All warranty parts, unless otherwise specified, are to be returned to DRYAIR along with a completed Warranty Claim Form. Note: Prior to returning warranty parts, please call for an authorization number and shipping instructions from the Warranty Department in Canada. -
Page 8: Safety Concerns
DRYAIR warranty. Always use Propylene Glycol as the HTF.* • DRYAIR pre-mixed HTF is made up of 50% “Dowfrost ® HTF” or “Boss Chill PG” and 50% water by weight, to provide freeze protection down to -28°F (-33°C). -
Page 9: Table 1: Glycol/Water Mixture Chart
Version 1.00 023-903504 Table 1: Glycol/Water Mixture Chart Percent Propylene Glycol Freezing Point By Mass By Volume ºF ºC 32.0 10.0 26.1 -3.2 20.0 19.4 17.9 -7.8 30.0 29.4 -14.0 40.0 39.6 -8.1 -22.3 50.0 49.9 -28.9 -33.8 60.0 60.0 -54.9 -48.3 *CAUTION! Whenever coupling or uncoupling the quick-couplers, make sure that the isolation... -
Page 10: Introduction & Installation
The coil is specially designed for optimum heat transfer without adding any moisture or fuel combustion by-products to the air. Note: These units are designed to connect to DRYAIR water heaters. Specifications, including BTU output, cannot be guaranteed using other water heaters. -
Page 11: Operation
Once the unit has been connected to both power and fluid lines, follow the operation guidelines below to adjust the temperature of the outlet air. Be sure to entirely read and understand this section before trying to start and run your new DRYAIR system. Controls The temperature on the unit is controlled thermostatically, allowing the unit to self-regulate the desired temperature. -
Page 12: Troubleshooting
Version 1.00 023-903504 5. Troubleshooting Fan Does Not Start If the fan does not have power: • Check that the correct power supply is connected to the Maxcoil. • Check the condition of the power connection cable. If the fan has power, but is not running (all switches in the appropriate position and connections are made): •... -
Page 13: Maintenance
023-903504 6. Maintenance DRYAIR products are designed to be low maintenance systems. All assemblies are assembled using extensively tested and certified components. Following these maintenance procedures will ensure the maximum benefit and least amount of downtime for the system. The daily maintenance schedule is designed to be a quick system check and ensures a low risk of operating interruptions. -
Page 14: Appendix
Version 1.00 023-903504 7. Appendix Electrical Schematic Figure 7-1: Maxcoil Electrical Schematic Appendix... -
Page 15: Product Dimensions
Version 1.00 023-903504 Product Dimensions Figure 7-2: Maxcoil Dimensions Appendix... -
Page 16: Heat Transfer Fluid Information
Version 1.00 023-903504 Heat Transfer Fluid Information See the attached Material Safety Data Sheets for complete information on the HTF used in DRYAIR units. Appendix... - Page 17 MATERIAL SAFETY DATA SHEET SECTION 1: CHEMICAL PRODUCT AND COMPANY IDENTIFICATION PRODUCT NAME: BOSS CHILL PROPYLENE GLYCOL PROPYLENE-GLYCOL BASED Heat Transfer Fluid Concentrate Date Prepared: Sept 19, 2014 COMPANY IDENTIFICATION Supplier: BOSS LUBRICANTS 112, 6303 – 30 STREET SE Calgary, AB T2C 1R4 Telephone: 403-279-2223...
- Page 18 Propylene Glycol 000057-55-6 Proprietary inhibitors Not applicable Deionized Water 007732-18-5 Balance This document is prepared pursuant to the OSHA Hazard Communication Standard (29 CFR 1910.122). In addition, other substances not “Hazardous” per this OSHA Standard may be listed. Where proprietary ingredients shows, the identity may be made available as provided in this standard. BOSS CHILL PROPYLENE GLYCOL BOSS LUBRICANTS: MATERIAL SAFETY DATA SHEET SECTION 3: HAZARDOUS IDENTIFICATION...
- Page 19 on the fetus. In animal studies, it has been shown not to interfere with reproduction. Results of mutagenicity tests in-vitro (test tube) and in animals have been negative. Signs and Symptoms of Exposure: Redness and/or stinging sensation in eyes or on skin. Minor eye or skin irritation may occur with some people.
- Page 20 Burning Rate: Not available Autoignition Temperature: Not available Flammable limits in air (% by Volume) LEL: Not available UEL: Not available Extinguishing Media: Water for, fog, foam, CO2, dry chemical. Alcohol resistant foams (ATC type) are best when available. Do not use direct water stream as it may spread the fire.
- Page 21 SECTION 7: HANDLING AND STORAGE Handling Procedures: Wear impermeable gloves and other protective clothing to avoid prolonged or repeated skin contact. When handling, wear eye protection. Storage Requirements: Keep containers tightly closed when not in use. Store only in containers resistant to alkaline solutions with a pH of 9.0-12.0.
- Page 22 Hazardous decomposition Products: Depends upon temperature, air supply and the presence of other materials SECTION 11: TOXICOLOGICAL INFORMATION Eye Effects: Irritating to eyes. Skin Effects: The LD50 for skin absorption in rabbits is>10,000 mg/kg. Acute Inhalation Effects: Significant vapors are only generated at elevated temperatures; may irritate nose and respiratory system.
- Page 23 Packing Group: Not applicable Label: Not applicable Special Provisions (172.102): Not applicable Packaging Authorizations a) Exceptions Not applicable b) Non-bulk Packaging: Not applicable c) Bulk Packaging: Not applicable Quantity Limitations a) Passenger, Aircraft, or Not applicable Railcar: b) Cargo Aircraft Only: Not applicable Vessel Stowage Requirements a) Vessel Stowage: Not applicable...
- Page 24 Re-Authorization Act of 1986 (SARA Title III) and is considered, under applicable definitions not to have met any hazard category. This product is not a “Hazardous Chemical” as defined by the OSHA OSHA regulations: Hazard Communication Standard, 29 CFR 1910.1200 WHMIS: Not a “Controlled Product”...
- Page 25 Material Safety Data Sheet DOW CHEMICAL CANADA ULC Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 Print Date: 06/29/2015 DOW CHEMICAL CANADA ULC encourages and expects you to read and understand the entire (M)SDS, as there is important information throughout the document. We expect you to follow the precautions identified in this document unless your use conditions would necessitate other appropriate methods or actions.
- Page 26 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 Hazard Summary No significant immediate hazards for emergency response are known. Potential Health Effects Eyes: May cause slight temporary eye irritation. Corneal injury is unlikely. Skin: Prolonged contact is essentially nonirritating to skin. Repeated contact may cause flaking and softening of skin.
- Page 27 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 Ingestion: No emergency medical treatment necessary. Most important symptoms and effects, both acute and delayed: Aside from the information found under Description of first aid measures (above) and Indication of immediate medical attention and special treatment needed (below), any additional important symptoms and effects are described in Section 11: Toxicology Information.
- Page 28 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 Methods and materials for containment and cleaning up: Small spills: Absorb with materials such as: Cat litter. Sawdust. Vermiculite. Zorb-all®. Collect in suitable and properly labeled containers. Large spills: Dike area to contain spill. Recover spilled material if possible. See Section 13, Disposal Considerations, for additional information.
- Page 29 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 Respiratory protection: Respiratory protection should be worn when there is a potential to exceed the exposure limit requirements or guidelines. If there are no applicable exposure limit requirements or guidelines, wear respiratory protection when adverse effects, such as respiratory irritation or discomfort have been experienced, or where indicated by your risk assessment process.
- Page 30 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 10. STABILITY AND REACTIVITY Reactivity: no data available Chemical stability: Stable under recommended storage conditions. See Storage, Section 7. Hygroscopic Possibility of hazardous reactions: Polymerization will not occur. Conditions to avoid: Exposure to elevated temperatures can cause product to decompose. Generation of gas during decomposition can cause pressure in closed systems.
- Page 31 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 Serious eye damage/eye irritation May cause slight temporary eye irritation. Corneal injury is unlikely. Sensitization For the major component(s): Did not cause allergic skin reactions when tested in humans. For respiratory sensitization: No relevant data found.
- Page 32 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 LC50, Ceriodaphnia dubia (water flea), static test, 48 Hour, 18,340 mg/l, OECD Test Guideline Acute toxicity to algae/aquatic plants ErC50, Pseudokirchneriella subcapitata (green algae), 96 Hour, Growth rate inhibition, 19,000 mg/l, OECD Test Guideline 201 Toxicity to bacteria NOEC, Pseudomonas putida, 18 Hour, >...
- Page 33 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 Propylene glycol Bioaccumulation: Bioconcentration potential is low (BCF < 100 or Log Pow < 3). Partition coefficient: n-octanol/water(log Pow): -1.07 Measured Bioconcentration factor (BCF): 0.09 Estimated. Dipotassium hydrogen phosphate Bioaccumulation: No bioconcentration is expected because of the relatively high water solubility.
- Page 34 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 This information is not intended to convey all specific regulatory or operational requirements/information relating to this product. Transportation classifications may vary by container volume and may be influenced by regional or country variations in regulations. Additional transportation system information can be obtained through an authorized sales or customer service representative.
- Page 35 Product name: DOWFROST™ Heat Transfer Fluid Issue Date: 01/23/2015 the data contained in this (M)SDS and any hazards associated with the product. The information herein is provided in good faith and believed to be accurate as of the effective date shown above. However, no warranty, express or implied, is given.
