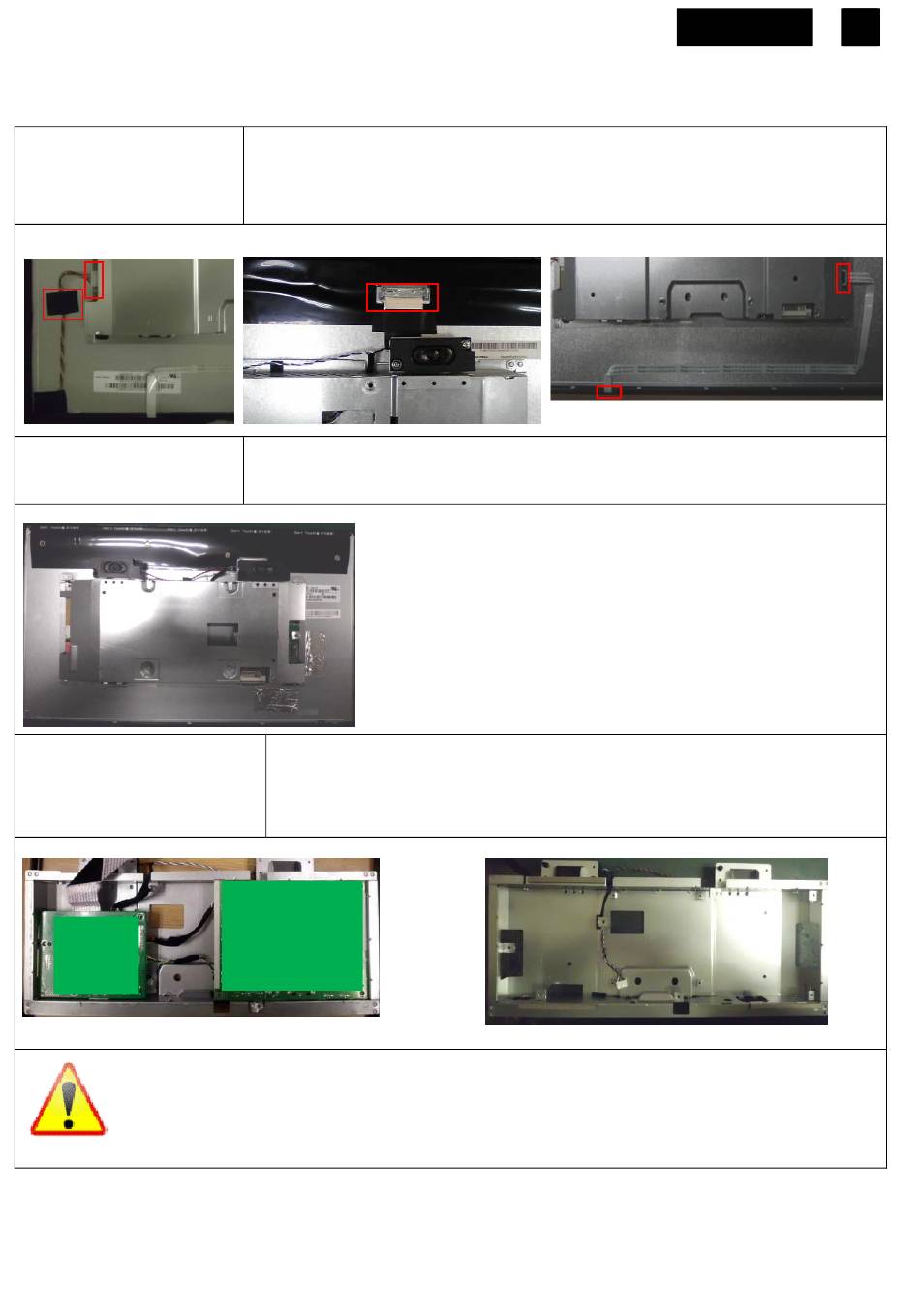

S3
Disassemble the cables
PICTURE 1
S4
Disassemble the MF from
panel
S5
Disassemble I/F BD, P/BD
and SPK from SHD..
PICTURE 1
I/F BD
NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
Tear off the tape on the lamp wire and extract the lamp wire form the P/BD(Power
Board) as picture 1.
Tear off the tape, pull out the FFC as picture 2.
Pull the CTRL BD-FFC out of the PCBA and the CTRL BD, tear off the tape and
disassemble the CTRL BD-FFC
PICTURE 2
Tear off the tapes, take out the Panel and the CTRL BD of the MF
Disassembled the Mylar and u nlock all screws.
Disassemble the I/F BD from the SHD and extract the P/BD wire.
Extract the FFC LVDS from the I/F BD.
Disassemble the P/BD from the SHD.
Disassemble SPK.
P/BD
ACER V206HQL
PICTURE 3
PICTURE 2
