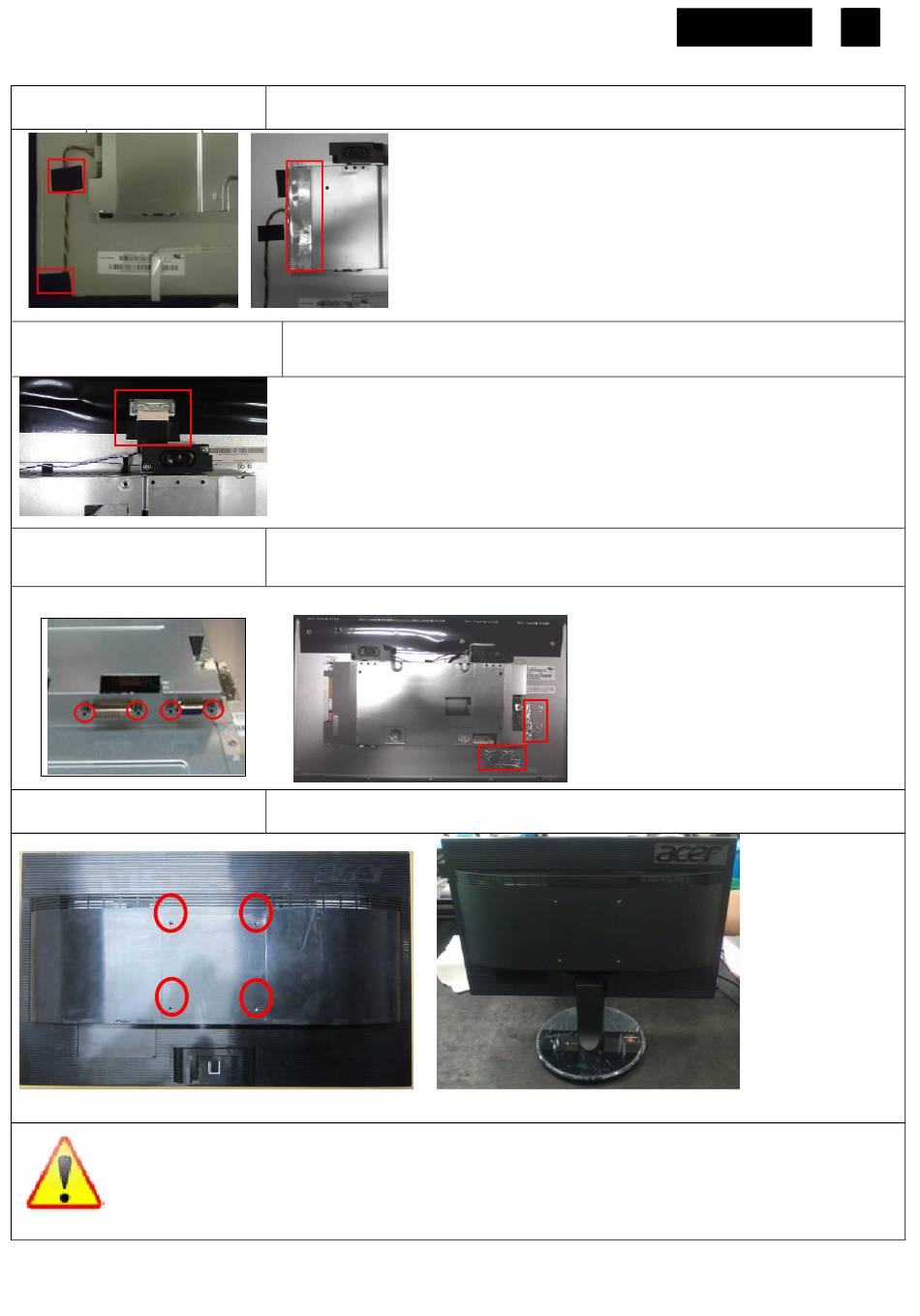

S3
Assemble the lamp wire
S4
Assemble LVDS cable
S5
Assemble SHD
PICTURE 1
S6
Assemble RC, stand and base
NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows. Please
detach the Circuit boards and follow local regulations for disposal.
Insert the big connector of the lamp wire to the P/BD .
Stick 2 tape to fasten the lamp wire and one AL-Tape on SHD as the picture.
LVDS cable
Insert the
Lock the Hexagonal screws as picture 1.
Use jig to put the SHD in correct position on Panel. Take off the jig and stick two AL
tapes as picture 2.
PICTURE 2
Assemble the RC with screw.
Assembly the Stand and the Base to Monitor
to the Panel and stick one tape on LVDS cable.
11
ACER V206HQL
