Acer V206Q Lifecycle Extension Manual

Hide thumbs Also See for V206Q:

Advertisement

Quick Links

Download this manual

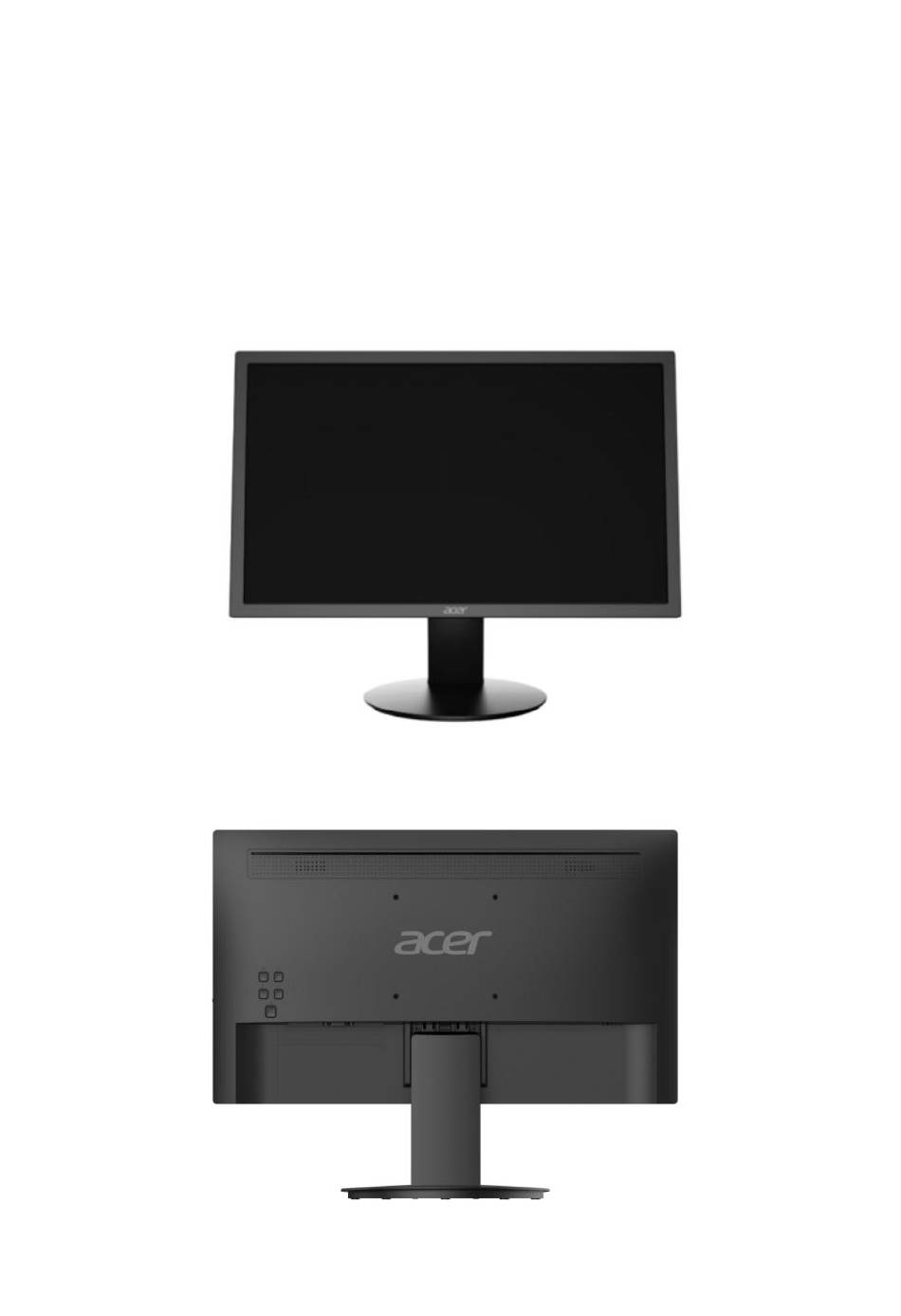

- 1 -
ACER Monitor V206Q
LIFECYCLE EXTENSION
GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the V206Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acer V206Q

Summary of Contents for Acer V206Q

  • Page 1 - 1 - ACER Monitor V206Q LIFECYCLE EXTENSION GUIDE...

  • Page 2: Table Of Contents

    - 2 - Directory 1.Safety Notice ..............- 3 - 2.Exploded Diagram ..............- 4 - 3. Mechanical Instruction ............- 5 - 4. Assembly and Disassembly SOP： ............ - 5 - 5. Troubleshooting ..............- 11 - 6. FW update SOP: ..............- 15 - 7.

  • Page 3: Safety Notice

    - 3 - 1.Safety Notice Any person attempting to service this chassis must familiarize with the chassis and be aware of the necessary safety precautions to be used when serving electronic equipment containing high voltage Important Safety Notice Product Announcement: This product is certificated to meet RoHS Directive and Lead-Free produced definition.

  • Page 4: Exploded Diagram

    Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 4 - — 2.Exploded Diagram 2.1 Material Introduction： Item Rear Mainboard Lens Keycaps Hinge Neck Base Module name Shielding cover...

  • Page 5: Mechanical Instruction

    Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 5 - — 3. Mechanical Instruction 3.1. Online illustration： 3.2. Please turn on factory mode before flashing, as follows: * Please follow the steps defined bellow to enter factory mode: 1) AC off first 2) Keep press “Enter”...
  • Page 6 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 6 - — 4.3. Press the column quick release button, and then separate the base and column. 4.3. R10.3.Remove the three screws as shown Remove the three screws as shown 4.5. Remove the machine along the ground side, remove the machine mouth, then remove the left...
  • Page 7 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 7 - — and right sides, and finally remove the sky side Note：The disassembly knife should not be inserted too deep to avoid damage to the cof, just cut the buckle (approximately 3-4mm depth)
  • Page 8 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 8 - — 4.6. Pull out the backlight cable and screen cable. 4.7. Turn out and remove the front frame clasp 4.8. Remove the screws that lock the mainboard.
  • Page 9 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 9 - — 4.9. To the sky side, remove the IO cover. 4.10. Remove the screws that lock the key cap and Lens and remove them.
  • Page 10 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 10 - — 4.11. Remove the wires from the mainboard.

  • Page 11: Troubleshooting

    Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 11 - — 4.12. Dismantling the machine is complete 1. Module 2. Front frame 3. Rear cover 4. Lens 5. IO cover 6. Key cap 7. Conductive foam 8. Backlight line 9. Screen line 10. Screw Earth lugs 12.Main board 13.Neck 14.
  • Page 12 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 12 - — Issue： possible workarounds The power LED does Make sure the power button is in the open (ON) position and that the power cord not light up is properly connected to ground power Source socket and display.
  • Page 13 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 13 - —...
  • Page 14 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 14 - —...

  • Page 15: Fw Update Sop

    Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 15 - — FW update SOP: 6.1. Display mainboard MSTAR scheme confirmation.Mstar scheme MCU main IC has a circle for MSTAR scheme, the aging menu software name starts with MST and TSUM,As shown in below: 6.2.
  • Page 16 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 16 - — 6.5. The burning board is connected with the display； 6.6. Burning board drive installation procedures； 6.6.1.Click Computer Device Management to install the driver of Mstar USB Debug Tool ；...
  • Page 17 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 17 - —...
  • Page 18 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 18 - — 6.7. MSTAR -ISP burning tool option setting； 6.7.1. Open the MSTAR-ISP burning tool： 6.7.2. Click Device and tick the selection box for "Previous in Flash"...
  • Page 19 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 19 - — 6.7.3. Click Config and select the burning Speed in the column of Speed； 6.7.4. Connect the burning board and computer with USB cable a) As shown in the figure, the USB communication rate indicates that the communication...
  • Page 20 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 20 - — b) As shown in the figure burning board and computer communication failure, USB cable is not connected or burning board bad c) Click Connect, as shown in the figure, the burning upgrade board card and the burning...
  • Page 21 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 21 - — d)This situation indicates that the burning upgrade board card and the burning board, the computer is not online, to detect whether the display board card is on power or signal line is connected well 6.8.
  • Page 22 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 22 - — 6.8.2. Click the "Auto" TAB, then click "Auto", then click "Run" to burn 6.8.3. Burning progress display；...

  • Page 23: The Edid Burning Sop

    Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 23 - — 6.8.4. Display PASS, burning completed； The EDID Burning Sop； 7.1. Select the 【JryTool tool 】and double-click, enter the activation code in the figure on the right, and enter the main interface of Figure 1；...
  • Page 24 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 24 - — 7.2 After entering the Figure 1 interface, click EDID Model Management - Model Management in Figure 2, enter the password "Jry2021", and click OK to enter the Figure 3 interface；...
  • Page 25 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 25 - — 7.3 Click on the bottom left of the Figure 4 interface: Add, enter the currently required model information in the box on the right side of the model name, check the option of "Burn EDID and SN on the left side at the same time", SN barcode length setting: 22 (that is, the total number...
  • Page 26 Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 26 - — Figure 6： 7.7 Before burning, check to confirm that the current model information is complete and correct, connect the signal line to the burning adapter, and then click the mouse cursor to the "input SN"...

  • Page 27: Fru（Field Replaceable Unit）List

    Acer V206Q&MB20S1FO4 Electronic repair instruction manual — - 27 - — FRU（Field Replaceable Unit）list This list is for reference only，please contact Acer local service to order the correct replacement part and availability. Category photograph ACER Description LED LCD Panel HKC 19.5" HD+ TN None...
