Exploded Diagram - Acer V206HQL Manual

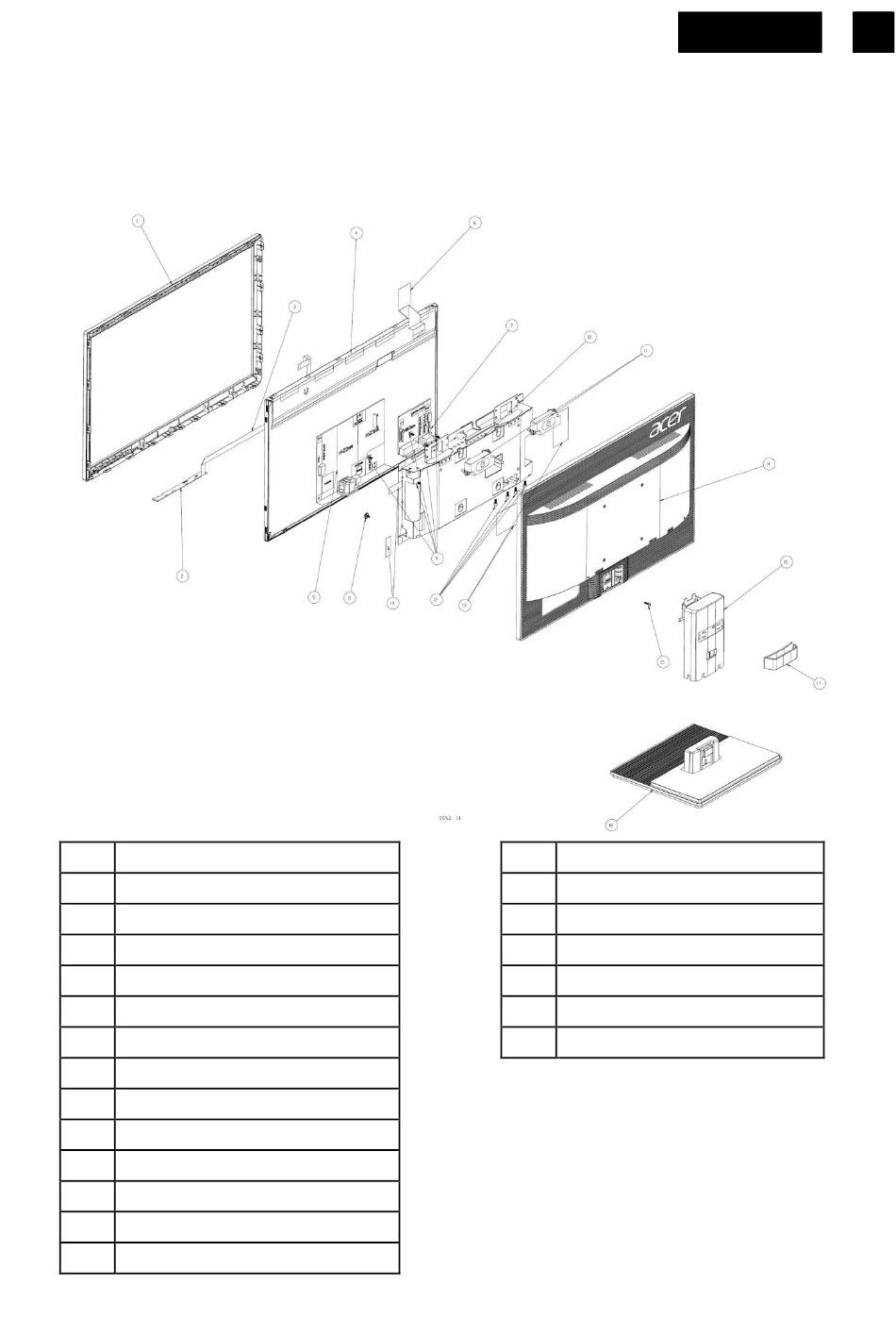

1.1 Product Exploded Diagram
Item ODM DESCRIPTION
1 ASSY BZL
2 PCBA CTRL
3 FFC WIRE
4 LCDM
5 PCB SPS BD
6 FFC LVDS
7 PCB IF BD
8 SCRW
9 SCRW
10 ASSY SHD
11 SPK
12 SCRW
13 TAPE

1. Exploded Diagram

Item ODM DESCRIPTION
14
15
16
17
18
19
ACER V206HQL
ASSY RC
SCRW
ASSY CLMN
CLIP
ASSY BASE
TAPE
4
