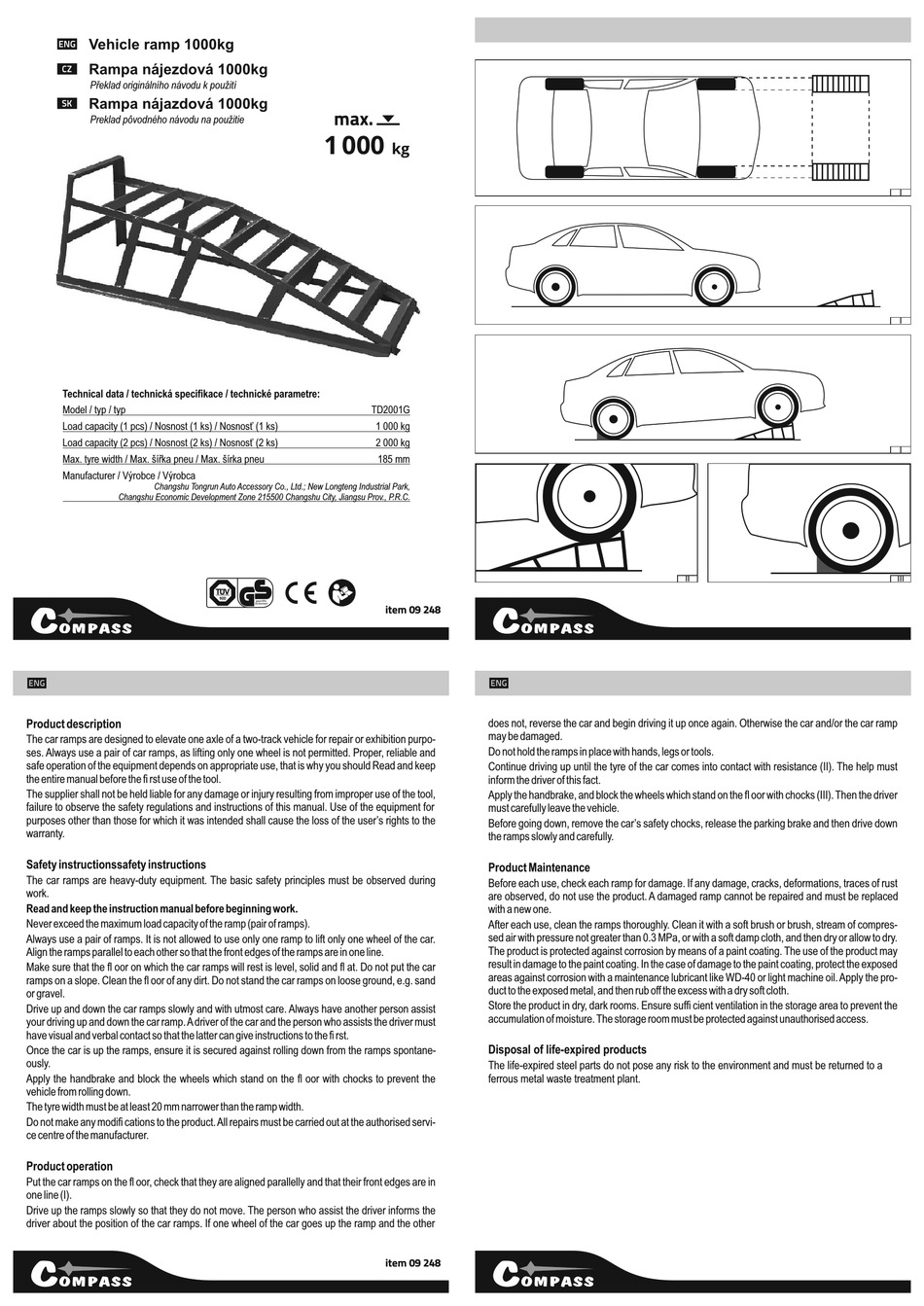

Product description

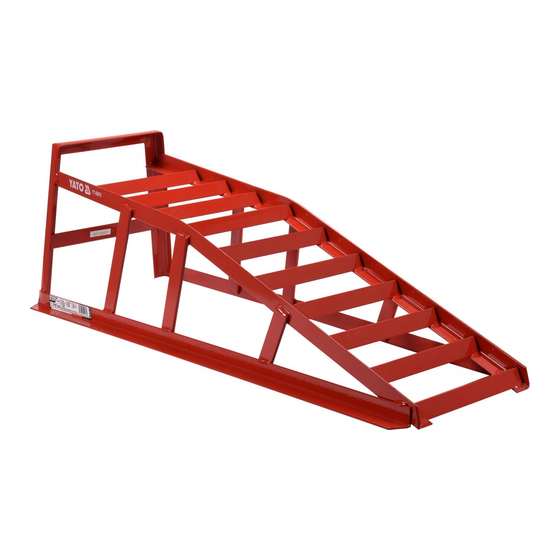

The car ramps are designed to elevate one axle of a two-track vehicle for repair or exhibition purpo-
ses. Always use a pair of car ramps, as lifting only one wheel is not permitted. Proper, reliable and
safe operation of the equipment depends on appropriate use, that is why you should Read and keep
the entire manual before the fi rst use of the tool.
The supplier shall not be held liable for any damage or injury resulting from improper use of the tool,
failure to observe the safety regulations and instructions of this manual. Use of the equipment for
purposes other than those for which it was intended shall cause the loss of the user's rights to the
warranty.
Safety instructionssafety instructions
The car ramps are heavy-duty equipment. The basic safety principles must be observed during
work.
Read and keep the instruction manual before beginning work.
Never exceed the maximum load capacity of the ramp (pair of ramps).
Always use a pair of ramps. It is not allowed to use only one ramp to lift only one wheel of the car.
Align the ramps parallel to each other so that the front edges of the ramps are in one line.
Make sure that the fl oor on which the car ramps will rest is level, solid and fl at. Do not put the car
ramps on a slope. Clean the fl oor of any dirt. Do not stand the car ramps on loose ground, e.g. sand
or gravel.
Drive up and down the car ramps slowly and with utmost care. Always have another person assist
your driving up and down the car ramp. A driver of the car and the person who assists the driver must
have visual and verbal contact so that the latter can give instructions to the fi rst.
Once the car is up the ramps, ensure it is secured against rolling down from the ramps spontane-
ously.
Apply the handbrake and block the wheels which stand on the fl oor with chocks to prevent the
vehicle from rolling down.
The tyre width must be at least 20 mm narrower than the ramp width.
Do not make any modifi cations to the product. All repairs must be carried out at the authorised servi-
ce centre of the manufacturer.
Product operation
Put the car ramps on the fl oor, check that they are aligned parallelly and that their front edges are in
one line (I).
Drive up the ramps slowly so that they do not move. The person who assist the driver informs the
driver about the position of the car ramps. If one wheel of the car goes up the ramp and the other
max.
1 000
kg
TD2001G
1 000 kg
2 000 kg
185 mm
item 09 248
e
does not, reverse the car and begin driving it up once again. Otherwise the car and/or the car ramp
may be damaged.
Do not hold the ramps in place with hands, legs or tools.
Continue driving up until the tyre of the car comes into contact with resistance (II). The help must
inform the driver of this fact.
Apply the handbrake, and block the wheels which stand on the fl oor with chocks (III). Then the driver
must carefully leave the vehicle.
Before going down, remove the car's safety chocks, release the parking brake and then drive down
the ramps slowly and carefully.
Product Maintenance
Before each use, check each ramp for damage. If any damage, cracks, deformations, traces of rust
are observed, do not use the product. A damaged ramp cannot be repaired and must be replaced
with a new one.
After each use, clean the ramps thoroughly. Clean it with a soft brush or brush, stream of compres-
sed air with pressure not greater than 0.3 MPa, or with a soft damp cloth, and then dry or allow to dry.
The product is protected against corrosion by means of a paint coating. The use of the product may
result in damage to the paint coating. In the case of damage to the paint coating, protect the exposed
areas against corrosion with a maintenance lubricant like WD-40 or light machine oil. Apply the pro-
duct to the exposed metal, and then rub off the excess with a dry soft cloth.
Store the product in dry, dark rooms. Ensure suffi cient ventilation in the storage area to prevent the
accumulation of moisture. The storage room must be protected against unauthorised access.
Disposal of life-expired products
The life-expired steel parts do not pose any risk to the environment and must be returned to a
ferrous metal waste treatment plant.
