SEPARATE TYPE
AIR PRESSURE PUMP
USE AND MAINTENANCE MANUAL
⚫ APDS Series for delivery
⚫ APDQS Series for collection

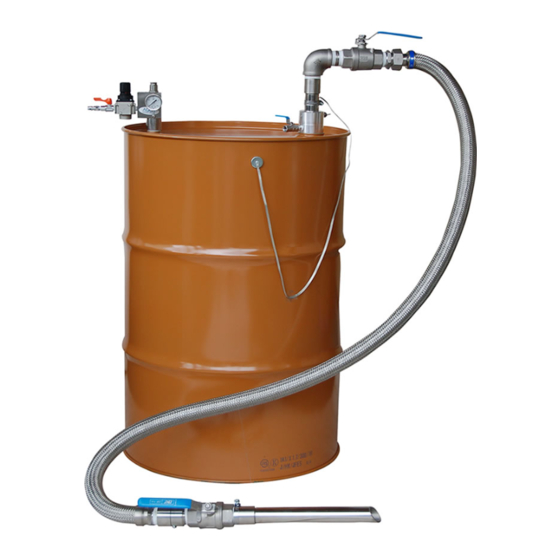

* In the photo: delivery type SUS model.
Contents:
Introduction............................................................................1
Device's Features.....................................................................1
Safety Precautions...................................................................1
Before using the device..........................................................2, 3
Parts Description.....................................................................4
Usage Instruction.....................................................................5
Specifications Table..................................................................6
Troubleshooting.......................................................................6
Pump Models Comparison.........................................................7
Warranty and service................................................................7
Advertisement
Table of Contents
Related Manuals for AQUASYSTEM APDS Series
Summary of Contents for AQUASYSTEM APDS Series
-
Page 1: Table Of Contents
SEPARATE TYPE AIR PRESSURE PUMP USE AND MAINTENANCE MANUAL ⚫ APDS Series for delivery ⚫ APDQS Series for collection * In the photo: delivery type SUS model. Contents: Introduction………………………………………………………………….1 Device’s Features……………………………………………………………1 Safety Precautions………………………………………………………….1 Before using the device………………………………………………….2, 3 Parts Description……………………………………………………………4 Usage Instruction…………………………………………………………...5... -
Page 2: Introduction
This is the end to your troubles with liquid transfer. Enjoy the safety and convenience of our product, but first, please read this manual carefully and refer to it whenever necessary, AQUASYSTEM CO., LTD. DEVICE’S FEATURES: It’s an innovative type with two separate components: regulating and delivery part ⚫... -
Page 3: Before Using The Device
Please use drum cans with sheet thickness of at least 1.2 mm and: smaller inlet’s diameter: Ø3/4'' ⚫ (approx. 20 mm); bigger inlet’s diameter: 2'' (approx. 50 mm). APDS Series users should use pressure lower than 1 MPa. ⚫ APQS Series users should use pressure lower than 0.7 MPa. - Page 4 Use an air dryer especially when transferring liquids, which should not come in contact with water. Firmly hold the hose and the nozzle ⚫ The delivery flow (APDS Series) is very strong, especially when transferring low viscosity liquids. Hold the hose and the nozzle firmly. Remember to close the air valve.
-
Page 5: Parts Description
PARTS DESCRIPTION [The delivery part] COMPRESSED AIR LINE COMPOMENTS DESCRIPTION. Setting up the regulator (ONLY IF DEREGULATED). The regulator is preset. At compressor’s 7.0 kgf/cm drum can’s inner pressure is stabilized to 0.5 kgf/cm2 (which equals 2.5 handle rotations from a ‘closed’ state). The pressure regulator’s handle is locked. -
Page 6: Usage Instruction
USAGE INSTRUCTION Fix the adapter firmly to drum can’s larger ajutage (outlet, G2). [Drawing 1] ① Release the Push Screw and insert the pipe into the adapter until you can’t ② insert it any further. [Drawing 1] Manually tighten the Push Screw. [Drawing 1] ③... - Page 7 SEPCIFICATIONS TABLE APDS Series (for delivery) Materials: Materials: Pressure Materials: Materials: Hose Model Permitted Liquids Delivery Parts Increasing Parts Packing (Diameter/length) Chemicals, APDS-25SUS ø SUS ( 25/2 m) Solvents ⚫ APDS-25 SUS (Sanitary Sanitary Liquids Teflon Teflon ø ⚫ ⚫...
-
Page 8: Troubleshooting
TROUBLESHOOTING If the pump operates in a strange manner, immediately turn it off and carefully read the troubleshooting section below: APDS Series (for delivery) Symptom Make sure that… The liquid is not delivered at all. The compressor is properly connected to the pump. -
Page 9: Pump Models Comparison
PUMP MODELS COMPARISON APDS Series (for delivery) Max delivery rate (l/min) Model 1 cP 100 cP 500 cP 1000 cP 3000 cP 4000 cP APDS-25SUS APDS-32SUS APDS-25 (Sanitary) APDS-32 (Sanitary) APDS-32 (Aluminum) APDQS Series (for collection) Max suction rate (l/min) -
Page 10: Warranty And Service
The product’s breakdown has been reported within 12 months from the date of purchase, but: ② The product has been misused. ⚫ The product has been repaired/serviced, however, not by AQUASYSTEM. ⚫ The product has not been stored or maintained properly. ⚫...
