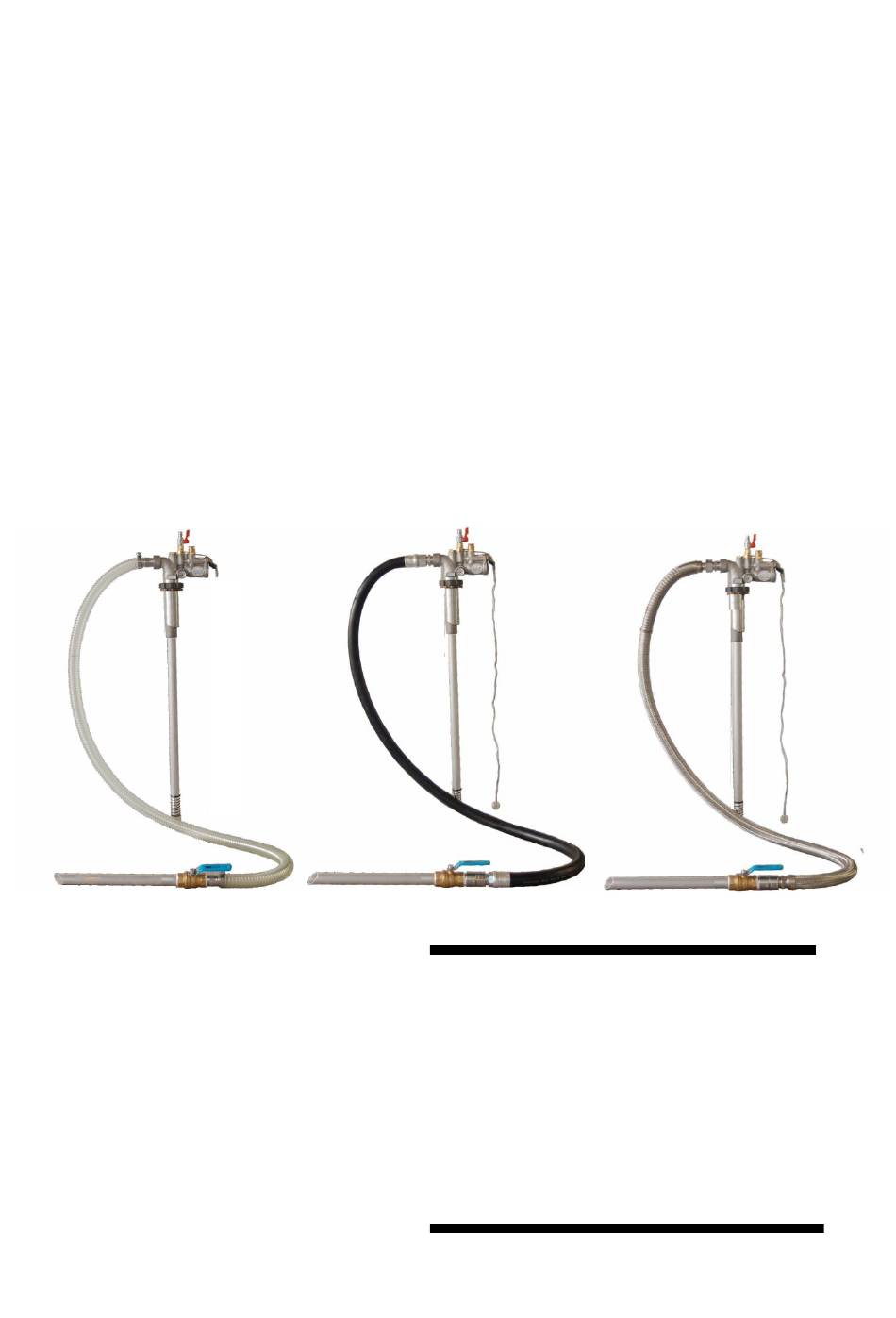

Air Pressure Pump for Drum Can Application
Operation Manual
■
APDX1-25
■
APDX1-25G
■
APDX1-25AS
Sucking/ Discharging Applications
Contents
For Safety： ................................................... 1
Important Points before the use： ............... 1
Name of Each Part： ..................................... 4
How to use： .................................................. 5
In the below case happens, ........................... 7
Specifications･Performance： ...................... 8
Performance Curving Graph： ..................... 8
External Drawing & Parts List： ................. 9
Assurance･After Service： .......................... 15
Ver0.0
Advertisement
Table of Contents
Related Manuals for AQUASYSTEM APDX1-25
Summary of Contents for AQUASYSTEM APDX1-25
-
Page 1: Table Of Contents
Air Pressure Pump for Drum Can Application Operation Manual ■ APDX1-25 ■ APDX1-25G ■ APDX1-25AS Sucking/ Discharging Applications Contents For Safety： ........... 1 Important Points before the use： ....1 Name of Each Part： ........4 How to use： ..........5 In the below case happens, ...... -
Page 2: For Safety
For Safety： This Manual covers important points for safe and correct operation. ・ We request all the users/dealers/distributors to read this Manual carefully and understand correctly, before this product is used (Incorrect operation may result in troubles and/or accident.) ・ Be noted to keep this Manual properly, so that Manual can be immediately read at any time, whenever needed. - Page 3 Warning ････････････････････････････････････････････････････････････････････････････････････････････ ・ Operate at safe place only. Operate at safe place only, where no infants/children play. Keep watching while operated. ････････････････････････････････････････････････････････････････････････････････････････････ ・ Contact a doctor Whenever the operator feels uncomfortable during the operation, immediately contact a doctor. ････････････････････････････････････････････････････････････････････････････････････････････ ・ Wear the protectives Always wear the protectives, according to the liquid manual.
- Page 4 Recommendable air-filter Model: CKD F1000-8-W (at your request) ････････････････････････････････････････････････････････････････････････････････････････････ ・ APDX1-25 is the product for indoor operation only. In case this product is used outside, be sure to apply the cover to protect wind and/or rain, or keep in a hut.
-
Page 5: Name Of Each Part
Name of Each Part： Air Hose Air Valve Ejector Safety Valve Lever for changing Hose (Discharging/Sucking)) （吐出・吸入） Pressure Gauge Pressing Nut Adapter for a drum can Floating Ball Sucking Pipe Magnet Grounding type Attached to G & AS Ball Valve For discharging &... -
Page 6: How To Use
How to use： ① Firmly fix adapter (for drum can) to the mouth piece(G2) on a drum can. (Apply the attached special tool） ② Firmly fix sucking pipe into adapter, and keep pushing downward until it stops. (Apply the attached special tool) ③... - Page 7 Photo-2 Switch Lever For discharging(OUT) For sucking(IN) Maintenance & Inspection： ⚫ Strainer is placed in air-valve for cleaning the clogged rubbish. Hexagon Socket Set Screw Photo-3 （Black）φ2 You can replace with hex wrench attached (Hex Width Across Flats: 4mm) Hexagon Socket Set Screw Strainer is placed in air valve.
-
Page 8: In The Below Case Happens
In the below case happens, During the operation, when any unusual case happens, immediately stop the operation. Please carefully check, in any of the below cases happens. In case of "Discharging (OUT)", If any foreign material is clogged in sucking pipe or hose. If the compressed air is firmly connected. -
Page 9: Specifications･Performance
Specifications･Performance： Sucking Lifting Used Max. Discharging Volume (L/min.) Volume Height (m) Model (L/min.) liquid 500cP 1,000cP 3,000cP 1 cP Pure Water APDX1-25 100.0 45.0 20.0 80.0 Kerosene, APDX1-25G Light Oil, 70.0 25.0 10.0 50.0 Gasoline APDX1-25AS Solvent 70.0 25.0 10.0 50.0... -
Page 10: External Drawing & Parts List
External Drawing & Parts List： Model： 【APDX1-25】... - Page 11 “○”means “The replacement parts can be supplied. 【Note】 ⚫ Each part of former APDX-25 is not exchangeable. ⚫ In case replacement part is required, please let us know this model name (APDX1-25), Mfg. Serial No., the purchase date (with receipt).
- Page 12 Model： 【APDX1-25G】...
- Page 13 “○”means “The replacement parts can be supplied. 【Note】 ⚫ Each part of former APDX-25G is not exchangeable. ⚫ In case replacement part is required, please let us know this model name (APDX1-25G), Mfg. Serial No., the purchase date (with receipt).
- Page 14 Model： 【APDX1-25AS】...
- Page 15 “○”means “The replacement parts can be supplied. 【Note】 ⚫ Each part of former APDX-25AS is not exchangeable. ⚫ In case replacement part is required, please let us know this model name (APDX1-25AS), Mfg. Serial No., the purchase date (with receipt)
-
Page 16: Assurance･After Service
Contact the below for any question/request on the repair or after-service within assurance period. For any question or question on repairs, after service during warranty period, Please contact the below, our distributors or our agents. 《Customer Service》 AQUASYSTEM Co., Ltd. Tel ＋81 (0) 749-47-5215...
