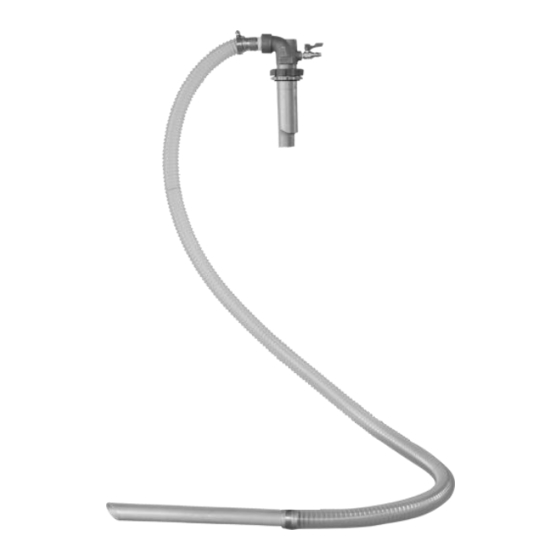

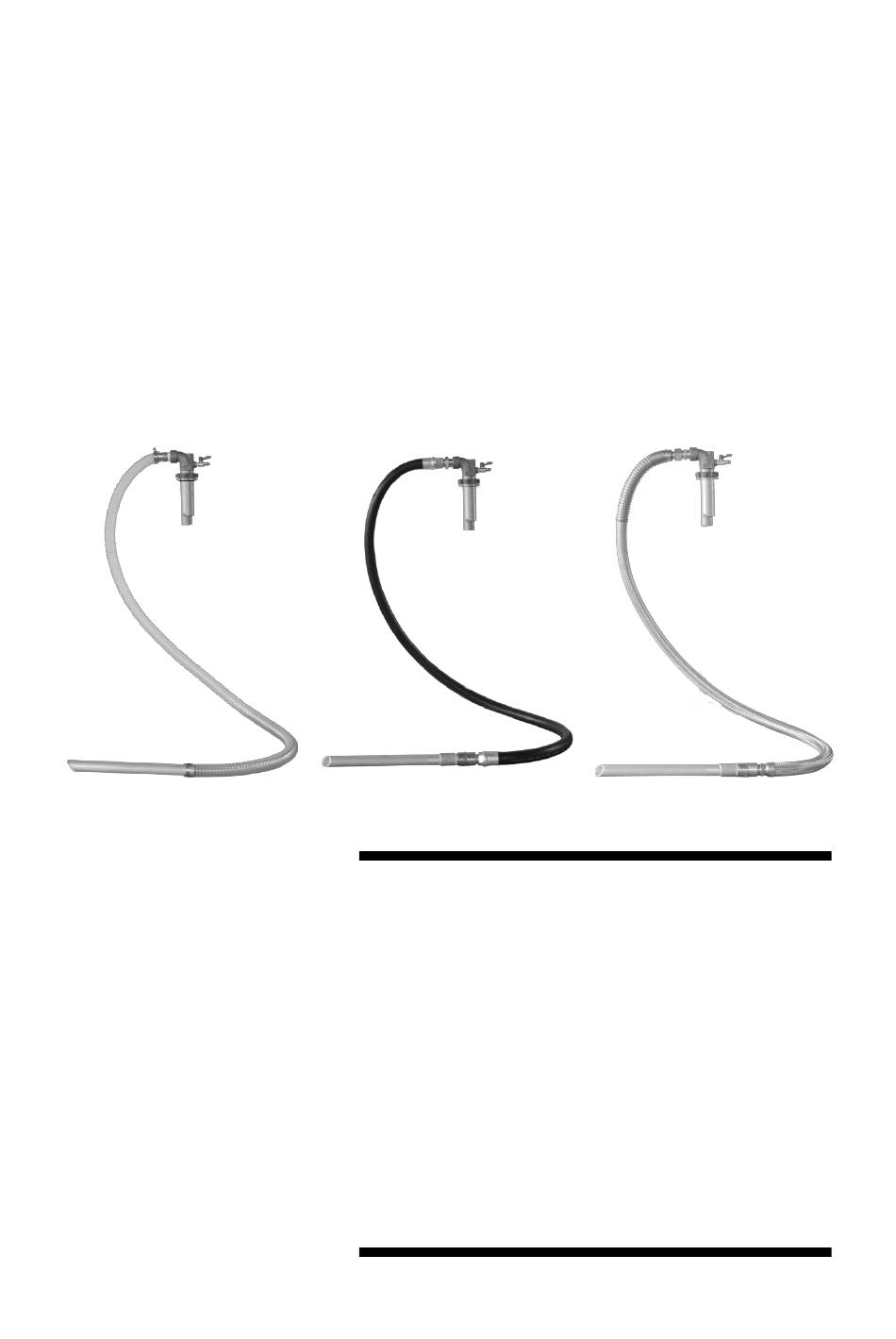

Air Vacuum Pump for Drum Cam Manual Operation ■ APDQ1-25 ■ APDQ1-25G ■ APDQ1-25AS Contents For Safety： ..............1 Important Points Before The Use： ......1 Name Of Each Part： ............ 4 How To Use： ..............5 Maintenance･Inspection： ........... 6 In The Below Case Happens, ........ -
Page 2: For Safety
For Safety： This Manual covers important points for safe and correct operation. ⚫ We request all the users/dealers/distributors to read this Manual carefully and understand correctly, before this product is used (Incorrect operation may result in troubles and/or accident.) ⚫ Be noted to keep this Manual properly, so that Manual can be immediately read at any time, whenever needed. - Page 3 ････････････････････････････････････････････････････････････････････････････････ ⚫ This Pump is designed for a drum pump. Do not use for any other applications than a drum pump. ⚫ The used drum pump should be higher grade than No.1-M Class, or No.2-H class specified in JIS (Japan Industrial Standard). If not, a drum can may be damaged or exploded by too strong air pressure.
- Page 4 (separately sold) etc. Recommendable air-filter Model: CKD F1000-8-W (at your request) ⚫ APDQ1-25 is the product for indoor operation only. In case this product is used outside, be sure to apply the cover to protect wind and/or rain, or keep in a hut.
-
Page 5: Name Of Each Part
Name Of Each Part： Ejector Air Valve Valve Air Hose Pressing Nut Adapter for drum can Hose Floating Ball Magnet Ground attached to G & AS types tuytytypesTy tytty pes type only oon;y Sucking Pipe (Nozzle) -
Page 6: How To Use
How To Use： ① Firmly fix adapter (for drum can) to the mouth piece(G2) on a drum can. （Apply the attached special tool） ② Firmly fix pressing nut. (Apply the attached special tool) ③ Seal ventilation mouth on a drum can (Smaller mouth placed on a top plate). Connect the air hose from compressor to air valve(20PM) ④... -
Page 7: Maintenance･Inspection
Maintenance･Inspection： ・Strainer is placed in air valve, and you can use to clean, when any rubbish is clogged. Hexagon Socket Set Screw Photo-1 （Black）φ2 You can replace with hex wrench attached (Hex Width Across Flats: 4mm) Hexagon Socket Set Screw Strainer is placed in air valve. -
Page 8: In The Below Case Happens
In The Below Case Happens, In case anything abnormal is found during the operation, immediately stop the operation, and inspect carefully, according to our below advice. If anything is clogged in sucking pipe, hose etc.? No sucking If the compressed air is surely connected? at all If the drum can is completely sealed? If the drum can or hose is not damaged? -
Page 9: Specifications･Performance
Specifications･Performance： Suction Volume Lifting Height(m) Models The used liquid (L/min.)at 1cP for pure water APDQ1-25 Kerosene・Light Oil・Gasoline APDQ1-25G APDQ1-25AS Adhesive Agent Materials Weight Compressor Main Hose Models Floating Body, Packing Adapter (Length･ (kg) Power Ball Nozzle Inner Dia.) APDQ1-25 (2m･φ32) -
Page 10: External Drawing･Parts List
External Drawing･Parts List： Model： 【APDQ1-25】... - Page 11 “○”means “The replacement parts can be supplied. 【Note】 ⚫ Each part of former model APDQ-25 is not exchangeable. ⚫ In case replacement part is required, please let us know this model name (APDQ1-25), Mfg Serial No., the purchase date (with receipt).
- Page 12 Model Name： 【APDQ1-25G】...
- Page 13 “○”means “The replacement parts can be supplied. 【Note】 ⚫ Each part of former model APDQ-25G is not exchangeable. ⚫ In case replacement part is required, please let us know this model name (APDQ1-25G), Mfg. Serial No., the purchase date (with receipt).
- Page 14 Model： 【APDQ1-25AS】...
- Page 15 “○”means “The replacement parts can be supplied. 【Note】 ⚫ Each part of former model APDQ-25AS is not exchangeable. ⚫ In case replacement part is required, please let us know this model name (APDQ1-25AS), Mfg. Serial No., the purchase date (with receipt).
-
Page 16: Assurance･After Service
Assurance･After Service： Thank you for choosing our product. Our product is produced strictly under our regulations and quality control. However, if any of the Defects, related with our production processes, is found, our assurance Covers, according to the below limitation. 1.
