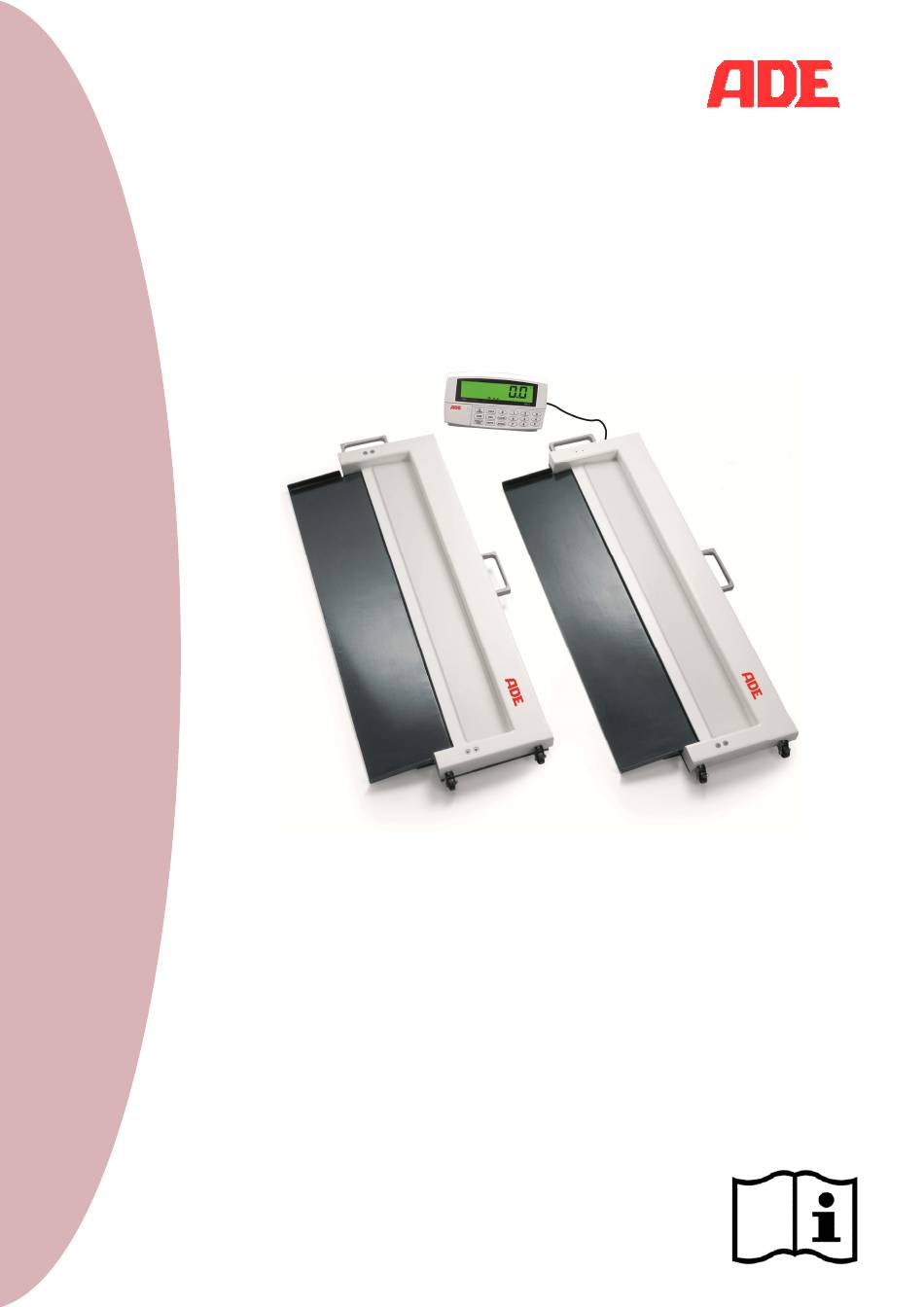

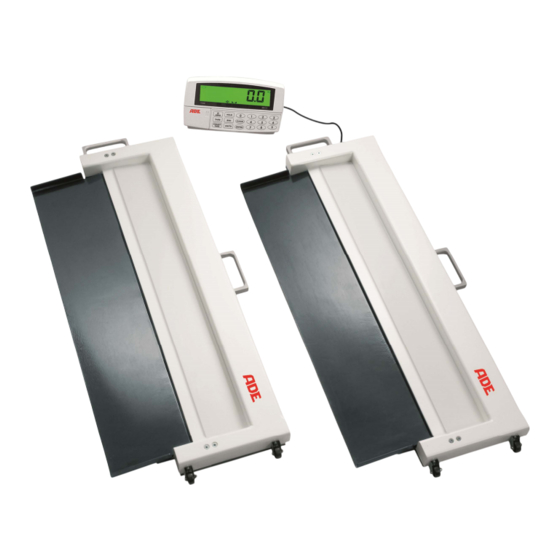

- Page 1 Operating Manual Class III Approved Scales Electronic Bed Scale M601020 M601020-210322-Rev009-UM-e...
-
Page 2: Table Of Contents
Print out a record ......................... 9 Care, servicing and recalibration ......................9 Cleaning ..........................9 Error messages ........................9 Waste disposal ........................10 Storage and transport conditions ..................10 Warranty ..........................10 Recalibration ........................10 Technical specifications ........................11 Conformity declaration ........................12 M601020-210322-Rev009-UM-e... -
Page 3: Introduction
ADE representative or visit our web page at www.ade-hamburg.de Assembly and set up The ADE bed scale is supplied in a fully assembled condition. Please insure that your scale is being placed vibration-free at a dry place. Dismantle packaging and foil carefully and remove the transport securing devic- es. -
Page 4: Replacing The Rechargeable Battery
3) Close the battery compartment again. Only use original rechargeable batteries and charger units from ADE. The warranty does not cover any dam- age caused by using other types of batteries or charger units. -
Page 5: Display
If displayed is the weight is displayed in grams “g” Connecting additional devices Printer, PC or remote-display could be connected by the RS-232 interface. For connection of additional devic- es kindly ask your local representative or authorized ADE dealer for further instructions. M601020-210322-Rev009-UM-e... -
Page 6: Housing And Connections
Housing and connections The connections to mains adapter, serial port and to the load cells are located at the back of the ADE display. The set-up switch to start the configuration mode is underneath the housing. It is protected by a cover plate and secured by a screw (not shown in Fig. -
Page 7: Setting Date And Time
The "weighing mode" is of course the standard mode of your scale. After initial configuration and sealing (by attaching a calibration sticker to the back of the unit), the ADE-scale can only be operated in this mode. Setting mode Date, time and consecutive numbers for print commands are being set in this mode. -
Page 8: Weighing
Enter the appropriate tare value just by using the key pad under normal weighing mode. The value will be stored after use of the ENTER key (or TARE). The ADE-display is now ready for weighing and changes to net mode [NET status indicator (5) is on]. -
Page 9: Determining The Body Mass Index (Bmi)
AD HI Check if the scales are correctly as- A/D above positive range sembled or if they are damaged. EE SUM Recalibrate – please contact your sup- Parameter or calibration error plier or service partner: M601020-210322-Rev009-UM-e... -
Page 10: Waste Disposal
Disconnect all connected cables before dispatch. Warranty ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects oc- curred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts – bat- teries, cables, mains units, rechargeable batteries etc. -
Page 11: Technical Specifications
Operating Temperature –10 to +40°C (legal); Storage Temperature –25 to +70°C Humidity 0–95% relative humidity Altitude 2000 m (6500 ft) maximum Housing Dimensions 18.6 cm x 9.5 cm x 10 cm Weight 0.4 kg (without battery) Material ABS plastic, white M601020-210322-Rev009-UM-e... -
Page 12: Conformity Declaration
RoHS Directive 2011/65/EC in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, March 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH... - Page 13 M601020-210322-Rev009-UM-e...
- Page 14 M601020-210322-Rev009-UM-e...
- Page 15 M601020-210322-Rev009-UM-e...
- Page 16 Dealer: M601020-210322-Rev009-UM-e...
