Summary of Contents for TKH 792

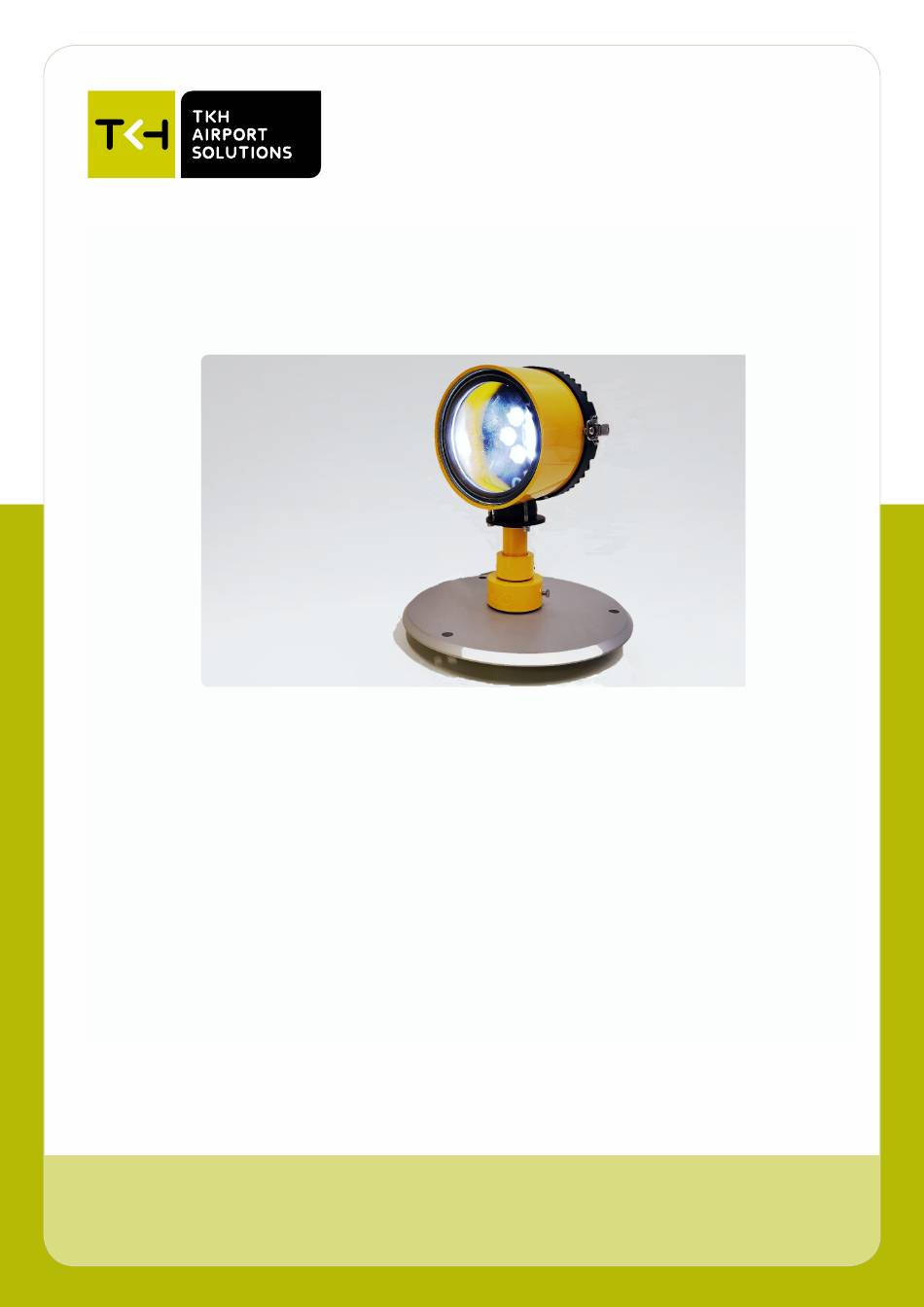

- Page 1 Installation and Maintenance Instructions Elevated Light - type 792 LED AGL 03-71079 Airfield Ground Lighting V2.0...
- Page 2 TKH Airport Solutions 2022 All rights reserved for TKH Airport Solutions. No part of this publication may be reproduced, modified, stored in a retrieval system, or transmitted, by any means or in any form without the written permission of the copyright owner.
-
Page 3: Table Of Contents
6.3.3 Replacing the Complete LED Light Unit..................15 7 Adjustment..........................17 7.1 Directional Alignment of Elevated Fixtures..................18 7.2 Operation............................. 20 8 More Information........................23 Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved. -
Page 4: About This Manual
The safety of any system incorporating the LED AGL Elevated Light - type 792 is the responsibility of any site installation, commissioning, maintenance, and operational personnel using the system. -
Page 5: Terms And Abbreviations
P.O. Box 236 Telephone: +31 (0)53 5741456 7483 PG Haaksbergen 7480 AE Haaksbergen info@tkh-airportsolutions.com The Netherlands The Netherlands http://www.tkh-airportsolutions.com For service requests, please contact the TKH Airport Solutions Customer Service department service@tkh- airportsolutions.com Document Information Name : 05_LED_AGL_Elevated_Light_Type_792_03-71079 Version : V2.0 Language : English (Original manual) For the latest version of this document see https://www.tkh-airportsolutions.com/airfield-products/ or scan:... -
Page 6: Safety Instructions
Use of this equipment in ways other than described in the datasheet and this manual may result in personal injury, death, or property damage. TKH Airport Solutions cannot be held responsible for injuries or damage resulting from non-standard, unintended application of its equipment. This equipment is designed and intended only for the purpose described in this manual. -
Page 7: Installation
Failure to follow these safety procedures can result in personal injury or death. • Allow only qualified personnel to install TKH Airport Solutions and auxiliary equipment. Use only approved equipment. Using unapproved equipment in an approved system may void agency approvals and will void the warranty. -
Page 8: Action In The Event Of A System Or Component Malfunction
Allow only qualified personnel to make repairs. Repair or replace the malfunctioning component according to instructions provided in its manual. Allow only qualified personnel to perform maintenance, troubleshooting, and repair tasks. Only persons who are properly trained and familiar with TKH Airport Solutions equipment are permitted to service this equipment. -
Page 9: General Recommendations
Failure to earth the base correctly will void the warranty for all damages occurring as a result of voltage surges. Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 ©... -
Page 10: About The Elevated Light - Type 792
About the Elevated Light - type 792 TKH Airport Solutions 792 light fixtures are constructed mainly by using standard components from TKH Airport Solutions standard program of elevated fixtures. The light system can easily be adjusted for toe-in and elevation (see Adjustment on page 17). -
Page 11: Accessories
178.486-06 Ext. cable 250 mm, Fail Open 207.938-00 Adjustment fixing assembly 790021+790022+P-902841 Accessories Optional accessory: • 792.119 - Adjustment kit Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved. -
Page 12: Installation
Mount the light assembly using the breakable coupling. Tighten the screws on the breakable coupling using a torque wrench. Adjust the elevation and toe-in of the light using the TKH Airport Solutions adjustment tool kit 792.119. See Adjustment on page 17. -
Page 13: Maintenance
The light assemblies are delivered fully tested and sealed. In case of malfunctioning during the warranty period, the defective light shall be shipped back to TKH Airport Solutions without opening it. Any attempt to open the light during the warranty period will void the warranty. -
Page 14: Changing The Front Glass
The hole in the rim (a) must be covered by the spring (b). Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved. -
Page 15: Replacing The Complete Led Light Unit
Unplug the power supply cable from the LED light unit. Disconnect the earth wire from the LED light unit. Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved. - Page 16 Insert the new LED light unit into the yellow housing. Close the spring locks. Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved.
-
Page 17: Adjustment
Alignment telescope tool kit 792.118 (including mounting accessories) Never look at the sun through the optical sights - it may permanently damage your eyes. Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved. -
Page 18: Directional Alignment Of Elevated Fixtures
Adjust the elevation by inserting the upper blue cable pin into the hole for the required vertical angle. Mount the telescope kit: Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved. - Page 19 Figure 2: Toe-in plate labelled with 0°, +/- 2°, +/- 3°, and +/- 3.5° The figures show examples of toe-in: Toe-in 0° Toe-in 2° left Toe-in 2° right Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved.
-
Page 20: Operation
Aim the vertical center line of the telescope reticle at the center of the next fixture in the row. Figure 3: Aim for the next fixture in the row Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 ©... - Page 21 At the fixtures furthest away from the runway, turn the rifle scope 180°, or follow Method 2. Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved.
- Page 22 Dismount the telescope by loosening the butterfly nut. Replace the dust cap and store the device in its case in a clean and dry environment. Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 © TKH Airport Solutions 2022. All rights reserved.
-
Page 23: More Information
For technical data refer to the datasheet for your product at https://www.tkh-airportsolutions.com/airfield- products/ or scan: • If you have any questions about installation or maintenance, please contact TKH Airport Solutions Customer Service on service@tkh-airportsolutions.com. Installation and Maintenance Instructions - LED AGL Elevated Light - type 792 ©... - Page 24 Company profile: TKH Airport Solutions is an innovator in airfield ground lighting, offering a complete range of LED AGL products. We build upon the know-how from a long and successful tradition of pioneering developments in the AGL and connectivity industry. Being part of the TKH Group, our company can build on a history of more than 90 years in smart connectivity, energy distribution and AGL.
