Summary of Contents for Thermo Scientific NAPCO 6506

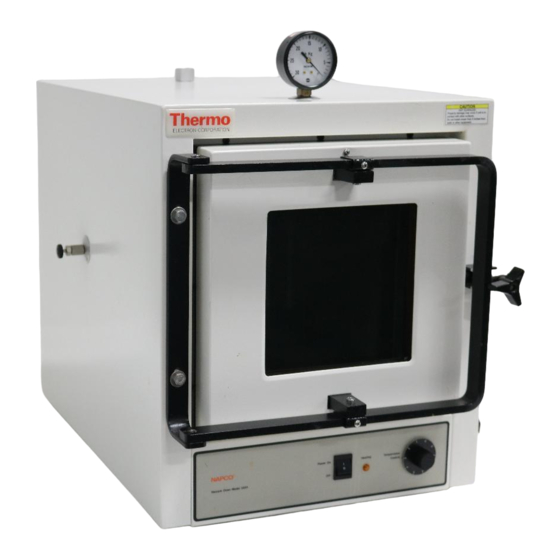

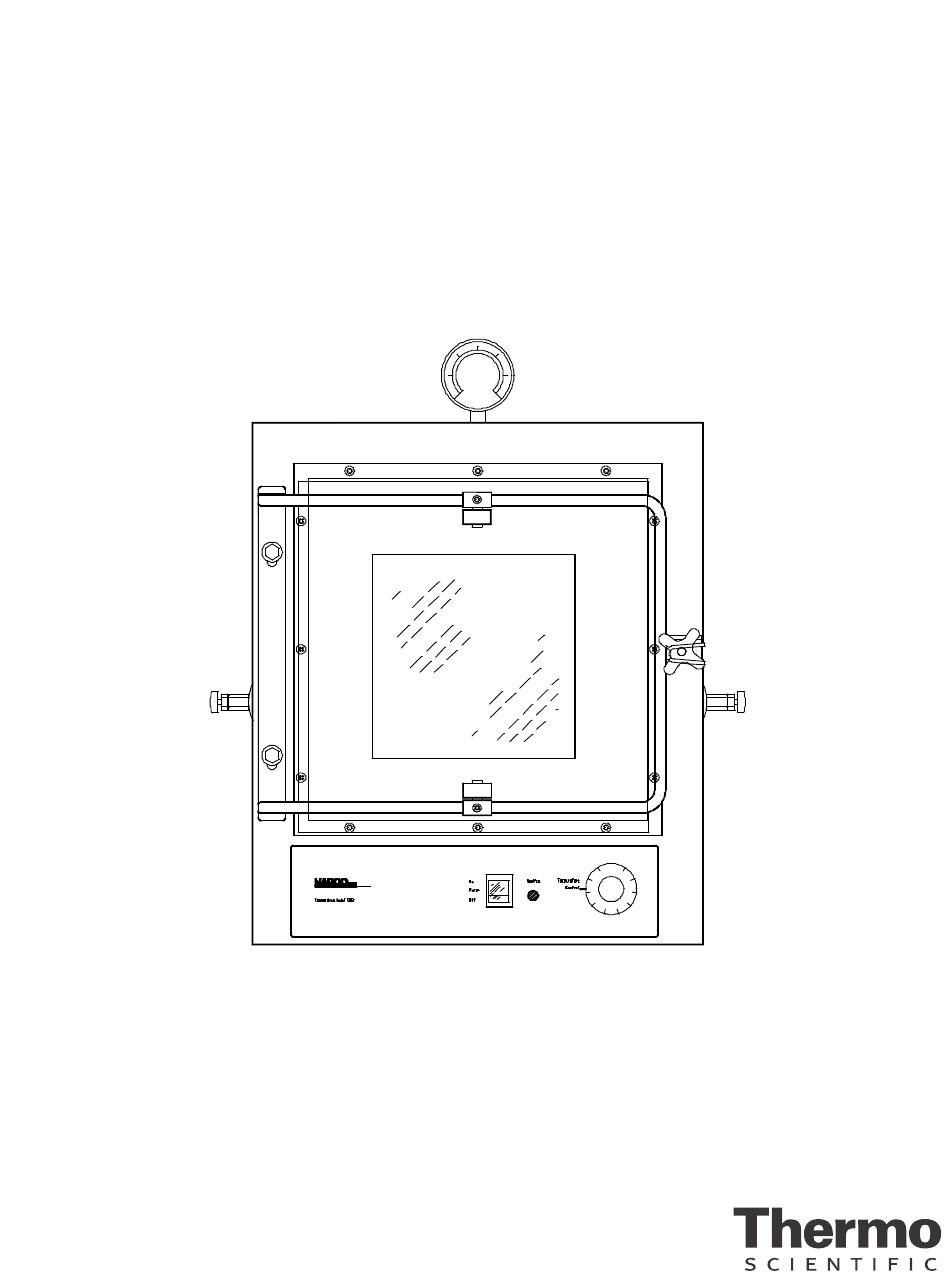

- Page 1 Operator's Manual ® NAPCO Vacuum Oven Model 6506/6507 (5851) Thermo Fisher Scientific 401 Millcreek Road, Box 649 Marietta, Ohio 45750 USA Phone: 740-373-4763 Toll Free: 800-438-4851 FAX: 740-373-4189 Manual P/N 3177872 Rev. G Dated 09NOV12...
- Page 2 NOTICE THE MATERIAL IN THIS MANUAL IS FOR INFORMATION PURPOSES ONLY. THE CONTENTS AND THE PRODUCT IT DESCRIBES ARE SUBJECT TO CHANGE WITHHOUT NOTICE. THERMO FISHER SCIENTIFIC MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THIS MANUAL. IN NO EVENT SHALL THERMO BE LIABLE FOR ANY DAMAGES, DIRECT OR INCIDENTAL, ARISING OUT OF OR RELATED TO THE USE OF THIS MANUAL.
- Page 3 REVISION STATUS INDEX DATE AMENDED PAGES NOTES 6/99 Initial release Update parts list for new kit #'s 9/99 4/05 36100107 (34000728) manual #, manufacture location 6/06 ECR 23496 updated elec specs to UL report 9/09 25769/OV-321 Corrected 3174760 to 3175318 sw 11/10 Align correct part numbers in parts list 11/12...
-
Page 4: Table Of Contents
Contents Introduction ........................1 Unpacking and Damage ..................... 1 Installation and Adjustment ....................2 Specifications ........................2 Explanation of Controls ..................... 3 Temperature Adjustment ....................4 Vacuum Operation ......................4 Periodic Maintenance ......................5 Door Gasket Compatibility (Chart)................... 6 Maintenance of Stainless Steel ..................7 Replacement Parts List.................... -
Page 6: Introduction
INTRODUCTION UNPACKING AND DAMAGE Your satisfaction and safety are important to Save all packing material until unit is put into Thermo and a complete understanding of this unit service. This merchandise was carefully packed is necessary to attain these objectives. and thoroughly inspected before leaving our factory. -
Page 7: Installation And Adjustment
possible, but avoid direct contact with chamber INSTALLATION AND ADJUSTMENT floor. Avoid placing items directly on chamber floor. Insert the shelf clips into the shelf standards. NOTE Place shelves in chamber with lip up. REFER TO THE PACKING CHECKLIST FOR THE LIST OF ACCESSORIES SENT WITH THIS UNIT. -
Page 8: Explanation Of Controls
Vacuum Gauge - Indicates chamber vacuum EXPLANATION OF CONTROLS (in inches of mercury). Control and Indicator Description Hose Connections - Used for connecting minimum 1/4" vacuum tubing between oven Power Switch - Applies power to the oven and vacuum pumping systems, or other heater controls. -
Page 9: Temperature Adjustment
TEMPERATURE ADJUSTMENT Vacuum Sealing Agents High vacuum silicone grease is often necessary Apply power to the unit by pressing the power to provide a proper seal at tubing connections, switch to "On". Turn the Temp. Control knob fully valve connections, door seals, etc. This is clockwise. -
Page 10: Periodic Maintenance
The oven is equipped with silicone door PERIODIC MAINTENANCE gaskets, unless specified otherwise. Do not use silicone door gaskets or vacuum grease If the oven fails to maintain set temperature, it when evaporating solvents in the oven or may indicate a problem with the Temp. when using high analine point oils. -
Page 11: Door Gasket Compatibility (Chart)
DOOR GASKET MATERIAL COMPATIBILITY GUIDE Nitrile (Buna N) Fluorocarbon (Viton) Silicone General Continuous High Temperature Limit 257°F, 125°C 437°F, 225°C 482°F, 250°C Low Temperature Capacity -67°F, -55°C -40°F, -40°C -103°F, -75°C Dynamic Service/Abrasion EXCELLENT VERY GOOD POOR Resistance Compression Set Resistance VERY GOOD VERY GOOD EXCELLENT... -
Page 12: Maintenance Of Stainless Steel
IMPORTANT MAINTENANCE OF STAINLESS IF IT IS NECESSARY TO USE THE FOLLOWING STEEL CHEMICALS, LIMIT THE EXPOSURE TIME TO A WARNING MAXIMUM OF FOUR HOURS. CLEAN SURFACES UNIT MUST BE DISCONNECTED FROM POWER IMMEDIATELY AFTER USE. SOURCE PRIOR TO SERVICING. IT RECOMMENDED THAT ALL SERVICE BE Citric Acid (Boiling) Mercury Salts St-... - Page 13 The use and disposal of these chemicals may be Always follow the manufacturer's instructions. regulated by your local municipality. Consult the regulations before disposing of these materials. Chamber Disinfecting Bathroom tub and tile cleaners. Available at Materials known to be effective in disinfecting are: supermarkets.
- Page 14 MAINTENANCE OF STAINLESS STEEL (CONT.) The following chart is provided as a guide to cleaning the interior surface of your vacuum oven. EFFECTIVE METHODS FOR CLEANING STAINLESS STEEL Cleaning Agent * Method of Application** Effect on Finish Routine Cleaning Soap, or ammonia, or Sponge with cloth, then rinse Satisfactory for use on all detergent and water.
- Page 15 EFFECTIVE METHODS FOR CLEANING STAINLESS STEEL (cont.) Cleaning Agent * Method of Application** Effect on Finish Heat Tint or Heavy Penny-Brite or Copper-Brite. Rub with dry cloth. Use in direction of polish Discoloration lines on No. 4 (polished) finish. May scratch No. 2 (mill) and Nos.
-
Page 16: Replacement Parts List
REPLACEMENT PARTS LIST Model 5851 Vacuum Oven Part No. Description 3175318 Power Switch (120/240 Volt) 3167242 Thermostat Kit, 120V 3167243 Thermostat Kit, 240V 3175265 Thermal Cut-Out 3175996 Thermometer 3167214 Vacuum Valve Kit 3167232 Vacuum Gauge Kit 3166994 Heater Service Kit (All Voltages) 3166194 Shelf, Standard Kit 3174675... -
Page 17: Wiring Diagrams
WIRING DIAGRAMS 120 VOLT WIRING DIAGRAM... - Page 18 240 VOLT WIRING DIAGRAM...
