- Page 1 DeLaval swinging cow brush SCB3 Instruction Book © DeLaval 2016. 84948801 2016-07-19, Version 5 Original instruction...
-
Page 3: Ec Declaration Of Conformity
EC Declaration of Conformity Name of product: DeLaval swinging cow brush SCB3 Type: 89863516 230V Report No. 80005746 The product complies with requirements of the following directives: Machinery directive - 2006/42/EC Electro magnetic compatibility directive - 2004/108/EC Harmonised standards which have been used:... - Page 4 © DeLaval 2016. 2016-07-19, Version 5 4 (26) 84948801...
-
Page 5: Safety Precautions
Keep this user manual near the DeLaval swing- ing cow brush SCB3, so it could be easily acces- sible on the farm. DeLaval is not legally responsible for damage... -
Page 6: Safety Regulations
Mandatory! Read the instructions carefully Fig. 1 before using the equipment. Contact the local DeLaval dealer if there are parts of these instructions that are not understood. Compliance with the instructions ensures a correct and safe use of the equipment. Save the instructions for future reference. - Page 7 Warning! Stay out of reach of the DeLaval Fig. 3 swinging cow brush SCB3 when it is switched on. Danger! Risk of electric shock! The electrical installation or any work on the electrical equipment must be done by an authorised elec- trician.
- Page 8 Long hair should be protected. Warning! The DeLaval swinging cow brush SCB3 must not be used by animals with hair longer than 3 cm (including tail hair). The body and the tail hair length should be measured in all directions.
- Page 9 DeLaval swinging cow brush SCB3 Safety precautions Warning! Animals in herds with access to the DeLaval swinging cow brush SCB3 must not wear head halters when the brush is in operation. Wearing a head halter is associated with a safety risk.
-
Page 10: General Description

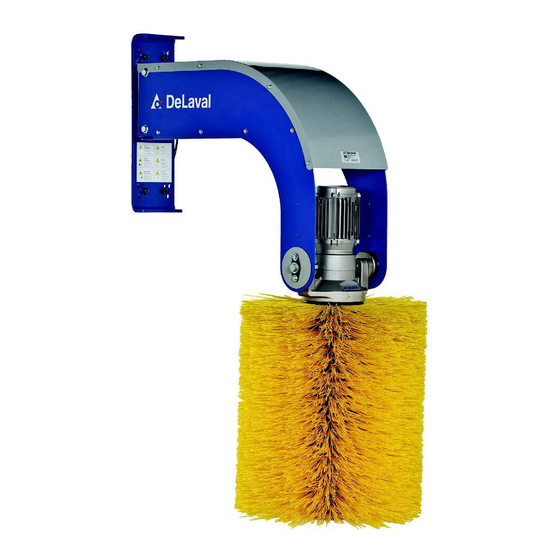

General description General description DeLaval swinging cow brush SCB3 1 General The DeLaval swinging cow brush SCB3 increa- ses cow health, comfort, welfare, hygiene and improves milk production. It is equipped with an automatic on/off feature which makes the brush rotate whenever a cow pushes it, and turns it off 10 seconds after the cow has left. -
Page 11: Technical Data
DeLaval swinging cow brush SCB3 General description 2 Technical data Swinging cow brush SCB / Swinging cow brush SCB / 230 V 110 V Dimensions (length x width x height) 100 x 50 x 132 cm 100 x 50 x 132 cm... - Page 12 DeLaval swinging cow brush SCB3 General description 3 Components Fig. 7: DeLaval swinging cow brush SCB3. Hingepoint Bearing protection SCB Brace cable protection spring Cable bit protection Hood Bike pin Side board Brush shaft Cable SCB Bottom plate SCB PCB SCB...
-
Page 13: Article Numbers
4.1 Swinging cow brush Article number Description 89863516 DeLaval swinging cow brush SCB - 230 V 89863515 DeLaval swinging cow brush SCB - 110 V, cULus 89863514 DeLaval swinging cow brush SCB - 230 V, cULus 4.2 Accessories Article number Article type... -
Page 14: Installation
After the installation, check that the DeLaval swinging cow brush SCB3 runs smoothly. If not, switch off the mains connection immediately. Note! The cow brush is not watertight and should be used indoors or under well protected roofs only. - Page 15 Note! Unscrew the brush from the wooden trans- port pallet after the transport. Fig. 8: SCB3 packed for transport. A: The protection plates 3 Installing the brush 3.1 Installing the brush on a wall Note! The wall must be sufficiently strong.
- Page 16 DeLaval swinging cow brush SCB3 Installation 1. Make sure that the wall is good enough for stable installation of the DeLaval swinging cow brush SCB3. 2. Measure and calculate the average height of withers within the herd. The mounting height of SCB depends on the average size of cows (see X in Fig.
-
Page 17: Installing The Switch Plate
Note! It is recommended to install the brush on a steel post with 10 cm (4”) diameter. The bar should be anchored at the top and at the bottom. 1. Mount the DeLaval swinging cow brush SCB3 with the original fixation U-brackets including nuts. -
Page 18: Electrical Installation
The DeLaval swinging cow brush SCB3 should be installed by an authorized electrician, in accordance with local regulations. The DeLaval swinging cow brush SCB3 must be connected to an earthed power supply socket equipped with or supplied by a Residual Current... -
Page 19: Wiring Diagram
DeLaval swinging cow brush SCB3 Installation 5.2 Wiring diagram Fig. 12 Blue/Neutral Capacitor 5.0 uF Brown/Phase Green/GFCI © DeLaval 2016. 2016-07-19, Version 5 19 (26) 84948801... -
Page 20: Operation
DeLaval swinging cow brush SCB3 Mandatory! Read the instructions carefully before using the equipment. Contact the local DeLaval dealer if there are parts of these instructions that are not understood. Compliance with the instructions ensures a correct and safe use of the equipment. Save the instructions for future reference. -
Page 21: Operator's Maintenance
For addi- tional safety, disconnect the plug from the wall socket and remove the fuse from the main switchboard. Clean the DeLaval swinging cow brush SCB3 carefully before starting maintenance. Always contact a DeLaval service technician in case of any doubts. - Page 22 DeLaval swinging cow brush SCB3 Operator's maintenance No 2 Cleaning the brush cylinder Frequency Special tool: High-pressure cleaner Max. interval Every second month Estimated time: Service type: 1. Remove the brush cylinder from the motor drive before cleaning. 2. Clean the cylinder using a high pressure cleaner or any similar device.
- Page 23 DeLaval swinging cow brush SCB3 Operator's maintenance 1. Unlock the fixation bolt. 2. Remove the bottom plate and the brush cylinder. Note! The motor unit is IP65 protected. It will not withstand high pressure cleaning. 3. Fit the brush cylinder to the axle. Make sure that both screws are placed in the same area.
-
Page 24: Troubleshooting
Contact the DeLaval techni- off. not switch off. cian. Incorrect/faulty electrical instal- Contact the DeLaval techni- lation. cian. The brush makes strange Bearing or gearwheel problem. Contact a DeLaval technician. noises. © DeLaval 2016. 2016-07-19, Version 5 24 (26) 84948801... - Page 25 Tetra Laval Holdings & Finance S. A. and DeLaval is a registered trade/service mark of DeLaval Holding AB.
- Page 26 DeLaval International AB www.delaval.com Box 39 SE-147 21 Tumba SWEDEN...
