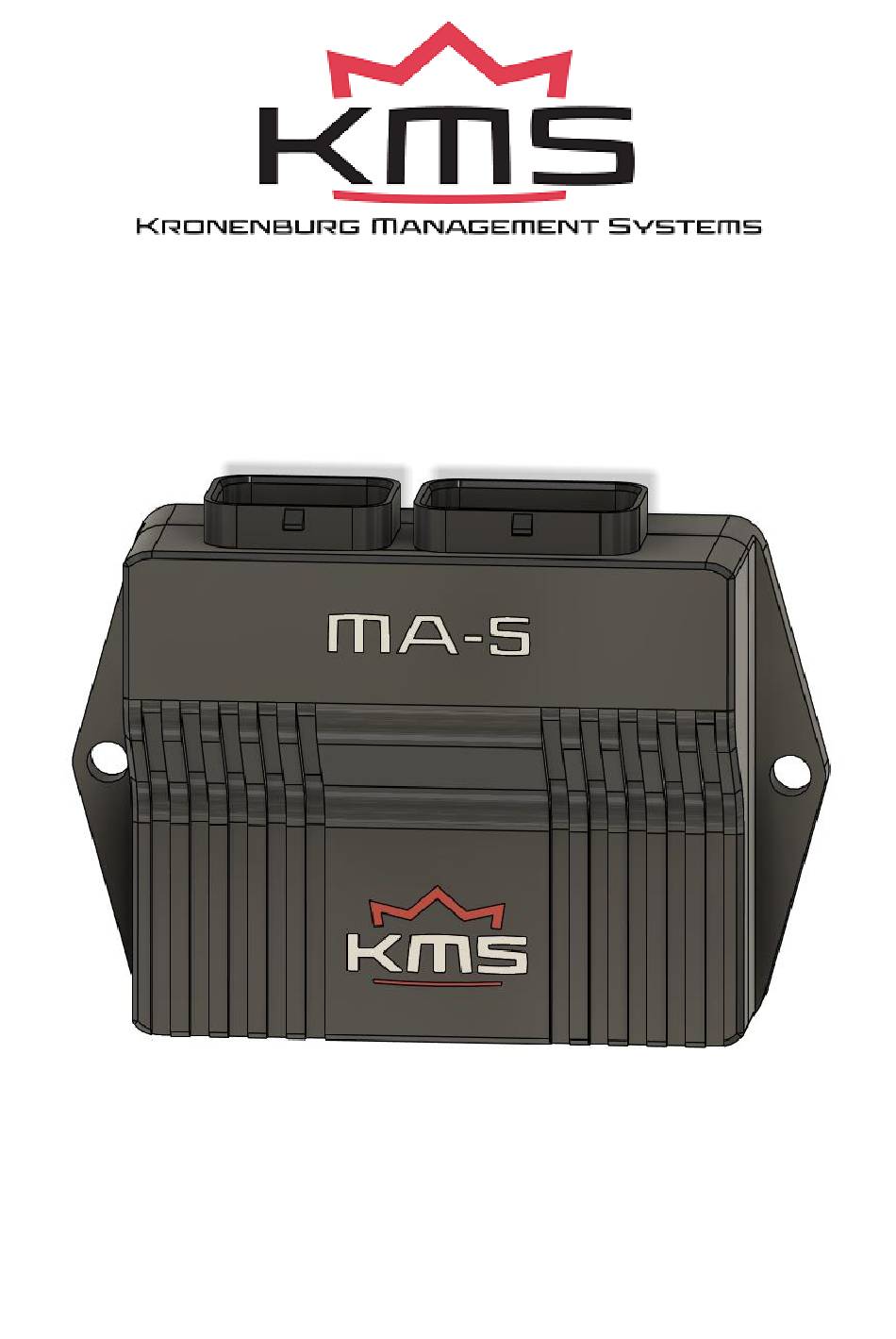

  • Page 1 MA5 Manual V5.1...

  • Page 2: Table Of Contents

    Contents KMS (Kronenburg Management Systems) ........................3 Software installation ............................... 5 KMS software .................................. 6 Main Screen ................................6 3.1.1 The Injection or Ignition table ..........................7 3.1.1.1 The injection characteristic diagram ....................... 7 3.1.1.2 The ignition characteristic diagram ......................8 3.1.2...

  • Page 3: Kms (Kronenburg Management Systems)

    (without influence from outside) to work in. An engine or chassis dynamometer gives a more precise calibration for your (racing) applications. The KMS MA5 ECU offers a complete self learning air fuel ratio control (lambda control) for most common types of oxygen sensors (Wideband/narrow band).
  • Page 4 WARNING: Disconnect the battery cables when you’re doing electrical work. Disconnect the KMS ECU from the wiring harness connector when welding on the vehicle. Make sure there are no fluid leaks and all connections are secured and/or tightened. Wiring and fuel system components must be mounted away from heat sources or shielded if necessary.

  • Page 5: Software Installation

    The KMS Motor management software can be found at the download section on our website: kms.vankronenburg.nl/downloads In case there is a firmware update for the MA5 available then you will need the KMS firmware downloader, this can also be found on our download section: kms.vankronenburg.nl/downloads...

  • Page 6: Kms Software

    3 KMS software 3.1 Main Screen When the program is started, the main screen will appear, which is composed of three parts: The Injection table (can be switched to the Ignition table) The function bar The communication bar These sections describe the possibilities and functions of the system.

  • Page 7: The Injection Or Ignition Table

    In the injection characteristic diagram, figures can be entered that indicate the injector opening time per injection in ms. This means that at any engine speed and any engine load, the desired quantity of fuel can be injected. KMS MA-5 manual Version 5.1...

  • Page 8: The Ignition Characteristic Diagram

    In the ignition spreadsheet, figures can be entered that indicate the ignition advance (in crankshaft degrees before TDC). This means that for any engine speed and any engine load, the desired ignition moment can be entered. KMS MA-5 manual Version 5.1...

  • Page 9: The Communication Bar

    The vertical bar on the right-hand side of the screen shows several function keys, which can be activated using the mouse arrow or the relevant function keys on the keyboard. An explanation on the different function keys is given in the following sections. KMS MA-5 manual Version 5.1...

  • Page 10: Open File

    This function key enables a previously saved file to be retrieved from the hard disk, external hard drive, USB memory key, etc. The files can be recognized by a crown icon MA5 files have the extension *.m06. 3.3 Save file This function key is used to save modified files.

  • Page 11: Options

    3.4.1 Options If 'Options' is selected, a menu appears which lists several possible settings. These settings are described below. KMS MA-5 manual Version 5.1...

  • Page 12: Rpm Pickup

    6.500 rpm, you can devide the 25 rows over this 6.500 rpm (example see right figure below). So the mapping will be more fine tuned for this engine rpm range. KMS MA-5 manual Version 5.1...
  • Page 13 When using a 60-2 trigger pattern the maximum engine speed is limited to 12.500 rpm. We have for example a 150mm 60-2 trigger wheel available on our webshop, KMS partnumber KMI.01.602 When using a Hall-sensor, it is nescessary to use a convertor that will change the Hall-signal into an inductive signal (exception below).
  • Page 14 ECU can get damaged beyond repair. Many modern coils feature a built-in driver stage. However, if a coil without an integrated driver stage is used, the separate KMS ignition driver module with part number KAC.05.002 will be needed.
  • Page 15 The injection frequency (x) can be set to: 2 times per crankshaft revolution (x = 1) 1 time per crankshaft revolution (x = 2) 1 time per two crankshaft revolutions (x = 4) Normally, it is recommended to select the 4-stroke setting. KMS MA-5 manual Version 5.1...

  • Page 16: Rpm Limiters And Powershift

    The soft limiter stops ignition partially so that power is lost. The hard limiter switches off ignition completely. For the KMS MA5 management system the maximum rpm limiter is 20.000 rpm * *: with a 60-2 crank trigger pattern the maximum engine speed is limited to 12.500...
  • Page 17 This is because some resistance is required to build sufficient power for sequential shifting (charasteristic of sequential gearbox). KMS MA-5 manual Version 5.1...

  • Page 18: Engine Load Sensor

    This is normally used for turbo/supercharged engines . Engine load 1 (TPS) + Engine load 2 as Boost correction table this function is not available for the MA5. Engine load 1 (TPS) + Engine load 2 as Boost correction factor The ignition load table and lambda target are linked to MAP value (the ignition table for a turbocharged and supercharged engine should always be linked to MAP).
  • Page 19 1ms/10kPa. What results in a injection time of 7.5 ms at 75 kPa. If the engine runs on 50 kPa (0.5 bar vacuum) the injection value will be 50% of 10 ms = 5 ms. This is used for N/A engines. KMS MA-5 manual Version 5.1...
  • Page 20 Tip: first set the minimum value 15 and the maximum value 250. If you use a KMS 400 kpa Map sensor there are recommended settings for the calibration on the datasheet of the sensor.
  • Page 21 Air mass sensor over a smaller number of steps and at higher loads it is divided over a larger number of steps. e-log The action is opposite to that of the Single Throttle body logarithmic parabola. setup KMS MA-5 manual Version 5.1...

  • Page 22: Start-Up

    The acceleration enrichment will automatically decrease at lower throttle valve opening speeds. Acceleration enrichment type 1 is always linked to ‘Engine load 1’. KMS MA-5 manual Version 5.1...

  • Page 23: Interpol. To Limits And Fuel Cut

    This does not apply when the speed limiters are set to a lower maximum engine speed. We recommend to use the standard limiters (see also section:RPM limiters and PowerShift KMS MA-5 manual Version 5.1...

  • Page 24: Hardware Configuration

    The KMS oil pressure sensor is the 1010 kPa sensor (part number KSE.02.010) This sensor, and all other types of pressure sensors, can be calibrated here by setting the offset and gain. See the KMS oil pressure sensor 1010kpa manual for more information.

  • Page 25: Lambda-Control

    A/F ratio. When you switch between A/F and Lambda, these settings have to be saved in the ECU. The KMS software will do this automatically. When ‘yes’ is selected in the pop-up screen, the software will start downloading to the ECU.
  • Page 26 In case of overrun (TPS < overrun throttle position) with the engine speed below a certain threshold, it is desirable to activate the air fuel ratio feedback control again. This will usually have to be set to an rpm of 200 to 1000 above idle rpm. KMS MA-5 manual Version 5.1...
  • Page 27 Minimum watertemp control on: The coolant temperature above which the A/F ratio feedback control activates. If a KMS UEGO lambda controller is used, the lambda control can already be activated at cold water temperatures. If your using a standard BOSCH lambda sensor (narrow band) is used, it is recommended to activate the lambda control only above a water temperature of 60°Celsius.
  • Page 28 Above this main load value, there is no limit on the compensation between two samples. If 0.0 is set in here this function is not active. Recommended is to set this value after the engine is properly mapped, and to a value of 4.0 - 6.0. KMS MA-5 manual Version 5.1...
  • Page 29 Here you can input a compensation value (as a percentage) in case of lambda shut down due to error. This can be used as a protection for the engine against running a too lean mixture. Recommended value: 3 - 10% KMS MA-5 manual Version 5.1...
  • Page 30 TPS comes within a specific range of the nominal value. With level 2, a 95% accurate correction map is therefore created while a more precise one is created with level 1. Recommended: Map the engine first on level 2. This way you can create the correction map faster. KMS MA-5 manual Version 5.1...
  • Page 31 A/F) than the values set in this table. This can be used when KMS UEGO control is set active at cold engine/water temperatures to prevent the engine from stalling, by limiting the A/F ratio, when lambda control will try to reach a too lean target.

  • Page 32: Boost Control

    15, this control will not be active. However, if the boost pressure exceeds the target pressure in spite of the specified PWM values, the control will intervene to prevent the boost pressure from increasing further. KMS MA-5 manual Version 5.1...
  • Page 33 Once the setup target pressure has been reached and the pressure consequently decreases, it is advisable not to switch off the control at once, but to allow for a certain pressure reduction prior to switching off. – Only used for the Boost PID control KMS MA-5 manual Version 5.1...
  • Page 34 PWM map by selecting the cells and choose ‘copy boost to overboost map’. So the values in the overboost PWM map can easily be increased/decreased by a percentage over the boost PWM map values. KMS MA-5 manual Version 5.1...
  • Page 35 Specifies the time span during which overboost functions are active after being triggered. Overboost pause time: To prevent the overboost from being activated too rapidly (after a preceding overboost), you can set a pause interval here before overboost can be triggered again. KMS MA-5 manual Version 5.1...
  • Page 36 (only possible if the gearbox is calibrated in the system). The values which can be set here are correction percentages on the actual used PWM-map. Boost reduction to speed This function is only available in the MA6 and MD35. KMS MA-5 manual Version 5.1...
  • Page 37 5V sensor supply on pin 14. The remaining pin of the potentiometer must be connected to the ground on pin 17. Warning: When using the A.L.S. be aware of extreme wear and shortage of lifespan of the turbo, exhaust-valves, exhaust manifold etc. KMS MA-5 manual Version 5.1...

  • Page 38: Aux 1

    90 degrees and deactivates at 85 degrees. You can name these AUX outputs freely with a maximum of 2 x 8 characters. 3.4.1.12 AUX 2 See section AUX 1 3.4.1.13 AUX 3 See section AUX 1 KMS MA-5 manual Version 5.1...

  • Page 39: External Dashboard

    0,5 MHz 1 MHz You can configure your dashboard or data logger so that it can read the KMS canbus, should you have any difficulties please contact our professionals for support. KMS MA-5 manual Version 5.1...

  • Page 40: Remarks

    , once the correct com port has been found use save this setting by using the 'Save' button. The “Open device manager” can be used to check which port is used by the MA5. Please check the troubleshooting page should you have communication issues.

  • Page 41: Output Test

    Electronic interference can occur when the leads are not properly shielded or positioned close to the coil and spark leads. KMS MA-5 manual Version 5.1...

  • Page 42: Motor + System Diagnostics

    With ‘save logfile’ you can save the diagnostics on your computer. If the adress isn’t changed the data will be stored in the KMS Management folder. The name of the log-file can be changed to whatever you want. Keep the extension .log.
  • Page 43 The time the battery voltage reaches a voltage lower than 11V or a voltage higher than 15V will be recorded. Air pressure sensor The lowest and highest barometric air pressure are shown here. Only active when a barometric sensor is connected or present on the main board. KMS MA-5 manual Version 5.1...
  • Page 44 Max time at max increase or Max time at max decrease in Lambda Control (see section Lambda- control). 5V sensor supply The time the 5V sensor supply is less than 4.8V is recorded here. Also the lowest sensor supply voltage is shown here. System status indicator (for manufacturer only). KMS MA-5 manual Version 5.1...

  • Page 45: Change User Access Level

    No access to ECU: No access to ECU The standard password in the system can be changed to a password you like. The standard password is kms To save the changes made ‘click Send tot ECU’ KMS MA-5 manual Version 5.1...

  • Page 46: Correction Tables

    In the ignition correction table you can enter percentages for more/less pre-ignition. For example, this helps protect turbo engines from knocking when intake temperatures become too high. KMS MA-5 manual Version 5.1...
  • Page 47 12.6V. The table is suitable for injectors with a resistance of 12Ω to 15Ω. Atmospheric pressure correction If you use an internal or separate atmospheric pressure sensor, you can set correction percentages for ambient pressure levels in this table. KMS MA-5 manual Version 5.1...

  • Page 48: Idle Control

    If the KMS idle-control valve is connected, you can set the opening percentage in the idle-valve table. For low water temperatures you can increase the idle-valve opening.

  • Page 49: Up / Down Load Function

    When the interpolation function is off, there will be no interpolation to adjacent boxes, but the value shown in the box matching the situation in which the system is functioning at that moment will be adhered to. KMS MA-5 manual Version 5.1...

  • Page 50: Online / Offline

    PC to the system (as in the PC the modified data will not get lost when the power supply to the system is broken). This is of course only necessary if the data has not been saved to the system. KMS MA-5 manual Version 5.1...

  • Page 51: Switch Injection/Ignition

    3.13 Communicationport This function can be used to find the connected communication port on your computer with the MA5 ecu, if none is found or selected, please use the Autosearch Com port button to find the com port that is used for the connection.

  • Page 52: Programming

    After selecting multiple boxes the copy or paste function can be used to copy data, also from other KMS mappings. 4.2 Bar charts adjustment The columns or rows of the diagrams can also be shown in the form of bar charts. The bar charts will appear when an engine speed or engine load value is clicked.

  • Page 53: Graph Changing

    After these values have been copied to the injection map its wise to control the injection table and make sure this is smooth, check the previous chapter 3D graph changing how to alter these values. KMS MA-5 manual Version 5.1...

  • Page 54: Hardware Installation

    USB-C panel mount connector can be installed/ reachable. This is needed for communication with the ECU Connecting the communication cable Installed in the basic loom is a USB-C panel mount connector. Use a standard USB-C cable to connect the ECU to your computer. KMS MA-5 manual Version 5.1...

  • Page 55: Ecu Specifications

    Injector output can deliver at most 7A at 12V (for instance 6 injectors with a resistance of 16Ω) Shift-lamp, AUX, cooling fan and fuel pump outputs: max. 1A at 12V per output Dimensions: LxWxH: 117 x 86 x 38 mm Mounting center to center: 106 mm Weight: +/-300 gram KMS MA-5 manual Version 5.1...

  • Page 56: Troubleshooting

    - Start-up menu settings are not correct - Set duration of injection to the correct value Poor engine starting when the engine is cold - Engine temperature correction table not correctly - Set correction table correctly KMS MA-5 manual Version 5.1...
  • Page 57 - Engine load sensor not calibrated Temperature reading gives incorrect value - Wrong type of NTC temperature sensor - Fit the correct KMS temperature sensor; - Check the wiring Temperature reading gives --- in the - Sensor not connected or short circuit in sensor...
  • Page 58 Adjust the injection, ignition timing and air flow Lambda sensor isn’t warm fast enough to start change the “delay from start to Under Lambda-control measuring while the engine has just started on” to a longer period KMS MA-5 manual Version 5.1...

  • Page 59: Specifications

    Minimum system requirements: Windows 95, 98, 2000, NT, ME, XP, Vista, 7, 8 and 10. Internal memory 32Mb Screen resolution 1024x768 Standard USB port Latest Adobe Acrobat reader, can be downloaded from our website: https://kms.vankronenburg.nl/downloads KMS MA-5 manual Version 5.1...

  • Page 60: Appendix 1: Trigger Pattern Drawings

    8 Appendix 1: Trigger pattern drawings KMS MA-5 manual Version 5.1...
  • Page 61 KMS MA-5 manual Version 5.1...
  • Page 62 KMS MA-5 manual Version 5.1...
  • Page 63 KMS MA-5 manual Version 5.1...
