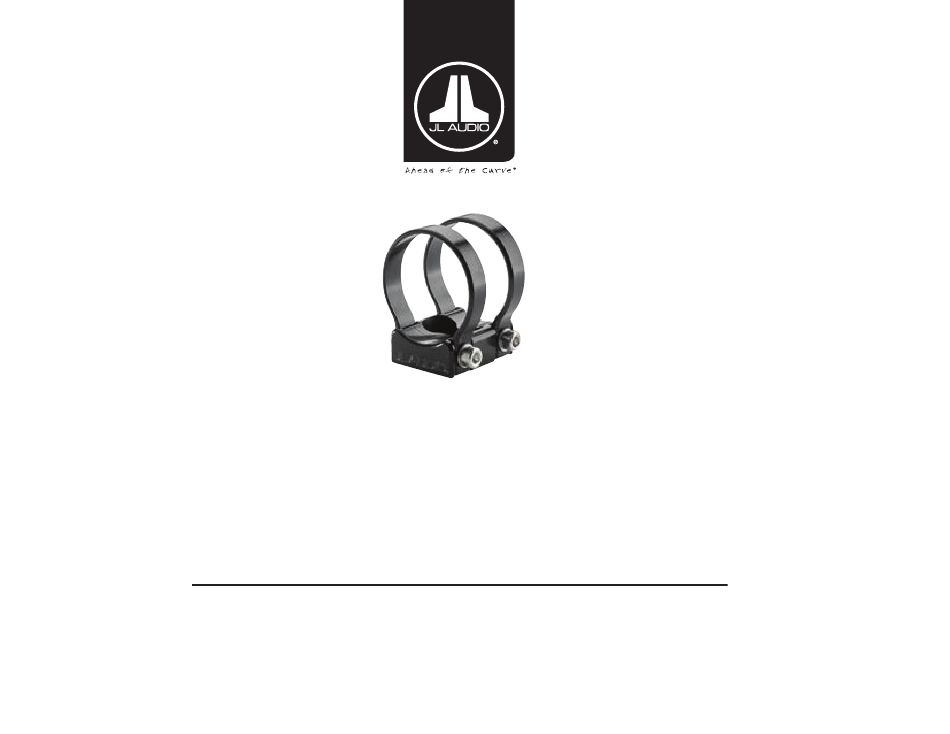

- Page 1 Installation Instructions for all PS-SWMCP swivel fixtures for round pipes PI PE M O U N T I N G FIX T U R E S (S W I V EL ) FOR PS650-V X™ ENCLOSED SPEAKER SYSTEMS...
- Page 2 Loosen the pre-installed M4 x 4 mm Set Screw in the Place the supplied plastic strip around the pipe to clamp receiver. Slide an M6 x 16 mm Machine Screw prevent scratching. Push the clamps over the pipe through the center hole of the clamp receiver, into the (remove the plastic strip).
- Page 3 Remove adhesive backing and install the JL Audio logo Realign the clamps with the clamp receiver on the badge. enclosure, and secure them to the clamp receiver using a pair of M6 x 45 mm Machine Screws, M6 Flat Washers, and M6 Locknuts as illustrated, and fully tighten.
- Page 4 If you wish to rotate the speaker’s grille/logo badge Rotate the speaker to the desired angle. Reinstall the alignment, remove the six #8 x 1-1/4” speaker mounting speaker and speaker mounting screws and washers. screws and #8 Flat Washers. Hand-tighten in a criss-cross pattern. For best adhesion, it is recommended to clean the inside Align the aluminum logo cap to the desired angle of of the aluminum cap with acetone (not included) prior to...
- Page 5 For LED Models Only: Example: One speaker pair of Fuse Blue Blue LED circuits connected in parallel. Yellow Yellow [GND] [+12V] Fuse Fuse Blue Blue Yellow Yellow Fuse Blue Blue Yellow Yellow Example: Two speaker pairs of Fuse Blue Blue LED circuits connected in parallel.
-
Page 6: Included Hardware
Included Hardware: (hardware pictured for one) Mounting Fixture is made in the USA by Axia Alloys Protected by US Patents #8,136,771 & #8,398,035... - Page 7 Note: Not all wires may be used in normal applications. NOTE: The PS-SWMCP-B-2.000 Fixture and PS650-VeX-SG-TMB Enclosed Speaker System are used in this manual for illustrative purposes only. The fixture installation steps are the same for all PS650-VeX Enclosed Speaker Systems and all PS-SWMCP swivel fixtures for round pipes.
- Page 8 . j l a u d i o . c o m JL Audio® and the JL Audio logo are registered trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
