JL Audio M-SWMCPv3-1.315 Installation Instructions

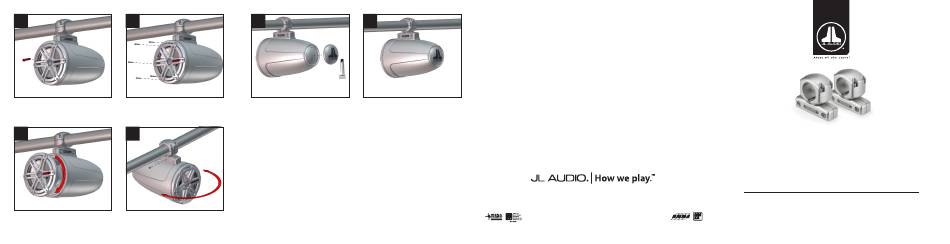

13 14
Remove adhesive backing and install the JL Audio logo If a different speaker angle is desired, remove the speaker
badge (Sport Grille Models Only). mounting screws and washers.
15 16
Rotate the speaker to the desired angle. Reinstall the Rotate the enclosure to the desired angle, install the
speaker and speaker mounting screws and washers. 5/16 - 18 x 1/2" set screw into the base of the fixture, and
Hand-tighten the screws in a criss-cross pattern. fully tighten.
17 18
For best adhesion, it is recommended to clean the inside Align the aluminum logo cap to the desired angle of
of the aluminum cap with acetone (not included), prior rotation, and press it onto the back of the enclosure.
to attaching it to the speaker enclosure. Apply a circular Apply masking tape (not included) to hold the cap in
bead of silicone adhesive (included) to the inside of the place until the silicone cures (at least 24 hours).
aluminum logo cap, about 1/2-inch (13 mm) from the
outer edge.

LIMITED WARRANTY - MARINE PRODUCTS (USA)

JL AUDIO warrants this product to be free of defects in materials and workmanship for a period of two (2) years from the
original date of purchase.
This warranty is not transferable and applies only to the original purchaser from an authorized JL AUDIO dealer. Should service
be necessary under this warranty for any reason due to manufacturing defect or malfunction, JL AUDIO will (at its discretion),
repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not
covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions,
unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages
and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not
covered under warranty.
Any applicable implied warranties are limited in duration to the period of the express warranty as provided herein beginning
with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product
thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For Service Information in the U.S.A. please call
JL Audio Customer Service: (954) 443-1100
9:00 AM – 5:30 PM (Eastern Time Zone)
JL Audio, Inc
10369 North Commerce Pkwy.
Miramar, FL 33025, USA
International Warranties:
Products purchased outside the United States of America are covered only
by that country's distributor and not by JL Audio, Inc.
w w w . j l a u d i o . c o m
JL Audio® and the JL Audio logo are registered trademarks of JL Audio, Inc. "Ahead of the Curve" and its respective logo is a trademark of JL Audio, Inc.
©2014 JL Audio, Inc. • For more detailed information please visit us online at www.jlaudio.com. Due to our policy of continuous product development, all specifications are subject to change without notice.
SKU# 011429
Printed in U.S.A. • 040815
Installation Instructions for
M-SWMCPv3-1.315 • M-SWMCPv3-1.660 • M-SWMCPv3-1.900
M-SWMCPv3-2.000 • M-SWMCPv3-2.250
M-SWMCPv3-2.375 • M-SWMCPv3-2.500
PI PE M O U N T I N G FIX T U R E S (S W I V EL )
FOR ETXv3 ENCLOSED SPEAKER SYSTEMS
