- Page 1 Shenzhen LEPU Intelligent Medical Equipment Co.,Ltd. Addr.: North side of floor 3, BLD 9, BaiWangxin High-Tech Industrial Park,Songbai Road,Xili Street, Nanshan District,Shenzhen,China Company name:Lepu Medical (Europe) Cooperatief U.A. Addr.: Abe Lenstra Boulevard 36, 8448 JB,Heerenveen, The NETHERLANDS 1 / 21...

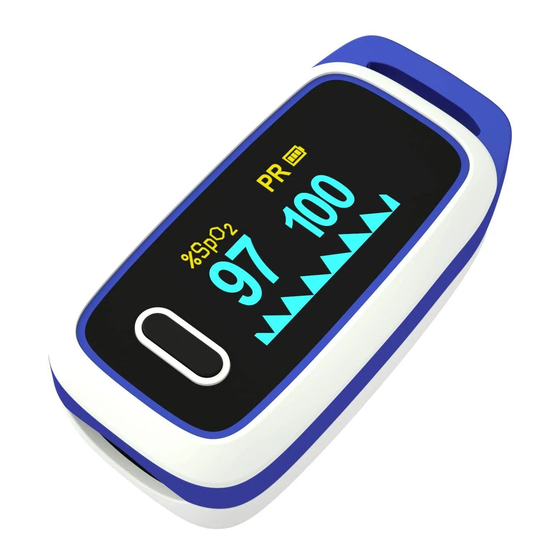

- Page 2 Fingertip pulse Oximeter LOX100A / LOX100B LOX100C / LOX100D User's Manual Heartcare 2 / 21...
- Page 3 Copyright Shenzhen LEPU Intelligent Medical Equipment Co., Ltd Statement 3 / 21...
- Page 4 The company owns all the copyrights of this manual, including published and unpublished documents, and classifies this manual as a classified document. This manual can only be used as a reference by the user for operation and understanding of the company's product or maintenance policy. Use of the manual for propaganda or any other misconduct will be considered illegal.
-
Page 5: Table Of Contents
2．Intended Use -------------------------------------------------------------------------------- 01 3．Measuring Principle ------------------------------------------------------------------------- 02 4．Warnings ------------------------------------------------------------------------------------ 02 4.1 Precautions ---------------------------------------------------------------------------- 02 4.2 Causes of Incorrect Measurements --------------------------------------------------- 03 5．Symbol Description -------------------------------------------------------------------------- 04 6．Battery Installation ------------------------------------------------------------------------- 06 7．Operating Instructions ---------------------------------------------------------------------- 06 Setting -------------------------------------------------------------------------------------- 08 9． Lanyard Installation ------------------------------------------------------------------------ 09 10．Product Accessories------------------------------------------------------------------------ 09 11．Maintenance, Storage and Transportation ------------------------------------------------- 10 12．Technical Specifications ------------------------------------------------------------------- 12... -
Page 6: 2．Intended Use
Name and Model Name: Fingertip pulse oximeter Model: LOX100A/LOX100B/LOX100C/LOX100D 2.Intended Use The LOX100 Fingertip Oximeter is intended for use in homes or hospitals for noninvasive measurement of oxygen saturation, pulse rate and perfusion index The device can be used for both children and adults. This device is intended only for spotchecking. - Page 7 4. The product shall not be used in combination with MRI or CT equipment. 5. Do not squeeze the silica gel pad with your fingers during use. 6. The product shall not be used in flammable and explosive environment. 7. The product plays a supporting role in the diagnosis of patients only. A diagnosis should be made based on clinical manifestations and symptoms.
-
Page 8: Causes Of Incorrect Measurements
20.This device has no audible alarms. 21. Both the time required for the device to warm from the minimum storage temperature or between uses until the device is ready for its intend use when the ambient temperature is 40 °C; and the time required for the device to cool from the maximum storage temperature between uses until the device is ready for its intend use when the ambient temperature is 40 °C is 15±5mins. -
Page 9: 6．Battery Installation
Perfusion index Pulse Rate Pulse intensity bargraph Battery power indication Attention Battery orientation CE marking Reference instructions for use Anti-fluid level Serial number Manufacturer information Date of manufacture European Authorized Representative The device should be sent to the special agencies according to local regulations for separate collection after its useful life Storage temperature Storage humidity... -
Page 10: 7．Operating Instructions
7．Operating Instructions 1. According to instructions in the chapter of Battery Installation, place 2 AAA batteries into the device, and cover the battery cover; 2. Pinch the pulse oximeter as shown in Figure 5; 3. As shown in Figure 6,fully insert the testing finger into the finger cavity, then release the pulse oximeter; 4. -
Page 11: Setting
8. After you pull out your finger from the finger cavity, the screen will show "Finger out" (Figure 8). If the sign lasts for more than 8 seconds, the device will shut down automatically. 9. When the battery power is short, The screen will display lowbattery indicator mark(Figure9).Then the device will shut down automatically after 8 seconds. -
Page 12: 9．Lanyard Installation
about one hundred seconds during measuring.Then the oximeter testorebeep function. 9．Lanyard Installation 1. Pass the thinner end of the lanyard through the hanging hole as shown in Figure12; 2. Pass the thicker end of the lanyard through the thinner end and tighten it, as shown in Figure 13. Figure 12 Figure 13 Warning! - Page 13 6. A packaged device should be stored in a clean and wellventilated environment with an ambient temperature of -20℃~55℃ with relative humidity≦93% and in the absence of corrosive gases, strong mechanical vibration or electromagnetic fields. 7. For transportation requirements, devices should be loaded correctly according to the symbols on the outer packaging and should be protected against collision and impact, severe vibration and severe weather conditions whilst in transit.
-
Page 14: 12．Technical Specifications
battery installation, device failure the battery or contact your local customer service center Abnormal display Shallow placement of finger, hard Correctly put your finger and retry; of SpO2 or PR ambient light, weak perfusion, or avoid use in strong ambient light; excessively low oxyhemoglobin go to the hospital for accurate for correct measurement... -
Page 15: 13．Electromagnetic Compatibility Guide
Response time < 20 s Anti-shock protection category Internal power supply Anti-shock protection measure Type BF applied part Waterproof protection measure IP22 NetWeight Approx.,60g(including batteries) Dimensions 69mm(L) X35mm(W) X29mm(H) Operating mode Non-continuous operation Average of successive five detected pulses, with Spo2 exponential smoothing followed Data averaging... - Page 16 accessories and cables other than those specified may result in increased emission or reduced immunity of this product. ● Since portable and mobile RF communication equipment may affect the performance of this product, please avoid strong electromagnetic interference during use, such as mobile phones, microwave ovens and so on. ●...
- Page 17 ± 15kV air the floor is covered with discharge synthetic materials, relative humidity should be at least 30%. ± 2kV for power cord Electrical fast Not applicable Not applicable ± 1kV for input/output lines transient burst ± 1kV differential mode voltage Not applicable Not applicable Surge...
- Page 18 Guide and manufacturer's statement - Electromagnetic immunity This device is intended for use in the following electromagnetic environment. The purchaser or user of this device should ensure that it is used in this electromagnetic environment: Immunity test IEC60601 test level Compliance level Electromagnetic environment - Guide RF conduction...
- Page 19 and terrestrial mobile radios, amateur radio, AM and FM radio broadcasts and television broadcasts, cannot be accurately predicated in theory. Survey of electromagnetic sites should be considered to assess the electromagnetic environment of fixed RF transmitters. If the measured field strength of the place where the product is located at is higher than the above applicable RF compliance level, the product should be observed to verify that it can work properly.
-
Page 20: 14．Warranty Terms
Not applicable Not applicable For the rated maximum output power of transmitter not listed in the above table, the recommended isolation distance d in meters can be determined using the formula in the corresponding transmitter frequency column, where P is the maximum output rated power of transmitter provided by the manufacturer in watts (W). Note 1: The higher frequency band formula is used at the frequency of 80MHz and 800MHz. - Page 21 Shenzhen LEPU Intelligent Medical Equipment Co., Ltd Tel:400-830-9392 Service E-mail: info@lepu-medical.com Website:www.lepucare.com Company name: Lepu Medical (Europe) Cooperatief U.A. Add:Abe Lenstra Boulevard 36, 8448 JB, Heerenveen, The NETHERLANDS Tel: +31-515 573399 Fax: +31-515 760020 All rights reserved. Reproduction, distribution or reprinting of this manual without the company’s permission is prohibited.
