Swivel
If you are satisfied with the product, please give us a 5 stars rating on the website you bought it from. If you
are not satisfied please contact us at
TV Size
13"-65"
33cm-165cm
CAUTION
This Mount is intended for use only
with the maximum weight indicated.
Using heavier products might cause injury.

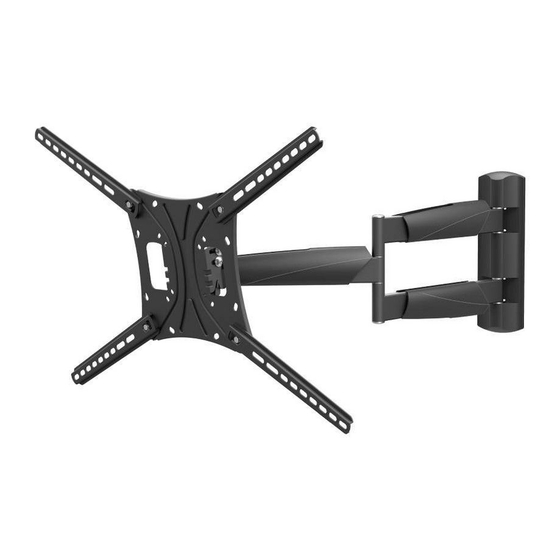

Long Premium TV Wall Mount
Tilt
For more information: barkanmounts.com
https://www.barkanmounts.com/support
TV Weight
US
EU
80lbs
36kg
and we will solve the problem for you.
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Barkan Long Premium
Summary of Contents for Barkan Long Premium
- Page 1 Page 1 Long Premium TV Wall Mount Tilt Swivel For more information: barkanmounts.com If you are satisfied with the product, please give us a 5 stars rating on the website you bought it from. If you are not satisfied please contact us at https://www.barkanmounts.com/support...
- Page 2 WARNING! Barkan does not take responsibility for the installation. Disregarding the safety and assembly instructions may result in the falling of, and/ or damage to your electrical appliance. Opening the package represents your undertaking to closely read and follow the instructions. When the product is installed in public places, the people in charge in those places should make sure it is used according to the instructions.
- Page 3 Nehezebb termékek használata PAŽNJA! Tvrtka Barkan Mounts Ltd. nije sérülést okozhat. odgovorna za ugradnju. ATENÇÃO! A Barkan Mounts Ltd. não oferece Ne obraćanje pažnje na upozorenja o sigurnosti i garantia de instalação. O não cumprimento das ATTENTION! Barkan Mounts Ltd ne garantie sklapanju može imati za posljedicu pad i/ ili oštećenja...
- Page 4 C A U T I O N ! You are obligated to read the safety and assembly instructions! Disregarding them may lead to injury and to the falling of the electrical appliance. A kapcsot legalább 10 mm-rel Ankur tuleb paigaldada The anchor must be (3/8”) kell a vakolat rétege alá...
- Page 5 Требуйте гарантию на Vraag uw installateur om een Poproś instalatora o udzielenie установку от специалиста по garantie voor de installatie van gwarancji na instalacje монтажу. het product. produktu. Это изделие предназначено De meegeleverde hardware is Dołączony okucie nie nadaje для установки на стены/ niet geschikt voor installatie się...
-
Page 6: Included Parts
Page 2 Included Parts not to scale TV Plate Bracket Adaptor Drilling Template Wall Plate Wall Plate Plastic Cover Plastic Cover inch ൗ 3 4 ൗ 5 8 1 ൗ 3 4 Required Tools 7/16” 11 mm 1/4” 6 mm 3/8”... - Page 7 Page 3 Connect the TV plate to the back of the TV. Wrong Right Purchase Use the spacers (Z7) in order to adjust longer screws. the screws length inside the TV. Continue according to your TV mounting hole pattern. Page 4 75x75 mm up to 100x100 mm hole pattern.
- Page 8 Page 4 Hole pattern 100x200 mm up to 400x400 mm: Disassemble the screws, connect the 4 Adaptors to the TV Plate and reassemble the screws. PARTIAL PARTIAL TIGHTENING TIGHTENING...
- Page 9 Page 5 Position the Adaptors according to your TV’s hole pattern. Max. 400mm 200mm 400mm For more positioning options turn to page 10. Connect the TV Plate with the Adaptors to the TV in all 4 connection holes. Z4/Z5 NO FORCE FULL TIGHTENING Z1/Z2/Z3 Optional...
- Page 10 Page 6 Install the Bracket on the Wall. Measure the distance between the location of the TV’s mounting holes’ center and the bottom of the TV, in order to set the required height of the TV. 2.3” / 6cm HORIZONTAL CENTER LINE https://www.barkanmounts.com/faq 2.3”...
- Page 11 Page 7 Make sure all holes are drilled First use 1/4” \ 6mm drill bit. inside the studs. 1/4” \ 6mm 2.75” \ 70mm Afterwards use 3/8” \ 10mm drill bit. 3/8” \ 10mm 2.75” \ 70mm Drill with 5/32” \ 4mm drill bit. 5/32”...
- Page 12 Page 8 Weight test Apply force on the upper part of the Bracket and make sure it is well connected. 80Lbs/ 36Kg Place the plastic nut-housings (Z9), Assemble the Wall Plate Plastic and then insert the two nuts (Z8). Covers. Connect the TV with the TV Plate to the Bracket Make sure that the TV Plate slots are positioned properly on...
- Page 13 Page 9 Insert and tighten the screws from both sides to create friction for the tilt mechanism. Adjust the TV tilt angle carefully. FALL PROOF FALL PROOF Z2/Z3 Disconnect the Cable Management. Place the TV cables in the Cable Management covers. CABLE MANAGEMENT Reconnect the Cable Management...
- Page 14 Page 10...
