Summary of Contents for Barkan 35
-
Page 3: Assembly Instructions

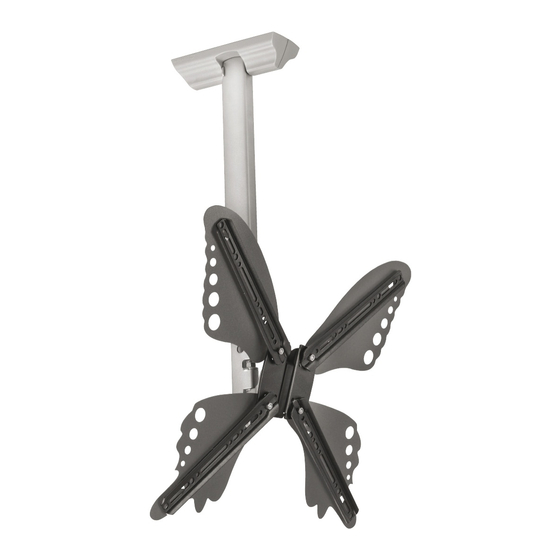

Assembly instructions LCD Connection Fits LCD VESA mounting holes: 75X75, 100X100, Up to 400X400, Up to 600X400 75X75 100X100 Up to 400X400 (Including the popular: 300X300; 200X400; 200X100; 200X200 and more) Up to 600X400 with 200X200 without blocking cable area 100X200 200mm 200X200 without... - Page 4 Assembly hardware to screen Up to 400X400, 600X400mm Assembly of adaptors to plate For model 38 only No Force Butterfly wings assembly to mount (for models: 33, 34, 35 only). Back to main assembly Be careful not to instructions break the clips...
