Summary of Contents for Blastrac BS-110 II

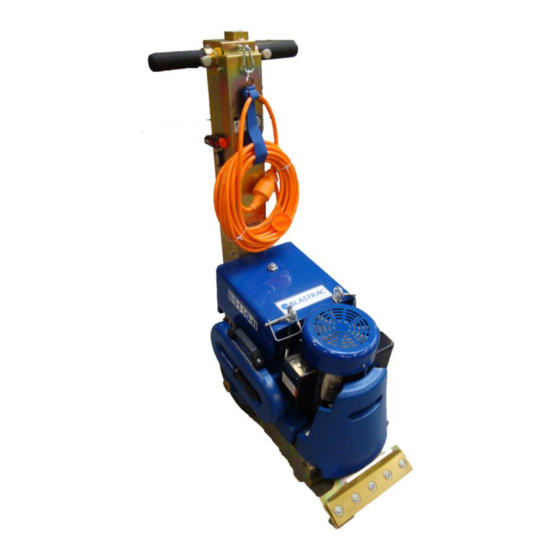

- Page 1 OPERATING MANUAL BS-110 II VERSION 2.0...
-
Page 2: Ec Declaration Of Conformity
European Directive of the machine Safety. In case of changes to the machine without our written authorization this declaration loses its validity. Model: BLASTRAC BS-110 II Serial number: XXXXXXX-XX-20XX 1. satisfies the conditions set out in the Machine Directive (Directive 2006/42/EC); EMC directive 2004/108/EC, as last amended) 2. -
Page 3: Table Of Contents
Table of contents EC Declaration of Conformity 1 Rules for Save Operation 1.1 Electric Connection 1.2 Personal / Staff 1.3 Usage 2 Product Information 2.1 Technical Description 2.2 Technical Specifications 2.3 Accessory / Components 3 Transportation 3.1 Transport Wheel Assembly 3.2 Loading/Unloading 3.3 Wheels engaging or disengaging 4 Setup / Adjustment... -
Page 4: Rules For Save Operation
1 RULES FOR SAVE OPERATION Non observance of the symbols, which you can see in the instruction manual or on the machine, may result in serious injury or death for the user and other persons. Read, understand and follow all the clues / hints, which are situated in the machine or in the instruction manual. -
Page 5: Personal / Staff
1.2 Staff The operator has to be instructed to the use of the machine before operating. Non observance of the instruction manual before commissioning, adjustment or maintenance could cause serious injury to personal or objects. Read unexceptionally all security statements. Be sure that type plate, security symbols as commandments, warnings, precautions and the directives are mounted / fixe to the machine. -
Page 6: Product Information
2 PRODUKT INFORMATION 2.1 Technical Description Hydraulic-Technology applied on the tried and tested Stripper-Features: - Compared with other Strippers the "Strato Mobil Hydraulic" works extremely quietly, allowing use in "working" environments - Very easy operation achieved through automatic drive with forward and backward function - Removeable weights for easier transport - Virtually maintenance-free hydraulic components 2.2 Technical Specifications... -
Page 7: Transportation
3 TRANSPORTATION 3.1 Transport Wheel Assembly Transport wheels help to eliminate damage to flooring and make movement of unit easier. 1. Remove two outside blade cover bolts. See figure 3.1 - A Make sure machine is stable and secure on blocks. 2. -
Page 8: Loading/Unloading
3.2 Loading / Unloading Always remove all counterweights and blades before loading or unloading. See figure 3.2 – A 3.21 Lifting bail See figure 3.2 - A Easy loading when not driving or using a ramp. Location on lifting bails centrally locates the balance of the machine to safely pick-up the machine. -
Page 9: Wheels Engaging Or Disengaging
3.3 Wheels engaging or disengaging Engage Mode Wheels engage and disengage for easier maneuverability. Wheels in the "engage mode" are secured with the axle pins. This engages the wheels for the machine to be self-propelled. See Figure 3.3 - A Disengage Mode When wheels are in the "disengage mode"... -
Page 10: Hydraulic Fluid Level
4 SETUP 4.1 Hydraulic fluid Keep hydraulic fluid clean and on specified definite level. Only use a ISO32 compatible light fluid. Non-compatible fluids could cause damage to unit or serious injury. 4.1.1 Hydraulic fluid level See figure 4.1 – A The machine has a fluid level sight window. -
Page 11: Blade
4.3 Blade 4.3.1 Blade Choice Proper blade size and placement, depending on material and sub-floor type, affects performance. - The harder a job comes up, for best results, use a smaller blade. - Start with a narrow blade, then increase the blade size to optimize the cutting pass. - Narrower blades work easier than wider blades. - Page 12 4.3.3 Blade Changing Dull blades greatly reduce cutting ability. Re-sharpen or replace as needed Always wear gloves when changing blades. Use supplied extended wrench to keep hand safely away from the edge of the blade. 1. Place a bock under the front of the machine. See figure 4.3 - A 2.
-
Page 13: Operation
5 OPERATION 5.1 Actuators On / Off - Switch Forward - Switch Backward - Switch Speed control cartridge Pressure cartridge valve 5.2 Initial Operation Phase The machine must be off before plugging the machine into power source. 1. Plug machine into outlet. 2. -
Page 14: Types Of Tear Outs
5.3 Types of tear outs Keep blades sharp! Keep your work area clean and clear of debris. Always wear eye- and ear- protection when working with the machine. 5.3.1 VCT - Tile Never use a blade wider than the size of the tile being removed. If goods being removed still do not come up clean or the machine jumps on top of goods, reduce blade size to a smaller blade until proper blade size is found or use a smaller portion of the blade. -
Page 15: Subfloor Surfaces
5.4 Subfloor Surfaces 5.4.1 Wood and Wood like floors Pound down or remove any nails or metal obstruction to avoid blade damage. Glued hard wood flooring A 25 cm blade is recommended for regular adhesive, a 15 cm blade for epoxy. For proper removal of hardwood flooring (plank solid, plank laminated, parkay, parquetry laminated)flooring must be scored to blade width. -
Page 16: Maintenance
6 MAINTENANCE 6.1 Inspection Procedure Hydraulic Always turn off and unplug electrical source before servicing. Place equipment and components in a safe and neutral position. 6.2 Wheel Cleaner Adjustment Keep wheels clean from dirt/debris. Unplug machine. Loosen wheel cleaner with the included accessory- wrench. See figure 6.2 - A Slide cleaner up to face wheel until it touches but does not dig into wheel surface. -
Page 17: Spare Parts
7 PARTS PARTS EXTERNAL PARTS... - Page 18 Ground plate Pump drive assembly parts Idler assembly parts Eccentric assembly parts...
- Page 19 Axle assembly parts Bearing & bottom cover parts Cutting head parts...
- Page 20 Handle parts Hose parts Internal handle parts Switch parts...
- Page 21 Internal parts Motor parts Body parts...
- Page 22 Position Description Remark 6280-7 Internal tank mounted strainer 6280-103-1M Axle shaft (new style) 6280-104 Axle Sprocket with key 6280-105LM Axle bearing support left 6280-105RM Axle bearing support right 6280-108M Base plate 6280-110 Wheel spacer -not shown- 6280-111-2B Wheel with hub (new style) 6280-111-2C Wheel bearing (new style) 6280-111A...
- Page 23 6280-166D Rubber foam seal large 6280-166E Rubber foam seal small 6280-167D Handle vibration isolator 6280-167M Handle body 6280-168B Interference Filter 16A 6280-170A Handle bar grips 6280-170M Handle bar 6280-175W Hubbel twist lock female plug 220V -not shown- 6280-176J Plug male 6280-180 Motor hose 6280-181...
- Page 24 Position Description Remark 72368W Motor 220 Volt shaft:22,5x50,5 (new type) 72461 Motor protection switch 72556 Power cord 72804 Power cord strain relief 72816 Return elbow 3/8” 90º 73002 Pump sheave bolt ¼ split lock washer 73002 Handle bar split lock washer ¼ 72003 Idler button head screw ¼...
- Page 25 Position Description Remark 73304 Forward / Reverse switch 5/16 73310 Axle bearing support bolt right 73311 Axle bearing support bolt left 73311 Upper main body bolt 5/16 – 18 x 3/4 73330 Axle pin 5/16 73418 Hexhead bolt ½ - 20 x 1 -not shown- 73423 Internal / external lock washer...
-
Page 26: Contact
Headquarter Blastrac Poland Blastrac Italy Blastrac The Netherlands Golina, Dworcowa 47a S.S. 10 Padana Inferiore, 41 Utrechthaven 12 PL – 63-200 Jarocin IT – 29012 Caorso (PC) NL – 3433 PN Nieuwegein Tel – 0048 627 40 41 50 Tel – 0039 0523 81 42 41 Tel –...
