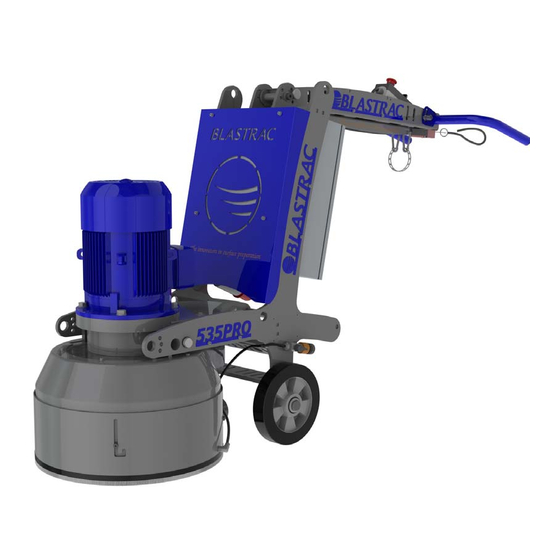

Service manual BMG-535PRO
BMG-535PRO
Version 1.0
info@blastrac.eu

Advertisement

loading
Need help?

Need help?

Do you have a question about the BMG-535PRO and is the answer not in the manual?

Questions and answers

Jordan
January 28, 2025

what is the Hand and Arm Values

0

Subscribe to Our Youtube Channel

Related Manuals for Blastrac BMG-535PRO

Summary of Contents for Blastrac BMG-535PRO

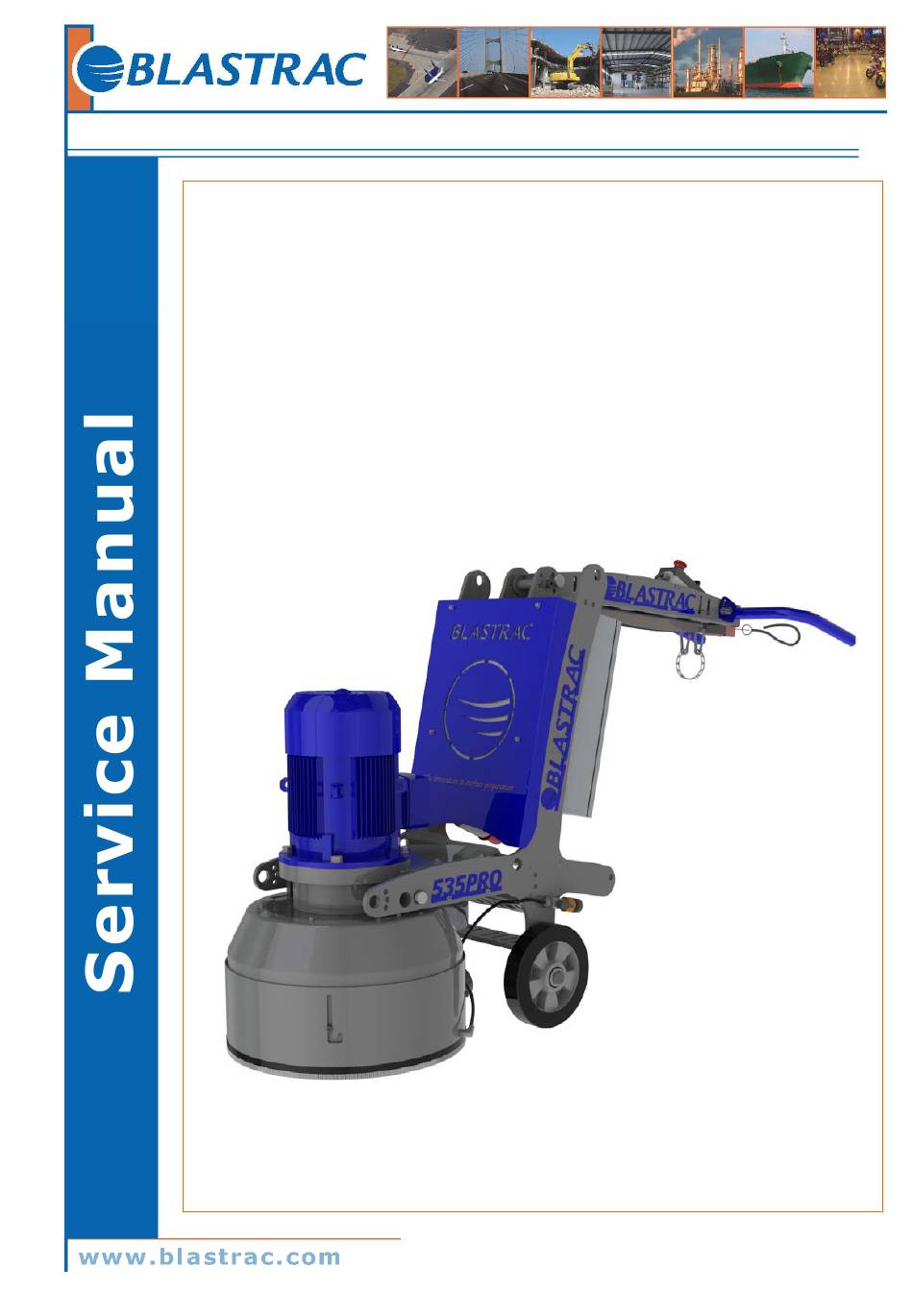

  • Page 1 Service manual BMG-535PRO BMG-535PRO Version 1.0 info@blastrac.eu...
  • Page 2 Service manual BMG-535PRO 2/43 Index 1. Tools 2. Spare parts 3. Electric schedules E06868 / 3x 400V / 7,5kW / Y∆ E06868/UL230 / 3x 230V / 7,5kW / Y∆ info@blastrac.eu...
  • Page 3 Service manual BMG-535PRO 3/43 1. Tools Diamag grinding wings Item Part number Description Remarks BG707301 Diamag wing red box 9 pieces 18/20 BG707302 Diamag wing red box 9 pieces 30/40 BG707303 Diamag wing red box 9 pieces 60/80 BG707304 Diamag wing red box 9 pieces 120/150...
  • Page 4 Service manual BMG-535PRO 4/43 2. Spare parts Frame complete info@blastrac.eu...
  • Page 5 Service manual BMG-535PRO 5/43 Item Part number Description Remarks Qty. BE0643 Tube cap round BG005845/BL Handle for steer 999-9156 Pipe clamp (set) BE0191 M6x50 hexagon socket head bolt DIN 912 E06871 Operating box complete E01543 Emergency stop E00360 Signal light red complete...
  • Page 6 Service manual BMG-535PRO 6/43 Machine complete info@blastrac.eu...
  • Page 7 Service manual BMG-535PRO 7/43 Item Part number Description Remarks Qty. BG005847 Protection cap BG11924 Upper belt BG11960/BL Motor 400V/690V BG11960-1/BL Motor 230V/400V BE0654 M8x16 set screw DIN 916 BG005808_2 Coupling upper part BE0646 M14x120 hexagon socket head bolt DIN 912...
  • Page 8 Service manual BMG-535PRO 8/43 Upper drive info@blastrac.eu...
  • Page 9 Service manual BMG-535PRO 9/43 Item Part number Description Remarks Qty. BE0631 M8x40 hexagon socket head bolt DIN 7984 BG005856 Contra pulley BE0648 Key 8x7x18 DIN 6885A BG005805-1 Pulley E01560 Taperlock BE0443 M10x25 hexagon socket head bolt BG005860 Upper tensioner BG005813...
  • Page 10 Service manual BMG-535PRO 10/43 Lower drive info@blastrac.eu...
  • Page 11 Service manual BMG-535PRO 11/43 Item Part number Description Remarks Qty. BG005814 Ring BG11849 V-seal BE0617 M6x50 countersunk screw DIN 7991 BE0051 M6x25 hexagon head bolt DIN 933 BG005827 Cover BE0030 M8x25 hexagon head bolt DIN 933 BG005322-1 Housing complete BG005832-1...
  • Page 12 Service manual BMG-535PRO 12/43 Contra pulley BG005856 Item Part number Description Remarks Qty. BG005803 Belt pulley BE0109 Key 8x7x20 DIN 6885A BE0076 Retaining ring for shaft Ø25 DIN 471 BG005802 Bearing house BE0077 Retaining ring for bore Ø52 DIN 472...
  • Page 13 Service manual BMG-535PRO 13/43 Centre pulley BG005857 Item Part number Description Remarks Qty. BG005812 Sprocket E03703 V-seal BG005806 Pulley E01490 Bearing E03993 Retaining ring for bore Ø90 DIN 472 BE0126 Retaining ring for shaft Ø50 DIN 471 info@blastrac.eu...
  • Page 14 Service manual BMG-535PRO 14/43 Drive pulley BG005858 info@blastrac.eu...
  • Page 15 Service manual BMG-535PRO 15/43 Item Part number Description Remarks Qty. B20404 Bearing BG005815 Bearing house BE0256 Key 8x7x30 DIN 6885A BG005818 Axle BE0269 Key 10x8x32 DIN 6885A E00718 Taperlock BG005820 Pulley E00951 Retaining ring for bore Ø62 DIN 472 BG005821...
  • Page 16 Service manual BMG-535PRO 16/43 Pulley (3x) BG005859 info@blastrac.eu...
  • Page 17 Service manual BMG-535PRO 17/43 Item Part number Description Remarks Qty. B21631 Retaining ring for shaft Ø30 DIN 471 RB100A3-350 Taperlock RB165-2 Pulley BG11817 Bearing BG005816 Axle E00951 Retaining ring for bore Ø62 DIN 472 BG005817 Bearing house BE0256 Key 8x7x30 DIN 6885A info@blastrac.eu...
  • Page 18 Service manual BMG-535PRO 18/43 Upper tensioner BG005860 Item Part number Description Remarks Qty. BE0074 Retaining ring for shaft Ø20 DIN 471 222-2245 Bearing BG005830 Axle for tensioner BG005831 Tension plate BE0130 M10x25 countersunk screw DIN 7991 info@blastrac.eu...
  • Page 19 Service manual BMG-535PRO 19/43 Lower tensioner BG005861 Item Part number Description Remarks Qty. BE0070 Retaining ring for shaft Ø15 DIN 471 BG11792 Bearing BE0618 Retaining ring for bore Ø35 DIN 472 BG005836 Pulley BG005837 Axle tensioner BE0458 M8x25 countersunk screw...
  • Page 20 Service manual BMG-535PRO 20/43 Buffer plate for surface preparation (3x) info@blastrac.eu...
  • Page 21 Service manual BMG-535PRO 21/43 Item Part number Description Remarks Qty. 150- BG18550007-1 185mm diamond holder complete 153- BG185500071-1 185mm diamond holder BG11805 Buffer plate BE0204 + M8x25 hexagon socket head bolt DIN 7984 BE0584 small + M8 spring washer small...
  • Page 22 Service manual BMG-535PRO 22/43 Buffer plate for polishing (3x) info@blastrac.eu...
  • Page 23 Service manual BMG-535PRO 23/43 Item Part number Description Remarks Qty. BE0579 7/16 x 2”½ hexagon UNC bolt BG2402001 Flexplate adapter for axle BE0012 M8x25 hexagon socket head bolt DIN 912 BG400310 Morflex coupling 179- BG1852002-1 Flexplate 185mm diamond side BG18520021-1...
  • Page 24 Service manual BMG-535PRO 24/43 3. Electric schedules E06868 / 3x 400V / 7,5kW / Y∆ info@blastrac.eu...
  • Page 25 Service manual BMG-535PRO 25/43 info@blastrac.eu...
  • Page 26 Service manual BMG-535PRO 26/43 info@blastrac.eu...
  • Page 27 Service manual BMG-535PRO 27/43 info@blastrac.eu...
  • Page 28 Service manual BMG-535PRO 28/43 info@blastrac.eu...
  • Page 29 Service manual BMG-535PRO 29/43 info@blastrac.eu...
  • Page 30 Service manual BMG-535PRO 30/43 info@blastrac.eu...
  • Page 31 Service manual BMG-535PRO 31/43 info@blastrac.eu...
  • Page 32 Service manual BMG-535PRO 32/43 info@blastrac.eu...
  • Page 33 Service manual BMG-535PRO 33/43 E06868/UL230 / 3x 230V / 7,5kW / Y∆ info@blastrac.eu...
  • Page 34 Service manual BMG-535PRO 34/43 info@blastrac.eu...
  • Page 35 Service manual BMG-535PRO 35/43 info@blastrac.eu...
  • Page 36 Service manual BMG-535PRO 36/43 info@blastrac.eu...
  • Page 37 Service manual BMG-535PRO 37/43 info@blastrac.eu...
  • Page 38 Service manual BMG-535PRO 38/43 info@blastrac.eu...
  • Page 39 Service manual BMG-535PRO 39/43 info@blastrac.eu...
  • Page 40 Service manual BMG-535PRO 40/43 info@blastrac.eu...
  • Page 41 Service manual BMG-535PRO 41/43 info@blastrac.eu...
  • Page 42 Service manual BMG-535PRO 42/43 info@blastrac.eu...
  • Page 43 Service manual BMG-535PRO 43/43 Headquarter Blastrac BV The Netherlands Utrechthaven 12 NL - 3433 PN Nieuwegein Tel: 0031 (0)30 601 88 66 Fax: 0031 (0)30 601 83 33 info@blastrac.nl Blastrac United Kingdom Unit 2, Outgang Lane, Dinnington Sheffield, South Yorkshire GB –...
