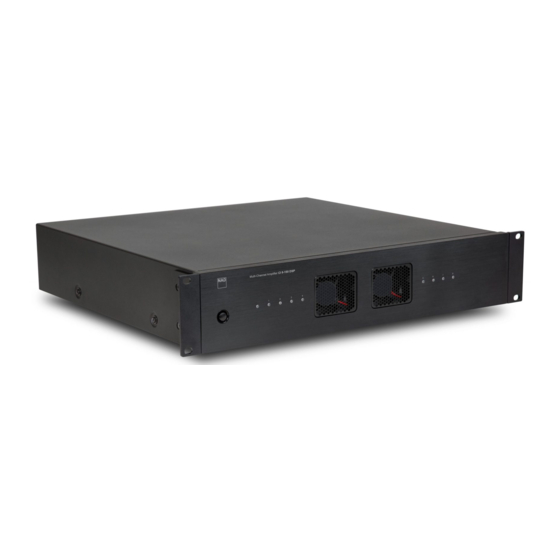

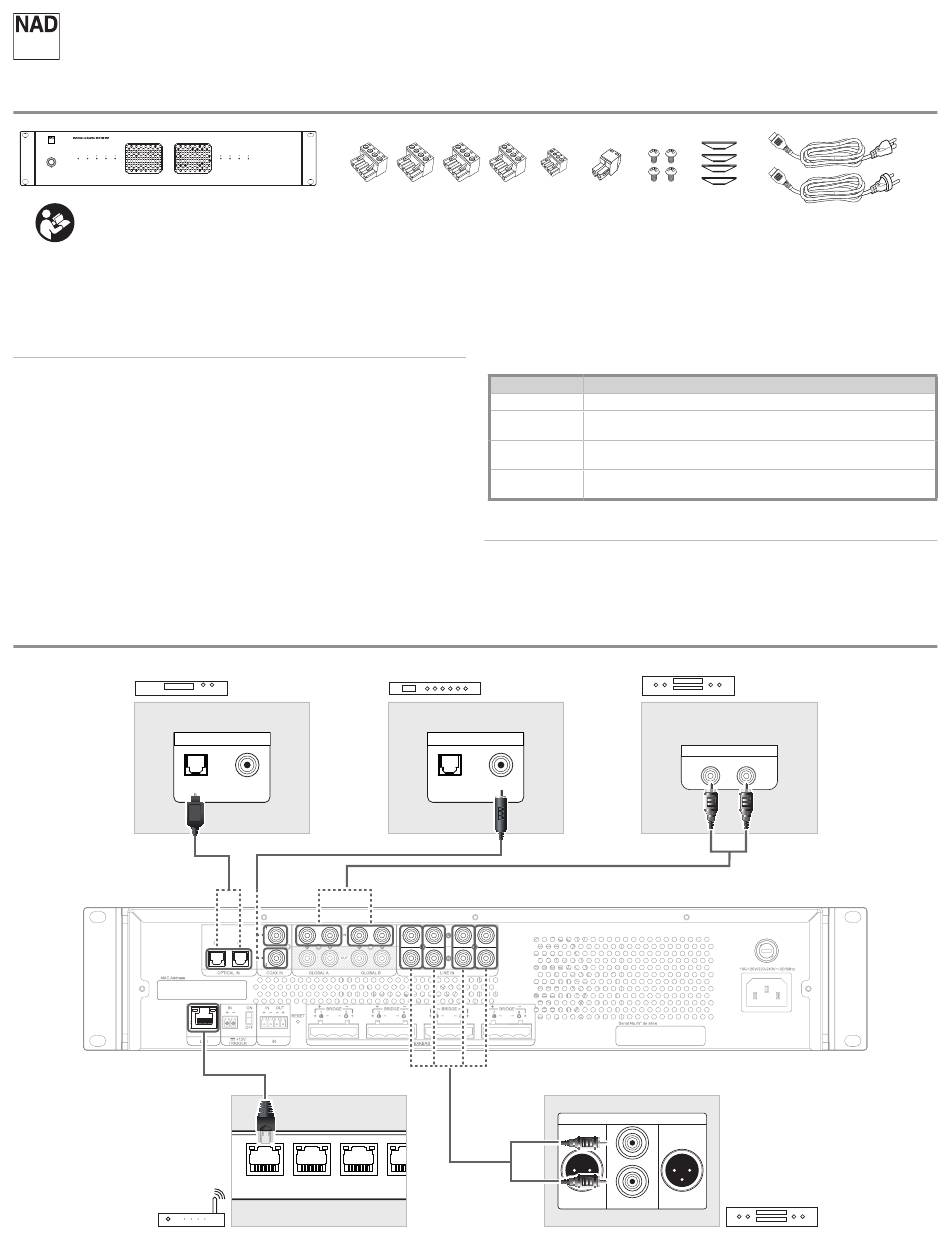

CI 8-150 DSP Multi-Channel Amplifier
®
Quick Setup Guide
!
nadelectronics.com/product/ci-8-150-multi-channel-amplifier
support.nadelectronics.com
GUIDELINE FOR NETWORK SETUP CONNECTION
This guideline is applicable to PC, MAC or smartphone control devices. Adapt the guidelines according to your
control device.
1 Use an Ethernet cable (not supplied) to connect CI 8-150's LAN port to your Wired network or router.
IMPORTANT NOTES
•
For wired connection to be established, ensure that a broadband router that supports Ethernet is setup and
available.
•
Ensure that CI 8-150 and the control device (PC, Mac or smartphone device) are connected to the same network.
•
Use the information in the rear panel MAC ID sticker to identify the CI 8-150 from your network.
2 Power up your CI 8-150. The CI 8-150 will not communicate with the network when in Eco standby mode.
3 Use any network IP scanner to find your CI 8-150's Network ID (listed as the product name (NAD CI 8-150)
immediately followed by the last six digits in the MAC (Machine Access Control) address
(example: NAD CI 8-150_123456). Note also the corresponding IP address assigned by the network.
4 Type the IP address into your control device's web browser to access your CI 8-150's User Interface (UI).
5 Configure your CI 8-150's Identification, Input/Output, DSP and Settings parameters via User Interface.
1.
OPTICAL
DISPLAY
USB
USB
© NAD CI 8-150 DSP
x1/x2
DIGITAL AUDIO OUT
COAXIAL
LAN 1
LAN 2
LAN 3
FIRMWARE UPGRADE PROCEDURE
1 Upon gaining access to your CI 8-150's User Interface, check immediately for any firmware update by selecting
"Check For Updates" from the "Settings" tab.
2 Follow the firmware upgrade prompt instructions to complete the upgrade process.
POWER OPTIONS
SETTING
Power button
Always On
12V Trigger
Signal Sense
IMPORTANT
CI 8-150 factory default setting for Eco Mode is ON. With "Power Mode" set to "Signal Sense" and "Eco Mode" set
to "ON", CI 8-150 will automatically go to Eco standby mode after 20 minutes of no active audio source input.
x1/x2
DIGITAL AUDIO OUT
OPTICAL
COAXIAL
R
BALANCED
LAN 4
MODEM
USB
DESCRIPTION
Press power button to set unit to operating or standby mode.
Unit is always in operating mode. Shut down power by disconnecting unit's AC plug from the mains power
source.
Presence or absence of +12V DC supply from compatible devices to rear panel +12V TRIGGER IN will
remotely switch the unit to operating or standby mode.
Unit will instantaneously turn from standby to operating mode if it senses any input signal (approximately
above 2 mV RMS input) applied through any of the GLOBAL, COAXIAL, OPTICAL or LINE INPUT sockets.
x1/x2
AUDIO OUT
L
R
2 CHANNEL AUDIO OUT
L
BALANCED
L
R
x1/x2/x3/x4
UNBALANCED
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
© NAD CI 8-150 DSP
