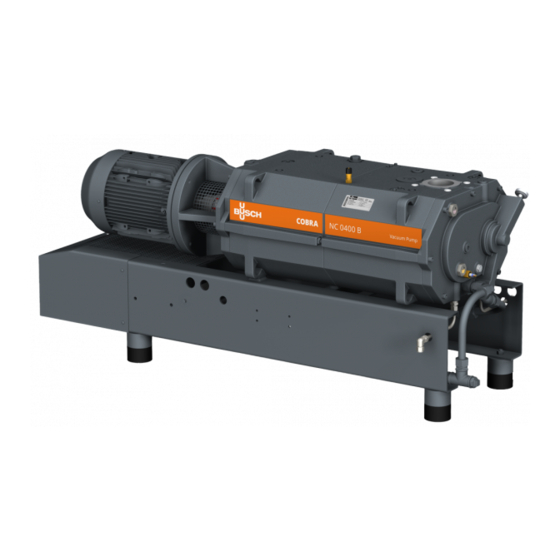

BUSCH COBRA NC 0400 B ACV Instruction Manual
Dry screw vacuum pump
Hide thumbs
Also See for COBRA NC 0400 B ACV:
- Instruction manual (44 pages) ,
- Instructions manual (44 pages) ,
- Instruction manual (40 pages)
Related Manuals for BUSCH COBRA NC 0400 B ACV
Summary of Contents for BUSCH COBRA NC 0400 B ACV

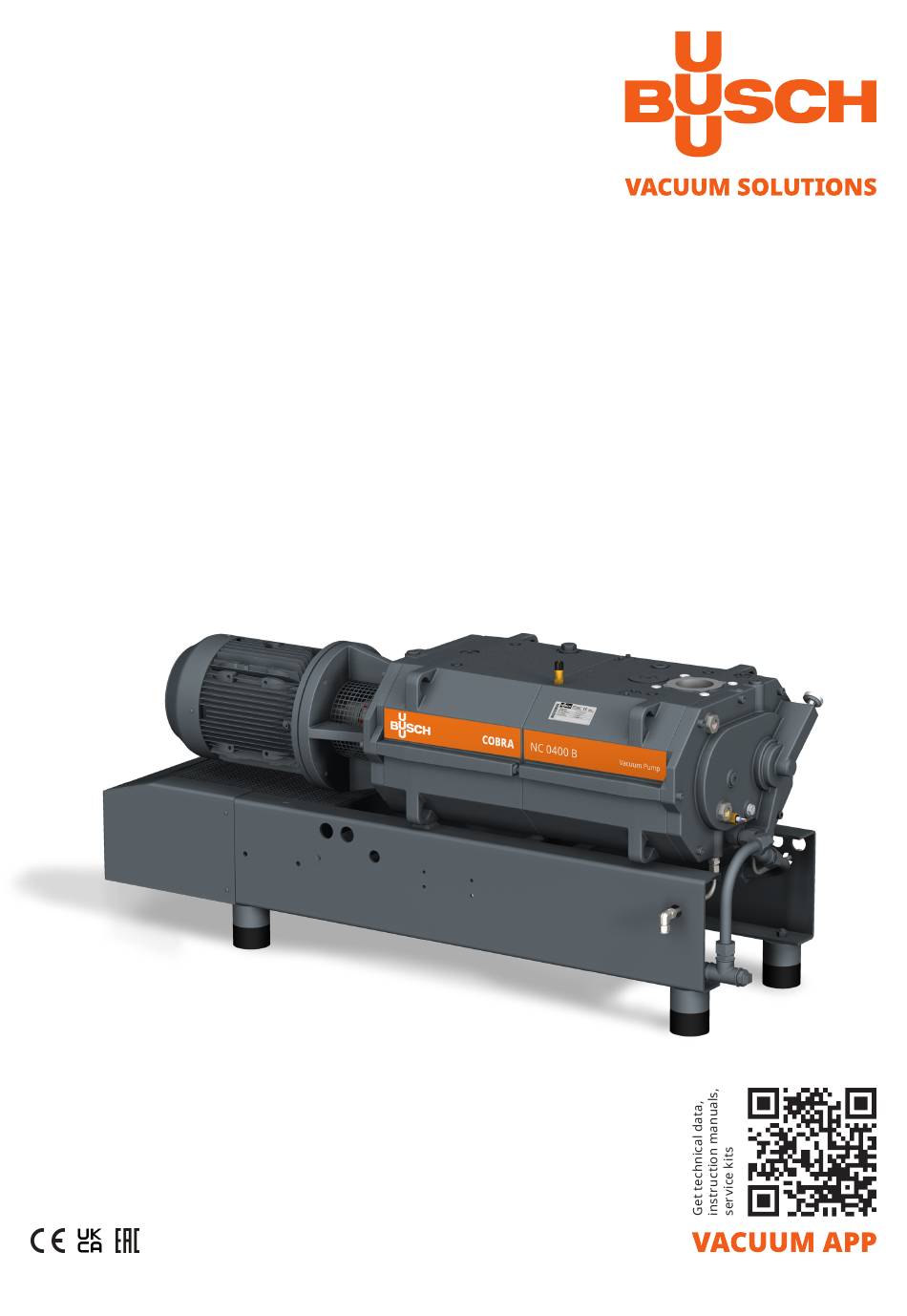

- Page 1 COBRA Dry Screw Vacuum Pumps NC 0400 B ACV (Air Cooled Version) Instruction Manual 0870549541 | A0005_en | Original instructions 28/02/2022...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety..................................Product Description ............................. Operating Principle ............................. Application ................................Start Controls ............................... Standard Features............................... 2.4.1 Air Cooling ............................. 2.4.2 Temperature Switch ..........................2.4.3 Thermometer ............................2.4.4 Sealing Systems............................. Optional Accessories............................2.5.1 Inlet Filter ............................... 2.5.2 Gas Ballast Valve ........................... - Page 3 Table of Contents Replacing the Gas Ballast Filter (Optional)....................... Oil Change................................Cooling Liquid Change ............................Overhaul................................Decommissioning..............................Dismantling and Disposal ..........................Spare Parts................................Troubleshooting..............................Technical Data ..............................Cooling Liquid............................... Oil ................................... EU Declaration of Conformity..........................UK Declaration of Conformity ..........................Instruction Manual COBRA NC 0400 B ACV_EN_en 3 | 48...
-
Page 4: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 5: Product Description
Product Description | 2 Product Description PMR CLP AHE, AF Description Air-water heat exchanger Axial fan Condensate drain Cooling liquid drain plug Cooling liquid fill plug Cooling liquid sight glass Cooling liquid pump Cooling liquid vent valve Eye bolt Gas ballast valve Suction connection Magnetic plug Motor terminal box... -
Page 6: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is capable of maintaining ultimate pressure, see Technical Data [➔ 40]. -
Page 7: Standard Features
Product Description | 2 Standard Features 2.4.1 Air Cooling The machine is cooled by a cooling liquid circuit in the cylinder cover and cylinder. The cooling liquid pump (CLP) allows a recirculating flow in the cooling liquid chamber. The cooling liquid is cooled by an air-water heat exchanger (AHE). A motor driven fan, integrated to the heat exchanger, allows the cooling air to be drawn through the heat exchanger. -
Page 8: Nitrogen Panel
2 | Product Description 2.5.6 Nitrogen Panel The nitrogen panel fitted to the base frame allows the supply of nitrogen to a number of different points on the machine. Each device consists of a solenoid valve to open or close the gas circuit, a pressure regulator and a flow meter to adjust pressure and volume flow separately. -
Page 9: Transport
Transport | 3 Transport WARNING Suspended load. Risk of severe injury! ● Do not walk, stand or work under suspended loads. WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! ● Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as shown. NOTICE In case the machine is already filled with oil. -
Page 10: Storage
4 | Storage Storage ● Seal all apertures with adhesive tape or reuse provided caps. If the machine is to be stored for more than 3 months: ● Wrap the machine in a corrosion inhibiting film. ● Store the machine indoors, dry, dust free and if possible in original packaging preferably at temperatures between 5 ... -
Page 11: Installation
Installation | 5 Installation Installation Conditions WARNING If the machine is installed in a potentially explosive environment, or if the machine is used to draw toxic, inflammable or non-inert gases: Risk of injuries! Risk of death! ● Ensure that the machine complies with all local, national rules and safety regulations. NOTICE Use of the machine outside of the permitted installation conditions. -
Page 12: Connecting Lines / Pipes
If a purge gas system or a liquid flushing device being installed: – DN80 PN16, EN 1092-1 If the machine is used as part of a vacuum system: ● Busch recommends the installation of an isolation valve in order to prevent the machine from turning backwards. 12 | 48... -
Page 13: Discharge Connection
Installation | 5 5.2.2 Discharge Connection Connection size(s): At the machine discharge connection: – DN63 ISO-K, DIN 28404 – DN80 PN6, EN 1092-1 At the silencer (SI) discharge connection (two optional versions available): – DN80 PN16 + ANSI/ASME B16.5-3” class 150 lbs –... - Page 14 5 | Installation With nitrogen panel FME, FS Description Barrier gas connection Flow meter Flow switch Manometer Solenoid valve Nitrogen panel Pressure regulating valve ● Connect the barrier gas connection (BGC) to the gas supply. Connection size: – G1/4, ISO 228-1 Version with nitrogen panel: ●...
-
Page 15: Dilution Gas System Connection (Optional)
Installation | 5 5.2.4 Dilution Gas System Connection (Optional) FME, FR Description Dilution gas connection Flow meter Flow regulator Manometer Solenoid valve Nitrogen panel Pressure regulating valve ● Connect the dilution gas connection (DGC) to the gas supply. Connection size: –... -
Page 16: Purge Gas System Connection (Optional)
5 | Installation 5.2.5 Purge Gas System Connection (Optional) FME, FR Description Purge gas connection Flow meter Flow regulator Inlet flange Manometer Solenoid valve Nitrogen panel Pressure regulating valve ● Connect the purge gas connection to the gas supply. Connection size: –... -
Page 17: Filling Oil
Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [➔ 40] and Oil [➔ 42]. Instruction Manual COBRA NC 0400 B ACV_EN_en... -
Page 18: Filling Cooling Liquid
If there is no sticker (part no. 0565 568 959) on the machine: ● Order it from your Busch representative. Filling Cooling Liquid For cooling liquid type and cooling liquid capacity see Technical Data [➔ 40] and Cooling Liquid [➔ 41]. -
Page 19: Liquid Flushing Device Installation (Optional)
Installation | 5 Liquid Flushing Device Installation (Optional) Description Flushing liquid fill plug Flushing liquid vessel Flow regulator Inlet flange Level indicator Level switch Solenoid valve ● Electrically connect the solenoid valve (MV), see Wiring Diagram Solenoid Valve [➔ 22]. ● Electrically connect the two level switches (LS), see Wiring Diagram Level Switch [➔ 25]. ●... -
Page 20: Fitting The Coupling
5 | Installation Fitting the Coupling Description Coupling hub (machine side) Coupling spider Coupling hub (motor side) Set screw; max. admissible torque: 10 Machine type Coupling size Value “E” (mm) NC 0400 B ROTEX ® ROTEX ® In case of a machine delivery without motor: ●... -
Page 21: Wiring Diagram Three-Phase Motor (Pump Drive)
● Provide an overload protection according to EN 60204-1 for the motor. ● Make sure that the motor of the machine will not be affected by electric or electromagnetic disturbance from the mains; if necessary seek advice from Busch. ● Connect the protective earth conductor. -
Page 22: Wiring Diagram Solenoid Valve (Optional)
5 | Installation Double star connection, multi-voltage motor Star connection, multi-voltage motor with 12 with 12 pins (low voltage): pins (high voltage): Delta connection, multi-voltage motor with 12 pins (middle voltage): NOTICE Incorrect direction of rotation. Risk of damage to the machine! ●... -
Page 23: Electrical Connection Of The Heat Exchanger Fan Motor
Installation | 5 Electrical Connection of the Heat Exchanger Fan Motor DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. ● Make sure that the power supply for the fan motor of the heat exchanger (AHE) is compatible with the data on the nameplate of the heat exchanger. -
Page 24: Electrical Connection Of The Monitoring Devices
● Switch any two of the motor phase wires. Electrical Connection of the Monitoring Devices NOTE In order to prevent potential nuisance alarms, Busch recommends that the control system is configured with a time delay of at least 20 seconds. 5.9.1 Wiring Diagram Temperature Switch Part no.: 0651 556 533... -
Page 25: Wiring Diagram Level Switch (Optional)
Installation | 5 5.9.3 Wiring Diagram Level Switch (Optional) Part no.: 0652 556 531 Connector: M12x1, 4-pin < 6 mW at I < 1 mA; < 38 mW at I = 3.5 mA Switching element function: 1 = Brown ; 4 = Black NAMUR Contact: Normally closed Switch point:... -
Page 26: Commissioning
6 | Commissioning Commissioning NOTICE The machine can be shipped without oil. Operation without oil will ruin the machine in short time! ● Prior to commissioning, the machine must be filled with oil, see Filling Oil [➔ 17]. NOTICE The machine can be shipped without cooling liquid. Operation without cooling liquid will ruin the machine in short time! ●... -
Page 27: Conveying Condensable Vapours
Commissioning | 6 ● Turn on the barrier gas supply. ● Adjust the barrier gas pressure and volume flow. ● Switch on the machine. ● Make sure that the maximum permissible number of starts does not exceed 6 starts per hour. Those starts should be spread within the hour. - Page 28 6 | Commissioning ● Close the inlet valve ● Open the purge gas (solenoid valve) ● The flushing duration depends on the application (minimum 200 seconds to render the machine inert) ● Close the purge gas 28 | 48 Instruction Manual COBRA NC 0400 B ACV_EN_en...
-
Page 29: Maintenance
Risk of premature failure and loss of efficiency! ● Maintenance work must only be executed by qualified personnel. ● Respect the maintenance intervals or ask your Busch representative for service. ● Shut down the machine and lock against inadvertent start up. -
Page 30: Oil Level Inspection
● Change the cooling liquid, see Cooling Liquid Change [➔ 34]. ● Clean the magnetic plugs (MP). Every 16000 hours or after 4 ● Have a major overhaul on the machine (contact Busch). years Oil Level Inspection ● Shut down the machine. -
Page 31: Cooling Liquid Level Inspection
Oil Change NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. Instruction Manual COBRA NC 0400 B ACV_EN_en 31 | 48... - Page 32 7 | Maintenance For oil type and oil capacity see Technical Data [➔ 40] and Oil [➔ 42]. 32 | 48 Instruction Manual COBRA NC 0400 B ACV_EN_en...
- Page 33 __ / __ / ____ Oil type see nameplate Change interval see instruction manual If there is no sticker (part no. 0565 568 959) on the machine: ● Order it from your Busch representative. Instruction Manual COBRA NC 0400 B ACV_EN_en 33 | 48...
-
Page 34: Cooling Liquid Change
7 | Maintenance Cooling Liquid Change For cooling liquid type and cooling liquid capacity see Technical Data [➔ 40] and Cooling Liquid [➔ 41]. Description Radiator vent valve key Close the cooling liquid vent valve (CLV) when the cooling liquid is spilling out Resume cooling liquid filling 34 | 48 Instruction Manual COBRA NC 0400 B ACV_EN_en... -
Page 35: Overhaul
● Decontaminate the machine as much as possible and state the contamination status in a ‘Declaration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 36: Decommissioning
9 | Decommissioning Decommissioning CAUTION Hot surface. Risk of burns! ● Prior to any action requiring touching the machine, let the machine cool down first. ● Shut down the machine and lock against inadvertent start up. ● Disconnect the power supply. If the machine is equipped with a barrier gas system: ●... -
Page 37: Spare Parts
● The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. There is no standard spare parts kits available for this product, if you require Busch genuine parts: ● Contact your Busch representative. -
Page 38: Troubleshooting
Busch). Solid foreign matter has ● Remove the solid foreign entered the machine. matter or repair the machine (contact Busch). ● Install an inlet filter if necessary. A temperature sensor has ● Let the machine cool down. reached the switch point. - Page 39 Oil Change [➔ 31]. The machine runs too hot. ● See problem "The machine runs too hot". For the solution of problems not mentioned in the troubleshooting chart contact your Busch representative. Instruction Manual COBRA NC 0400 B ACV_EN_en 39 | 48...
-
Page 40: Technical Data
12 | Technical Data Technical Data NC 0400 B Pumping speed m³/h 350 / 420 (50Hz / 60Hz) Ultimate pressure (without gas hPa (mbar) ≤0.05 / ≤0.01 ballast) abs. (50Hz / 60Hz) Ultimate pressure (with gas ballast) hPa (mbar) ≤0.1 / ≤0.1 (50Hz / 60Hz) abs. -
Page 41: Cooling Liquid
Cooling Liquid | 13 Cooling Liquid Zitrec M-25 (ready-to-use) Part number 5 L packaging 0831 563 469 Part number 20 L packaging 0831 238 761 The cooling liquid Zitrec M-25 is ready-to-use and does not require additional water. For further information, consult the website www.arteco-coolants.com. Instruction Manual COBRA NC 0400 B ACV_EN_en 41 | 48... -
Page 42: Oil
14 | Oil VSC 100 ISO-VG Part number 1 L packaging 0831 168 356 Part number 5 L packaging 0831 168 357 42 | 48 Instruction Manual COBRA NC 0400 B ACV_EN_en... -
Page 43: Eu Declaration Of Conformity
EU Declaration of Conformity | 15 EU Declaration of Conformity This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. -
Page 44: Uk Declaration Of Conformity
16 | UK Declaration of Conformity UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. - Page 45 Notes Instruction Manual COBRA NC 0400 B ACV_EN_en 45 | 48...
- Page 46 46 | 48 Instruction Manual COBRA NC 0400 B ACV_EN_en...
- Page 47 Instruction Manual COBRA NC 0400 B ACV_EN_en 47 | 48...
- Page 48 With a network of over 60 companies in more than 40 countries and agencies worldwide, Busch has a global presence. In every country, highly competent local personnel delivers custom-tailored support backed by a global network of expertise. Wherever you are.
