ASSEMBLY & REPLACEMENT

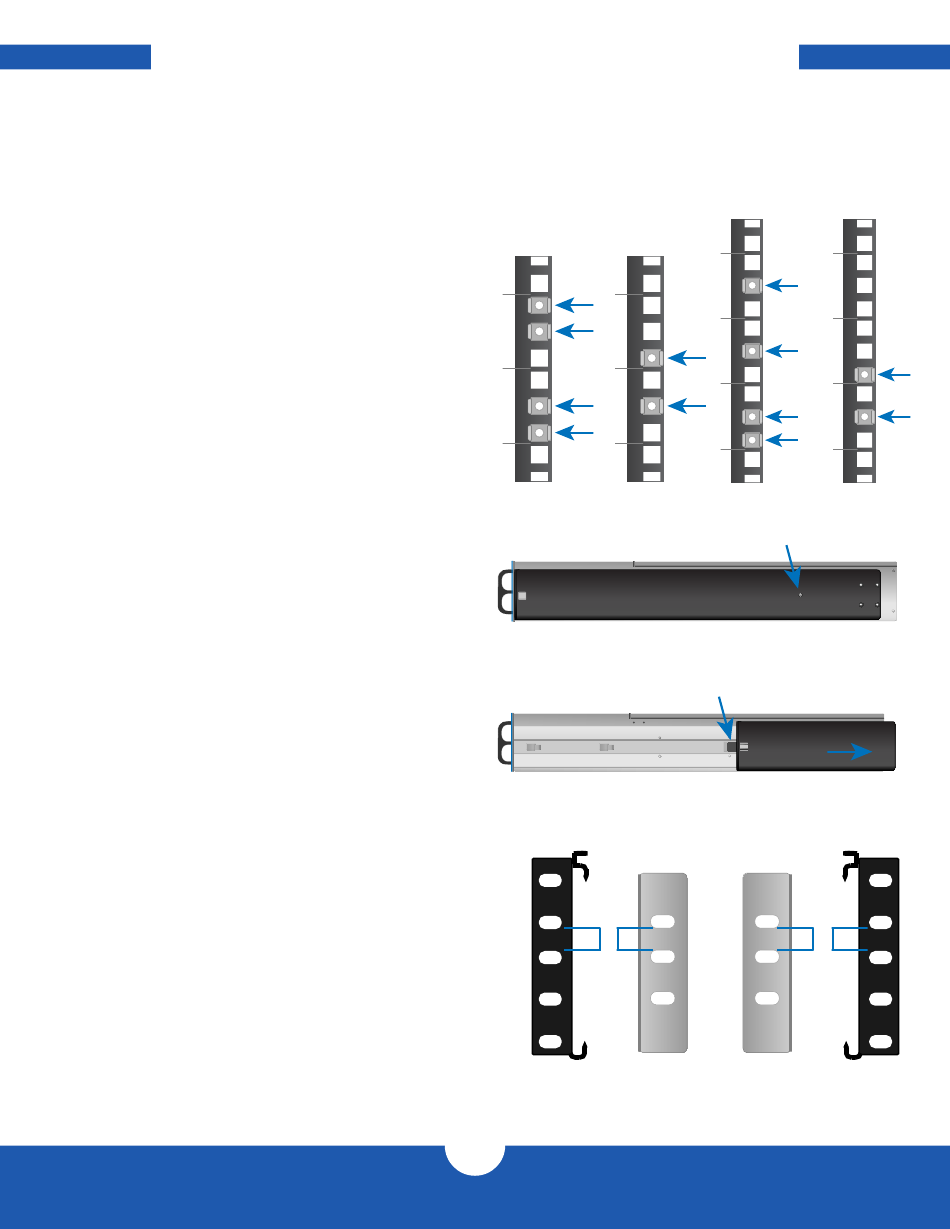

2.1 RAIL INSTALLATION
The Jupiter Callisto comes with rack mount slide rails attached to the sides of the unit and the necessary screws and cage
nuts for installing into 4-post square-hole rack systems. To install the slide rail brackets into your rack, do the following:
1. The Jupiter Callisto requires two (8-bay) or
three (16-bay) rack units of space. Take note
of which units in your rack that you will install
your Jupiter Callisto into.
2. Install the included cage nuts into your rack.
Use Figure 2.1a as a guide for cage nut
placement for an 8-bay Jupiter Callisto; use
Figure 2.1b for a 16-bay Callisto.
3. On the Jupiter Callisto, remove the securing
screw from the rail on the left and right sides
as seen in Figure 2.1c.
4. Once the securing screws have been removed,
remove the rail arm by sliding it toward the
rear of the unit as seen in Figure 2.1d. When
the rail arm stops, push the release tab while
continuing to slide the rail arm off.
removing the rails, set them aside taking note
of the side from which they were removed.
5. Remove the rail arm extensions from the
accessories box and match them to the rails.
Use Figure 2.1e as a guide for proper matching
of rails and the extension pieces.
OWC JUPITER CALLISTO
Front Placement Rear Placement
Figure 2.1a
After
Left Rail
Shorter gap
4
Front Placement
Figure 2.1b
Securing screw
Figure 2.1c
Push to release
Slide
Figure 2.1d
Left Rail Right Rail
Extension Extension
Shorter gap
Figure 2.1e
ASSEMBLY & REPLACEMENT
Rear Placement
Right Rail
