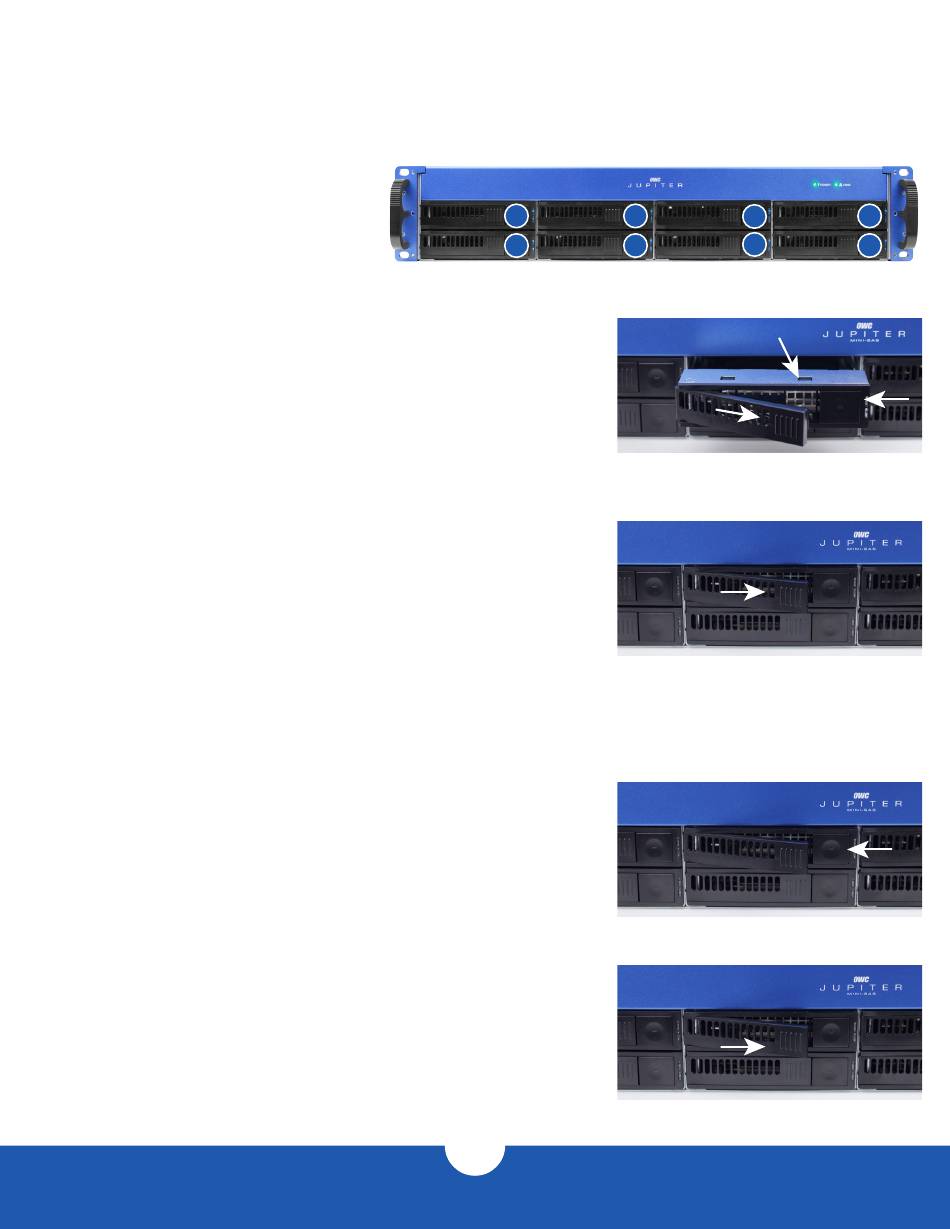

2.3 DRIVE INSTALLATION & REMOVAL
The Jupiter Callisto comes with drives already installed into the individual trays to provide quicker setup time. Use the
following instructions to install and remove drives from the drive bays.
2.3. 1 Drive Installation
1. Release the drive tray handle by pushing the
square eject button.
2. Insert the drive into the corresponding bay of
the Jupiter Callisto, making sure the drive rests
on the side guide rails within the bay. Note
that each drive tray is labeled with a drive bay
number. See Figure 2.3.1a for the drive bay
numbering pattern..
3. Push the drive in using the front frame of the
tray or the release button, as seen in Figure
2.3.1b, until it is seated into the backplane
connector. DO NOT push the drive in using
the handle.
4. Once the drive is seated into the backplane,
push the handle in until it latches to secure
the drive into the drive bay as shown in Figure
2.3.1c.
2.3.2 Drive Removal
1. Release the handle on the drive tray by
pushing the square eject button as seen in
Figure 2.3.2a.
2. Use the handle to pull the drive out of the drive
bay as shown in Figure 2.3.2b.
OWC JUPITER CALLISTO
1
2
5
6
Figure 2.3.1a
8
3
7
Push here
DO NOT
Push here
Figure 2.3.1b
Push here
Figure 2.3.1c
Figure 2.3.2a
Pull here
Figure 2.3.2b
ASSEMBLY & REPLACEMENT
4
8
Push here
Push here
