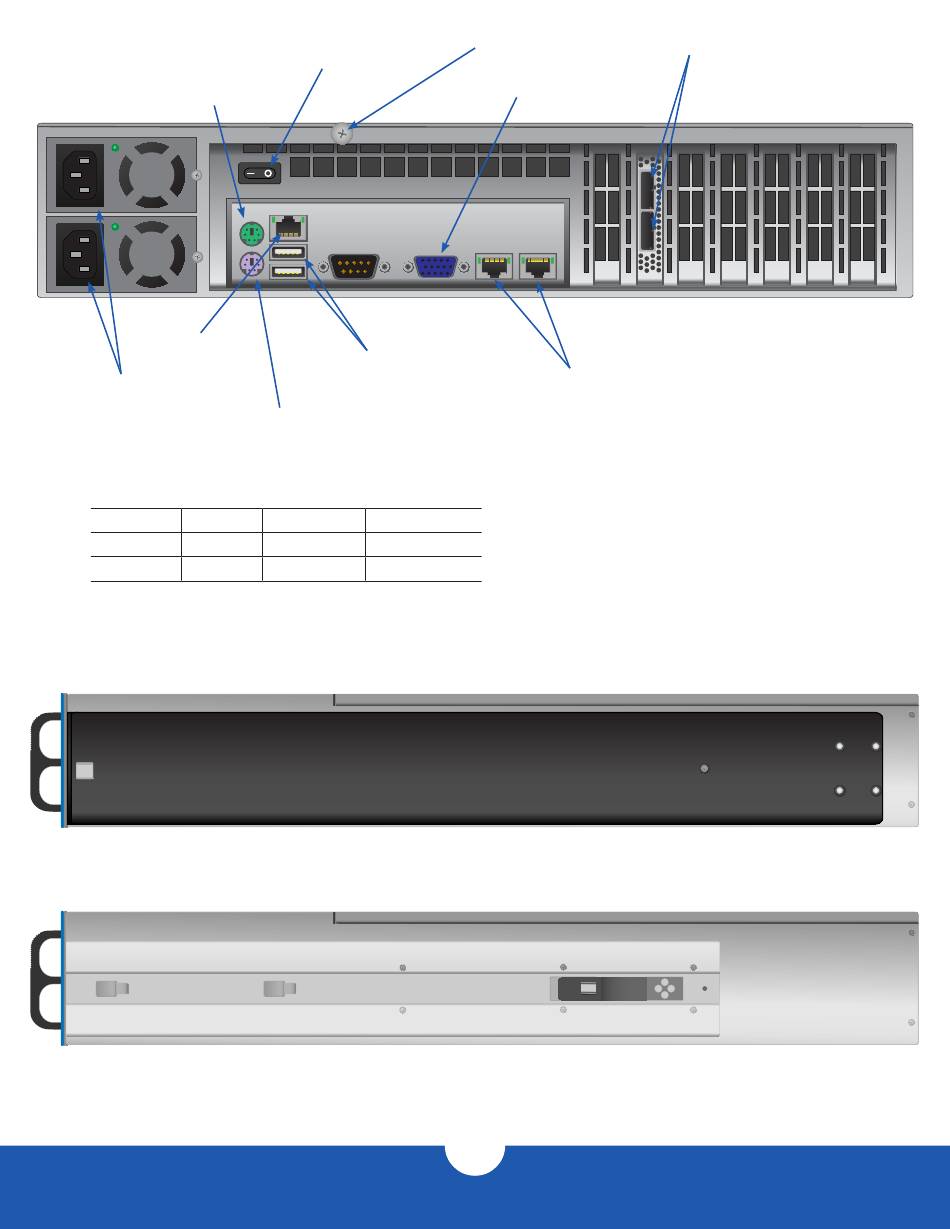

1.5 REAR VIEW

PS2 port for mouse
Ethernet port for IPMI
Power supply modules
(two for 8-bay, three for 16-bay)
Ethernet Port Address Presets
Port Mode
IPMI:
DHCP
LAN 1 (ix0):
DHCP
LAN 2 (ix1):
Static

1.6 SIDE VIEW

OWC JUPITER CALLISTO
Power switch
USB 2.0 ports for peripherals
PS2 port for keyboard
IP Address Subnet Mask
automatic* automatic*
automatic automatic
192.168.0.1 255.255.255.0
Side view with rail attached
Side view with rail removed
Thumbscrew for top cover
VGA port
LAN 1 LAN 2
10GBASE-T ports (RJ45)
*IPMI address can be found in
Jupiter Callisto's management
interface in the Network section.
See section 7.1 for more details.
3
External Mini-SAS (SFF-8088) ports
for storage expansion
