Getriebebau NORD GmbH & Co. KG
Getriebebau-Nord-Straße 1 • 22941 Bargteheide, Germany • www.nord.com
Pos : 2 /T ec hnis che Infor mationen/Dr oss eln/Netzdr oss eln/SK CI5-... [SK 5xxP]/Produkt [SK CI5-...] (all e T ypen) @ 65\mod_1612855802358_388.doc x @ 2732790 @ @ 1

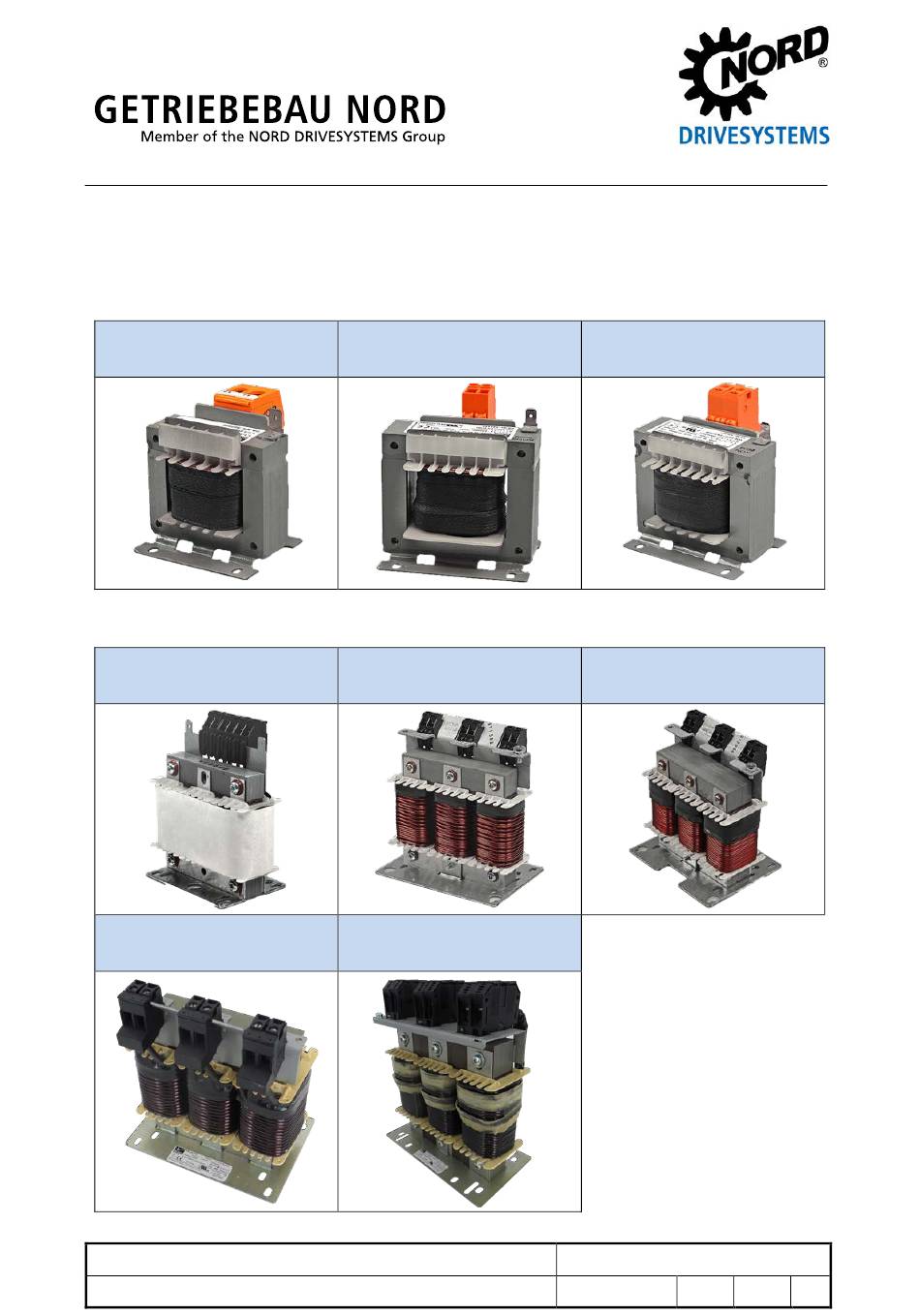

Mains chokes for NORDAC PRO SK 5xxP
1~ 230 V AC
SK CI5-230/006-C
276 993 005
3~ 400 V AC
SK CI5-500/004-C
276 993 004
SK CI5-500/035-C
276 993 035
Technical Information / Datasheet
SK CI5-230/010-C
276 993 009
SK CI5-500/008-C
276 993 008
SK CI5-500/063-C
276 993 063
Mains choke
SK CI5-230/025-C
276 993 024
SK CI5-500/016-C
276 993 016
SK CI5-xxx/xxx-C
TI 276993xxx
1.1
1822
en

Advertisement

loading
Need help?

Need help?

Do you have a question about the SK CI5-230/006-C and is the answer not in the manual?

Questions and answers

Summary of Contents for nord SK CI5-230/006-C

  • Page 1 Getriebebau NORD GmbH & Co. KG Getriebebau-Nord-Straße 1 • 22941 Bargteheide, Germany • www.nord.com Pos : 2 /T ec hnis che Infor mationen/Dr oss eln/Netzdr oss eln/SK CI5-... [SK 5xxP]/Produkt [SK CI5-...] (all e T ypen) @ 65\mod_1612855802358_388.doc x @ 2732790 @ @ 1...
  • Page 2 Pos : 8 /T ec hnis che Infor mationen/Dr oss eln/Netzdr oss eln/SK CI5-... [SK 5xxP]/Ü bersic ht [SK C I5-...] (alle T ypen) @ 71\mod_1618470117136_388.doc x @ 2764445 @ @ 1 1~ 230 V AC Product type Part number Rated current Inductance Mains voltage [mH] SK CI5-230/006-C 276 993 005 4.88 200 … 240 SK CI5-230/010-C 276 993 009 10.0 2.93 ±...
  • Page 3 For further information, please refer to the manual  BU 0600 (see "Further documentation www.nord.com"). Pos : 16 /Allgemein/Hinweis e (Gefahr, War nung, Vorsic ht und Allgemein) /Hinweis Inbetriebnahme durch El ektrofachkr aft @ 13\mod_1472545292234_388.doc x @ 344669 @ @ 1 It only is allowed for qualified electricians to install and commission the module.
  • Page 4 Assignment to frequency inverters Information The chokes provided by the NORD DRIVESYSTEMS Group are directly tailored to the individual NORDAC PRO series. Pos : 22 /T echnisc he Informati onen/Dr ossel n/Allgemei n gül tig (Dross eln)/Ver weis auf H andbuc h BU 0600 ( alle Produkte) @ 72\mod_1619775815803_388.doc x @ 2773690 @ @ 1 For further information, please refer to the manual ...
  • Page 5 50 – 60 Inductance tolerance [%] ±10 1.5 x nominal Overload capacity current 1st value @ 50 Hz, 2nd value @ 60 Hz 1 minute per hour Product type SK CI5-230/006-C 4.88 2500 SK CI5-230/010-C 10.0 2.93 2500 SK CI5-230/025-C 25.0 1.17...
  • Page 6 Mains choke – SK CI5-xxx/xxx-C Product type SK CI5-230/006-C Class 130 ���� SK CI5-230/010-C Class 130 BU 0600 SK CI5-230/025-C Class 130 SK CI5-500/004-C Class 130 SK CI5-500/008-C Class 155 ���� SK CI5-500/016-C Class 155 BU 0600 SK CI5-500/035-C Class 155...
  • Page 7 Mains choke – SK CI5-xxx/xxx-C Dimensions Dimen- [mm] sioned Weight Fastening Overall dimensions drawing [kg] screws Product type SK CI5-500/004-C 1.31 SK CI5-500/008-C SK CI5-500/016-C SK CI5-500/035-C 5.95 Typical, varies due to air gap inlay TI 276993xxx - 1822 7 / 17...
  • Page 8: Connection Data

    (1.1; 1.2) (PE) Screw terminal Tightening torque Flat plug Foot plate [Nm] [mm] Product type ✓ SK CI5-230/006-C 1.0 – 1.2 6.3 x 0.8 ✓ SK CI5-230/010-C 0.5 – 1.0 6.3 x 0.8 ✓ SK CI5-230/025-C 1.2 – 2.0 6.3 x 0.8 Phases (1.1;...
  • Page 9 Mains choke – SK CI5-xxx/xxx-C Phases Mounting (L1-L12; L2-L22; L3-L32) (PE) Screw terminal Tightening torque Flat plug Foot bracket [Nm] [mm] Product type ✓ SK CI5-500/004-C 0.5 – 1.0 6.3 x 0.8 2 PE flat plugs / connectors Phases (L1-L12; L2-L22; L3-L32) Solid / flexible Insulation stripping Fine-wire...
  • Page 10 Pos : 34 /T echnisc he Informati onen/Dr ossel n/N etz drossel n/SK CI5-... [SK 5xxP]/Montage/Ins tall ati on [SK C I5-...] (alle T ypen) @ 71\mod_1618475646135_388.doc x @ 2764521 @ @ 1 Installation Appropriate screws (4 pcs) must be provided for mains choke fastening. SK CI5-230/006-C SK CI5-500/004-C SK CI5-500/008-C...
  • Page 11 Mains choke – SK CI5-xxx/xxx-C SK CI5-500/063-C 3~ 400 V For information on fastening, please refer to the technical data in section "Mechanical". Pos : 35 /Allgemein/Allgemeing ültige M odul e/---------Seitenumbruc h kompakt --------- @ 13\mod_1476369695906_0.doc x @ 2265495 @ @ 1 TI 276993xxx - 1822 11 / 17...
  • Page 12 Mains choke – SK CI5-xxx/xxx-C Pos : 37 /T echnisc he Informati onen/Dr ossel n/N etz drossel n/SK CI5-... [SK 5xxP]/Montage/Einbaul age [SK CI5-...] ( alle T ypen) @ 70\mod_1617893248990_388.doc x @ 2757880 @ @ 1 Installation position Pos : 38 /Allgemein/Allgemeing ültige M odul e/---------Seitenumbruc h kompakt --------- @ 13\mod_1476369695906_0.doc x @ 2265495 @ @ 1 12 / 17 TI 276993xxx - 1822...
  • Page 13 Mains choke – SK CI5-xxx/xxx-C Pos : 40 /T echnisc he Informati onen/Dr ossel n/N etz drossel n/SK CI5-... [SK 5xxP]/Montage/Fr eiräume [SK C I5-...] (alle T ypen) @ 70\mod_1618227612033_388.doc x @ 2759980 @ @ 1 Clearances Pos : 41 /Allgemein/Allgemeing ültige M odul e/---------Seitenumbruc h kompakt --------- @ 13\mod_1476369695906_0.doc x @ 2265495 @ @ 1 TI 276993xxx - 1822 13 / 17...
  • Page 14 For further information, please refer to section (see "Technical Data") and the manual  BU 0600 (see "Further documentation www.nord.com"). Pos : 47 /T echnisc he Informati onen/Dr ossel n/N etz drossel n/SK CI5-... [SK 5xxP]/Montage/Ansc hluss [SK C I5-...] (alle T ypen) @ 71\mod_1618478170698_388.doc x @ 2764596 @ @ 1...
  • Page 15 Tightening torques and wiring rules for the connection to the frequency inverter are specified in manual  BU 0600 (see "Further documentation www.nord.com"). Pos : 48 /T echnisc he Informati onen/Dr ossel n/Allgemei n gül tig (Dross eln)/Infor mation bzgl. M ontag e Wer kz eug [SK C x5-...] @ 77\mod_1627890093001_388.doc x @ 2811260 @ @ 1 Information When mounting and connecting the choke, the user must heed the notes on tools.
  • Page 16 Mains choke – SK CI5-xxx/xxx-C Pos : 50 /T echnisc he Informati onen/Allgemei ne Modul e/Anschl uss bild (Überschrift) [alle T Is] @ 71\mod_1618495584687_388.doc x @ 2764790 @ 5 @ 1 Connection diagram Pos : 52 /T echnisc he Informati onen/Dr ossel n/N etz drossel n/SK CI5-... [SK 5xxP]/Ansc hlus sbil d N etz dross el n [SK CI5-...] (all e T ypen) @ 70\mod_1618232159241_388.doc x @ 2760330 @ @ 1 SK CI5-230/xxx-C SK CI5-500/xxx-C 1~ 230 V...
  • Page 17 For further information, please refer to the manual  BU 0600 (see "Further documentation www.nord.com"). Pos : 58 /T echnisc he Informati onen/Allgemei ne Modul e/Wartung (Ü bersc hrift) [all e TIs ] @ 70\mod_1618232333715_388.doc x @ 2760368 @ 5 @ 1 Maintenance Pos : 59 /T echnisc he Informati onen/Dr ossel n/Allgemei n gül tig (Dross eln)/Wartungshi nweis [SK C x5-...] (all e T ypen) @ 70\mod_1618232094078_388.doc x @ 2760292 @ @ 1...
