Installing The Power Button Board Assembly With Fingerprint Reader - Dell Precision 5470 Service Manual
Hide thumbs
Also See for Precision 5470:
- Owner's manual (45 pages) ,
- Setup and specifications (29 pages) ,
- Connection manual (9 pages)
Table of Contents
Advertisement
Steps
1. Remove the three (M1.6x2) screws that secure the fingerprint reader bracket to the power button board.
2. Remove the fingerprint reader from the power button board.
3. Remove the power button board with power button FPC from the palm-rest and keyboard assembly.
Installing the power button board assembly with fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

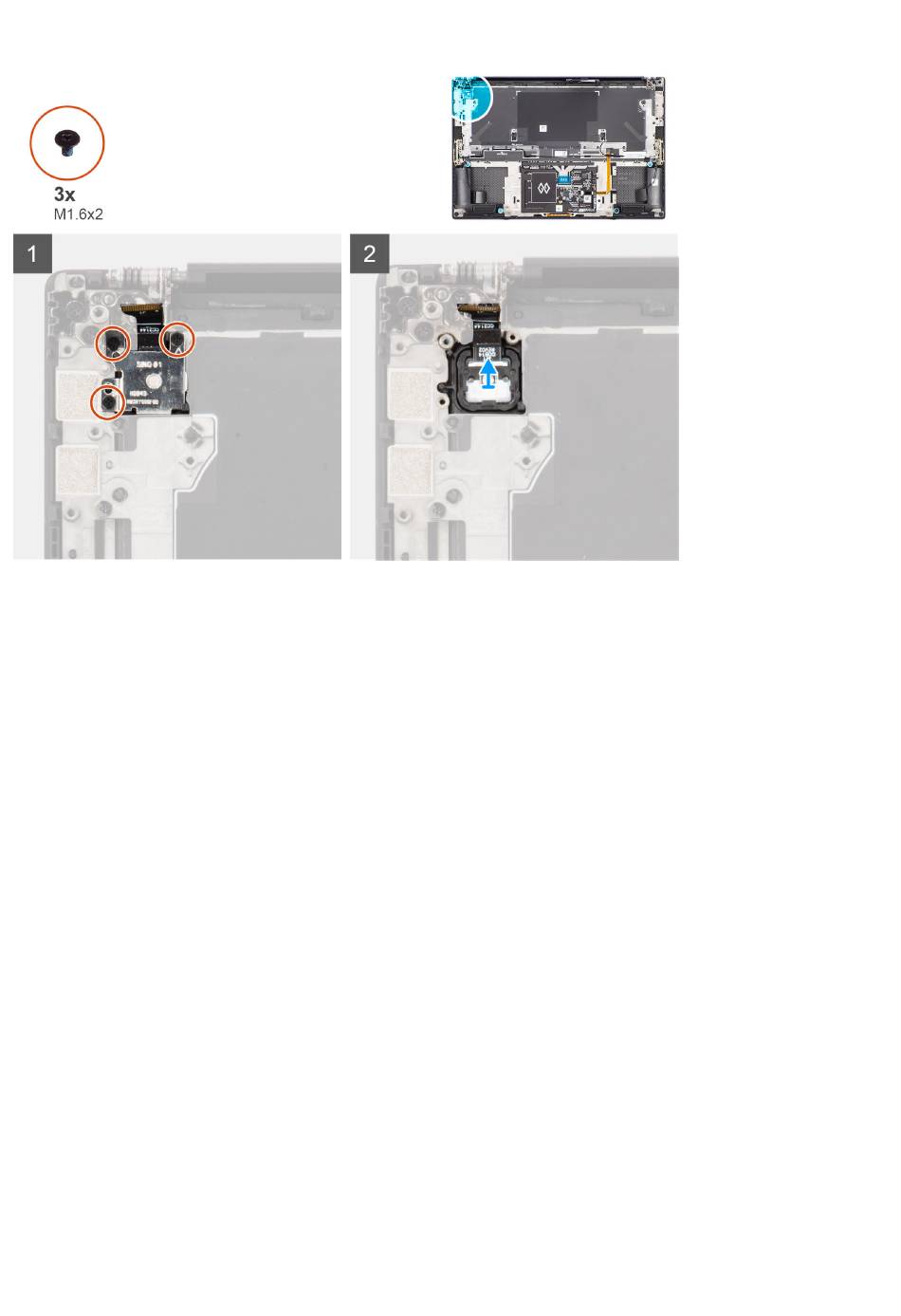

The figure indicates the location of the power button assembly with fingerprint reader and provides a visual representation of
the installation procedure.
Removing and installing components
57
