FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. DO NOT try to light any
appliance.
3. DO NOT use electrical
switches.
4. DO NOT use any telephone
in your building.
5. Leave the building.
6. Immediately call your local
gas supplier after leaving
the building. Follow the gas
supplier's instructions.
7. If you cannot reach your gas
supplier, call the Fire
Department.
DO NOT store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service
or maintenance will result in death, injury or property
damage. Read the installation, operation and service
manual thoroughly before installing or servicing
this equipment.
Installation must be done by a contractor qualified
in the installation and service of gas-fired heating
equipment or your gas supplier.
© Copyright 1999 Roberts-Gordon

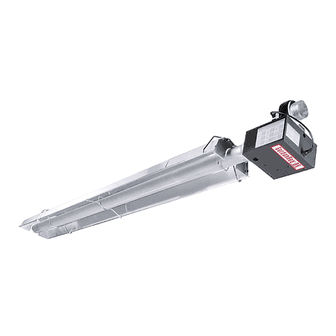

GordonRay BH
Fuel Conversion Kit Instructions
Please take the time to read and understand
these instructions prior to any installation.
Installer must give a copy of this manual to the owner.
Keep this manual in a safe place to provide your
serviceman with information should it become
Roberts-Gordon
1250 William Street
P.O. Box 44
Buffalo, New York 14240-0044
Telephone: 716.852.4400
Fax: 716.852.0854
Toll Free: 800.828.7450
http://www.rg-inc.com
®
BH-40
BH-125
BH-60
BH-150
BH-80
BH-175
BH-100
BH-200
Installer
Owner
necessary.
Roberts-Gordon Canada Inc.
241 South Service Road West
Grimsby, Ontario L3M 1Y7 Canada
Telephone: 905.945.5403
Fax: 905.945.0511
Toll Free: 800.663.9025
P/N 270101NA Rev. A 11/99
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Roberts Gorden GordonRay BH Series
Summary of Contents for Roberts Gorden GordonRay BH Series
- Page 1 FOR YOUR SAFETY If you smell gas: 1. Open windows. GordonRay BH 2. DO NOT try to light any ® appliance. 3. DO NOT use electrical switches. 4. DO NOT use any telephone in your building. 5. Leave the building. Fuel Conversion Kit Instructions 6.
-
Page 3: Table Of Contents
ROBERTS GORDON Table of Contents BEFORE YOU BEGIN ........1 Read This Manual . -
Page 5: Before You Begin
BEFORE YOU BEGIN ROBERTS GORDON Read this Read these instructions carefully before servicing this equipment. Improper installation, servicing or maintenance will cause death, Manual injury or property damage. Installer must be a contractor qualified in the installation and service of gas-fired heating equipment or your gas supplier. -
Page 6: Heater Safety
Heater Safety ® GORDONRAY BH SERIES HEATER Your Safety This symbol is used throughout the manual to notify you of possible fire, electrical or shock hazards. Please is Important pay special attention when reading and following the to Us warnings in these sections. Due to the nature of gas conversions, it is important Important you use the correct conversion kit for the heater model... -
Page 7: Fuel Conversion Kits
Fuel Conversion Kits Configuration ROBERTS GORDON WARNING Natural - to - Propane Conversion Natural -to- Propane Check Conversion Kit Part Number before proceeding. Kit Part Conversions Only Number must match the corresponding model number. Failure to follow these instructions will result in death, injury or property damage. -
Page 8: For Propane -To- Natural Conversions Only (Figure 2.)
Fuel Conversion Kits Configuration ® GORDONRAY BH SERIES HEATER WARNING For Propane -to- Propane - to - Natural Conversion Natural Conversions Check Conversion Kit Part Number before proceeding. Kit Part Only Number must match the corresponding model number. Failure to follow these instructions will result in death, injury or property damage. -
Page 9: Warnings
Warnings ROBERTS GORDON WARNING WARNING WARNING Explosion Hazard Electrical Shock Hazard Health Hazard Turn off the gas supply to Unplug the electrical cord Gasket material may be the heater before perform- from the outlet before per- harmful if inhaled. ing any service or mainte- forming any service or Gasket material may also nance. -
Page 10: Fuel Conversion Instructions
Fuel Conversion Instructions ® GORDONRAY BH SERIES HEATER WARNING Burner is secured to transition tube by Bolts and Lockwashers. Upon removal of Bolts, Burner is free from Transition Tube and will fall if not supported. Failure to follow these instructions will result in death, injury or property damage. - Page 11 Fuel Conversion Instructions ROBERTS GORDON Remove the blower and door assembly from the burner assembly: Step 2 Unplug the blower; using a 1/4" nut driver or a phillips (+) screwdriver, remove the (7) screws and the door assembly and set aside. Refer to Page 7, Figure 4.
- Page 12 Fuel Conversion Instructions ® GORDONRAY BH SERIES HEATER WARNING ® Use only genuine ROBERTS GORDON replacement parts. Use of parts not specified by Roberts-Gordon voids warranty. Failure to follow these instructions will result in death, injury or property damage. a. Remove the burner cup assembly: Unscrew the burner cup and Step 3 pull back on the flex manifold to allow the cup to clear the electrode.
-
Page 13: Step 6
Fuel Conversion Instructions ROBERTS GORDON f. Replace the regulator spring: Using a straight slot screwdriver, remove the cap from the regulator adjusting screw, remove the screw and remove and replace the spring. Refer to Page 9, Figure 6. NOTE: Silver spring for Natural, red spring for Propane. Refer to Pages 3 and 4, Fuel Conversion Kits Configurations. -
Page 14: (Figure 7.)
Fuel Conversion Instructions ® GORDONRAY BH SERIES HEATER Manometer WARNING Reading Electrical Shock Hazard Disconnect electrical power before installation or service. Failure to follow these instructions will result in death or electrical shock. Top View of Heater Manometer 10.5" 3.5" Natural Propane FIGURE 7. - Page 15 Fuel Conversion Instructions ROBERTS GORDON Step 5 Print the requested information in the fields of the burner conversion label as shown below. Enter following data for Enter following data for Natural -to- Propane Propane -to- Natural Conversions Conversions For Model No. Enter Size for Propane For Model No.
-
Page 16: Clearances To Combustibles
Clearances to Combustibles ® GORDONRAY BH SERIES HEATER Clearances are the required distances that com- WARNING bustible objects must be away from the heater to prevent serious fire hazards. Combustibles are materials, vapors or liquids, which may catch on fire and include common items such as wood, paper, rubber, fabric, etc. - Page 17 Clearances to Combustibles ROBERTS GORDON NOTE: 1. All dimensions are from the tube surface. 2. Clearances B, C and D can be reduced by 50% after 25’ (7 m) of tubing downstream from where the burner and transition tube connect. 3.
- Page 18 Clearances to Combustibles ® GORDONRAY BH SERIES HEATER NOTE: 1. All dimensions are from the tube surface. 2. Clearances B, C and D can be reduced by 50% after 25’ (7 m) of tubing downstream from where the burner and transition tube connect. 3.
- Page 19 Clearances to Combustibles ROBERTS GORDON NOTE: 1. All dimensions are from the tube surface. 2. Clearances B, C and D can be reduced by 50% after 25’ (7 m) of tubing downstream from where the burner and transition tube connect. 3.
-
Page 20: Operation And Maintenance
Operation and Maintenance ® GORDONRAY BH SERIES HEATER After lockout, control must be reset by turning WARNING down thermostat for five (5) seconds, and then raising it again to desired temperature, or by dis- connecting power and then reconnecting. When thermostat is satisfied, all power to the unit is shut off. -
Page 21: Remember To Check
Operation and Maintenance ROBERTS GORDON REMEMBER TO CHECK: WARNING Installation, Service and Annual Inspection must be done by a contractor qualified in the installation and service of gas-fired heating equipment. Read this manual carefully before installation, operation, or service of this equipment. Failure to follow these instructions will result in death, injury or property damage. -
Page 22: Remember To Check Continued
Operation and Maintenance ® GORDONRAY BH SERIES HEATER Heat Exchanger Tubes Make sure there are no cracks. Make sure tubes are connected and suspended securely. Make sure there is no sagging, bending or distortion. Do not operate if there is sagging, cracking or distortion. Gas Line Check for gas leaks. -
Page 23: Limited Warranty
Limited Warranty ROBERTS GORDON ROBERTS-GORDON WILL PAY FOR: For 36 months from the date of purchase by the original READ YOUR INSTALLATION, OPERATION AND consumer or 42 months from date of shipment by Roberts- SERVICE MANUAL Gordon, whichever occurs first: we will provide, free of If you have questions about your heater, contact your charge, replacement parts for any part of the GORDON- installing professional.
