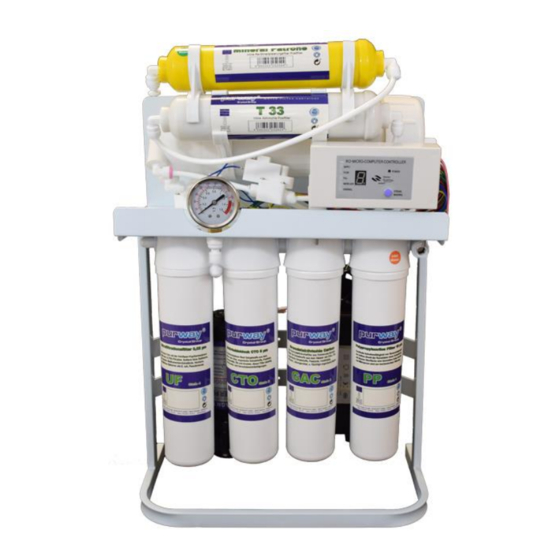

- Page 1 PUR QUICK 7 600 GPD User manual Bongartz GmbH - purway Crystal Group® | Damaschkestr. 10 | 28307 Bremen | Phone: +49 (0)4721 - 66 30 50 | E-Mail: info@purway.de...
-
Page 2: Table Of Contents
Thank you for purchasing the PUR Booster Quick 7 stages 600 GPD direct flow reserve osmosis water purifier produced by purway Crystal Group©. The reverse osmosis system in your possession is one of the most efficient and practical water treatment systems currently available on the market. -
Page 3: Safety Instructions
Safety instructions Do not make any changes to Do not cover the device! the device! Do not exceed the maximum Do not load the system with water inlet pressure of 4 bar! heavy objects! Do not contaminate the Do not use the device near system with caustic or sources of fire! corrosive materials! -
Page 4: Introduction To The Main Functions Of The Reverse Osmosis System
Introduction to the main functions of the reverse osmosis system Inlet solenoid valves Wastewater solenoid valves RO-membrane: Booster pump 600 GPD: 0,0001 µm effective filtration of Increases the pressure in the membrane bacteria, viruses, heavy metals, housing to overcome the osmotic pesticides, insecticides, residues, pressure. -
Page 5: Technical Specifications
Technical specifications Voltage U 230V AC 50 Hz/60 Hz - 24V DC Rated power P 80 W Rated power standby P < 1W Recommended water supply pressure p 1 – 4 bar Eintr Operating pressure p 8 bar ± 0,5 bar Betr Water temperature ϑ... -
Page 6: Scope Of Delivery
Scope of delivery • 1x Reverse osmosis system PUR QUICK 7 600 GPD including pre-installed filters • 1x User manual PUR QUICK 7 600 GPD • 1x RO membrane model 3013-600 • 1x Drain clamp for 1/4“ tube • 1x 3-way inlet valve with washer 1/2" and 3/8”... - Page 7 2. Use of quick-change adapters Assembly Release Remove the blue safety Remove the blue safety clip. clip. Push the front ring Push the t over a towards the connector constriction (seal) into the with your thumb and index connector (approx. 8mm). finger.
- Page 8 4. Installation of the water supply Ball valve Connection faucet Screw nut Washer 3-way inlet valve Ball valve Washer Inlet water valve 4.1 Shut off the water supply. 4.2 Release the flex tube of your faucet in the cold water and screw the 3-way inlet valve to the water pipe. 4.3 Ensure a correct fit of the washers.
- Page 9 6. Installation of the faucet 6.1 Mark the place where you want to mount your osmosis faucet. 6.2 Use a drilling machine to drill a 12 mm diameter hole through the sink or worktop. 6.3 Guide the base and the white rubber seal over the threaded rod and place the fitting in the hole in the worktop or sink.
- Page 10 7. Installation wastewater 6.1 Drill a 6 mm hole above 6.2 Mount the supplied d clamp with 6.3 Insert the wastewater rain the siphon bend. the seal on the hole and tighten the screws tube into the quick- with a screwdriver. change adapter.
-
Page 11: Initial Start-Up
9. Installation of the reserve osmosis membrane 9.1 Remove the tube from the L-adapter on the housing lid and open it with the appropriate spanner. 9.2 Take the new membrane out of the packaging and press the end with the two O-rings into the membrane housing first (Pay attention to the installation direction and make sure that the connection piece of the membrane has two O-rings). -
Page 12: Maintenance And Care
Maintenance and Care Regular use of your system prevents it from drying out and possible hygiene problems If you are not going to use the device for a long time, please disconnect the water supply and the power plug of your reverse osmosis system. You should change the filter when you have reached the maximum service life or water volume. -
Page 13: Filterchange
Filterchange 1. Installation Twist-Change-System prefilters: Before you start changing the filter, disconnect the water supply to your RO unit and pull the 230 V power plug out of the socket! When the system is empty and depressurized, the filter bowls can be opened more easily. - Page 14 1. Installation of the T33 post filter: 2.1 Loosen the quick-change adapters on the T33 postfilter and disconnect them. 2.2 Prepare the new cartridge by screwing the supplied ¼” L-adapter into the cartridge. Before doing this, wrap the threads with sufficient Teflon tape to prevent possible leaks. 2.3 Insert the tubes into the quick-change adapters as usual.
-
Page 15: Troubleshooting
Troubleshooting Error Reason Solution The device cannot be Device is not connected to the power. Check the power supply. switched on. power supply defective. Contact customer service. Blown fuse in the computer control. Replace the computer controller. The pump works Inlet water solenoid valve is defective, Replace the solenoid valve. - Page 16 The manufacturer hereby declares that the device complies with the basic requirements and all other relevant provisions of Directive 2016/35 / EC. Only for use in closed rooms Bongartz GmbH - purway Crystal Group® | Damaschkestr. 10 | 28307 Bremen |Phone: +49 (0)4721 - 66 30 50 | E-Mail: info@purway.de...
