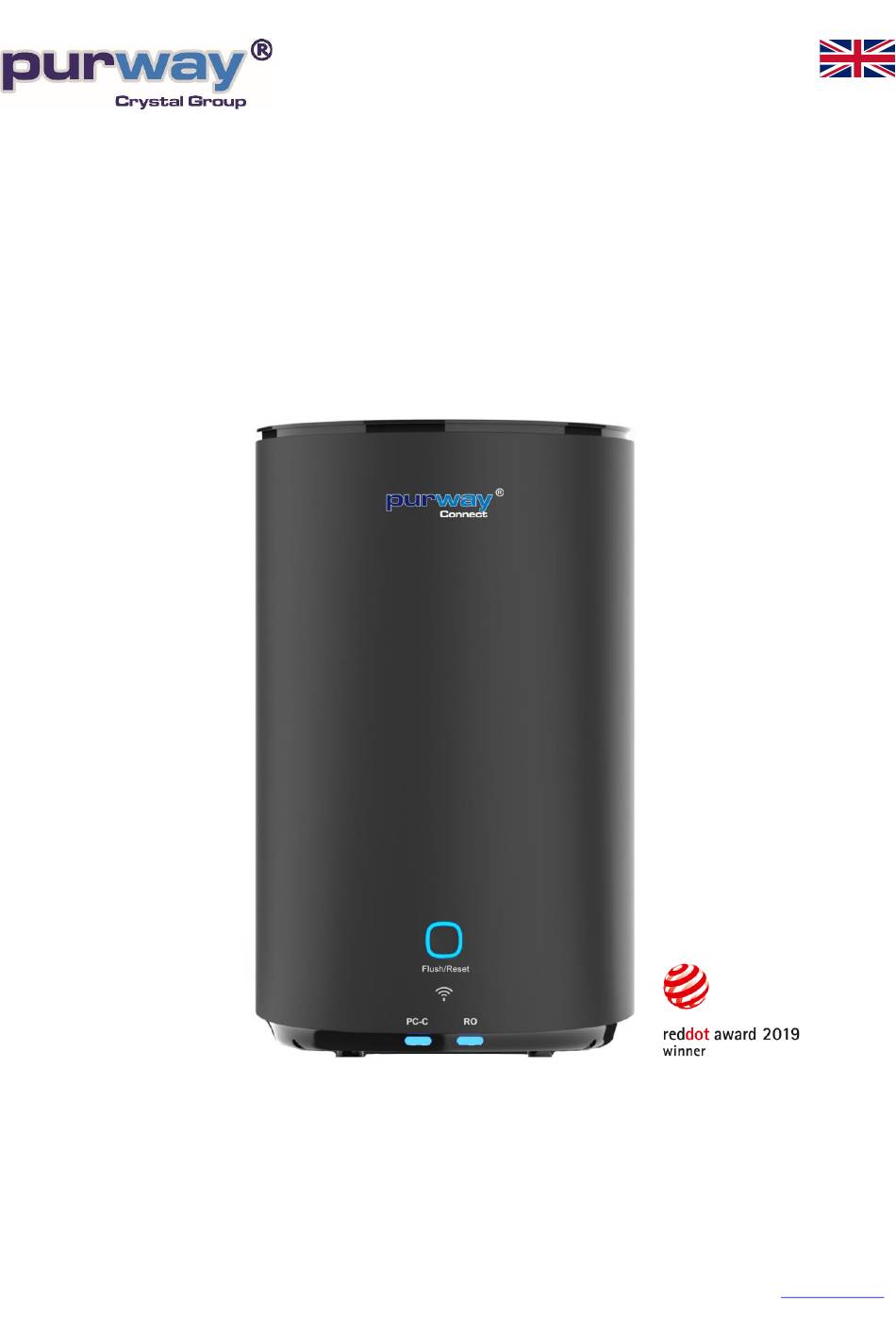

- Page 1 PUR Connect 600 User manual Bongartz GmbH - purway Crystal Group® | Damaschkestr. 10 | 28307 Bremen | Telephone: +49 (0)4721 - 66 30 50 | E-Mail: info@purway.de...
-
Page 2: Table Of Contents
Reset the filters ................................11 Dear Customer, Thank you for purchasing the PUR Connect direct flow reserve osmosis water purifier produced by purway Crystal Group©. The reverse osmosis system in your possession is one of the most efficient and practical water treatment systems currently available on the market. -
Page 3: Safety Instruction
Safety instruction Do not make any changes to Do not cover the device! the device! Do not exceed the maximum Do not load the system with water inlet pressure of 4 bar! heavy objects! Do not contaminate the Do not use the device near system with caustic or sources of fire! corrosive materials! -
Page 4: Introduction To The Main Functions Of The Reverse Osmosis System
Introduction to the main functions of the reverse osmosis system Inlet solenoid valves Wastewater solenoid valves RO-membrane 600 GPD: 0,0001 µm effective filtration of bacteria, viruses, heavy metals, pesticides, insecticides, residues, and other harmful substances PC-C composite filter: Pre-filter: 5 µm PP filter for filtering fine sediments such as sand, rust, etc. and a carbon block to reduce the chlorine content. -
Page 5: Technical Specifications
Technical specifications Voltage U 230V AC 50 Hz/60 Hz - 24V DC Rated power P 96 W Rated power standby P < 1W Recommended water supply pressure p 1 - 4 bar Eintr Operating pressure p 4 - 8 bar ± 0,5 bar Betr Water temperature ϑ... -
Page 6: Scope Of Delivery
Scope of delivery • 1x Reverse osmosis system PUR Connect 600 including pre-installed filter levels. • 1x Operation manual PUR Connect 600 • 1x Wastewater clamp for 1/4“tube • 1x 3-way inlet valve with washer 1/2" • 1x Straight tube adapter 1/4" (for faucet) •... - Page 7 Use of quick-change adapters Assembly Release Remove the blue safety Remove the blue safety clip. clip. Push the front ring Push the t over a towards the connector constriction (seal) into the with your thumb and index connector (approx. 8mm). finger.
- Page 8 First connect the 3/8" tube of the inlet water to the water leak sensor and lead another 3/8" piece of tube from the outlet of the water leak sensor to the inlet of your reserve osmosis system. Use the tablet only after the installation has been completed and when the system is leakproof after the test run.
- Page 9 Installation of the water supply 3.1 Shut off the water supply. 3.2 Release the flex tube of your faucet in the cold water and screw the 3-way inlet valve to the water pipe. 3.3 Ensure a correct fit of the washers. 3.4 Take the 3/8“...
-
Page 10: Initial Start-Up
5. Installation wastewater 6.1 Drill a 6 mm hole above 6.2 Mount the supplied d clamp with 6.3 Insert the wastewater rain the siphon bend. the seal on the hole and tighten the screws tube into the quick- with a screwdriver. change adapter. -
Page 11: Maintenance And Care
Maintenance and Care Regular use of your system prevents it from drying out and possible hygiene problems Do not use any aggressive substances to clean the PUR Connect 600 reverse osmosis system. This can damage the outer housing. If you are not going to use the device for a long time, please disconnect the water supply and the power plug of your reverse osmosis system. -
Page 12: Filter Change
Filter change To change the filter, first shut off the water supply. Your PUR Connect 600 signals you as soon as a filter change is imminent. There are three colors on the respective display PC-C and RO, which inform you of the following status: blue Your filters are intact and no filter needs to be changed. - Page 13 Directive 2016/35 / EC. Only for use in closed rooms Bongartz GmbH - purway Crystal Group® | Damaschkestr. 10 | 28307 Bremen | Telephone: +49 (0)4721 - 66 30 50 | E-Mail: info@purway.de...
