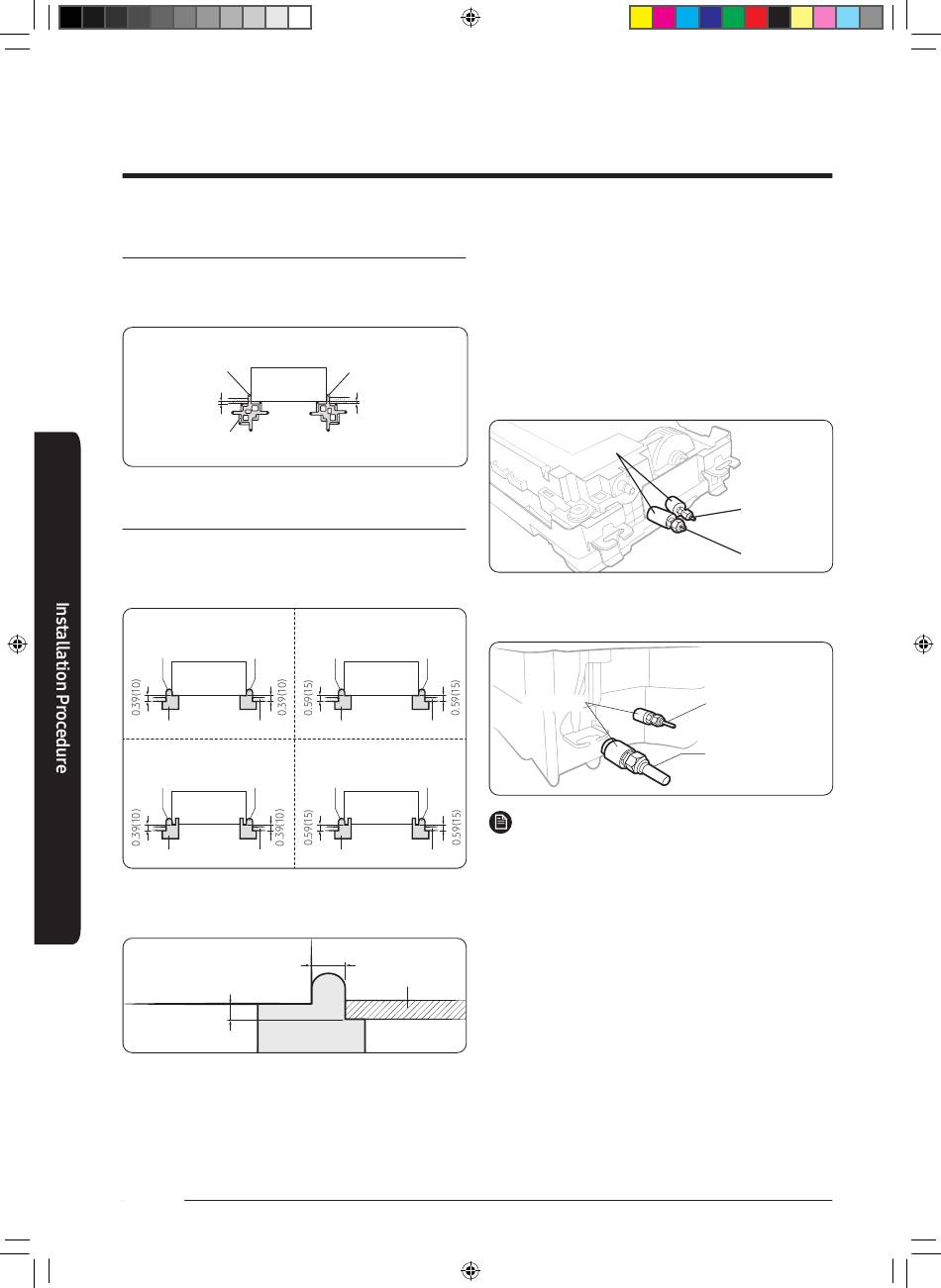

Installation Procedure
When the installation template is made of plastic
1 way Cassette
1 way Cassette (WindFree panel)
① WindFree medium/
large type (outlet)
0.39(10)
Clamping jig
When the installation template is made of paper
1 way Cassette
1way cassette (WindFree panel)
(AC009BN1DCH, AC012BN1DCH)
Air outlet side Air inlet side
Indoor unit
Jig
1way cassette (WindFree panel)
(AC018BN1DCH)
Air outlet side Air inlet side
Indoor unit
Jig
4 way Cassette
Indoor unit
0.67 inch (17 mm)
14
English
DB68-11272A-00_IM_CAC WindFree1,4way_AA_EN_.indd 14 DB68-11272A-00_IM_CAC WindFree1,4way_AA_EN_.indd 14
Unit : inch(mm)
① WindFree medium/
large type (inlet)
Indoor unit
0.39(10)
Unit: inch(mm)
1way cassette (General panel)
(AC009BN1DCH, AC012BN1DCH)
Air outlet side Air inlet side
Indoor unit
Ceiling Jig Ceiling
1way cassette (General panel)
(AC018BN1DCH)
Air inlet side
Air outlet side
Indoor unit
Ceiling Ceiling
Jig
0.79 inch (20 mm)
Ceiling
Gauge of dimensions
Step 5 Purging inert gas from the
indoor unit
The indoor unit comes with nitrogen gas (inert gas)
charged at the factory. Therefore, all inert gas must be
purged before connecting the refrigerant pipes.
Unscrew the pinch pipe at the end of each refrigerant pipe.
1 way Cassette
Insulator
4 way Cassette
Insulator
NOTE
• To prevent dirt or foreign objects from getting into the
pipes during installation, do not remove the pinch pipe
completely until you are ready to connect the piping.

Step 6 Cutting and flaring the pipes

1 Make sure that you have the required tools available:
pipe cutter, reamer, flaring tool, and pipe holder.
2 If you wish to shorten the pipes, cut them with a pipe
cutter, ensuring that the cut edge remains at a 90° angle
to the side of the pipe. Refer to the illustrations below
for examples of edges cut correctly and incorrectly.
Liquid side
Gas side
Liquid side
Gas side
