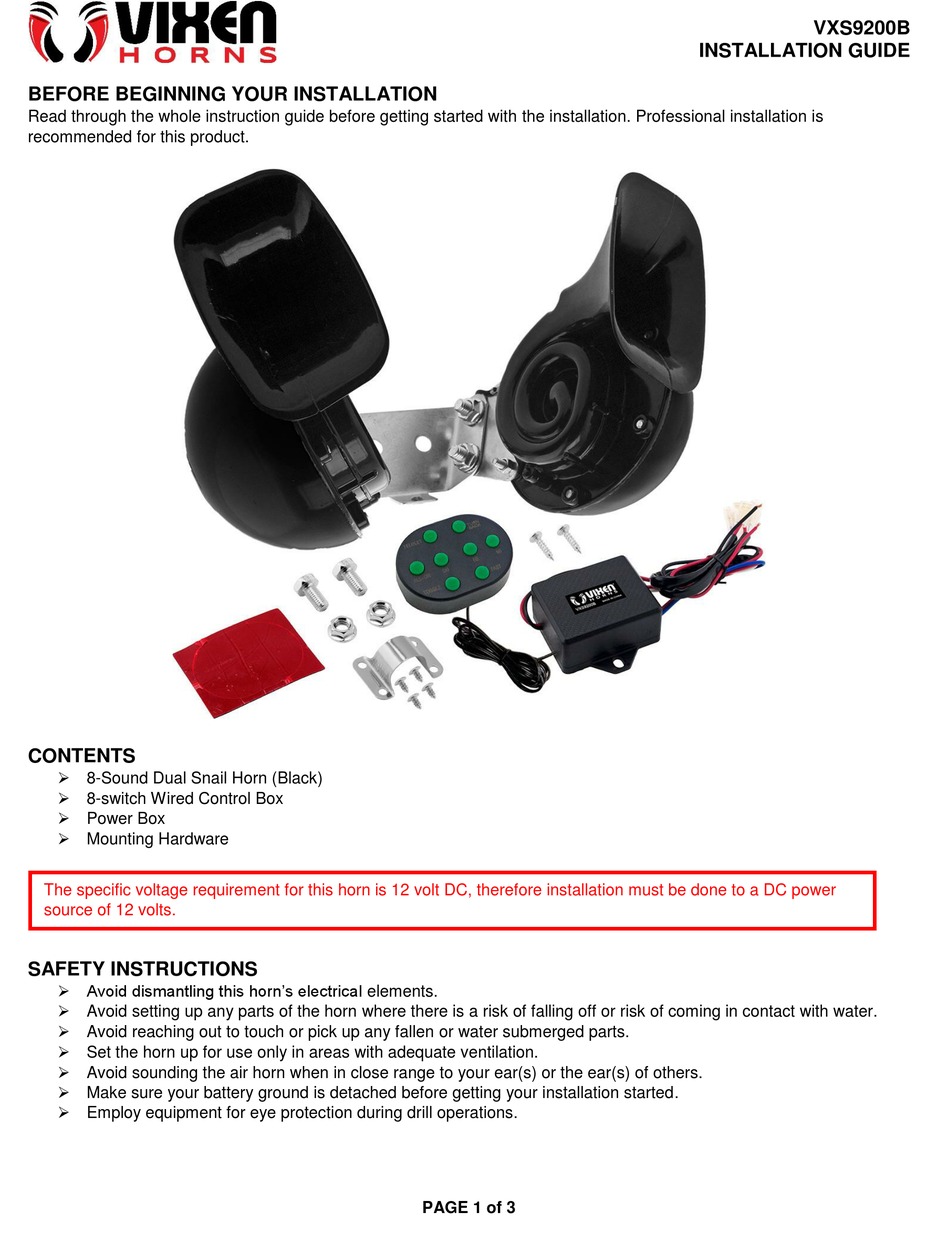

Vixen Horns VXS9200B Installation Manual

Hide thumbs
1
2
3

Advertisement

Table of Contents

BEFORE BEGINNING YOUR INSTALLATION

Read through the whole instruction guide before getting started with the installation. Professional installation is
recommended for this product.

CONTENTS

 8-Sound Dual Snail Horn (Black)
 8-switch Wired Control Box
 Power Box
 Mounting Hardware
The specific voltage requirement for this horn is 12 volt DC, therefore installation must be done to a DC power
source of 12 volts.

SAFETY INSTRUCTIONS

 Avoid dismantling this horn's electrical elements.
 Avoid setting up any parts of the horn where there is a risk of falling off or risk of coming in contact with water.
 Avoid reaching out to touch or pick up any fallen or water submerged parts.
 Set the horn up for use only in areas with adequate ventilation.
 Avoid sounding the air horn when in close range to your ear(s) or the ear(s) of others.
 Make sure your battery ground is detached before getting your installation started.
 Employ equipment for eye protection during drill operations.
PAGE 1 of 3
VXS9200B
INSTALLATION GUIDE
