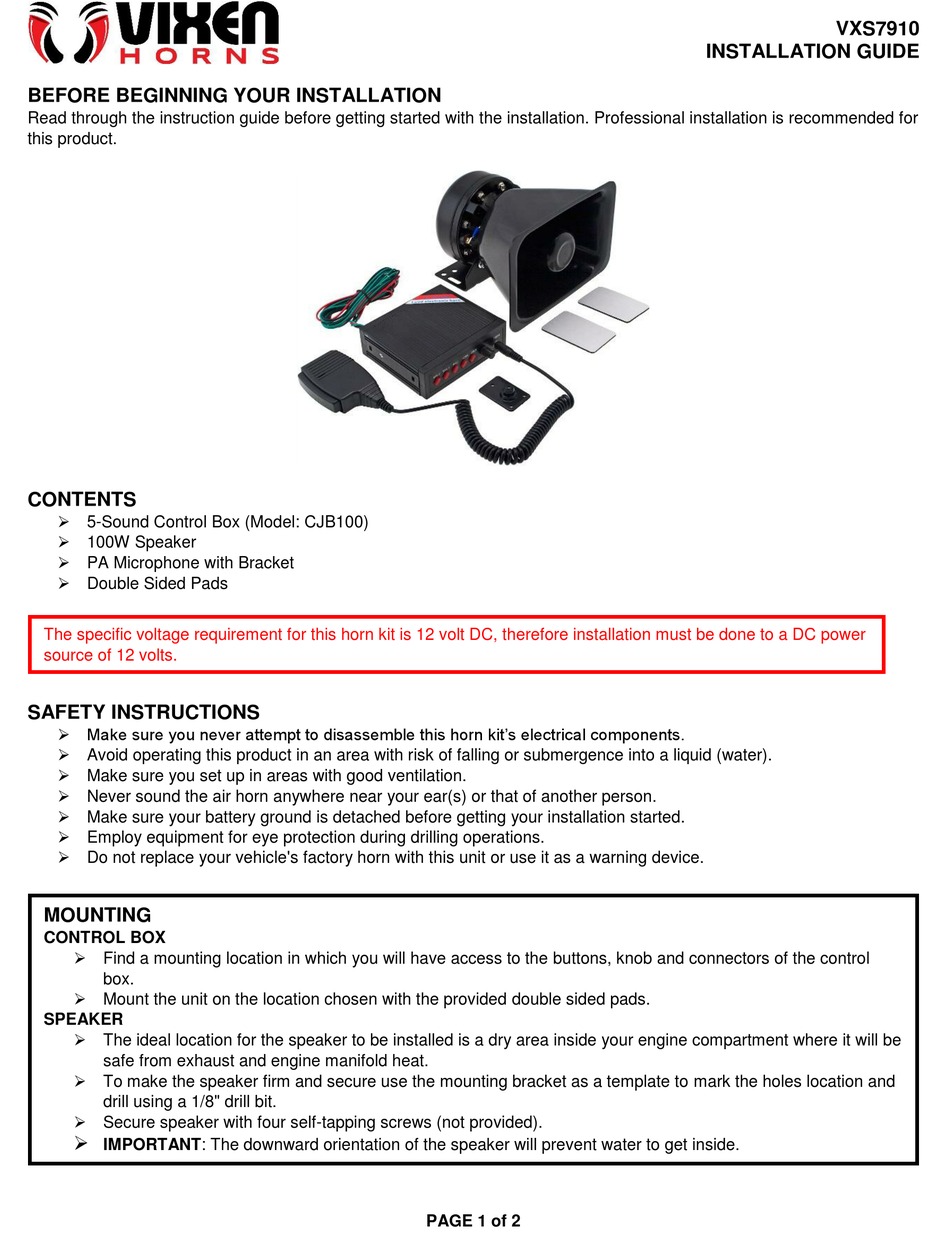

Vixen Horns VXS7910 Installation Manual

BEFORE BEGINNING YOUR INSTALLATION

Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.

CONTENTS

 5-Sound Control Box (Model: CJB100)
 100W Speaker
 PA Microphone with Bracket
 Double Sided Pads
The specific voltage requirement for this horn kit is 12 volt DC, therefore installation must be done to a DC power
source of 12 volts.

SAFETY INSTRUCTIONS

 Make sure you never attempt to disassemble this horn kit's electrical components.
 Avoid operating this product in an area with risk of falling or submergence into a liquid (water).
 Make sure you set up in areas with good ventilation.
 Never sound the air horn anywhere near your ear(s) or that of another person.
 Make sure your battery ground is detached before getting your installation started.
 Employ equipment for eye protection during drilling operations.
 Do not replace your vehicle's factory horn with this unit or use it as a warning device.

MOUNTING

CONTROL BOX

 Find a mounting location in which you will have access to the buttons, knob and connectors of the control
box.
 Mount the unit on the location chosen with the provided double sided pads.

SPEAKER

 The ideal location for the speaker to be installed is a dry area inside your engine compartment where it will be
safe from exhaust and engine manifold heat.
 To make the speaker firm and secure use the mounting bracket as a template to mark the holes location and
drill using a 1/8" drill bit.
 Secure speaker with four self-tapping screws (not provided).

IMPORTANT: The downward orientation of the speaker will prevent water to get inside.
PAGE 1 of 2
VXS7910
INSTALLATION GUIDE
