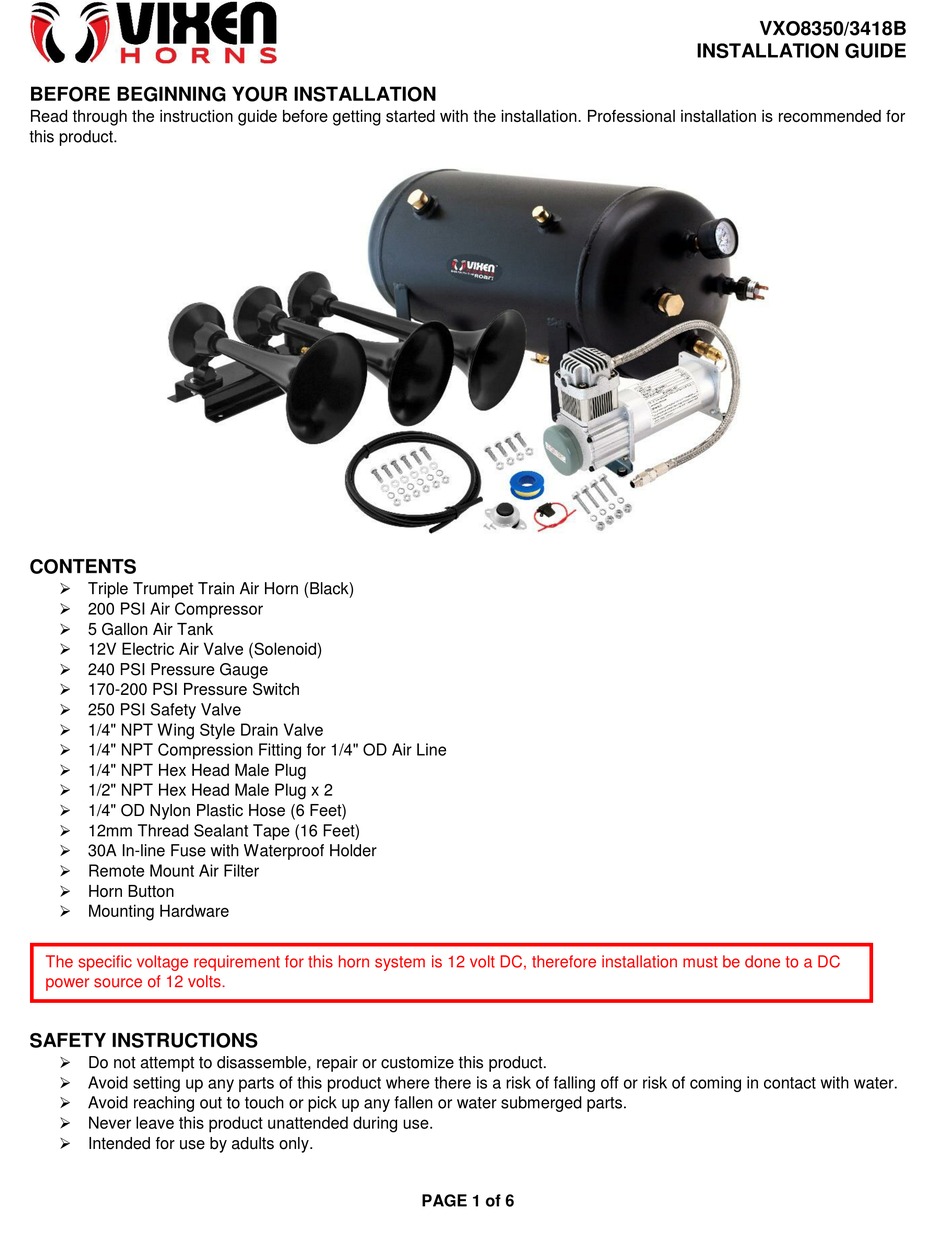

BEFORE BEGINNING YOUR INSTALLATION

Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.
CONTENTS
 Triple Trumpet Train Air Horn (Black)
 200 PSI Air Compressor
 5 Gallon Air Tank
 12V Electric Air Valve (Solenoid)
 240 PSI Pressure Gauge
 170-200 PSI Pressure Switch
 250 PSI Safety Valve
 1/4" NPT Wing Style Drain Valve
 1/4" NPT Compression Fitting for 1/4" OD Air Line
 1/4" NPT Hex Head Male Plug
 1/2" NPT Hex Head Male Plug x 2
 1/4" OD Nylon Plastic Hose (6 Feet)
 12mm Thread Sealant Tape (16 Feet)
 30A In-line Fuse with Waterproof Holder
 Remote Mount Air Filter
 Horn Button
 Mounting Hardware
The specific voltage requirement for this horn system is 12 volt DC, therefore installation must be done to a DC
power source of 12 volts.

SAFETY INSTRUCTIONS

 Do not attempt to disassemble, repair or customize this product.
 Avoid setting up any parts of this product where there is a risk of falling off or risk of coming in contact with water.
 Avoid reaching out to touch or pick up any fallen or water submerged parts.
 Never leave this product unattended during use.
 Intended for use by adults only.
PAGE 1 of 6
