ADC HiGain HDSL2 Quick Installation Manual page 5

L
OOPBACK
Initiate loopback testing from the HiGain maintenance terminal screen or use the MODE
and LBK buttons. The inband codes below can also be sent by a test set.
Loopback Inband Code Description
NLOC 1111000
NREM 1110000
CLOC 1111100
CREM 1111110
(a)
COLB
(a)
RULB
SMJK 11000
Loopdown 11100
(a) Dual loopbacks are only initiated from the MODE and LBK buttons.
For more information about the HiGain HDSL2 maintenance screens, refer to the H2TU-C
technical practice, document number 152-388-116-xx.
Message
(b)
PWR FEED SHRT
(b)
PWR FEED GND
(b)
PWR FEED OPEN
SPNn-LOSW
LLOS
RLOS
LAIS
RAIS
TRCI
RRAI
xxx-DBER
PRMF
PRMN
xxx-HBER
xxx-MAL
xxx-LA
(a) Front-panel alarm messages are listed in order of priority. ALRM displays prior to any alarm message.
Pressing the LBK button initiates an Alarm Cutoff (ACO) message.
(b) Message displays repeatedly as long as the alarm condition exists and is not included in the priority order.
T
ESTING
H2TU-C
1111110
NLOC CREM
1111000
Network
* When enabled, TLOS is an automatic loopback
that occurs with an LOS at the remote DS1 input.

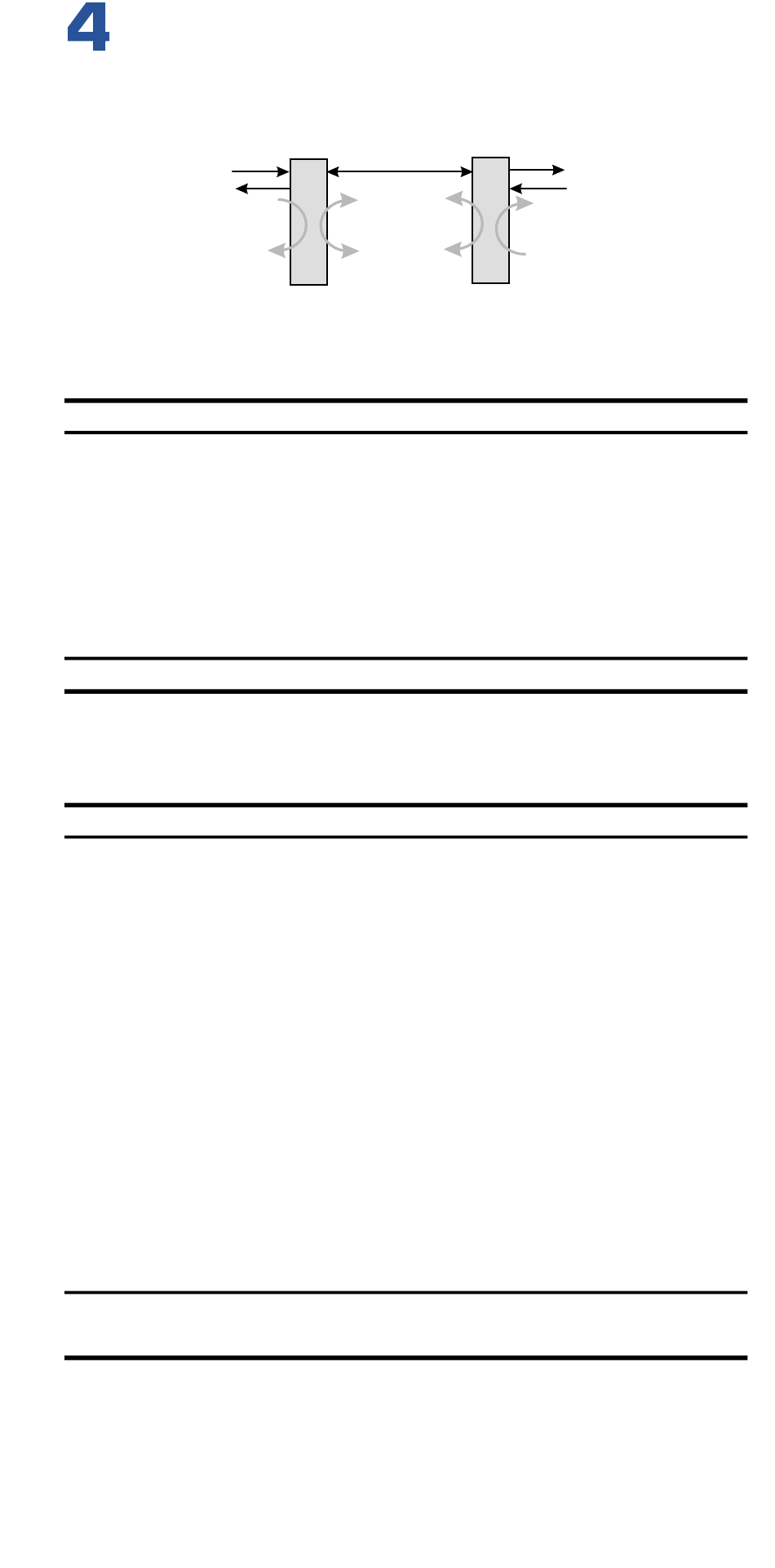

GNLB Loopback Commands
DSX-1 signal is looped back to the network at the H2TU-C.
DSX-1 signal is looped back to the network at the H2TU-R.
Signal from customer is looped back to the customer at the H2TU-R.
Signal from customer is looped back to the customer at the H2TU-C.
DSX-1 signal is looped back to the network at the H2TU-C and signal from the
customer is looped back to the customer at the H2TU-C.
DSX-1 signal is looped back to the network at the H2TU-R and signal from the
customer is looped back to the customer at the H2TU-R.
DSX-1 signal is looped back to the network at the H2TU-R SmartJack module.
Deactivates any of the above loopbacks.
Front-Panel Alarm Messages
Description
A short between the Tip and Ring of the HDSL2 pair.
The HDSL2 loop is grounded.
A line-power open condition.
The HDSL2 loop has lost sync. The span closest to the network has higher priority.
No signal is detected at the DSX-1 input to the H2TU-C.
No signal is detected at the DS1 input to the H2TU-R.
Local Alarm Indication Signal.
Remote Alarm Indication Signal.
An RAI alarm (yellow) from the CPE with an error-free signal from the line unit or
network.
An RAI alarm (yellow) from the Customer Premises Equipment (CPE) with errors
from the line unit or network.
A system DS1 Bit Error Rate (BER) alarm. (xxx denotes either TUC or TUR.)
H2TU-R Performance Report Messaging BER threshold exceeded at far end.
H2TU-R Performance Report Messaging BER threshold exceeded at near end.
A system HDSL2 Block Error Rate (BER) alarm. (xxx denotes either TUC or TUR.)
The margin on the HDSL2 loop has dropped below the threshold setting. (xxx
denotes either TUC or TUR.)
The attenuation on the HDSL2 loop has exceeded the maximum threshold value. (xxx
denotes either TUC or TUR.)
H2TU-R
TLOS*
NREM
CLOC
1111100
1110000
11000
SMJK
Customer
Premises
