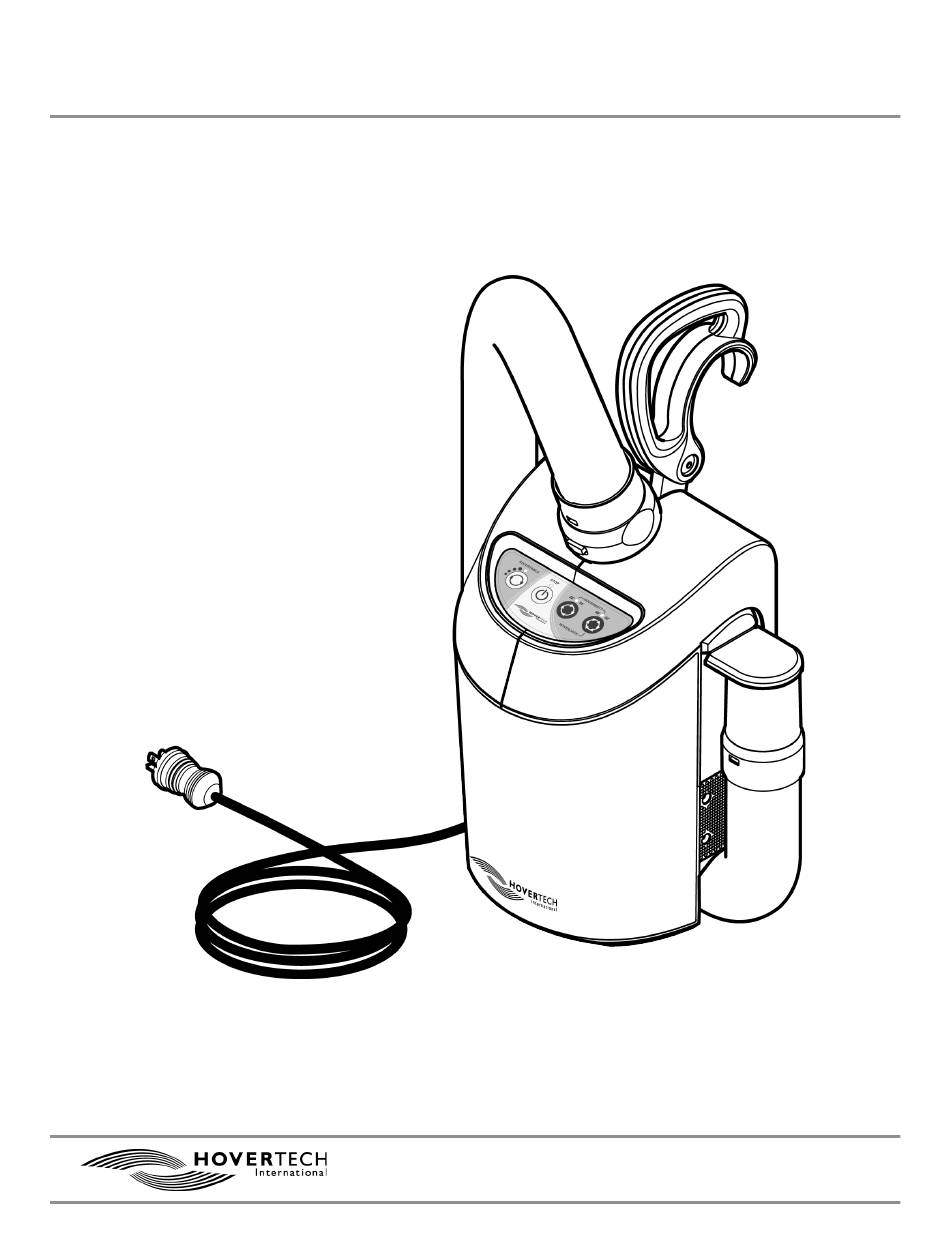

- Page 1 HTAIR ® MANUAL AIR SUPPLY NO USER SERVICEABLE PARTS. Only qualified service personnel shall perform repairs on the HoverTech International Air Supply. Page 1 2021-10-29...
-
Page 2: Part Identification
HTAIR ® MANUAL Part Identification Control Panel Label Dust Cover Hose Attachment Snap Air Filter Cover Handle / Attachment Hook Air Filter Metal Cover Hose Foot Grounding Pin Used for a Ground Continuity (Bond) Test. Information Labels Power Cord Clamp Circuit Breakers Power Cord Strap... -
Page 3: Power Cord / Clamp Replacement
HTAIR ® MANUAL Power Cord / Clamp Replacement Page 3 2021-10-29... -
Page 4: Handle Replacement
HTAIR ® MANUAL Handle Replacement 1. Remove the damaged handle by unscrewing the socket head screw from the barrel nut using two 5/32” allen wrenches as shown. 2. Attach the new handle by reversing the process. When tightening the screw be sure that the handle can rotate easily. -
Page 5: Feet Or Bumper Replacement
HTAIR ® MANUAL Feet or Bumper Replacement 1. The feet and bumpers are held in place by a self-adhesive backing. Use a small, flat bladed screwdriver to pry up an edge and gently remove the foot or bumper. 2. Clean surface thoroughly to remove any excess adhesive that may have been left behind. -
Page 6: Hose Removal
HTAIR ® MANUAL Hose Removal 1. Remove the damaged hose by lifting the dust cover slightly and unsnapping the hose from the side of the unit as shown. 2. Push the release button at the top of the unit to remove the hose. 3. -
Page 7: Air Filter And Air Filter Cover Replacement
HTAIR ® MANUAL Air Filter and Air Filter Cover Replacement To Remove Air Filter Covers 1. Disconnect hose from unit. 2. Remove the two phillips head screws on each side to detach the air filter covers. 3. Re-attach the new air filter covers and screws. To Remove Air Filters 1. -
Page 8: Dust Cover/Hose Attachment Snap Replacement
HTAIR ® MANUAL Dust Cover/Hose Attachment Snap Replacement To Remove Dust Cover 1. Disconnect hose from unit. 2. Lift the cover “flap” to remove the 3 phillips head screws that attach the dust cover. 3. To replace dust cover, fold in the three flexible tabs. Then insert the screws one at a time starting with the top middle followed by the sides. -
Page 9: Metal Cover Replacement
HTAIR ® MANUAL Metal Cover Replacement 1. Disconnect hose from unit. 2. Remove the two phillips head screws on each side to detach the air filter covers. Remove the air filters. 3. Gently pull the damaged cover apart to allow clearance to remove it. 4. -
Page 10: Cord Strap Replacement
HTAIR ® MANUAL Cord Strap Replacement 1. Unsnap the strap and remove power cord. 2. Detach the damaged cord strap by removing the screw as shown. 3. Reattach strap by positioning in place and securing it with the screw provided. Power Cord Strap Page 10 2021-10-29... - Page 11 HoverTech Symbols CE MARKING OF CONFORMITY – M INGLE ATIENT ULTIPLE USE CAUTION ELECTRICAL AND ELECTRONIC EQUIPMENT OPERATING INSTRUCTIONS UNIQUE DEVICE IDENTIFIER MEDICAL DEVICE KEEP DRY HUMIDITY LIMITATION TEMPERATURE LIMITATION AUTHORIZED REPRESENTATIVE MANUFACTURER SERIAL NUMBER LOT NUMBER IMPORTER DATE OF MANUFACTURE...
- Page 12 SPARE PARTS HoverTech Part Number Description HTA-AF Air Filters (sold in pairs) HTA-AFC Air Filter Cover with screws (sold in pairs) HTA-B/F Bumpers and Feet (sold as a kit) HTA-DC Dust Cover w/ screws (kit) HTA-H/AH Handle/Attachment Hook HTA-HAS Hose Attachment Snap...
- Page 13 HoverTech International 4482 Innovation Way Allentown, PA 18109 www.HoverMatt.com Info@hovermatt.com These products comply with the standards applicable for Class 1 products in the Medical Device Regulation (EU) 2017/745 on medical devices. CEpartner4U , ESDOORNLAAN 13, 3951DB MAARN, THE NETHERLANDS. www.cepartner4u.com...
