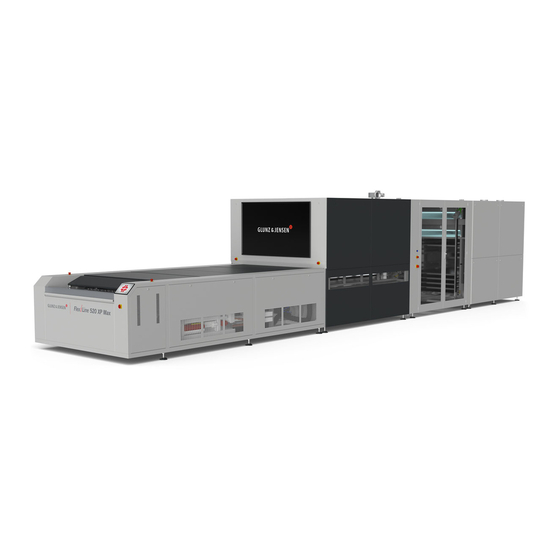

- Page 1 Pre-installation Guide Flex-i-Line 520 (XP) Dry/Compact/Standard/Max IMPORTANT Please follow the instructions in this guide when installing the equipment. May 12th, 2022 Edition AE, Part No 10084430 English (en-us) Original version...
- Page 2 ( Blank ) Pre-installation Guide Flex-i-Line 520 (XP) Dry/Compact/Standard/Max May, 2022...
-
Page 3: About This Manual
About this manual About this manual This manual applies to the All-in-one-System Flex-i-Line 520 (XP) Dry/Compact/Standard/Max. This manual is published by: Glunz & Jensen A/S Selandia Park 1 DK-4100 Ringsted Denmark Phone: +45 57 68 81 81 E-mail: gj@glunz-jensen.com Internet: www.glunz-jensen.com Copyright ©... -
Page 4: Table Of Contents
Table of Contents Table of Contents About this manual Table of Contents Introduction Reservations Introduction Notes, Cautions and Warnings! Transportation When the equipment arrives Storing of the equipment prior to the installation The crate Checking the crate for damage Handling the crate Crate dimensions Weights Lifting the crate... -
Page 5: Introduction
Introduction Introduction Reservations • This manual was written and illustrated using the best possible information available at the time of publication. • Any differences between this manual and the equipment reflect improvements introduced after the publication of the manual. • Changes, technical inaccuracies and typographic errors will be corrected in subsequent editions. - Page 6 Pre-installation Guide Flex-i-Line 520 (XP) Dry/Compact/Standard/Max May, 2022...
-
Page 7: Transportation
Transportation Transportation When the equipment arrives Storing of the equipment prior to the installation The equipment will usually be delivered some time before the arrival of the service technician. Provide for an appropriate place indoor to store the crated equipment until the service technician arrives. The crate Checking the crate for damage Check if the crate is damaged on delivery at the customer's address. -
Page 8: Crate Dimensions
Transportation Crate dimensions Configuration: Processor Processor Tower1 Elevator Tower2 520 XP Standard/Max ● ● ● ● Compact/Dry ● ● ● Processor 520 Processor 520 XP 3000 mm (118.1") 4380 mm (172.4") 2320 mm (91.3") 2320 mm (91.3") 2000 mm (78.7") 2000 mm (78.7") Elevator Elevator... - Page 9 Transportation Equipment only Equipment with crate Elevator (Standard/Max) 1860 kg (4100 lbs) 2250 kg (4960 lbs) Elevator (Compact/Dry) 1900 kg (4190 lbs) 2300 kg (5070 lbs) Tower 2 1400 kg (3090 lbs) 1800 kg (3970 lbs) Tower 2 Max 2000 kg (4410 lbs) 2400 kg (5290 lbs) May, 2022 Pre-installation Guide|Flex-i-Line 520 (XP) Dry/Compact/Standard/Max...
-
Page 10: Lifting The Crate
Transportation Lifting the crate The equipment is supplied in a wooden crate on a pallet. A forklift truck is required for lifting the crate on arrival and for lifting the equipment off the pallet. WARNING: The equipment is very heavy equipment. It is only possible to lift the equipment off the pallet using a forklift truck or a pallet mover. -
Page 11: Required Width Of Passage And Doorways
Transportation Required width of passage and doorways Depending on the width of the passage- and doorways through which the equipment has to be transported to the installation site, the service technician may have to perform the actions described in the table below: If width of the doorway Then…... - Page 12 Pre-installation Guide Flex-i-Line 520 (XP) Dry/Compact/Standard/Max May, 2022...
-
Page 13: Installation Requirements
Installation requirements Installation requirements WARNING: The equipment must be installed in restricted access locations only. NOTE: Check the delivery route to the installation location for necessary clearance and remove all obstructions. Heating and ventilation Provide a heat and ventilation system capable of maintaining room temperature between 17°C (63°F) and 25°C (77°F) and a relative humidity (non condensing) of min. -
Page 14: Space Requirements
Installation requirements Space requirements Free space around the equipment Decide for a proper installation site for the equipment and make sure that the free space around the equipment makes servicing possible. The recommended minimum free space around the equipment is specified in the next illustration. Pre-installation Guide Flex-i-Line 520 (XP) Dry/Compact/Standard/Max May, 2022... -
Page 15: Dimensions And Connections
Installation requirements Dimensions and connections May, 2022 Pre-installation Guide|Flex-i-Line 520 (XP) Dry/Compact/Standard/Max... - Page 16 Installation requirements Standard/Max Compact/Dry Pre-installation Guide Flex-i-Line 520 (XP) Dry/Compact/Standard/Max May, 2022...
-
Page 17: Compressed Air
Installation requirements Compressed air Description Value Min. pressure 6 bar (87 psi) Max. pressure 10 bar (145 psi) Volume 100 Nl/min Hose size ø 6 mm Solvent connection Provide a solvent connection for a ø 20 mm diameter hose, which is located no more than 5 meters from machine connections. -
Page 18: Electrical Requirements
Installation requirements Electrical requirements Main power outlet Provide an mains power-outlet with an electrical plug lockout close to the installation site. The table showing "Power supply requirements" on the facing page indicates the applicable power supply types. WARNING: Electrical installation, all cabling and cabling connections, fusing and isolation must conform to local and/or national regulations and guidelines. -
Page 19: Electrical Specifications
Installation requirements Electrical specifications Power supply requirements CAUTION: The requirements below are specifications for preparing the installation protection. The fuses/circuit breakers must be prepared according to local regulations, and with adequate capacity as specified here. The circuit breakers must be suitable for inventor operation. NOTE: Specifications on the equipment's name plate is the actual input current and will thus not be identical to below mentioned. - Page 20 Pre-installation Guide Flex-i-Line 520 (XP) Dry/Compact/Standard/Max May, 2022...
-
Page 21: Checklist
Checklist Checklist Please check the following conditions in order to ensure a trouble-free installation of the equipment: Delivery of the crate and transport to the installation site Is there a place indoor where the crated equipment can be stored temporarily? Is there a hand-powered pallet mover, a fork-lift truck or any other lifting device available? Please refer to "Lifting the crate"... - Page 22 Checklist Connections Is air condition/ventilation available according to the requirements as described in chapter "Exhaust connection" on page 17.? Is compressed air available according to the requirements as described in chapter "Compressed air" on page 17.? Is solvent connection available according to the requirements as described in chapter "Solvent connection"...
