INSTALLATION MANUAL
FOR YOUR SAFETY - This product must be installed in accordance with AS/NZ 3000 - 2018 and any other local
applicable regulations. Before installing this product, read and follow all warning notices and instructions that
accompany this product. Failure to follow warning notices and instructions may result in property damage,
personal injury, or death. Improper installation and/or operation will void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can cause serious injury,
property damage, or death.

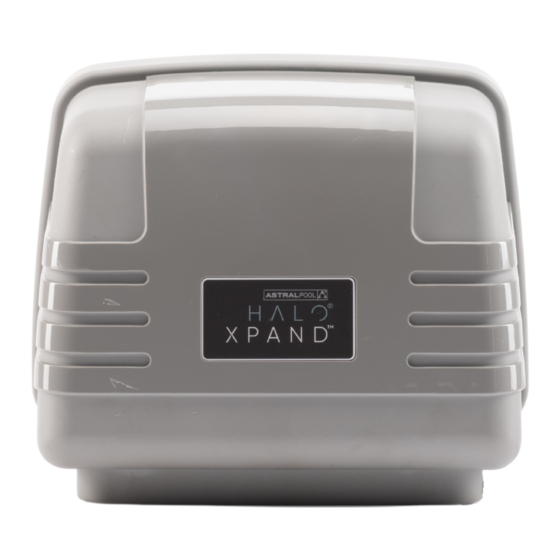

halo
®
Xpand
Automation Expansion
Module
WARNING
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Astralpool HALO XPAND
Summary of Contents for Astralpool HALO XPAND
- Page 1 INSTALLATION MANUAL ™ halo ® Xpand Automation Expansion Module WARNING FOR YOUR SAFETY - This product must be installed in accordance with AS/NZ 3000 - 2018 and any other local applicable regulations. Before installing this product, read and follow all warning notices and instructions that accompany this product.
- Page 2 ™ Installation Manual For full warranty terms and conditions and to register your warranty, visit www.astralpool.com.au/warranty and complete your details. Or scan the QR code to go directly to the registration page Record your equipment details here for quick reference: Model No.
-
Page 3: Table Of Contents
HALO ® Xpand ™ Installation Manual Table of Contents Section 1. Important Safety Instructions ... 4 Section 2. System Overview ........5 Section 3. Installation ..........5 Mounting ..................5 Power Connections ..............6 Other Connections ..............6 Section 4. Pairing and Configuring Halo Xpands .......... -
Page 4: Important Safety Instructions
If installing the Halo Xpand near the pool or spa water, you must ensure that the rules of AS3136 are followed at all times. AstralPool strongly recommends that installation be performed by a registered pool builder, electrician or other suitably qualified person. -
Page 5: Installation
Halo Chlorinator and can be controlled through the Halo Chlorinators main Touchscreen or through the Halo Chlorinator App. Up to two Halo Xpand’s can be paired to a Halo Chlorinator. The Halo Xpand is not designed to work in a “stand Temperature Sensor alone”... -
Page 6: Power Connections
As shown in Figure 2, the Halo Xpand has 2 Mains Power Outlets (Outlet 1 and Outlet 2). Pairing to the Halo Chlorinator The following table indicates the maximum permitted To pair a Halo Xpand to a Halo Chlorinator: current draw from each outlet. -
Page 7: Configuration And Setup
HALO ® Xpand ™ Installation Manual To confi gure the Heater unit; - Return to the Connected Devices screen in 4.1.3. - Select the Heater option. The Xpand GPO option will not be available. Follow the prompts, turn off the power to the Halo Xpand for 3 seconds, then turn it back on. -
Page 8: Unpairing From A Halo Chlorinator
Manual Control NOTE: Refer to the Halo Chlorinator manual for more detailed information. All of the functions of the Halo Xpand can be controlled using the icons in the Top Ribbon of the Halo Chlorinator display. (Icons will only appear in the top ribbon if appropriate devices have been configured.) -
Page 9: Control With The Chlorinator Halo Go App
App is identical to controlling these functions through the Halo Chlorinator (although Icon images may vary) See section 5, above. The Halo Xpand is controlled through the Halo ChlorGo App. The App can be loaded onto multiple mobile devices, however you can only pair one device at a time. - Page 10 HALO ® Xpand ™ installation manual NOTES...
- Page 11 HALO ® Xpand ™ Installation Manual NOTES...
- Page 12 Fluidra Group Australia Pty Ltd 219 Woodpark Road Smithfield NSW 2164, Australia 1 300 186 875 www.astralpool.com.au ©2021 Fluidra S.A. All rights reserved. This document is subject to change without notice.
