- Page 1 INSTALLATION AND SERVICE MANUAL Neuron NFR2001 Version 4.1 | March 2022...
- Page 3 You will find the full list of addresses and phone numbers on the following webpage: http://www.evs.com/contact. User Manuals on EVS Website The latest version of the user manual, if any, and other user manuals on EVS products can be found at the EVS download center, on the following webpage: https://www.evs.com/en/download-area. Neuron NFR2001 | Disclaimer |...
-
Page 5: Notice
NE JAMAIS remplacer un fusible par une valeur ou un type autre que ceux spécifiés. NEVER attempt to repair this product. If a problem occurs, contact your local EVS distributor. N'essayez JAMAIS de réparer ce produit. En cas de problème, contactez votre distributeur EVS local. - Page 6 This product complies with the requirements of the product family standards for audio, video, audio- visual entertainment and lighting control apparatus for professional use as mentioned below. Ce produit est conforme aux exigences des normes rélatives à la famille de produits d'équipements de contrôle d’éclairage, de spectacle audio, vidéo et audiovisuel à...
- Page 7 Les chapitres contenant des actions d'entretien sont indiqués par un point d'exclamation. This equipment is only for use at altitudes not more than 2000m above sea level or equivalent. Cet équipement doit être utilisé uniquement à des altitudes inférieures à 2000m Neuron NFR2001 | UL |...
- Page 8 au-dessus du niveau de la mer ou équivalentes. This equipment is only for use in non-tropical conditions or equivalent. Cet équipement ne doit pas être utilisé dans des conditions tropicales ou équivalentes. Caution, electric shock hazard. Attention, risque de choc électrique. Disconnect all power plugs before servicing this product.
-
Page 9: Table Of Contents
2.1. Product Description 2.2. LED Indicators 3. Installation 3.1. Preparing the Product for Installation 3.2. Unpacking 3.3. Module layout 3.4. Processing Module Installation and Replacement 3.5. Power Supply Installation and Replacement 3.6. Installation in Racks 4. Specifications 5. Nominal Dimensions Neuron NFR2001 | Contents |... - Page 10 ICONOGRAPHY Warning Note viii | March 2022 | Issue 4.1.E...
-
Page 11: What's New
INSTALLATION AND SERVICE MANUAL What's New? In the Installation and Service Manual the icon has been added next to the text to highlight information on new and updated features. Neuron NFR2001 | What's New? |... -
Page 13: Preface
Observer les précautions de manipulation de dispositifs sensibles à l'électricité statique. Unpacking EVS has carefully inspected this product before shipment to ensure years of trouble free service. Upon reception, please make sure you: Check products for any visible damage that may have occurred during transit. - Page 14 Shipping Keep at least one set of original EVS packaging in case you need to return a product for servicing or replacement. If there is no original packaging available, please use your own packaging as long as it meets the following criteria: •...
-
Page 15: Introduction To Neuron
EVS Cerebrum software will increase the system flexibility of one or more NFR2001 frames. We strongly advise you to use a remote personal computer or laptop PC installed with the EVS Cortex software, as this increases the ease of use and understanding of Neuron. This program can be downloaded from our website (https://mi-sftp.evs.com/) free of charge. -
Page 16: Product Description

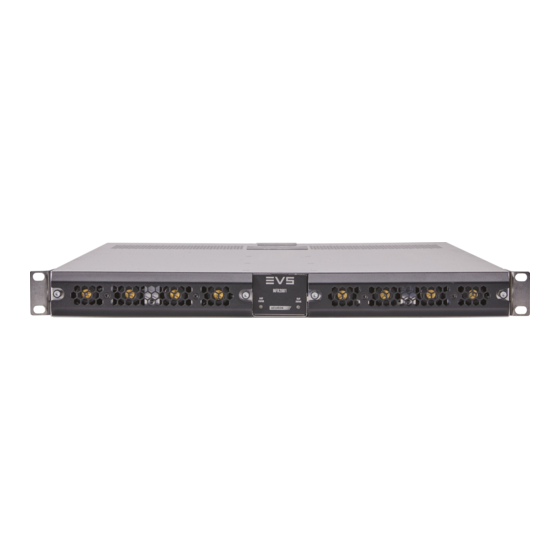

2.1. Product Description General Description The NFR2001 is a frame which can contain 2 processing cards. It is 1RU high. Together with the power supplies, the frame forms the base of the Neuron system. Main Features The NFR2001 includes the following features: •... - Page 17 INSTALLATION AND SERVICE MANUAL Broadcast Version In the Broadcast version, the power supplies and the I/O connectors are on the back. Front View Rear View Neuron NFR2001 | 2. Introduction to Neuron |...
-
Page 18: Led Indicators
2.2. LED Indicators LED Positions The NFR2001 frame has 4 LEDs: 1 for each power supply and 2 on the front plate. In the image below, the PSU LEDs are indicated in red and the Front LEDs are in green: The above image illustrates the broadcast version of the NFR2001 frame. On the datacenter version, front-plate LEDs (in green) are also present on the unit, but the PSU LEDs are on the back. -
Page 19: Installation
Please refer to section 1.2 "Unpacking and Shipping" on page 1 for more information about returning a product for servicing or replacement. Please contact your EVS dealer if parts are missing or damaged or when products on the packing list are missing. -
Page 20: Processing Module Installation And Replacement
3.4. Processing Module Installation and Replacement To insert the processing module into an NFR2001 frame, you should first determine whether the frame is built as a datacenter version (connections on the front) or a broadcast version (connections on the back). Once this is determined, slide in the processing module from the connector side until it cannot be pressed any further. -
Page 21: Installation In Racks
Airflow is reversed in the datacenter version (going from back to front). Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not Neuron NFR2001 | 3. Installation |... - Page 22 compromised. Please make sure there is sufficient space and airflow on the front, sides and back of the frames. When stacking frames, please do not block the air vents on the top of the frame, to prevent the unit from overheating. We strongly recommend leaving 1 RU space between frames. If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than the ambient room temperature.
- Page 23 NFR2001 Power Supply The NFR2001 requires a DC power supply. Never connect the NFR2001 directly to the mains electricity supply. Le NFR2001 necessite une alimentation en courant continu. Ne jamais raccorder le NFR2001 directement au reseau électrique. Neuron NFR2001 | 3. Installation |...
-
Page 24: Specifications
4. Specifications The following information is applicable to the NFR2001 frame. Dimensions (For more detailed information, please refer to "Nominal Dimensions" on page 15.) Height 44 mm (1.73”) (1RU) Width 483 mm (19”) Depth (including power supply, excluding processing 605 mm (23.82”) module) Depth (including power supply and processing module) 615 mm (24.21”) - Page 25 Required air volume for maximum cooling capacity 290 M3/h Environmental Conditions Operating temperature 0º to 30º C environmental temperature (32º to 86º F) Storage temperature -20º to 70º environmental temperature (-4º to 158º F) Humidity Up to 95% relative humidity, non-condensing Neuron NFR2001 | 4. Specifications |...
- Page 26 Fan Noise All SPL measurements are performed at a weighted measurement up to 55 dB with filter “A”. Distance to DUT is 1 meter. Frames are placed one meter from the ground in a 19” rack of 47 RU. All unused space is closed with blind panels.
-
Page 27: Nominal Dimensions
INSTALLATION AND SERVICE MANUAL 5. Nominal Dimensions The following diagrams show the nominal dimensions of the Neuron NFR2001 frame (in mm). Neuron NFR2001 | 5. Nominal Dimensions |... - Page 28 Side Back 16 | March 2022 | Issue 4.1.E...
