INSTALLATION AND OPERATION MANUAL
Synapse
GFS100
3Gb/s, HD and SD Frame Synchronizer with Optional
Audio Shuffler
Version 1.00 | November 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Synapse GFS100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EVS Synapse GFS100

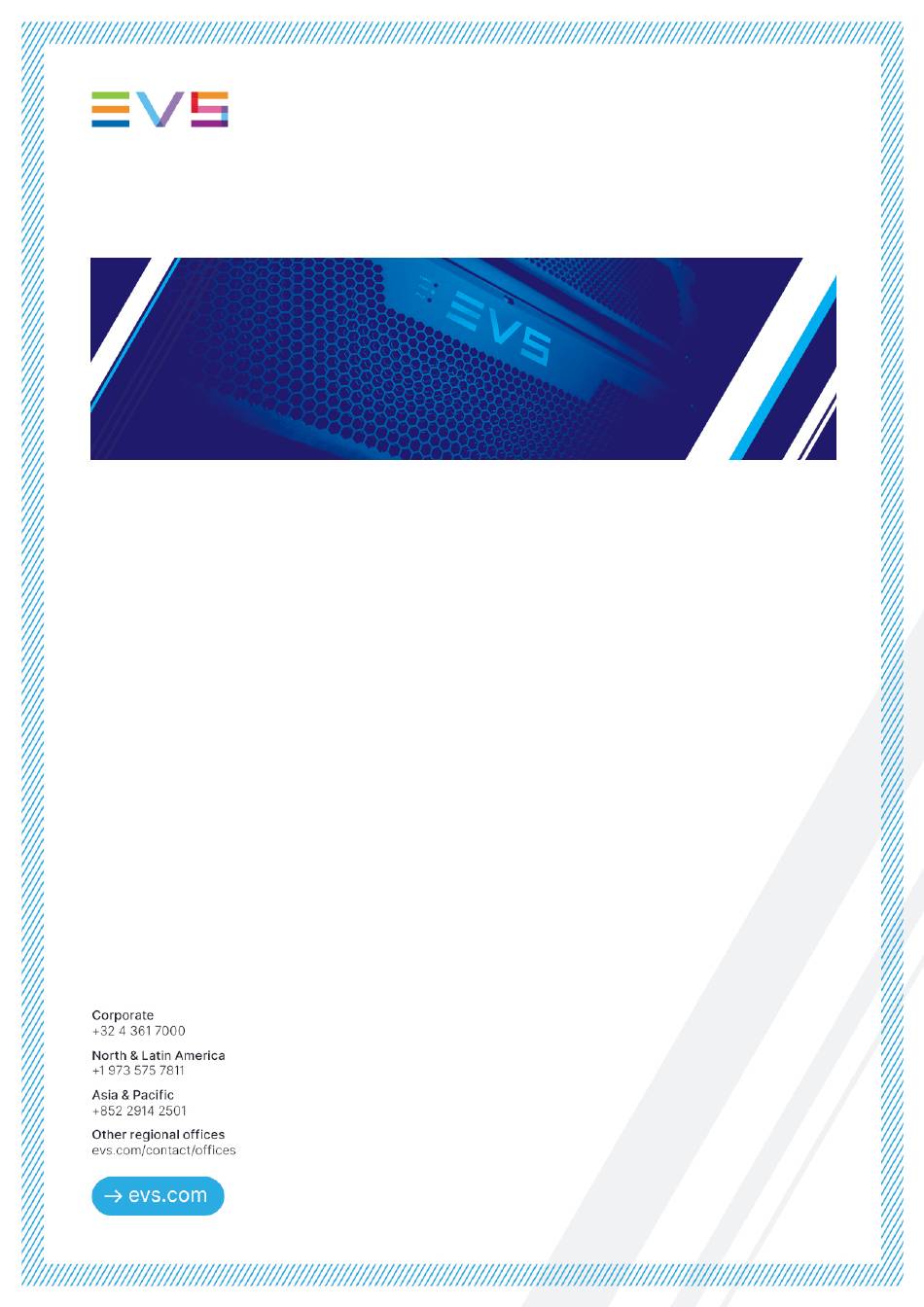

  • Page 1 INSTALLATION AND OPERATION MANUAL Synapse GFS100 3Gb/s, HD and SD Frame Synchronizer with Optional Audio Shuffler Version 1.00 | November 2021...
  • Page 3 You will find the full list of addresses and phone numbers on the following webpage: https://evs.com/contact/offices. User Manuals on EVS Website The latest version of the user manual, if any, and other user manuals on EVS products can be found at the EVS download center, on the following webpage: https://download-area.evs.com. Synapse GFS100 | Disclaimer |...
  • Page 4: General Information

    NEVER bypass any fuse. NEVER replace any fuse with a value or type other than those specified. NEVER attempt to repair this product. If a problem occurs, contact your local EVS distributor. NEVER expose this product to extremely high or low temperatures.
  • Page 5: Table Of Contents

    5. Settings Menu 5.1. System Settings 5.2. Inserter 5.3. Video-Proc 5.4. Audio Proc Amp 5.5. Embedder 5.6. GPI Mode 5.7. Network 6. Status Menu 6.1. System Status 6.2. Net Status 7. Events Menu 8. LED Indication 9. Block Schematic Synapse GFS100 | Contents |...
  • Page 6 10. Connector Panels Appendices Appendix 1: GPIs Explained Appendix 2: Card Dip Switches for BHX and Fiber Configurations GNU Public License ICONOGRAPHY Warning Note iv | November 2021 | Issue 1.00.C...
  • Page 7: What's New

    The changes linked to new features in version 1.00 of GFS100/110 are listed below. SMPTE ST 352 Payload Identifier • See section "Inserter" on page 11. Synapse GFS100 | What's New? |...
  • Page 9: Introduction

    Synapse is a modular system designed for the broadcast industry. High density, intuitive operation and high-quality processing are key features of this system. Synapse offers a full range of converters and processing modules. Please visit the EVS website at www.evs.com to obtain the latest information on our new products and updates.
  • Page 10: Unpacking And Placement

    2. Unpacking and Placement Unpacking The EVS Synapse card must be unpacked in an anti-static environment. Care must be taken NOT to touch components on the card – always handle the card carefully by the edges. The card must be stored and shipped in anti-static packaging.
  • Page 11: Quick Start

    Move up within a menu, or increase the value of a parameter. Move down through a menu or decrease the value of a parameter. When editing parameters, pressing ► twice will reset the value to its default setting. Synapse GFS100 | 3. Quick Start |...
  • Page 12 How to Change Parameters Using the Front Panel Control With the display as shown below: Pressing selects the SFS10 in frame slot 01. The display changes to indicate that the SFS10 has been selected. In this example the Settings menu item is indicated.
  • Page 13 SFS10 Settings Standard dig Auto RRC18 Status Mode Events Ref-Input H-Delay Further information about Front Panel Control and Cortex can be obtained from the ERC, ERS, RRC and RRS operational manuals and the Cortex help files. Synapse GFS100 | 3. Quick Start |...
  • Page 14: The Gfs100-110 Card

    4. The GFS100-110 Card Introduction The GFS100-110 is a frame synchronizer with backup inputs and 16 channel audio transparency and color correcting capabilities. The powerful matrix multiplexer can feed audio from the embedded domain into the Synapse bus to an ADD-ON card like the DIO48. This matrix multiplexer also allows for audio to be inserted from the ADD-ON bus into the embedded domain of the GFS100-110.
  • Page 15 To ensure correct operation the F-delay of the card needs to be 1 or higher so there is enough time to mask the error. Applications GFS100-GFS110: • Transmission output frame synchronizer with backup input. • General purpose post-router autophaser. GFS110 only: • Combining embedded audio channels of 2 inputs into 1. Block Schematic Synapse GFS100 | 4. The GFS100-110 Card |...
  • Page 16: Settings Menu

    5. Settings Menu Introduction The Settings menu displays the current state of each GFS100/110 setting and allows you to change or adjust it. Settings can be changed using the front panel of the Synapse frame (SFR18, SFR08 or SFR04) or with Cortex.
  • Page 17 Default is on. #F_delay F-Delay sets the number of delayed Frames. The available range is from 0 to 250 fields (dependent on the I/O). Default is 0F. The preset master for this is Out-Frmt, hence the # prefix. Synapse GFS100 | 5. Settings Menu |...
  • Page 18 #V_delay V-Delay setting allows adjustment of the vertical phase of the output signal with respect to the selected reference input. The V-Delay setting gives a delay in addition to the reference timing. For example: if the V-Delay is set to 10 TV HD lines, the output signal will be delayed by reference timing + 10 TV HD lines.
  • Page 19: Inserter

    4 bytes. When the GFS100 is not processing the incoming VPID packets, they will be passed transparently. When it generates the packets, the GFS100 will output VPID packets using the 2013 standard. Synapse GFS100 | 5. Settings Menu |...
  • Page 20 Setting Description S352_Insert S352_Insert enables the Video Payload Identifier insertion in the HANC space. It enables the user to insert or passthrough (On) the S352 Dynamic range and colorspace payload. When this menu item is set to On (default), it will generate a SMPTE ST352-2013 packet and overwrite the existing one (for both Luminance and Chrominance).When it is set to Off, it will pass the packet to the output as-is (only on Luminance).In HD 1080i for ATC-LTC...
  • Page 21 You can turn S2016 (AFD) insertion on or off for Channel A. Default is Off. #S2016-DataA With the #S2016-InsertA setting set to on, you can select AFD values with this setting, which you want to be inserted. possible are all AFD values from AFD0 through AFD15. Synapse GFS100 | 5. Settings Menu |...
  • Page 22: Video-Proc

    #OSD-StyleA With this setting you select how the on-screen display text should be displayed. Possible are: • Off (no OSD) • Transp (transparent text) • Masked (OSD displayed in a black box) • Blink-Transp (blinking transparent text) • Blink-Masked (blinking text in a black box) #OSD-TextA Here you can set a 10-character long text which should be displayed on- screen when the above setting is not set to Off.
  • Page 23: Audio Proc Amp

    Here you can select which of the 16 selectable audio presets you want to edit. Changing this will not change the active preset, unless you have selected to edit the currently active preset. All menu settings that are preceded by the #Emb prefix are part of the preset. Synapse GFS100 | 5. Settings Menu |...
  • Page 24: Embedder

    #Audio-Dly-sInp1 With this item you can delay all audio on input 1 between -10000ms and 10000ms with 0.01ms increments, allowing for precise control (2 sample (GFS110 only) accuracy in practice). Default is 0ms. This item is part of the audio presets. This audio delay is calculated on top of the tracked video delay.
  • Page 25 Can be group1, group2, group3 or group4. You can also choose to not use these 4 audio channels for anything by setting this item to off. By default it is set to Group2. Synapse GFS100 | 5. Settings Menu |...
  • Page 26: Gpi Mode

    #EmbD1_Inp ~ With these settings you can select where the corresponding audio channels of #EmbD4_Inp outputs B are coming from. In this card you can choose to get the audio from the de-embedder of SDI input 1 (Demb-SDI1) or SDI input 2 (Demb-SDI2), the embedder of the active input (Demb-Input, dependent on the current active input), from the ADD-ON bus groups, or to mute the corresponding channel (set to off).
  • Page 27: Network

    When IP_Conf0 is set to manual, you can enter the preferred IP address here. By default it is set to 0.0.0.0 NetwPrefix0 Here you can set the specific network prefix if required. mNM0 With IP_Conf0 set to manual, with this setting you can set a Netmask. Default is 0.0.0.0 Synapse GFS100 | 5. Settings Menu |...
  • Page 28: Status Menu

    6. Status Menu Introduction The Status menu provides information about the current status of each item listed below. 6.1. System Status Item Description ActiveA This status item indicates which input is active on outputs A1 and A2. Can be SDI-1,SDI-2 or Analog. sInp1 This status item indicates the presence and format of a valid signal in input 1.
  • Page 29 This indicates the mapping of the 3Gb/s input 1 when the input format is 1080p50 or 1080p60. Can be Level A or Level B. When the input format is not 1080p60 or 1080p50, this item indicates NA. Synapse GFS100 | 6. Status Menu |...
  • Page 30 sInp2 This status item indicates the presence and format of a valid signal in input 2. This is displayed as listed under sInp1. sInp2_VI Displays the detected VI value found in input 2. This is displayed as listed under sInp1_VI. sInp2_WSS-Stnd Displays the detected WSS-standard value found in input 2.
  • Page 31: Net Status

    This item displays the MAC address of the card. This item displays the current IP address of the card. This item displays the current Netmask of the card. This item displays the current Standard Gateway of the card. Synapse GFS100 | 6. Status Menu |...
  • Page 32: Events Menu

    7. Events Menu Introduction An event is a special message that is generated on the card asynchronously. This means that it is not the response to a request to the card, but a spontaneous message. What is the Goal of an Event? The goal of events is to inform the environment about a changing condition on the card.
  • Page 33 Error Threshold setting of the RRC will cause the error LED on the Synapse rack front panel to light up. Card Address Together with the message string or the tag, the slot number or address of the card is relevant to be able to assign the event to a certain card. Synapse GFS100 | 7. Events Menu |...
  • Page 34: Led Indication

    8. LED Indication Indicator Description Error LED The error LED indicates an error if the internal logic of the card is not configured correctly or has a hardware failure. Input_A LED This LED indicates the presence of a valid SDI video signal on input A. Input_B LED This LED indicates the presence of a valid SDI video signal on input B.
  • Page 35: Block Schematic

    INSTALLATION AND OPERATION MANUAL Block Schematic Synapse GFS100 | 9. Block Schematic |...
  • Page 36 HD/SD-SDI PROCESSED OUTPUT 3 HD/SD-SDI PROCESSED OUTPUT 4 CVBS INPUT For fiber connectivity, see www.evs.com Unused inputs and outputs must be terminated with the correct impedance. Please refer to "Card Dip Switches for BHX and Fiber Configurations" in the Appendices before connecting any backpanel.
  • Page 37 INSTALLATION AND OPERATION MANUAL GPI Pinning Pin Function GPI in 1 GPI in 2 GPI in 3 GPI in 4 GPI in 5 GPI out 1 GPI out 2 Ground Synapse GFS100 | 10. Connector Panels |...
  • Page 38 Appendices Appendix 1: GPIs Explained 30 | November 2021 | Issue 1.00.C...
  • Page 39 Pool A now consists of GPI 1, GPI 2, GPI 3 and GPI 4 in priority mode, controlling the Up converter preset. Pool B consists only of GPI 5 (also in priority mode), controlling the Output mode setting. Synapse GFS100 | Appendix 1: GPIs Explained |...
  • Page 40 Pool A now works as follows: GPI_1 Status GPI_2 Status GPI_3 Status GPI_4 Status Set Value Up-conv Preset 1 Up-conv Preset 2 Up-conv Preset 3 Up-conv Preset 4 Up-conv Preset 5 Up-conv Preset 4 (because highest takes priority) Up-conv Preset 5 (because highest takes priority) Pool B now works as follows: GPI_5 Status Set Value...
  • Page 41 GPI 3 and GPI 4 in priority mode, controlling the audio presets. Pool C consists only of GPI 5 (also in priority mode). Pool A now works as follows: GPI_1 Status GPI_2 Status Set Value Up-conv Preset 1 Up-conv Preset 2 Up-conv Preset 3 Up-conv Preset 3 (because highest takes priority) Synapse GFS100 | Appendix 1: GPIs Explained |...
  • Page 42 Pool B now works as follows: GPI_3 Status GPI_4 Status Set Value Audio Preset 1 Audio Preset 2 Audio Preset 3 Audio Preset 3 (because highest takes priority) Pool C now works as follows: GPI_5 Status Set Value A out only B out only 34 | November 2021 | Issue 1.00.C...
  • Page 43 On the BHX17b itself, there are also 2 dip switches (see picture below). The bottom dip switch is not connected. With the top switch you can choose the Bypass function. There are 2 possible function indications “on” (printed on the dip switch itself) and “off”: Synapse GFS100 | Appendix 2: Card Dip Switches for BHX and Fiber Configurations |...
  • Page 44 “Direct Backpanel Switchover” dip switch set to ON: Will make the BHX backpanel switch over to the processed signal as soon as it detects the trigger signal from the connected Synapse card. This setting will minimize the bypass time and ensures fast recovery of processed signals.
  • Page 45 Under this license, you are eligible to receive a copy of the source code of this software, including any changes. EVS Broadcast Equipment SA shall provide the source code on request either through physical distribution or electronic communication. For physical distribution you may be charged a fee that covers distribution costs.
