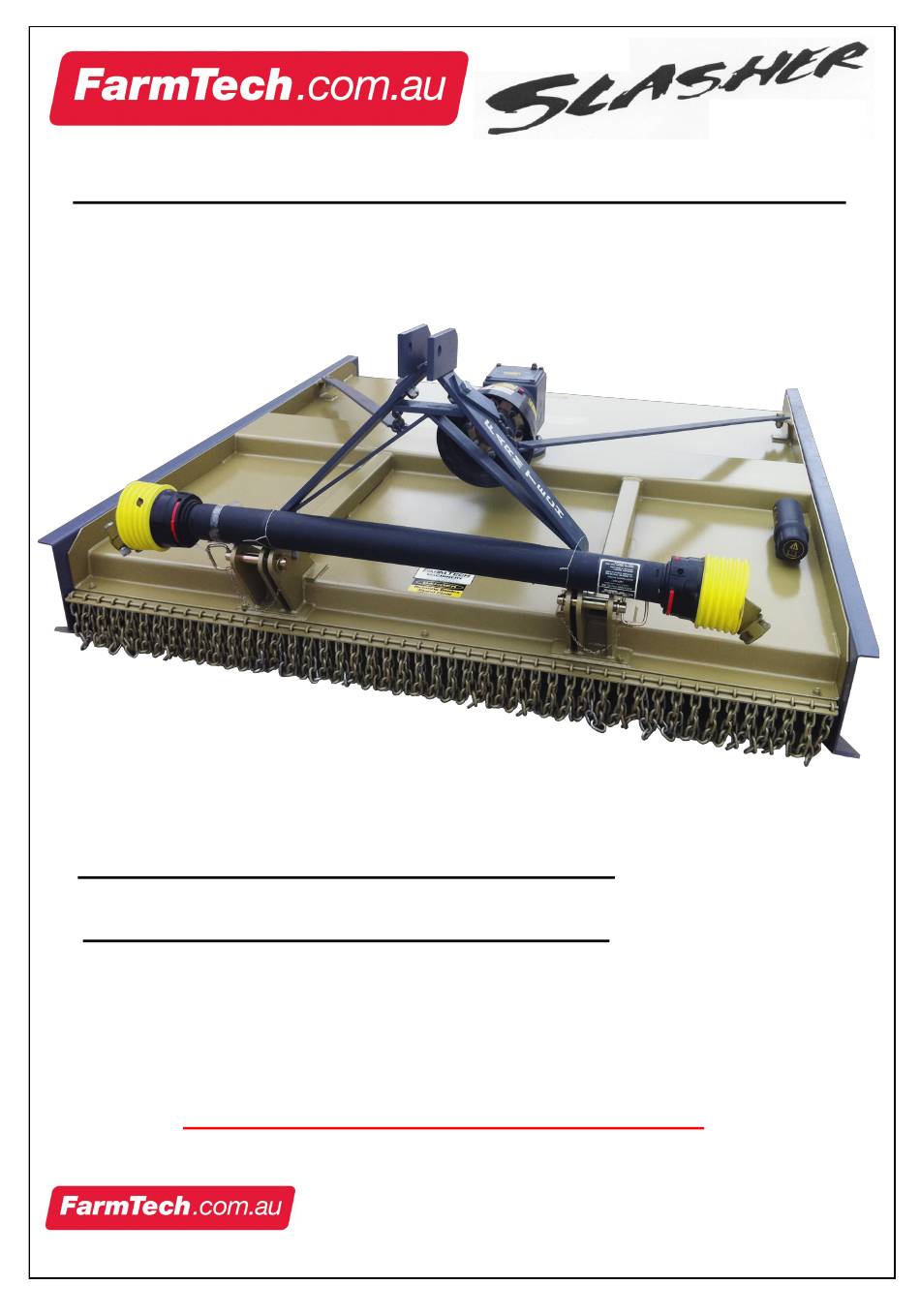

H
D
130
EAVY
UTY
HP RATED SLASHER
HD130-1500, HD130-1800, HD130-2100
OPERATORS MANUAL
and PARTS BOOKLET
Manufactured in Australia by
FarmTech Machinery P/L
efficient technology for greener pastures
Ph: (02) 6024 6800.
Email: sales@farmtech.com.au.
www.farmtech.com.au
FARM TECH MACHINERY PTY LTD . 30 MOLONEY WODONGA, VIC 3690.
A.B.N 91 010 785 79
Advertisement
Related Manuals for FARMTECH SLASHER HD130-1500
Summary of Contents for FARMTECH SLASHER HD130-1500
- Page 1 HP RATED SLASHER HD130-1500, HD130-1800, HD130-2100 OPERATORS MANUAL and PARTS BOOKLET Manufactured in Australia by FarmTech Machinery P/L efficient technology for greener pastures Ph: (02) 6024 6800. Email: sales@farmtech.com.au. www.farmtech.com.au FARM TECH MACHINERY PTY LTD . 30 MOLONEY WODONGA, VIC 3690.
- Page 2 INDEX Page Contents Operator Instructions for Installation & Service Cutting PTO Shaft to size Clutch setup instructions Slasher Service - operator instructions Optional equipment Diagram – Series 8 PTO shaft Diagram – 130hp Gearbox Diagram – Slip clutch 200mm Warranty Policy Component List Installation &...
- Page 3 FOR INSTALLATION & SERVICING OF “FARMTECH” SLASHERS FOR ALL MODELS: When attaching a FarmTech Slasher for the first time, it may be necessary to shorten the P.T.O. drive shaft to suit the tractor. (see next page) Fully slide out P.T.O. Shaft and grease male section of shaft surface – weekly.
- Page 4 CUTTING PTO SHAFT TO SIZE Cutting the PTO shaft to the correct length. If the PTO shaft is too long it might bind when the three point hitch is lifted up. Damage might be caused to the gearbox, clutch or the PTO of the tractor. If the PTO shaft is too long it must be cut.
- Page 5 CLUTCH SETUP INSTRUCTIONS OPERATOR MUST READ THESE INSTRUCTIONS PRIOR TO MACHINE USE. FAILURE TO DO SO MAY RESULT IN DAMAGE TO TRACTOR OR SLASHER SLIP CLUTCH SETTING Initial clutch tension set up from manufacturer - Compress all springs Back off all nuts 2 full turns = rated torque of slip clutch Slip clutch needs to be set if one of the following occurs - Commencing operation of new machine The clutch has been repaired (including replacing the friction discs)
- Page 6 OPERATOR SERVICE INSTRUCTIONS Setting up to cut: The Farm Tech Heavy Duty Slasher comes standard with a 3 blade cutting rotor system, for increased cutting efficiency. 3 blades give smoother cutting and better utilization of horsepower. Set the front 20mm lower, or in other words, set the rear 20mm higher than the front to allow the retreat- ing blade more ground clearance to stop it bogging down and trying to re-cut material.
- Page 7 OPTIONAL EXTRAS FOR SLASHERS Optional: Rear trailing wheel kit – single or twin wheel The kit allows easier turning and better height adjustment to reduce drag. Turn mini top link adjuster to desired height. Lock in position. Rear wheel is solid rubber “no punctures” and long wearing life. Grease pivot bush regularly.
- Page 8 SERIES 8 PTO SHAFT for 130hp GEARBOX...
- Page 9 130hp SLASHER GEARBOX B8668...
- Page 10 200mm (8”) 4 PLATE HEAVY DUTY SLIP CLUTCH. B7242...
- Page 11 COMPONENT LIST FARM TECH HD SERIES 130hp SLASHERS Models: HD130-1500 HD130-1800 HD130-2100 HD 130 SERIES SLASHERS COMPONENTS LIST DESCRIPTION PART No GEARBOX B8668 CLUTCH B7242 PTO SHAFT, 8 series x 1.5m AB8150 BLADES (HD130-1500 to HD130- 1800) B6999 BLADE BOLT & BUSH KIT to suit B6999 FTBNB16 BLADES (HD130-2100) M560...
- Page 12 All claims must be made on official Warranty Claim Forms Work carried out by the dealer on machinery he has not sold and considered warranty by Farmtech Machinery will be reimbursed for labour at current labour rate as per Farmtech Machinery’s warranty schedule, credited to his spare parts account and parts used will be replaced by Farmtech Machinery.
