Summary of Contents for Benewake TF02-Pro-W-485

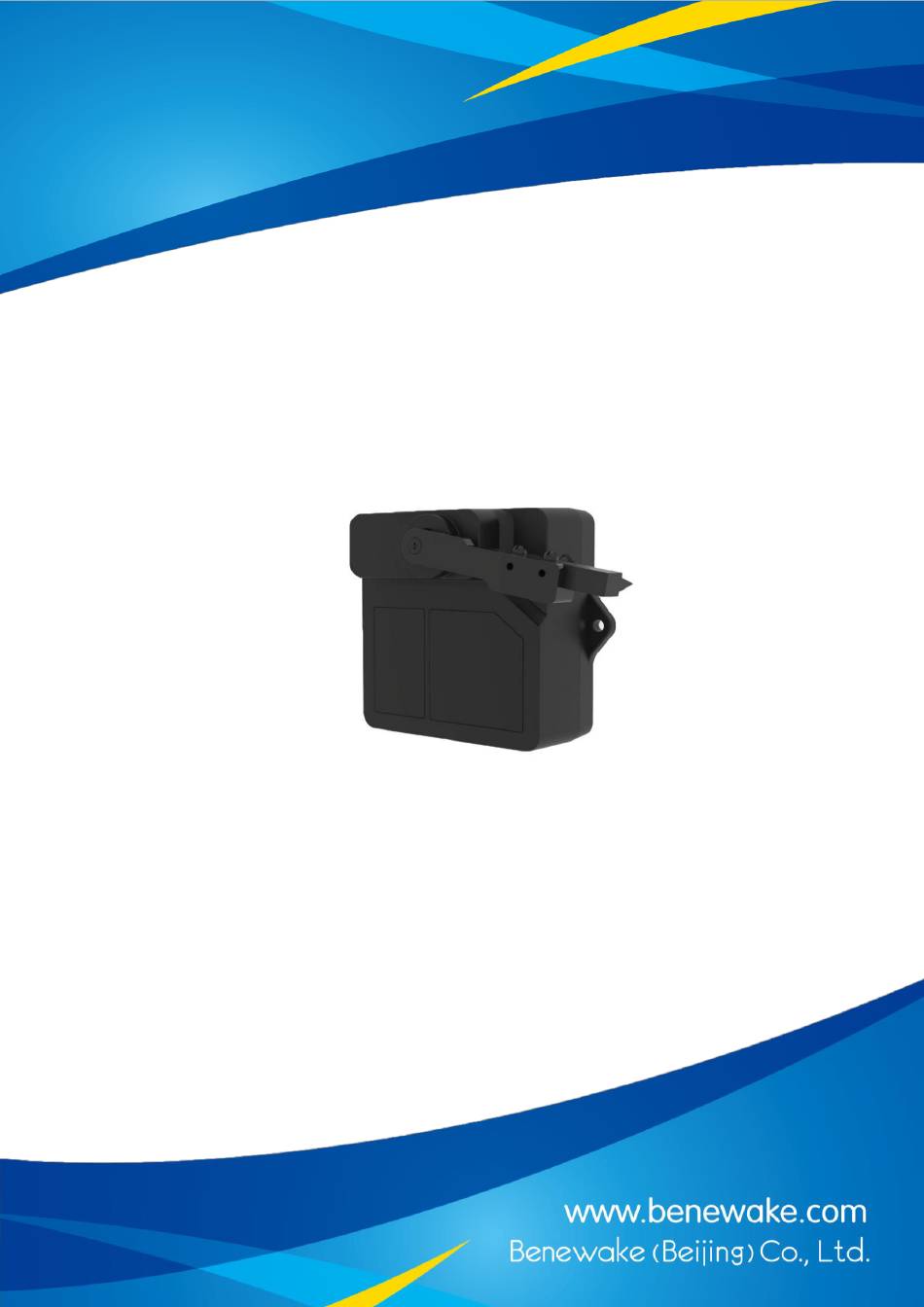

- Page 1 SJ-PM-TF02-Pro-W-485 A00 Product Manual Benewake (Beijing) CO., Ltd TF02-Pro-W-485 Product Manual Page1...
- Page 2 Address: No.28, Xinxi Road, Haidian District, Beijing, PRC Copyright The Copyright of this document is protected. All the rights involved herein belong to Benewake (Beijing) Co. Ltd. Any copy activity of this document, no matter in whole or in part, should be...
- Page 3 Benewake (Beijing) CO., Ltd Foreword Dear users, Thanks for choosing Benewake products, and it’s our pleasure to help you to solve any technical question. In the purpose of offering a better operation experience to you, we hereby write this manual for an easier and simpler operation of our product, hoping to better solve the common problems you maybe meet.
- Page 4 SJ-PM-TF02-Pro-W-485 A00 Product Manual Benewake (Beijing) CO., Ltd Catalog Attentions ............... 5 1.1 About this Manual ....................5 1.2 Usage of Product ....................5 1.3 Conditions with Potential Malfunction ............... 5 Physical Interface ..............6 2.1 Description about Line Sequence ..............6 2.2 Electrical Characteristics ..................
- Page 5 SJ-PM-TF02-Pro-W-485 A00 Product Manual Benewake (Beijing) CO., Ltd 1 Attentions 1.1 About this Manual This manual provides all the essential information during the usage of this product. Please carefully read this manual and make sure that you fully understand everything herein.
-
Page 6: Electrical Characteristics
SJ-PM-TF02-Pro-W-485 A00 Product Manual Benewake (Beijing) CO., Ltd 2 Physical Interface 2.1 Description about Line Sequence Table 1 The Function and Connection Description of each pin Color Function Comment +7~30V Power supply White DATA- Green DATA+ Black Ground 2.2 Electrical Characteristics This product has no overvoltage nor polarity protection, so please make sure that connection and power supply are normal. - Page 7 Dust proof grade Water proof grade Protection grade of TF02-Pro-W-485: IP5X, IP dust proof: Grade 5, IP water proof: 0. Grade 5 of IP dust proof represents Protected from limited dust ingress, but the ingress dust will not affect the equipment working.
-
Page 8: Communication Protocol
SJ-PM-TF02-Pro-W-485 A00 Product Manual Benewake (Beijing) CO., Ltd 4 Communication Protocol Table 3 Data Communication Protocol Communication interfce RS485 Default baud rate 115200 Data bit Stop bit Parity check None 5 Wiper working description The dust-removal wiper works in a fixed period, which is customer default working mode. -
Page 9: Parameter Configuration
Please configure the product according to the demands of the manual and never send unstated command. TF02-Pro-W-485 supports 9600, 14400, 19200, 38400, 43000, 57600, 76800, 115200 (default), 128000, 230400, 256000, 460800, 921600, 1382,400 baudrate. Considering the reliability of communication, it is not recommended to use the baudrate above 115200. The default slave ID is 0x01. - Page 10 SJ-PM-TF02-Pro-W-485 A00 Product Manual Benewake (Beijing) CO., Ltd 7 Q&A Q1: Is it possible to change the FOV? A1: Hello, this demand needs to be customized, please contact our sales to consult a customization design matter. Q2：How long is the life of product？...
