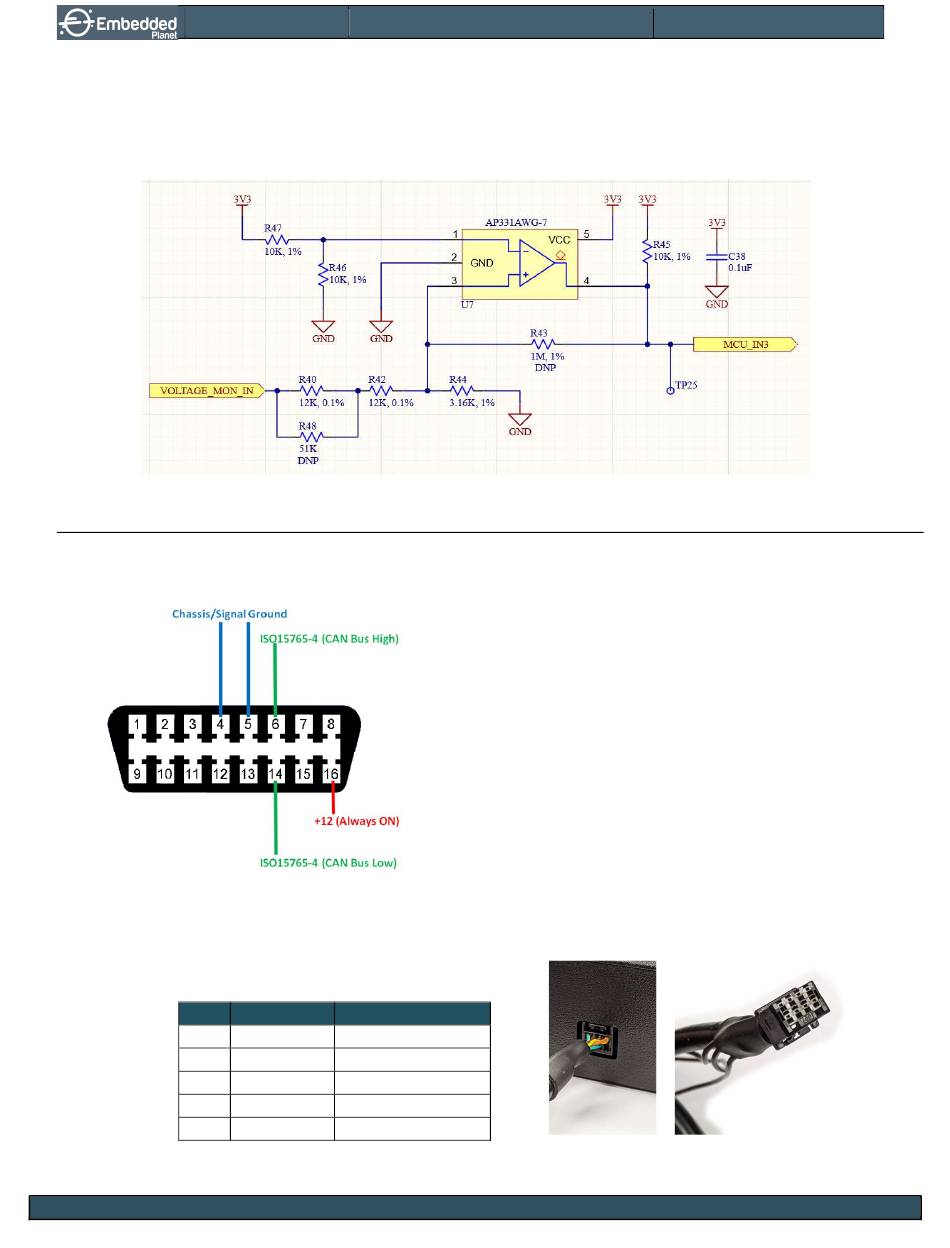

The voltage monitor is an analog input line that accepts a voltage input and compares it to a reference
voltage. The output of the comparator is sent to the MCU through signal IN3. The trip condition for the voltage
monitor is 1.65V at the comparator input; taking into consideration the scaling resistors at the positive input
terminal of the comparator, the trip condition with respect to the external voltage input is 14.2V.
12.6.

OBDII Cable Pinout

The epConnected Vehicle is compatible with a standard OBDII cable with the following connections:
Shown above is the OBDII pinout according to the receptacle piece.
TABLE 16 – OBDII CABLE PINOUT
Pin
4
5
6
14
16
Some configurations of the epConnected Vehicle may include a compatible OBDII cable.
Embedded Planet, Inc. | 31225 Bainbridge Rd Suite N, Solon, OH 44139 | 216-245-4180 | www.embeddedplanet.com | Page 25 of 39
epConnected Vehicle | Product User Manual
Category Description
Reference COM
Reference COM
CAN CAN HIGH
CAN CAN LOW
Power +12V power input
