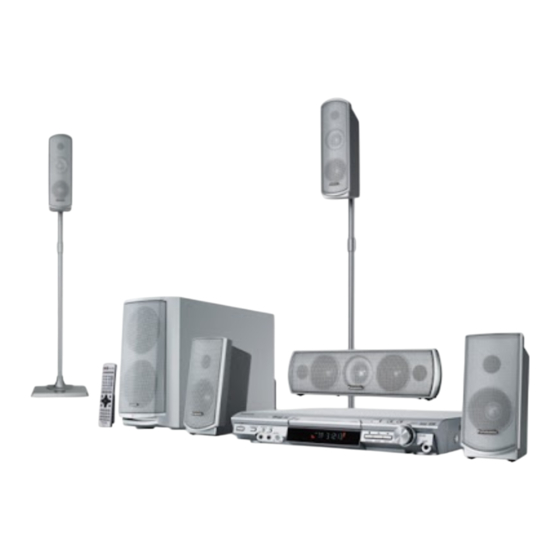

Panasonic SA-HT535EE Service Manual

Dvd home theater sound system
Hide thumbs

Advertisement

Quick Links

Download this manual
ORDER NO. MD0508309C3
DVD Home Theater Sound System
SA-HT535EE
Colour
(S)...Silver Type
SPECIFICATIONS
Specification
1
PDF created with pdfFactory Pro trial version
www.pdffactory.com

Advertisement

loading

Related Manuals for Panasonic SA-HT535EE

Summary of Contents for Panasonic SA-HT535EE

  • Page 1 ORDER NO. MD0508309C3 DVD Home Theater Sound System SA-HT535EE Colour (S)...Silver Type SPECIFICATIONS Specification PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 2 Amplifier Section RMS Output Power: Dolby Digital Mode Front Ch 55 W per channel (6 ), 1 kHz, 10% THD Surround Ch 55 W per channel (6 ), 1 kHz, 10% THD Center Ch 160 W per channel (6 ), 1 kHz, 10% THD Subwoofer Ch 220 W per channel (4 ), 100 Hz, 10% THD...
  • Page 3 *3 Exif Ver 2.1 JPEG Baseline files Picture resolution: between 160 X 120 and 6144 X 4096 pixels (Sub sampling is 4:2:2 or 4:2:0) *4 MPEG4 data recorded with Panasonic SD multi-cameras or DVD video recorders Conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system...
  • Page 4 Power Supply AC 230 V, 50 Hz Power consumption 25 W (SA-HT535), / 250 W (SB -WA535) Dimensions (W x H x D) 430 x 60 x 348.3 mm Mass 2.7 kg (SA-HT535) Operating temperature range +5 °C to +35 °C Operating humidity range 5 % to 90 % RH (no condensation) Power consumption in standby mode: approx.
  • Page 5 1.2. Checking Main Unit Using Power Jig If the active subwoofer is not available during time of repair to the unit, the following equipment could be used. Jig product number RFKZ0182 (110V , 127V, 220V, 230V - 240V for with voltage selector overseas domestic use). 2.
  • Page 6 Subwoofer Unit) Disconnect AC power, discharge Power Supply Capacitors C2080 through a 10 , 10 W resistor to ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent. Current consumption at AC 230V, 50Hz in NO SIGNAL mode should be ~850 mA (Active Subwoofer).
  • Page 7 1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check. 2. Connect a 1.5k , 10 watts resistor, in parallel with a 0.15 capacitor, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.
  • Page 8 - No sound is heard when the power is turned on. - Sound stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are “shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.
  • Page 9 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminium foil or comparable conductive material). 7.
  • Page 10 Fig. 7-2.) 3. Do not handle flexible cables forcibly as this may cause snapping. Handle the parts carefully. (Refer to Fig. 7-1) 4. A new optical pickup is equipped with an anti-static flexible cable. After replacing and connecting to the flexible board, cut the anti- static flexible cable.
  • Page 11 1. Human body grounding Use an anti-static wrist strap to release static electricity accumulated in your body. (Refer to Fig. 7-3) 2. Workplace grounding Place a conductive material (conductive sheet) or iron board where optical pickup is placed. (Refer to Fig.
  • Page 12 ACHTUNG : Dieses Produkt enthält eine Laserdiode. Im enigeschalteten Zustand wird unsichtbare Laserstrahlung von der Lasereinheit abgestrahlt. / Wellenlänge : 662nm/785nm / Maximale Strahlungsleistung der Lasereinheit : 100 W/VDE / Die Strahlung an der Lasereinheit ist ungefährlich, wenn folgende Punkte beachtet werden: 1.
  • Page 13 9. Accessories AC cord PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 14 FM indoor antenna AM loop antenna Video cable Remote control System cable PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 15 10. Remote Control Reference 11. Disc information 12. About HighMAT 12.1. What’s HighMAT? Consumers worldwide are using PCs to create their own collections of music, photos and even video by burning them onto CDs. But how these collections can be experienced across different devices can be confusing to navigate, time consuming to access for a DVD player, and be incomplete in terms of music information available to the customer.
  • Page 16 12.2. Why take advantage of HighMat? A Problem Defined:Today, when consumers create their own digital audio, video or photo collections on CD-R or other physical formats, there are numerous, inconsistent ways that devices read the data. For the consumer, the playback experience can be confusing: A Solution Created: HighMat delivers a better digital media access experience by creating a standard approach for PCs to structure digital media on various physical formats and for playback devices to read the data.
  • Page 17 12.3. Benefits of HighMat? Conventional HighMat Even though DVD player is CD-R/RW compatible, HighMAT compatible products play content back the inconsistent ways that various DVD players can with consistent interface. This includes products read the music or photos files often leads to a which are JPEG compatible products without confusing and inconsistant playback experince.
  • Page 18 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 19 HighMAT is now available for CD Burning and in Leading DVD Players.HighMAT is a new technology that is now available in leading software and consumer electronic devices to dramatically improve the digital media experience when you create homemade CDs. HighMAT delivers a simple, standardized way for PC software and consumer electronics devices to talk to each other and work better together.
  • Page 20 13. Optical Pickup Self-Diagnosis and Replacement Procedure 13.1. Self-diagnosis This unit is equipped with the optical pickup self-diagnosis function and the tilt adjustment check function. Follow the procedure described below during repair in order to perform self- diagnosis and tilt adjustment effectively. Especially when “NO DISC” is displayed, be sure to apply the self-diagnosis function before replacing with an optical pickup.
  • Page 21 and Spindle Motor Before replacing the optical pickup and spindle motor, check the total usage time respectively. Follow the checking method described as below. Item Status and Key Function Display Checking DVD, CD laser usage With the unit stopped and no disc T1_xxxx_yyyy / xxxx(DVD), yyyy( time total time is displayed with a...
  • Page 22 14. Self-Diagnosis Function This unit is equipped with the self-diagnosis function, which displays an error when it occurs, for use during servicing. 14.1. Automatic Displayed Error / Codes 14.1.1. Automatic Display Function For a power unit error, the code is automatically displayed. F61: Automatically displayed on the LCD of the player.
  • Page 23 and the power is automatically turned off. 14.1.3. Description of Error Code 14.1.3.1. F61 - State, Condition When the power is turned on, the unit is automatically turned off. The power does not turn on. - Cause, Troubleshooting Power circuit system failure and/or direct current flown to speaker terminal / Identify the cause and replace with new parts.
  • Page 24 appears. (Deleting the details of self diagnosis) - After repairing errors, be sure to delete the details of self diagnosis. Error Code State, Conditon Cause, Troubleshooting The disc tray cannot be opened: it closes Disc tray open/close detection switch (S901, spontaneously.
  • Page 25 Error Code Meaning Details U. H. Error Focus servo failure Tray loading failure Spindle servo failure (Spindle servo, DSC, SP motor, CLV servo failure) Traverse motor failure Tracking servo error Seek timeout failure DSC system F500 DSC failure DSC stops due to servo failure. / (Startup, focus etc.) F501 DSC not Ready failure...
  • Page 26 F880 Unsuitable task number When a message arrives from not existing task Error Code Meaning Details F890 A message is sent during AV task During transmission of a message to AV task transmission F891 Unable to transmit a message to AV When transmission of a message to AV task starts task F893...
  • Page 27 Item Operational Details Display Condition and Key Function While the player Measurement of laser __LDO __/ 123 _456 Measurement Automatically is stopped and current electricity [display1/ display2] / : Laser of laser exits no disc is initialization value / current electricity current mode inserted, press...
  • Page 28 Item Operational Details Display Condition and Key Function ADSC While the player ADSC internal RAM display / _0FA _6901 Press internal is stopped and Reads and displays the ADSC internal RAM display STOP RAM display no disc is RAM value inside ADSC. mode / : Address / : RAM...
  • Page 29 Item Operational Details Display Condition and Key Function Region While the player Region display _zzz Automatically display is stopped and Region number / : N; no PAL exits no disc is /P; PAL / : N; NTSC/6; PAL60 mode inserted, press : Panel computer jumper five and hold down...
  • Page 30 Item Operational Details Display Condition and Key Function Usage time 1 While the player Usage time 1 / Laser usage T1__1234/ __5678__ / [display1/ Automatically is stopped and time / Measures each for display2] / / The numbers in exits no disc is DVD and CD respectively.
  • Page 31 Item Operational Details Display Condition and Key Function Usage time While the usage Usage time 2 reset / Spindle T2_00000 Automatically 2 reset time 2 is motor usage time exits displayed, press mode and hold down five button on the player and the button on the remote...
  • Page 32 “___LOCKED_” while the lock function mode is entered. 3. While LOCK MODE A is activated and the player is locked, press and hold down the button on the player and the [POWER] button on the remote controller for at least three seconds so that the player displays "_UNLOCKED_"...
  • Page 33 8. The tray lock function is deactivated by "AC Prohibition". 9. LOCK MODE A or B is an exclusive control over whichever is activated first. 10. While the player is set to a lock mode and POWER OFF, the auto power on function can be controlled by the DVD/CD button on the remote controller.
  • Page 34 This unit requires no initialization process carried out after the traditional DVD players were repaired. When the recovery measures are taken, the customer setting will return to the factory setting as same as the procedure described in item “Initialization” in 14.5 is carried out. Write down the contents of the setting before recovery processing and reset the player.
  • Page 35 15.3.1. Version Upgrade Process 1. Insert the recovery disc to the player to replay. 2. The version of player is automatically checked and prompts if necessary. 3. Select version upgrade process using the cursor keys on the remote controller unit. (Select YES or NO) 4.
  • Page 36 “ATTENTION SERVICER” Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures.
  • Page 37 16.2. P.C.B. Locations 16.3. Disassembly of Top Cabinet Step 1: Remove 4 screws. PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 38 Step 2: Remove 3 screws at rear panel. Step 3: Lift the top cabinet upwards and push in backward. 16.4. Disassembly of Front Panel Unit - Follow the (Step 1) - (Step 3) of item 16.3 - Disassembly of Top Cabinet Step 1: Remove lid.
  • Page 39 Step 4: Release the catches from bottom chassis. Step 5: Draw front panel unit forward. - Note: Avoid pulling the front panel unit using strong force. This may cause damage to Main P.C.B. due to abrasion between metal bracket and the mechanism unit. 16.5.
  • Page 40 Step 2: Lift up the Metal Bracket. Step 3: Remove 4 screws at Headphone P.C.B. Step 4: Remove 3 screws at Panel P.C.B. 16.6. Disassembly of Main P.C.B. - Follow the (Step 1) - (Step 3) of item 16.3 - Disassembly of Top Cabinet - Follow the (Step 1) - (Step 5) of item 16.4 - Disassembly of Front Panel Unit...
  • Page 41 16.7. Disassembly of Scart P.C.B. - Follow the (Step 1) - (Step 3) of item 16.3 - Disassembly of Top Cabinet Step 1: Remove 2 screws at the rear panel. Step 2: Detach FFC Boards (CN2005). Step 3: Slide the Scart P.C.B. backwards to remove it. 16.8.
  • Page 42 Step 3: Remove 2 screws. Step 4: Lift up the CD/ DVD mechanism unit. 16.9. Disassembly and Assembly Mechanism Unit 16.9.1. Replacement of Traverse Unit. Step 1: Slide the lever backward to the furthest. Step 2: While bending the catch at right to the lever to the right direction, slide the lever further until it stops.
  • Page 43 - Disassembly of DVD Module P.C.B. Step 5: Remove 4 screws. Step 6: Detach 15 P FFC Board (FP8271). Step 7: Detach 20P FFC Board (FP8501). 16.9.2. Replacement of Tray. - Follow the (Step 1) - (Step 7) of item 16.9.1 - Replacement of Traverse Unit Step 1: While pressing the stopper to the arrow direction, slide the guide tray unit to remove.
  • Page 44 Step 3: Push the lever forward (the tray will move). Step 4: Widen the catches at both sides and pull out the tray. (The tray will stop after a few slides) Step 5: Remove Drive Arm Catch from Tray Slider and Tray. - Fixing the Tray Step 1: Insert Tray slightly into groove of chassis.
  • Page 45 Step 2: Insert Tray into the area to avoid catching the mechanism chassis claw. Step 3: Latch Drive Arm Catch onto Tray and Tray Slider. Step 4: Push Tray . Step 5: Check Tray and Drive Arm move smoothly. 16.9.3. Disassembly of loading section. - Follow the (Step 1) - (Step 4) of item 16.9.1 - Replacement of Traverse Unit - Follow the (Step 1) - (Step 5) of item 16.9.2 - Replacement of Tray...
  • Page 46 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 47 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 48 16.9.4. Replacement of Optical Pickup Unit - Follow the (Step 1) - (Step 5) of item 16.9.1 - Replacement of Traverse Unit - Follow the (Step 1) - (Step 5) of item 16.9.2 - Replacement of Tray Step 1: Widen the catch, push the pin in. PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 49 Step 2: Remove 4 pins. Step 3: Remove Traverse Unit. PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 50 Note: Insert a short pin into FFC of the optical pickup. PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 51 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 52 16.9.5. Disassembly of traverse motor (Unit) and spindle motor (Unit). - Follow the (Step 1) - (Step 5) of item 16.9.1 - Replacement of PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 53 Traverse Unit - Follow the (Step 1) - (Step 5) of item 16.9.2 - Replacement of Tray - Follow the (Step 1) - (Step 11) of item 16.9.4 - Replacement of Optical Pickup Unit PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 54 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 55 17. Service Position 17.1. Checking the Main P.C.B. Below are the neccessary steps required for checking of Main P.C.B.. 1. Disassembly of Top Cabinet. 2. Disassembly of Front Panel. 3. Disassembly of Main P.C.B.. 17.2. Checking the Main P.C.B., Panel P.C.B., Scart P.C.B., Headphone P.C.B.
  • Page 56 Below are the neccessary steps required for checking of Panel P.C.B. and Headphone P.C.B.. 1. Remove Top Cabinet. 2. Disassembly of Front Panel. 3. Disassembly of Headphone P.C.B., Panel P.C.B. and MIC P.C.B.. 18. Adjustment Procedure 18.1. Required Tools and Equipment 18.1.1.
  • Page 57 static measures. - Optical adjustment (optical pickup tilt adjustment) is required after following parts are replaced: 1. Optical pickup unit. 2. Spindle motor assembly unit. 3. Optical pickup peripherals Note: Optical adjustment is not necessary after replacement of other parts inside the traverse unit. However, may require when picture deterioration is detected.
  • Page 58 For your information: The values, “yyy” and “zz” are not associated to jitter value. / “yyy” indicates the frequency of error occurrence. / “zz” indicates the focus drive value. Note: Jitter value appears on the display. 3. Replay T01 (inner track) of the test disc. 4.
  • Page 59 3. Complete with the tilt adjustment. 18.1.4.3. Check After Adjustment Replay test discs or other commercial discs in order to confirm that no picture deterioration or sound skipping is detected in the inner, middle, and outer tracks. After this, fasten each adjustment screw securely using a screw lock.
  • Page 60 19. Block Diagram 20. Schematic Diagram (All schematic diagrams may be modified at any time with the development of the new technology) Note: S901 : PLAY switch S902 : OPEN switch S6000 : OPEN/CLOSE switch S6001 : B_SKIP/ TUNE DOWN switch S6002 : F_SKIP/ TUNE UP switch S6003...
  • Page 61 : PAUSE switch S6005 : PLAY switch S6011 : POWER switch S6012 : SELECTOR switch S6013 : RDS switch S6014 : H_BASS switch VR6000 : VOLUME Jog VR6001 : MIC VR - The voltage value and waveforms are the reference voltage of this unit measured by DC electronic voltmeter (high impedance) and oscilloscope on the basis of chassis.
  • Page 62 20.2. (A) DVD Module Circuit 20.3. (B) Main Circuit 20.4. (C) Panel Circuit 20.5. (D) Scart Circuit 20.6. (E) Headphone Circuit & (F) CD Tray Loading Circuit 20.7. (G) Microphone Circuit 21. Printed Circuit Board 21.1. (A) DVD Module P.C.B. (Side A & B) 21.2.
  • Page 63 Pin No. Mark Function TRY_CLOSE Loading Mecha Close Sw (L: Sw ON) TRY_CCW O Terminal for tray control TRY_CW O Terminal for tray control TRY_OPEN Loading Mecha Open SW (L: Sw ON) N.C. - No connection N.C. - No connection BRAKE_H O Terminal for tray control BYTE...
  • Page 64 TUN_DO Stereo Detect PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 65 Pin No. Mark Function TUN_CLK O 12C Clock for Tuner TUN_DI O 12C Data for Tuner (for FLASH writer) O (for FLASH writer) O (for FLASH writer) MUTE_S O Mute signal for surround Audio signal/ (for FLASH writer) DVD_CMD O CMD signal for the DVD Module DVD_STAT STATUS signal from the...
  • Page 66 Pin No. Mark Function HB_LVL O H.Bass Level Select C_MIX O DPL II Bass Improve SURR_FC1 O Surround Freq. Limiter 1 SURR_FC2 O Surround Freq. Limiter 2 60-61 N.C. - No connection - Power supply 5.0V FAN_CTRL - FAN Control Output (Only for HT880, High for above -10dB) - GND (0V)
  • Page 67 Pin No. Mark Function FLD_CS O Latch Signal for the FL Driver FLD_CLK O Clock Signal for the FL Driver N.C. - No connection KEY2 Key 2 line input N.C. - No connection DES3 REGION Setting for DVD DES2 Model Selector DES1 REGION Setting for Tuner...
  • Page 68 Pin No. Mark Function I/O Exterior Memory Address General Use Port VDD12 O Exterior Memory Write Enable EXDT0 I/O Exterior Memory Address Data 0 EXDT8 I/O Exterior Memory Address Data 4 EXDT1 I/O Exterior Memory Address Data 8 EXDT9 - Logic Power Supply EXDT2 I/O Exterior Memory Address Data12...
  • Page 69 Pin No. Mark Function VDD12 I/O Exterior Memory Address General Port 19 EXADT13 I/O Exterior Memory Address Data 15 EXADT12 I/O Exterior Memory Address Data 11 EXADT11 - I/O Power Supply EXADT10 - GND EXADT9 I/O Exterior Memory Address Data 7 EXADT8 I/O Exterior Memory Address Data 3...
  • Page 70 Pin No. Mark Function EXADT2 Test Mode Setting EXADT1 - GND I/O General Use Port 6 Exterior Interruption 2 16 Bits Timer Exterior Count Source B I/O General Use Port 5 Serial 1 Output Data 16 Bits Timer Exterior Count Source A I/O General Use Port 4 Serial 1 Input Data Exterior Interruption 1...
  • Page 71 DRV4 - GND PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 72 Pin No. Mark Function DRV3 I/O Inside/ Internal Monitor 7 Exterior/ Outside Memory Data 7 General Use Port 38 Digital Video Output 7 DRV2 - Logic Power Supply DRV1 I/O Inside/ Internal Monitor 6 Exterior/ Outside Memory Data 6 General Use Port 37 Digital Video Output 6 DRV0 I/O Inside/ Internal Monitor 5...
  • Page 73 Pin No. Mark Function MONI3 - Analog power Supply MONI2 O DRCVCO Use Capacity Connection 1 MONI1 - Analog GND MONI0 O DRC Use ADC Voltage (Top) AVDDD O DRC Use ADC Voltage (MDL) PLFIL1 O DRC Use ADC Voltage (BTM) AVSSD O INLINE CAPA Use...
  • Page 74 Output Pin No. Mark Function VIN10 CD Head Input VIN9 CD Head Input VIN5 DVD Head Input VIN6 DVD Head Input VIN7 CD Head Input VIN8 CD Head Input VIN3 DVD Head Input VIN4 DVD Head Input VIN2 DVD Head Input VIN1 DVD Head Input General Use AD Input...
  • Page 75 Pin No. Mark Function DAC4OUT O Y (Brightness)/ Comp (Composite) Analog Terminal DAC5OUT - DAC Use GND AVDDE O C (Colour) Analog Signal AVSSE - PLL Use Power Supply AVDDG - PLL Use GND AVSSG - PLL Use Power Supply OSCI - PLL Use GND OSCO...
  • Page 76 Pin No. Mark Function VDIO3 I/O Debug Use Input Clock Stream Sector Head Output VDIO2 I/O Debug Use Input Output Trigger Exterior Memory Data 15 General Port/ Mode Setup Data VDIO1 I/O Debug Use Input Output Data Stream Error Flag Output VDIO0 I/O Debug Use Input Output Trigger 1...
  • Page 77 Pin No. Mark Function TRCDATA2 I/O SDRAM Data 23 Exterior Memory Data 7 TRCDATA3 I/O SDRAM Data 25 Exterior Memory Data 9 TRCST I/O SDRAM Data 22 Exterior Memory Data 6 I/O I/O Power Supply VDD33 I/O SDRAM Data 26 Exterior Memory Data 10 MDQ15 I/O SDRAM Data 21...
  • Page 78 Pin No. Mark Function O SDRAM Address 2 - GND O SDRAM Address 5 VDD33 O SDRAM Address 1 MCKI - I/O Power Supply O SDRAM Address 6 NCAS O SDRAM Address 0 NRAS SDRAM Address 7 NCSM - GND MA11 O SDRAM Address 10 - I/O Power Supply...
  • Page 79 Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardent (resistors), high-quality sound (capacitors), low noise (resistors), etc are used. When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list. - The parenthesized indications in the Remarks columns specify the areas or colour.
  • Page 80 25.1. DVD Loading Mechanism 25.1.1. DVD Loading Mechanism Parts Location 25.1.2. DVD Loading Mechanism Parts List PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 81 Ref. No. Part No. Part Name & Description Remarks TRAVERSE DECK RHM0003-J MAGNET RDG0547 PULLEY GEAR RDG0548 RELAY GEAR RDG0549 DRIVE GEAR RDV0070 BELT REM0102 MOTOR UNIT RGQ0395-K TRAY RME0350 CHANGE LEVER SPRING RME0351 LOCK LEVER SPRING RME0353 TRAY SLIDER SPRING RMK0591 MECHA CHASSIS RML0627-2...
  • Page 82 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 83 25.2.2. Cabinet Parts List PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 84 Ref. No. Part No. Part Name & Description Remarks CABINET AND CHASSIS J3CCBC000008 TUNER PACK REEX0426 10P FFC REEX0427 19P FFC WIRE (FL) REEX0429 50P FFC (MECHA) REEX0466 10P FFC WIRE (SCA) RYQX0207-S DVD LID ASS’Y RGLX0105-Q LIGHTING PIECE RGPX0170U-S FRONT PANEL RGRX0043A-E REAR PANEL...
  • Page 85 Ref. No. Part No. Part Name & Description Remarks IC2015 C0ABBB000230 IC DUAL OP AMP IC2016 C0ABCB000052 IC QUAD OP-AMP IC2018 C2CBJG000672 IC MICROPROCESSOR IC2601 C0ABBB000230 IC DUAL OP AMP IC2602 C0ABBB000230 IC DUAL OP AMP IC2801 C0DAAMH00010 IC DC-TO-DC CONVERTER IC2802 C0CBADG00023 IC 5V REGULATOR...
  • Page 86 Ref. No. Part No. Part Name & Description Remarks Q2701 B1GDCFGA0018 TRANSISTOR Q2702 B1GDCFGA0018 TRANSISTOR Q2703 B1ABEB000002 TRANSISTOR Q2801 B1ADCF000001 TRANSISTOR Q2803 B1BCCG000023 TRANSISTOR Q2804 B1ABCF000176 TRANSISTOR Q2805 B1ABCF000176 TRANSISTOR Q2806 B1BCCD000019 TRANSISTOR Q2807 B1BCCD000019 TRANSISTOR Q2808 B1ADCF000001 TRANSISTOR Q2809 B1ACKD000005 TRANSISTOR Q2813...
  • Page 87 Ref. No. Part No. Part Name & Description Remarks D2816 B0EAKM000117 DIODE D2817 B0EAKM000117 DIODE D2818 MAZ82200ML DIODE D2822 B0FBAM000010 DIODE D2823 B0BC5R600003 DIODE D2824 B0BC7R500001 DIODE D2825 B0EAKM000117 DIODE D2826 B0EAKM000117 DIODE D2827 B0EAKM000117 DIODE D2829 B0ACCK000005 DIODE D2830 B0BC01000014 DIODE D2850...
  • Page 88 Ref. No. Part No. Part Name & Description Remarks FP8101 K1MN50B00031 50P CONNECTOR FP8251 K1MN06B00080 6P CONNECTOR FP8531 K1MN26B00094 26P CONNECTOR W2000 REXX0384 7P FLAT WIRE (DVD MECHA TO WIRE) [M] W6010 REXX0447 4P FLAT WIRE (MIC) COILS L1002 J0JBC0000015 CHIP INDUCTOR L1020 J0JBC0000015...
  • Page 89 Ref. No. Part No. Part Name & Description Remarks FL8103 F1H0J1050022 CHIP CAPACITOR FL8104 F1J1E1040022 CHIP CAPACITOR FUSE PROTECTOR FP2000 K5G202AA0002 FUSE PROTECTOR HOLDERS H2000 RMR0316 7P WIRE HOLDER H6010 K1ZZ00000832 4P WIRE HOLDER JACKS JK1001 K1FB121A0007 JK SCART TERMINAL JK2000 K1FB125B0097 JK SYSTEM CONNECTOR...
  • Page 90 Ref. No. Part No. Part Name & Description Remarks W2030 ERJ3GEY0R00V CHIP RESISTOR W2031 ERJ3GEY0R00V CHIP RESISTOR W2032 ERJ3GEY0R00V CHIP RESISTOR W2033 ERJ3GEY0R00V CHIP RESISTOR W2041 ERJ3GEY0R00V CHIP RESISTOR W2042 ERJ3GEY0R00V CHIP RESISTOR W2043 ERJ3GEY0R00V CHIP RESISTOR W2044 ERJ6GEY0R00V CHIP RESISTOR W2045 ERJ6GEY0R00V CHIP RESISTOR...
  • Page 91 Ref. No. Part No. Part Name & Description Remarks RX8015 D1H88204A024 CHIP RESISTOR RX8016 D1H88204A024 CHIP RESISTOR RX8017 D1H88204A024 CHIP RESISTOR RX8018 D1H422020001 CHIP RESISTOR RX8019 D1H422020001 CHIP RESISTOR RX8020 D1H422020001 CHIP RESISTOR RX8031 D1H447220001 CHIP RESISTOR RX8032 D1H447220001 CHIP RESISTOR RX8111 D1H422320002 CHIP RESISTOR...
  • Page 92 Ref. No. Part No. Part Name & Description Remarks R2003 ERJ3GEYJ221V 220 1/16W R2006 ERJ3GEYJ221V 220 1/16W R2007 ERJ3GEYJ102V 1K 1/16W R2008 ERJ3GEYJ103V 10K 1/16W R2010 ERJ3GEYJ473V 47K 1/16W R2011 ERJ3GEYJ473V 47K 1/16W R2012 ERJ3GEYJ221V 220 1/16W R2013 ERJ3GEYJ221V 220 1/16W R2014 ERJ3GEYJ221V 220 1/16W...
  • Page 93 Ref. No. Part No. Part Name & Description Remarks R2069 ERJ3GEYJ153V 15K 1/16W R2070 ERJ3GEYJ472V 4.7K 1/16W R2071 ERJ3GEYJ182V 1.8K 1/16W R2072 ERJ3GEYJ101V 100 1/16W R2073 ERJ3GEY0R00V 0 1/16W R2074 ERJ3GEYJ272V 2.7K 1/16W R2076 ERJ3GEYJ104V 100K 1/16W R2077 ERJ3GEYJ472V 4.7K 1/16W R2078 ERJ3GEYJ471V 470 1/16W...
  • Page 94 Ref. No. Part No. Part Name & Description Remarks R2162 ERJ3GEYJ682V 6.8K 1/16W R2163 ERJ3GEYJ102V 1K 1/16W R2164 ERJ3GEYJ273V 27K 1/16W R2165 ERJ3GEYJ682V 6.8K 1/16W R2166 ERJ3GEYJ122V 1.2K 1/16W R2167 ERJ3GEYJ123V 12K 1/16W R2168 ERJ3GEYJ223V 22K 1/16W R2169 ERJ3GEYJ562V 5.6K 1/16W R2170 ERJ3GEYJ332V 3.3K 1/16W...
  • Page 95 Ref. No. Part No. Part Name & Description Remarks R2271 ERJ3GEY0R00V 0 1/16W R2278 ERJ3GEYJ223V 22K 1/16W R2300 ERJ3GEYJ103V 10K 1/16W R2301 ERJ3GEYJ302V 3K 1/16W R2302 ERJ3GEYJ103V 10K 1/16W R2303 ERJ3GEYJ473V 47K 1/16W R2304 ERJ3GEYJ752V 7.5K 1/16W R2305 ERJ3GEYJ102V 1K 1/16W R2306 ERJ3GEYJ104V 100K 1/16W...
  • Page 96 Ref. No. Part No. Part Name & Description Remarks R2620 ERJ3GEYJ182V 1.8K 1/16W R2621 ERJ3GEYJ563V 56K 1/16W R2622 ERJ3GEYJ273V 27K 1/16W R2623 ERJ3GEYJ104V 100K 1/16W R2624 ERJ3GEYJ104V 100K 1/16W R2625 ERJ3GEYJ223V 22K 1/16W R2627 ERJ3GEYJ104V 100K 1/16W R2629 ERJ3GEYJ333V 33K 1/16W R2630 ERJ3GEYJ104V 100K 1/16W...
  • Page 97 Ref. No. Part No. Part Name & Description Remarks R2805 ERJ3GEYJ1R0V 1 1/16W R2806 ERJ3GEYJ1R0V 1 1/16W R2807 ERJ3RED680V 68 3W R2808 ERJ3GEYJ1R0V 1 1/16W R2809 ERJ3RED680V 68 3W R2811 ERJ3GEYJ103V 10K 1/16W R2812 ERJ3RBD182V 1.8K 3W R2813 ERJ3GEYJ471V 470 1/16W R2814 ERJ3GEYJ102V 1K 1/16W...
  • Page 98 Ref. No. Part No. Part Name & Description Remarks R2885 ERJ3GEYJ1R0V 1 1/16W R2886 D0HB750ZA003 75 3W R2887 D0HB750ZA003 75 3W R2888 D0HB750ZA003 75 3W R2889 D0HB750ZA003 75 3W R2890 D0HB750ZA003 75 3W R2891 D0HB750ZA003 75 3W R2892 ERJ3GEYJ103V 10K 1/16W R2893 ERJ3GEYJ153V 15K 1/16W...
  • Page 99 Ref. No. Part No. Part Name & Description Remarks R6091 ERJ3GEYJ101V 100 1/16W R6092 D0HB750ZA003 75 3W R6095 ERJ3GEYJ680V 68 1/16W R6099 ERJ3GEYJ272V 2.7K 1/16W R8002 ERJ2GEJ473X 47K 2W R8003 ERJ2GEJ473X 47K 2W R8011 ERJ2GEJ220X 22 2W R8012 ERJ2GEJ220X 22 2W R8013 ERJ2GEJ220X 22 2W...
  • Page 100 Ref. No. Part No. Part Name & Description Remarks R8555 ERJ2GEJ2R2X 2.2 2W R8556 ERJ3GEYJ560V 56 1/16W R8557 ERJ3GEYJ510V 51 1/16W R8558 ERJ2GEJ473X 47K 2W R8559 ERJ2GEJ153X 15K 2W R8561 ERJ2GE0R00X 0 2W R8562 ERJ2GEJ102X 1K 2W R8563 ERJ2GEJ102X 1K 2W R8564 ERJ2GEJ220X 22 2W...
  • Page 101 Ref. No. Part No. Part Name & Description Remarks LB8551 J0JBC0000042 CHIP BEAD LB8561 J0JBC0000042 CHIP BEAD LB8571 J0JBC0000042 CHIP BEAD LB8690 J0JBC0000044 HIGH LOSS INDUCTOR LB8691 ERJ2GEJ101X CHIP RESISTOR LB8692 ERJ2GEJ101X CHIP RESISTOR LB8693 ERJ2GEJ101X CHIP RESISTOR CAPACITORS C984 ECA1EAK100XE 10 25V C1001...
  • Page 102 Ref. No. Part No. Part Name & Description Remarks C2037 ECJ1VB1H103K 0.01 50V C2038 ECEA1AKA221I 220 10V C2039 ECJ1VB1H103K 0.01 50V C2040 ECA0JM102B 1000 6.3V C2042 ECA0JM102B 1000 6.3V C2044 ECA0JM102B 1000 6.3V C2046 ECA0JM331I 330 6.3V C2047 ECA0JM331I 330 6.3V C2053 ECJ1VB1E103K 0.01 25V...
  • Page 103 Ref. No. Part No. Part Name & Description Remarks C2210 ECJ1VB1H223K 0.022 50V C2211 ECJ1VB1C823K 0.082 16V C2212 ECJ1VC1H471J 470P 50V C2213 ECJ1VC1H470J 47P 50V C2214 ECJ1VC1H101K 100P 50V C2215 ECJ1VB1H103K 0.01 50V C2219 ECJ1VB1A124K 0.12 10V C2220 ECJ1VB1A124K 0.12 10V C2221 ECJ1VC1H151K 150P 50V...
  • Page 104 Ref. No. Part No. Part Name & Description Remarks C2501 ECEA1HKA100I 10 50V C2502 ECEA1HKA010I 1 50V C2503 ECJ1VB1C333K 0.033 16V C2504 ECJ1VB1C104K 0.1 16V C2505 ECEA1HKA010I 1 50V C2506 ECJ1VB1E103K 0.01 25V C2507 ECJ1VB1H471K 470P 50V C2508 ECEA1HKA4R7I 4.7 50V C2511 ECJ1VB1A105K 1 10V...
  • Page 105 Ref. No. Part No. Part Name & Description Remarks C2805 ECJ1VC1H101K 100P 50V C2806 EEUFC0J821B 820P 6.3V C2807 ECJ1VC1H101K 100P 50V C2808 ECJ1VC1H101K 100P 50V C2809 ECEA1EKA330B 33 25V C2810 ECJ1VC1H101K 100P 50V C2811 ECJ1VB1H103K 0.01 50V C2812 ECJ1VC1H101K 100P 50V C2813 ECEA1AKA221I 220 10V...
  • Page 106 Ref. No. Part No. Part Name & Description Remarks C6000 ECJ1VB1H473K 0.047 50V C6001 ECJ1VB1H473K 0.047 50V C6002 ECJ1VB1H102K 1000P 50V C6003 ECEA1HKA220B 22 50V C6005 ECEA1HKA220B 22 50V C6006 ECJ1VB1H102K 1000P 50V C6007 ECEA1HKA100B 10 50V C6008 ECEA0JKS470B 47 6.3V C6009 ECJ1VB1H103K 0.01 50V...
  • Page 107 Ref. No. Part No. Part Name & Description Remarks C8025 ECJ0EF1C104Z 0.1 16V C8026 ECJ0EF1C104Z 0.1 16V C8051 ECJ1VB0J105K 1 6.3V C8052 ECJ0EB1A104K 0.1 10V C8053 ECJ0EF1C104Z 0.1 16V C8054 ECJ0EC1H221J 220P 50V C8055 ECJ1VB0J105K 1 6.3V C8056 ECJ0EB1E222K 2200P 25V C8057 ECJ1VB0J105K 1 6.3V...
  • Page 108 Ref. No. Part No. Part Name & Description Remarks C8502 ECJ0EF1C104Z 0.1 16V C8503 ECJ0EF1C104Z 0.1 16V C8504 ECJ0EF1C104Z 0.1 16V C8505 ECJ0EF1C104Z 0.1 16V C8511 ECJ1VB0J105K 1 6.3V C8512 ECJ1VB0J105K 1 6.3V C8513 ECJ0EB1A104K 0.1 10V C8514 ECJ0EB1A104K 0.1 10V C8515 ECJ0EB1A104K 0.1 10V...
  • Page 109 Ref. No. Part No. Part Name & Description Remarks PACKING MATERIALS RPGX1505 PACKING CASE RPNX0337 POLYFOAM RPFX0058 MIRAMAT SHEET ACCESSORIES EUR7722XH0 REMOTE CONTROL A1-1 UR76EC3103A R/C BATTERY COVER K2CQ2CA00002 AC CORD RQT8224-R O/I BOOK (Ru, Ur) RSA0007-L FM ANTENNA K1HA25HA0001 SYSTEM CABLE N1DAAAA00001 AM LOOP ANTENNA K2KA2BA00001 VIDEO CABLE RQCA1029...
  • Page 110 PRT0508D/K/J/E/A/L PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 111 DVD MODULE P.C.B (REP3908A) C8530 LB8530 IC8251 C8572 RX8532 C8531 LB8257 IC8601 RX8531 C8261 R8262 R8264 Q8551 IC8606 R8562 QR8571 R8552 Q8561 R8003 C8521 C8602 C8522 RX8611 C8503 C8502 C8023 C8528 C8008 C8331 R8337 C8335 R8343 C8341 C8024 R8334 R8211 Q8335 Q8331 Q8341...
  • Page 112 DVD MODULE P.C.B (REP3908A) FP8531 TO OPTICAL PICKUP UNIT R8263 C8262 R8261 C8258 C8253 C8257 Q8552 C8251 Q8562 R8554 C8554 R8558 R8553 R8559 R8563 R8564 R8565 C8561 C8551 C8564 C8550 L8550 IC8611 L8330 C8501 C8201 C8516 C8515 C8113 C8514 C8112 L8201 C8513 C8301...
  • Page 113 MAIN P.C.B (REPX0485H) JK2001 C2803 R2885 C2807 R2884 17-Y 16-G L2026 C2805 R2891 L2027 S-VIDEO 15-G R2890 14-G 13-C C2042 VOUT-Y 21-G 23-Y L2022 R2878 R2886 C2044 R2879 C2814 R2883 L2025 VIDEO OUT 22-V R2882 R2889 R2880 C2808 VOUT-CB Q2007 Q2006 18-G 20-CB...
  • Page 114 W2326 C2022 R2092 W2201 IC2019 C2019 W2565 C2020 R2094 IC2010 W2410 W2210 R2077 C2226 Q2030 R2803 W2212 R2002 R2804 C2225 Q2004 Q2000 C2222 W2110 R2003 W2336 R2215 H2000/W2000 D2042 D2000 R2214 C2038 R2064 R2072 R2212 W2548 D2003 D2041 X2000 R2157 W1208 R2257 C2123...
  • Page 115 PANEL P.C.B (REPX0456D) CN6008 IC6000 C6011 HT535 W603 W602 DIVX W605 FL6000 SCART P.C.B (REPX0485H) Q1004 Q1006 Q1007 Q1005 Q1008 Q1201 CN1001 W1006 W1019 Q1010 C1016 C1020 R1042 R1040 R1101 R1202 C1015 JK1001 Q1101 C1006 R1203 R1103 C1019 Q1001 C1013 IC1001 C1007 C1014...
  • Page 116 H6010/W6010 D6000 S6014 S6013 S6012 SELECTOR H_BASS S6011 POWER R6005 W603 W602 W605 HEADPHONE P.C.B (REPX0456D) SENSOR S6002 S6001 S6000 Z6000 B_SKIP/TUNE DOWN F_SKIP/TUNE UP OPEN/CLOSE W6002 VR6000 R6099 S6005 S6004 PAUSE PLAY L6001 C6000 S6003 STOP JK6002 W6006 W6005 CN6032 PHONES VOLUME...
  • Page 117 SCHEMATIC DIAGRAM - 1 OPTICAL PICKUP UNIT CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE J0JBC0000105 J0JBC0000105 HFM PCB TO ACT GND (IM) DVD MODULE CIRCUIT VREF2(RF-) (FP8531) ON PIN (DVD) SCHEMATIC LD (CD) DIAGRAM-2 LD GND LD (DVD) GND (OEIC) LDU PCB VREF...
  • Page 118 SCHEMATIC DIAGRAM - 2 SIDE A : +B SIGNAL LINE : CD-DA SIGNAL LINE SIDE B DVD MODULE CIRCUIT TRV-I-SW D+5V FODRV TRDRV C8251 6.3V220 TL8201 VHALF C8262 C8261 R8230 BIAS1 LDCNT 2.2K CL8262 SPMUTE VIN1 MUTE3 R8231 CL8252 CL8231 DRV0 VIN2 TRIN...
  • Page 119 SCHEMATIC DIAGRAM - 3 : +B SIGNAL LINE DVD MODULE CIRCUIT D+3.3V IC8111 C0CBCBD00018 3.3 REGULATOR IC TL8111 D+5V C8111 C8112 IC8111 RX8111 (22K x 2) C8113 470P Cont QR8111 XP0621400L SWITCH QR8571 D+1.2V UNR511V00L CL8571 SUPPLY CONTROL SWITCH HFMON D8571 MA2J72800L LB8571...
  • Page 120 SCHEMATIC DIAGRAM - 4 : MAIN SIGNAL LINE : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE DVD MODULE CIRCUIT FP8101 VGND Y/PY/G Y/PY/G LB8303 J0JBC0000042 VGND CB/PB/B CB/PB/B LB8304 J0JBC0000042 VGND CR/PR/R CR/PR/R LB8305 J0JBC0000042 VGND LB8301 J0JBC0000042 VGND C8422 LB8302 J0JBC0000042...
  • Page 121 SCHEMATIC DIAGRAM - 5 : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE DVD MODULE CIRCUIT EXADR15 EXADR16 EXADR14 XBYTE EXADR13 EXADR12 EXDT15 DQ15/A-1 EXADR11 EXDT7 EXADR10 EXDT14 DQ14 EXADR9 EXDT6 EXADR8 EXDT13 DQ13 EXADR19 EXDT5 EXADR20 EXDT12 DQ12 CL8652 IC8611 NEXWE EXDT4...
  • Page 122 SCHEMATIC DIAGRAM - 6 : +B SIGNAL LINE DVD MODULE CIRCUIT C8051 MDQ0 MDQ15 DQ15 C8052 VDDQ VSSQ MDQ1 MDQ14 DQ14 MDQ2 DQ13 C8057 RX8012 (82 x 4) VSSQ VDDQ MDQ3A MDQ3 CL8053 MDQ12 MDQ3 DQ12 MDQ2A MDQ2 C8018 MDQ13 MDQ11 MDQ4 DQ11...
  • Page 123 SCHEMATIC DIAGRAM - 7 : +B SIGNAL LINE DVD MODULE CIRCUIT RX8018 (22 x 2) RX8017 (82 x 4) MDQ18 TRCDATA1 TRCDATA0 VDD33 TRCCLK MDQ28 EXTRGO MDQ19 SDATA MDQ27 SCLOCK MDQ20 EXTRG1 VDD33 VDD33 MDQ26 VDIO0 MDQ21 VDIO1 MDQ25 VDIO2 MDQ22 VDIO3 MDQ24...
  • Page 124 SCHEMATIC DIAGRAM - 8 : CD-DA SIGNAL LINE : DVD VIDEO SIGNAL LINE : +B SIGNAL LINE : DVD AUDIO SIGNAL LINE DVD MODULE CIRCUIT R8041 LB8011 J0JHC0000045 D+3.3V D+1.2V C8001 C8011 LB8001 4V330 6.3V100 J0JHC0000045 RX8031 (4.7K x 2) EXTRGO SDATA SCLOCK...
  • Page 125 SCHEMATIC DIAGRAM - 9 : MAIN SIGNAL LINE : +B SIGNAL LINE MAIN CIRCUIT : FM/AM SIGNAL LINE : DVD VIDEO SIGNAL LINE : -B SIGNAL LINE R2803 1.8K VREF+ Q2030 R2804 B1GBCFJN0033 2.7K SWITCH BRAKE_H TRAY_CW TRY_CW C+9V C+9V CD TRAY -7.5V LOADING...
  • Page 126 SCHEMATIC DIAGRAM - 10 : DVD VIDEO SIGNAL LINE : MAIN SIGNAL LINE : +B SIGNAL LINE MAIN CIRCUIT : FM/AM SIGNAL LINE : -B SIGNAL LINE W2014 R2264 R2178 R2265 R2165 C2822 6.8K 6.8K 0.01 GOUTSUB R2278 R2164 C2270 C2175 +7.5V R2161...
  • Page 127 SCHEMATIC DIAGRAM - 11 : +B SIGNAL LINE MAIN CIRCUIT : MAIN SIGNAL LINE : -B SIGNAL LINE W2028 W2076 C2833 16V47 C2831 16V47 R2153 C2153 R2147 R2149 16V100 HP_L R2144 2.2K R2145 6.8K R2148 R2150 C2150 R2146 50V1 C2254 C2151 0.01 100P...
  • Page 128 SCHEMATIC DIAGRAM - 12 : +B SIGNAL LINE MAIN CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE IC2601 C0ABBB000230 DUAL OP AMP +7.5V R2642 C2621 R2639 R2663 W2009 6.8K 3.9K C2633 R2636 220P R2640 R2656 IC2602 4.7K C0ABBB000230 R2657 DUAL OP AMP 100K R2638...
  • Page 129 SCHEMATIC DIAGRAM - 13 MAIN CIRCUIT : +B SIGNAL LINE R2897 STBY_LED R2085 R2057 Q2029 R2056 B1GBCFJN0033 R2058 LED DRIVE R2059 SCART_MUTE R2038 FLD_DA SCART_MUTE FLD_DA VOL_CLK R2037 VOL_CLK VOL_DA R2036 VOL_DA MIC_SW W2060 MIC_SW MUTE_L R2035 YC_H R2080 YC_H R2034 RGB_H KEY3 (CATER)
  • Page 130 SCHEMATIC DIAGRAM - 14 : +B SIGNAL LINE MAIN CIRCUIT : -B SIGNAL LINE IC2803 D2822 B0FBAM000010 C0DBEZG00021 REGULATOR IC D2803 B0ACCK000005 R2826 R2836 D+1.2V C2842 R2829 L2802 R2834 R2833 G0A200D00002 DA+5V W2062 IC2801 AA+5V C2825 C2824 R2835 6.3V330 C0DAAMH00010 C2823 R2898 DC-TO-DC CONVERTER IC...
  • Page 131 SCHEMATIC DIAGRAM - 15 : +B SIGNAL LINE MAIN CIRCUIT : MAIN SIGNAL LINE : -B SIGNAL LINE Q2818 R2849 R2851 B1GBCFJA0028 4.7K D2827 DCDET SWITCH B0EAKM000117 Q2814 DCDET 2SD21370PA Q2818 R2850 REGULATOR C2841 D2851 C2853 C2847 R2842 B0ADCJ000020 25V4700 0.01 50V4.7 1.8K...
  • Page 132 SCHEMATIC DIAGRAM - 16 : -B SIGNAL LINE PANEL CIRCUIT : +B SIGNAL LINE FL6000 A2BD00000140 FL DISPLAY 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 R6050 C6003 50V22...
  • Page 133 SCHEMATIC DIAGRAM - 17 : MAIN SIGNAL LINE : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE SCART CIRCUIT C1001 C1012 16V100 IC1001 C9ZB00000431 VIDEO SELECTOR IC VCC1 VCC2 C1005 0.01 C1018 0.01 COUT C1019 IC1003 6.3V220 C1AB00001731 MUTE1 GND2 C1013 V.BUFFER IC 6.3V220...
  • Page 134 SCHEMATIC DIAGRAM - 18 HEADPHONE CIRCUIT : MAIN SIGNAL LINE : +B SIGNAL LINE R6026 R6099 R6024 R6025 R6022 R6023 1.8K 2.2K 2.7K 1.2K S6001 S6002 S6000 S6003 S6004 S6005 (B_SKIP/ (F_SKIP/ (OPEN/CLOSE) (STOP) (PAUSE) (PLAY) TUNE DOWN) TUNE UP) JK6002 HEADPHONE Z6000...
  • Page 135 SCHEMATIC DIAGRAM - 19 : MIC SIGNAL LINE MICROPHONE CIRCUIT : +B SIGNAL LINE Q6071 JK6011 C6092 B1ABCF000011 MIC1 R6085 R6095 MIC AMP 8.2K C6070 R6088 R6092 C6086 C6087 C6088 L6005 R6086 Q6071 R6089 R6081 50V4.7 4.7K 10V220 10V220 1000P J0JBC0000019 100K Q6072...
  • Page 136 TO ACTIVE SUBWOOFER SB-WA535EE-S VIDEO VIDEO FM/AM AUDIO VOUT-CR VOUT-CB VOUT-Y VIDEO JK2001 JK2000 DVD MODULE P.C.B. FP8101 SIDE:A CN2005 TUNER PACK CN2002 MAIN P.C.B. FP8251 6 ..1 SPINDLE MOTOR H2000 CN2004 CN1001 JK1001 SCART P.C.B.
  • Page 137 HEADPHONE P.C.B. OPTICAL PICKUP 1 ..19 2 ..18 CN6008 CN6032 1 ....25 2 .
  • Page 138 OPTICAL PICKUP LD(DVD) SPINDLE MOTOR UNIT LD(CD) Q8552 Q8562 SWITCH SWITCH BIAS IC8251 C0GBG0000048 OPIN+ MOTOR DRIVE LDIN BIAS2 TRIN Q8561 Q8551 SWITCH SWITCH QR8571 SUPPLY CONTROL SWITCH 130 131 129 132 127 113 114 133 134 135 118 136 117 137 116 138 115 DV3.2 LSI MN2DS0009AP IC8001...
  • Page 139 IC8601 C0EBA0000029 VOLTAGE DETECTOR IC8051 IC8651 C3ABPG000145 XRESET RFKWMH90B160 64 SDRAM IC 16M FLASH ROM IC 2,4,5,7,8,10,11, 22-26, 9, 16, 1~8, 29-36, 13,42,44,45,47, 29-35 17, 48 18-25 38-45 IC8606 48,50,51,53 C0EBE0000455 RESET IC 198~203, 206~213, 41, 54, 18, 42, 43, 230, 232, 236, 23~33, 216, 217...
  • Page 140 TO MAIN BLOCK 27(26) 22(21) 20(19) Q8335 Q8321 QR8111 IC8111 C0CBCBD00018 SWITCH SWITCH SWITCH POWER SUPPLY Q8331 Q8341 Q8325 IC8421 SWITCH SWITCH SWITCH C0FBBK000050 AUDIO DAC 11~13 IC8695 IC8691 C0JBAA000346 C0JBAA000346 AND GATE AND GATE LOGIC IC LOGIC IC QR8420 MUTING SWITCH 170~172...
  • Page 141 Q2007 CR_R SWITCH CRIN CYOUT Q2006 CB_B CBOUT SWITCH CBIN CROUT CYIN IC2006 JK2001 C9ZB00000498 VIDEO VIDEO VOUT SELECTOR IC Q2003 Q2005 MUTING MUTING CONTROL CONTROL YOUT S-VIDEO IC2009 COUT C1AB00001486 V.BUFFER IC VMUTE3 JK1001 AV OUT VOUT V-OUT A(B)IN Q1001 VSAG AMPLIFIER...
  • Page 142 VINSUB 52(50) GOUTFL(R) 51(49) VINFL(R) DVD_MIXL(R) GOUTSUB 69(70) INE1(2) DVDCNT INCA 41(38) FOUT4(3) SUBW INSUBA 25(23) DVDSL(R) 78(79) OUTLS(R) INLSA(R) 24(22) OUTLSN(R) IC2011 C1BB00000845 IC2015 ASP IC C0ABBB000230 OUTCN DUAL OP AMP IC2010 C0ABBB000230 OUTC DUAL OP AMP DVDFL(R) 5(3) 7(1) 75(76) INFLA(R)
  • Page 143 IC2601 C0ABBB000230 DUAL OP-AMP Q2607 JK2000 SWITCH TO ACTIVE SUBWOOFER BLOCK SUB+B SUB+B FRONTL(R) SUBAC1 SUBAC1 DVDAC1 SURR L(R) SUBAC2 IC2602 SUBAC2 C0ABBB000230 DUAL OP-AMP DVDAC2 FL DISPLAY D2601 DCDET DCDET MUTE_H CENTER SYNC SUBWOOFER JK6010 MIC1 JK6002 Q6071 Q6072 Q6073 HEADPHONE MIC AMP...
  • Page 144 FL6000 FL DISPLAY FROM POWER TRANSFORMER 5,10,12,16, 6~9,11,13~15, 19,21,22,24, 17,18,20,32,34, 30,31,33,35,38 36,37,49~41 14,18,20,22~24, 12,13,16,17,19,21,25, 26,29,33,35 27,28,30~32,34,36~39 RM902 IC6000 C0HBB0000044 FL DRIVER IC IC2014 IC904 C1BB00000979 2(4) ANALOG SURROUND IC LF(R) C0GAG0000022 RELFECTIVE PHOTO SENSOR Q2703 15(14) 8(9) 6(7) 1(5) MUTING SWITCH Q2030 SWITCH...
  • Page 145 D2827 D2826 +12V D2853 D2825 Q2816 TUNER+9V REGULATOR D2850 Q2814 +7.5V REGULATOR D2824 D2822 Q2813 SW5V REGULATOR D2851 Q2818 Q2801 DCDET SWITCH SWITCH D+1.2V IC2803 C0DBEZG00021 D+5V REGULATOR IC L2801 A+5V D2831 Q2803, Q2804 M+9V CURRENT CONTROL, CURRENT STABLIZER Q2805, Q2806 REGULATOR IC2802 L2801...
  • Page 148 C1BB00000845 (80p) C2CBJG000672 C9ZB00000431 (34p) C9ZB00000498 C1BB00000979 (20p) C0HBB0000044 (48p) RFKWMH82B160 (48p) 75 ... . 51 C3ABPG000145 (54p) MN2DS0009AP (256p) 1 ... . 25 C0JBAA000346 (5p) C0AABB000125 C1AB00001731...
  • Page 153 CD TRAY LOADING P.C.B ( REP3288A ) IC904 RM902 S902 CS901 OPEN SW S901 PLAY SW MIC P.C.B ( REPX0485H MIC LEVEL MIC 2 MIC 1 JK6010 JK6011 VR6001 L6006 L6004 R6082 C6071 R6091 C6093 R6088 L6005 R6086 Q6072 R6081 R6080 Q6071 C6079...
  • Page 154 SCHEMATIC DIAGRAM - 23 : +B SIGNAL LINE POWER CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE C9535 0.047 IC5001 R5205 C5203 C5202 IC5001 RSN35H2B-P R9523 RIGHT POWER HIC SPEAKER LEFT L9502 SPEAKER R9528 JK9501 C5102 C9536 L9507 0.047 C5103 R5206 L9502, L9507...
  • Page 155 SCHEMATIC DIAGRAM - 24 : +B SIGNAL LINE POWER AMP CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE SUB_IN SUR_R_IN CENT_IN SUR_L_IN POWER R5819 CIRCUIT SUR_L_OUT 330K (H5900) ON SUR_R_OUT SCHEMATIC C5836 DIAGRAM - 23 10V100 LATCH H5804 AC_DET DC_DET C9533 63V2200...
  • Page 156 SCHEMATIC DIAGRAM - 25 : +B SIGNAL LINE TRANSFORMER CIRCUIT : -B SIGNAL LINE R9517 T9500 G4C7AGK00008 AC_IN +VccH D9504 +VccH B0FBAM000009 K9810 K9811 K9812 C9501 ERDS1FVJ120T ERDS1FVJ120T ERDS1FVJ120T +VccL AC_GND AC_GND R9836 -VccL POWER -VccH CIRCUIT -VccH (H9500) ON SCHEMATIC SUB+B DIAGRAM - 23...
  • Page 157 SCHEMATIC DIAGRAM - 26 CD LOADING CIRCUIT : +B SIGNAL LINE IC11 C0GAG0000007 UP/DOWN MOTOR DRIVE 0.01 16V100P RM11 UP/DOWN MOTOR CHANGE BOTTOM OPEN B3NAA0000068 +7.5V SENSOR STOCK PGND CR16 SWITCH DGND UP/DOWN F PLAY UP/DOWN R BOTTOM SW MAIN CIRCUIT (CN2810) ON POSTION SENS SCHEMATIC...
  • Page 158 CN6811 1 ..29 2 ..30 1..7 H6800 Z6800 H6810 PANEL P.C.B. SOLDER SIDE H6806 VR6800 JK6801 CP6800 1 .
  • Page 159 DECK P.C.B. SOLDER SIDE CN2802 CN2801 1... . 12 1... . 12 CS1002 CP6803 (DECK 2) R/P HEAD, MOTOR ERASE HEAD W1002 JK2803 LINE OUT...
  • Page 160 OPTICAL PICKUP LD(DVD) SPINDLE MOTOR UNIT LD(CD) Q8552 Q8562 SWITCH SWITCH BIAS IC8251 C0GBG0000048 OPIN+ MOTOR DRIVE LDIN BIAS2 TRIN Q8551 Q8561 SWITCH SWITCH QR8571 SUPPLY CONTROL SWITCH 130 131 129 132 127 113 114 133 134 135 118 136 117 137 116 138 115 DV3.2 LSI MN2DS0009AP IC8001...
  • Page 161 IC8601 IC8601 C0EBA0000029 C0EBA0000029 VOLTAGE VOLTAGE DETECTOR DETECTOR IC8051 IC8651 C3ABPG000145 XRESET RFKWMH90E160 64 SDRAM IC 16M FLASH ROM IC 2,4,5,7,8,10,11, 22-26, 9, 16, 1~8, 29-36, 13,42,44,45,47, 29-35 17, 48 18-25 38-45 IC8606 IC8606 48,50,51,53 C0EBE0000455 C0EBE0000455 RESET IC RESET IC 198~203, 206~213, 41, 54, 18, 42, 43,...
  • Page 162 TO MAIN BLOCK 27(26) 22(21) 20(19) Q8335 Q8321 QR8111 IC8111 IC8111 C0CBCBD00018 C0CBCBD00018 SWITCH SWITCH SWITCH POWER POWER SUPPLY SUPPLY Q8331 Q8341 Q8325 IC8421 SWITCH SWITCH SWITCH C0FBBK000050 AUDIO DAC 11~13 IC8695 IC8691 IC8695 IC8691 C0JBAA000346 C0JBAA000346 C0JBAA000346 C0JBAA000346 AND GATE AND GATE AND GATE AND GATE...
  • Page 163 AM ANT FM ANT Z2620 CF2601 CF2602 Q1 (RF AMP) Q2601 MIXER IF AMP D2602 L2602 L2601 BUFFER (FM) DECODER RM AMP BUFFER PILOT PHASE CANCEL STEREO LEVEL S-CURVE SWITCH AM/FM COMP BUFFER TUNING DRIVE PILOT IC2601 X2602 LA1833NMNTLM Z2602 FM/AM IF AMP, DET/AM OSC, MIX/FM MPX...
  • Page 164 FL6800 FROM POWER FL DISPLAY TRANSFORMER 6~40 41~49 16~23, 1~2, 25~51 58~64 IC6803 C0HBB0000039 FL DRIVER RM11 RM21 LOADING MOTOR UP/DOWN MOTOR PLLDA IC11 IC21 ST/DO C0GAG0000007 C0GAG0000007 UP/DOWN LOADING MOTOR DRIVER MOTOR DRIVER PLLCLK PLL_CE MICROPROCESSOR C2CBJG000653 IC2818 X6801 X6800 Z6800 REMOTE SENSOR...
  • Page 165 IC1001 AN7348S-E1 P.B EQ/REC AMP/ ALC/TPS AMP 24(23) (DECK 1) P.B. HEAD 1(2) 20(5) 22(3) 21(4) 17(8) (DECK 2) R/P HEAD 18(7) LOGIC L/H NOR/CrO & HI/LO LOGIC RIPPLE LOGIC REJECTION REC/PB Q2704 SWITCH (DECK 2) ERASE HEAD L1002 BIAS OSC CONTROL Q1004, Q1005, Q1007...
  • Page 166 JK2802 COMPONENT VIDEO BLUE CbOUT GREEN CyOUT VIDEO YELLOW VOUT CyIN IC2006 C9ZB00000466 CrOUT VIDEO IC CB_B CbIN JK2801 S.VIDEO OUT YOUT CR_R COUT CrIN DVD_CLK DVD_STAT Q2838 SWITCH DVD_CMD IC2803 C0DBEZG00021 Q2920 REGULATOR MIX_MUTE MUTING SWITCH Q2806 Q9504 Q2906 IC9500 ZFLAG&AMUTE MUTING...
  • Page 167 IC2814 Q6817 Q6806, Q6807 KIA4558FEL IC2813 76(75) DUAL OP-AMP IC2800 C1BB00001012 LIMITTER LOUT(R) 15(14) KARAOKE IC C1BB00000979 JK6802 64(63) 5(3) ANALOG SURROUND IC 7(1) 6(7) MIC2 LCIN(R) COUT 6(2) SOUT Q2813 JK6800 JK2803 MUTING MIC1 SWITCH LINE OUT Q2814 MUTING SWITCH IC2817 C1BB00000086...
  • Page 168 65(66) INC1(2) 25(23) OUTLS(R) 63(64) JK2803 INB1(2) 61(62) INFLA(B) DVDFL(R) 75(76) INCA IC2815 DVDCNT KIA4558FEL INLSA(R) DUAL OP-AMP DVDSL(R) 78(79) IND1(2) OUTC SUBW INSUBA IC2812 DVD_MIXL(R) 67(68) C1BB00000845 IND1(2) ASP IC OUTSUB Q2919 MIX_MUTE MUTING SWITCH 59(60) LOUT1(2) 41(38) FOUT4(3) 72(73) EXIN1(2) IC2811...
  • Page 169 FILTER 16(15) -IN21(22) 3(6) OUT21(22) IC5801 -IN11 SUR_L(R) RSN315H42C-P OUT11 POWER AMP ACDET JK9502 FILTER CENTER JK2804 SUBWOOFER JK9501 FILTER FRONT L(R) 10(14) IC5001 LATCH FILTER -IN_L(R) RSN35H2B-P POWER AMP ACDET 4(1) OUTL(R) Q5811 Q5801, Q5810 SWITCH SWITCH Q2913~Q2916 MOTOR DRIVE Q2909~Q2912 MOTOR...
  • Page 170 JK6801 HEADPHONE HP _SW HP _OUT Q2710 SYNC SYNCHRONISING SWITCH Q2702 RESET SWITCH Q9501 D9512,D9517 SYSTEM 6V VOLTAGE REGULATOR Q9502 SYSTEM 6V VOLTAGE REGULATOR Q5802, Q5805 SWITCH Q5809 9V VOLTAGE REGULATOR T9501 FP5833 T9500 Q5803 15V VOLTAGE REGULATOR D9522-D9529 JK9500 Q5808 Q5804, Q5806, Q5807 RL9500...
  • Page 173 B3AAA0000583 B0BA03100002 B3AEA0000041...
  • Page 174 RSN315H42C-P AN7348S-E1 (24P) C1AA00000612 C0FBBK000050 (28P) C0HBB0000039 (64P) C1BB00000086 (18P) C1BB00000801 (80P) C3ABPG000145 (54P) MN2DS0009AP (256P) KIA4558FEL(8P) C2CBJG000653 (100P) LA1833NMNTLM (24P) C1BB00000845 (56P) LC72131MDTRM (20P) CNB13030R2AU C0GBG0000048 C0CBCBD00018 (8P) C0EBE0000455 RSN35H2B-P (14P) C0AABA000009 C0JBAA000346 C0DAAMH00010 RFKWMH90E160 C0GAG0000007 C1BB00000979 C0DBEZG00021 (6P) C9ZB00000498 B1GFGCAA0001 C0EBA0000029...
  • Page 176 CD LOADING P.C.B (REP3569A) CHANGESW RM21 LOADING_MOTOR PLAYSW STOCKSW RM11 UP/DOWN_ MOTOR IC21 IC11 OPENSW BOTTOMSW...
  • Page 177 DECK P.C.B DECK MECHANISM P.C.B. (REPX0331E) (REPX0321B) R1024 IC1004 C1006 C1009 R1027 CS1002 TO R/P HEAD TP10 J1002 Q1003 TP4 x L1002 TP3 x TP11 R1004 J1003 C1002 C1026 C1011 TP12 C1021 C1020 C1016 S951 R1009 MODE R1010 C1010 C1022 R1028 C1041 C1014...
  • Page 178 DVD MODULE P.C.B (REP3908B) C8530 LB8530 IC8251 C8572 RX8532 C8531 LB8257 IC8601 RX8531 C8261 R8262 R8264 Q8551 IC8606 R8562 QR8571 R8552 Q8561 CL8034 R8003 C8521 C8602 C8522 RX8611 C8503 C8502 C8023 C8528 C8008 C8331 R8337 C8335 R8343 C8341 C8024 R8334 R8211 Q8335 Q8331...
  • Page 179 DVD MODULE P.C.B (REP3908B) FP8531 TO OPTICAL PICKUP UNIT R8263 C8262 R8261 C8258 C8253 C8257 Q8552 C8251 Q8562 R8554 C8554 R8558 R8553 R8559 R8563 R8564 R8565 C8561 C8551 C8564 C8550 CL8006 L8550 IC8611 L8330 C8501 C8201 C8516 C8515 C8113 C8514 C8112 L8201 C8513...
  • Page 180 MAIN P.C.B (REPX0486K) LINE OUT FM ANT SUBWOOFER AM ANT JK2803 JK2601 IC2815 JK2804 W2881 R2848 Q2818 R2564 1 2 3 W2417 W2626 R2307 R2236 R2235 W2412 C2605 R2508 R2623 W2127 C2604 W2128 R2622 TUNER PACK R2135 L281 Q2820 C2515 (REP1999B) R2227 R2228...
  • Page 181 S. VIDEO COMPONENT AM ANT VIDEO OUT JK2802 JK2801 C2842 C3623 L2816 C2849 C2848 C2847 2-PR C2846 5-PB R2834 L2811 W3011 L2815 R2816 R2825 C2850 C2851 L2814 R2828 R2831 R2807 R2832 R2824 R2823 C2039 C2991 Q2915 Q2913 C2434 C2992 C2974 R2454 W2102 W2414...
  • Page 182 MIC P.C.B (REPX0487A) MIC1 MIC2 JK6802 JK6800 R6891 Q6817 K6806 C6872 R6890 Q6807 C6875 C6871 R6886 W6890 R6982 C6866 C6811 R6981 R6991 W6891 Q6806 H6805 R6992 R6995 TUNER PACK P.C.B (REP1999B)
  • Page 183 PANEL P.C.B (REPX0487A) S6819 OPEN/CLOSE R6963 S6820 DISC CHANGE R6964 S6821 DISC 5 R6965 FL6800 H6800 S6822 DISC 4 R6966 S6823 W6854 DISC 3 W6855 S6824 DISC 2 W6857 W6853 C6894 Z6800 W6856 W6866 W6878 R6967 W6913 L6801 R6968 D6800 S6825 W6862 DISC 1...
  • Page 184 S6810 AC IN R6937 R6829 S6811 DISC CHECK R6938 S6812 MULTI REMASTER CN6811 R6939 R6997 W6880 S6813 W6867 SUPER SURROUND C6855 W6865 W6863 D6802 Q6803 W6858 R6940 W6861 W6866 W6878 W6913 W6860 S6818 W6864 SOUND EQ W6862 Q6805 W6870 W6881 W6820 W6876 W6875...
  • Page 185 POWER P.C.B (REPX0488E) Q5809 Q5802 Q5803 Q5804 C5804 R5814 W5879 C5811 C5809 C5806 FP5833 R5828 R5102 R5823 D5801 Q5807 0.4A R5813 W5857 H9500 W5878 R5200 R5892 Q5806 W5887 R5830 C5808 Q5805 W5889 R5206 R5812 R5100 R5810 W5860 R5817 Q5811 W5861 W5859 W5897 W5895...
  • Page 186 IC5001 L9502 R5102 W5847 C5202 D5820 R9523 L9507 W5857 W5849 C5102 R5205 R5200 R9528 R5105 C5834 R5206 R5100 W5860 W5833 R5817 W5834 W5861 Q5801 W5859 W5835 Q5810 RIGHT SPEAKER R9532 W5837 2-GND R9531 C5813 C5814 R5816 LEFT SPEAKER W5838 H5901 R5815 4-GND R5809...
  • Page 187 TRANSFORMER P.C.B (REPX0489D) CAUTION RISK OF ELECTRIC SHOCK AC VOLTAGE LINE. PLEASE DO NOT TOUCH THIS P.C.B H9502/W9502 W9500 R9507 C9514 IC9500 Q9504 R9522 K5803 VK725D R9516 D9503 K5807 EE R9510 C9515 W9600 R9517 R9509 CN9500 R9508 L9500 R9513 250V 1.6A R9512 Z9500 CN5804...
  • Page 189 SCHEMATIC DIAGRAM - 1 OPTICAL PICKUP UNIT CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE J0JBC0000105 TO ACT J0JBC0000105 GND (IM) DVD MODULE CIRCUIT VREF2(RF-) (FP8501) ON PIN (DVD) SCHEMATIC LD (CD) DIAGRAM - 2 LD GND LD (DVD) GND (OEIC) VREF VREF1...
  • Page 190 SCHEMATIC DIAGRAM - 2 : +B SIGNAL LINE : CD-DA SIGNAL LINE DVD MODULE CIRCUIT TRV-I-SW D+5V FODRV TRDRV C8251 6.3V220 TL8201 VHALF C8262 C8261 R8230 BIAS1 LDCNT 2.2K CL8262 SPMUTE VIN1 MUTE3 R8231 CL8252 CL8231 DRV0 VIN2 TRIN R8261 R8262 FP8251 C8231...
  • Page 191 SCHEMATIC DIAGRAM - 3 : +B SIGNAL LINE DVD MODULE CIRCUIT D+3.3V IC8111 C0CBCBD00018 3.3 REGULATOR IC TL8111 D+5V C8111 C8112 IC8111 RX8111 (22K x 2) C8113 470P Cont QR8111 XP0621400L SWITCH QR8571 D+1.2V UNR511V00L CL8571 SUPPLY CONTROL SWITCH HFMON D8571 MA2J72800L LB8571...
  • Page 192 SCHEMATIC DIAGRAM - 4 : MAIN SIGNAL LINE : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE DVD MODULE CIRCUIT FP8101 VGND Y/PY/G Y/PY/G LB8303 J0JBC0000042 VGND CB/PB/B CB/PB/B LB8304 J0JBC0000042 VGND CR/PR/R CR/PR/R LB8305 J0JBC0000042 VGND LB8301 J0JBC0000042 VGND C8422 LB8302 J0JBC0000042...
  • Page 193 SCHEMATIC DIAGRAM - 5 : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE DVD MODULE CIRCUIT EXADR15 EXADR16 EXADR14 XBYTE EXADR13 EXADR12 EXDT15 DQ15/A-1 EXADR11 EXDT7 EXADR10 EXDT14 DQ14 EXADR9 EXDT6 EXADR8 EXDT13 DQ13 EXADR19 EXDT5 EXADR20 EXDT12 DQ12 CL8652 IC8611 NEXWE EXDT4...
  • Page 194 SCHEMATIC DIAGRAM - 6 : +B SIGNAL LINE DVD MODULE CIRCUIT C8051 MDQ0 MDQ15 DQ15 C8052 VDDQ VSSQ MDQ1 MDQ14 DQ14 MDQ2 DQ13 C8057 RX8012 (82 x 4) VSSQ VDDQ MDQ3A MDQ3 CL8053 MDQ12 MDQ3 DQ12 MDQ2A MDQ2 C8018 MDQ13 MDQ11 MDQ4 DQ11...
  • Page 195 SCHEMATIC DIAGRAM - 7 : +B SIGNAL LINE DVD MODULE CIRCUIT RX8018 (22 x 2) RX8017 (82 x 4) MDQ18 TRCDATA1 TRCDATA0 VDD33 TRCCLK MDQ28 EXTRGO MDQ19 SDATA MDQ27 SCLOCK MDQ20 EXTRG1 VDD33 VDD33 MDQ26 VDIO0 MDQ21 VDIO1 MDQ25 VDIO2 MDQ22 VDIO3 MDQ24...
  • Page 196 SCHEMATIC DIAGRAM - 8 : CD-DA SIGNAL LINE : DVD VIDEO SIGNAL LINE : +B SIGNAL LINE : DVD AUDIO SIGNAL LINE DVD MODULE CIRCUIT R8041 LB8011 J0JHC0000045 D+3.3V D+1.2V C8001 C8011 LB8001 4V330 6.3V100 J0JHC0000045 RX8031 (4.7K x 2) EXTRGO SDATA SCLOCK...
  • Page 197 SCHEMATIC DIAGRAM - 9 : +B SIGNAL LINE : FM SIGNAL LINE : AM SIGNAL LINE MAIN (TUNER) CIRCUIT : FM/AM SIGNAL LINE : FM OSC SIGNAL LINE : AM OSC SIGNAL LINE Q2606 R3604 TUNER PACK CIRCUIT C3603 R3607 0.01 CF2601 CF2602...
  • Page 198 SCHEMATIC DIAGRAM - 10 : AUX SIGNAL LINE : DVD VIDEO SIGNAL LINE MAIN CIRCUIT : MAIN SIGNAL LINE : VIDEO SIGNAL LINE : +B SIGNAL LINE Q2814 C2855 R2846 B1GDCFGA0018 50V4.7 R2849 MUTING SWITCH MUTE_L C2965 D2909 0.22u R2838 R2839 B0ACCK000005 R2111...
  • Page 199 SCHEMATIC DIAGRAM - 11 CD LOADING CIRCUIT (CN1) ON : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE SCHEMATIC DIAGRAM - 26 MAIN CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE CN2810 14 13 12 11 10 D2911 B0ACCK000005 Q2906 B1GBCFJA0028 SWITCH...
  • Page 200 SCHEMATIC DIAGRAM - 12 TRANSFORMER CIRCUIT (H9502/W9502) : +B SIGNAL LINE : MIC SIGNAL LINE ON SCHEMATIC DIAGRAM - 25 MAIN CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE CN2814 C2108 R2109 R2108 50V47 3.3K C2106 R2106 C2104 50V10 R2110 L2906 C2207...
  • Page 201 SCHEMATIC DIAGRAM - 13 : +B SIGNAL LINE MAIN CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE C2306 C2602 C2219 C2406 C2119 50V4.7 50V2.2 50V2.2 50V4.7 Q2815 Q2816 R2615 R2406 R2218 R2306 R2118 6.8K 1.8K 1.8K R2852 R2620 R2407 Q2818 C2862 R2616...
  • Page 202 SCHEMATIC DIAGRAM - 14 BOTTOM : +B SIGNAL LINE : AUX SIGNAL LINE : FM/AM SIGNAL LINE MAIN CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE : TAPE PLAYBACK SIGNAL LINE CN2816 Q2916 Q2915 2SB0709AHL 2SB0709AHL D2917, D2919 B0ACCK000005 FAN MOTOR DRIVE FAN MOTOR DRIVE Q2915...
  • Page 203 SCHEMATIC DIAGRAM - 15 : +B SIGNAL LINE : FM/AM SIGNAL LINE MAIN CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE : TAPE PLAYBACK SIGNAL LINE CN2815 Q2911 Q2912 D2914, D2916 2SB0709AHL 2SB0709AHL B0ACCK000005 FAN MOTOR DRIVE FAN MOTOR DRIVE Q2911 R2582 R2585...
  • Page 204 SCHEMATIC DIAGRAM - 16 MAIN CIRCUIT : +B SIGNAL LINE R2687 VREF+ BASS LEDCONT R2683 100K R2684 100K PHOTO_1 R2791 PHOTO_2 R2792 DECK2 R2797 R2672 KEY1 KEY2 R2798 KEY3 R2708 C2718 470P R2723 R2086 R2658 C2721 C2719 0.01 0.01 VREF+ R3634 C2752 C2722...
  • Page 205 SCHEMATIC DIAGRAM - 17 MAIN CIRCUIT : +B SIGNAL LINE C2708 R2788 100P 100K C2709 C2742 100P 0.01 C2710 100P R2075 W3003 W3002 R3643 R2074 DVD_MUTE R2790 MODEL_ DVD_MUTE R2776 ASP_CK BASS ASP_CK R2775 ASP_DA MIC_1L ASP_DA WIDE_1 R2774 MIC_2L WIDE_1 EFP_CE R2796...
  • Page 206 SCHEMATIC DIAGRAM - 18 : +B SIGNAL LINE : MIC SIGNAL LINE MAIN CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE HPOUT_FL HPOUT_FL HPGND HPOUT_FR HPOUT_FR MICGND HP_MUTE HP_MUTE KEY1 KEY1 KEY2 KEY2 KEY3 KEY3 GND2 JOG_A JOG_A JOG_B JOG_B PHOTO_1 PHOTO_1...
  • Page 207 SCHEMATIC DIAGRAM - 19 : +B SIGNAL LINE : MIC SIGNAL LINE PANEL CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE L6802, L6803 L6804, L6808 G0C101JA0052 G0C100JA0052 L6808 HP_SW L6802 L6803 C6844 C6843 C6806 0.022 0.022 0.047 R6812 R6805 L6804 S6810 R6814...
  • Page 208 SCHEMATIC DIAGRAM - 20 : +B SIGNAL LINE : MIC SIGNAL LINE PANEL CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE FL6800 A2BD00000125 FL DISPLAY 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 R6959 C6855 50V22...
  • Page 209 SCHEMATIC DIAGRAM - 21 : +B SIGNAL LINE : PLAYBACK SIGNAL LINE DECK CIRCUIT : RECORD SIGNAL LINE C1038 R1055 C1057 220P C1034 2.2K 1000P 50V3.3 C1044 10V33 R1101 R1100 R1015 C1032 R1029 0.018 4.7M R1090 R1040 PLACKBACK IC1001 HEAD AN7348S-E1 C1030 10V100...
  • Page 210 SCHEMATIC DIAGRAM - 22 MAIN CIRCUIT (CP6803) ON SCHEMATIC : +B SIGNAL LINE : PLAYBACK SIGNAL LINE DIAGRAM - 15 DECK CIRCUIT : RECORD SIGNAL LINE CN1001 R1098 R1060 R1057 R1091 2.2K R1092 R1049 R1084 W1002 2.2K Q1017 B1AARC000003 C1049 3300P MOTOR SWITCH R1086...
