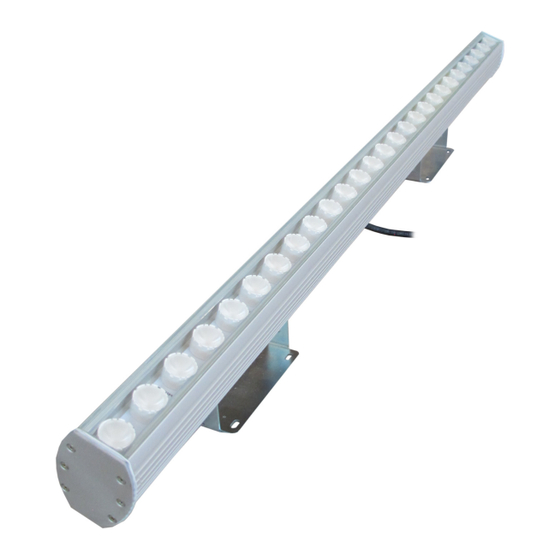

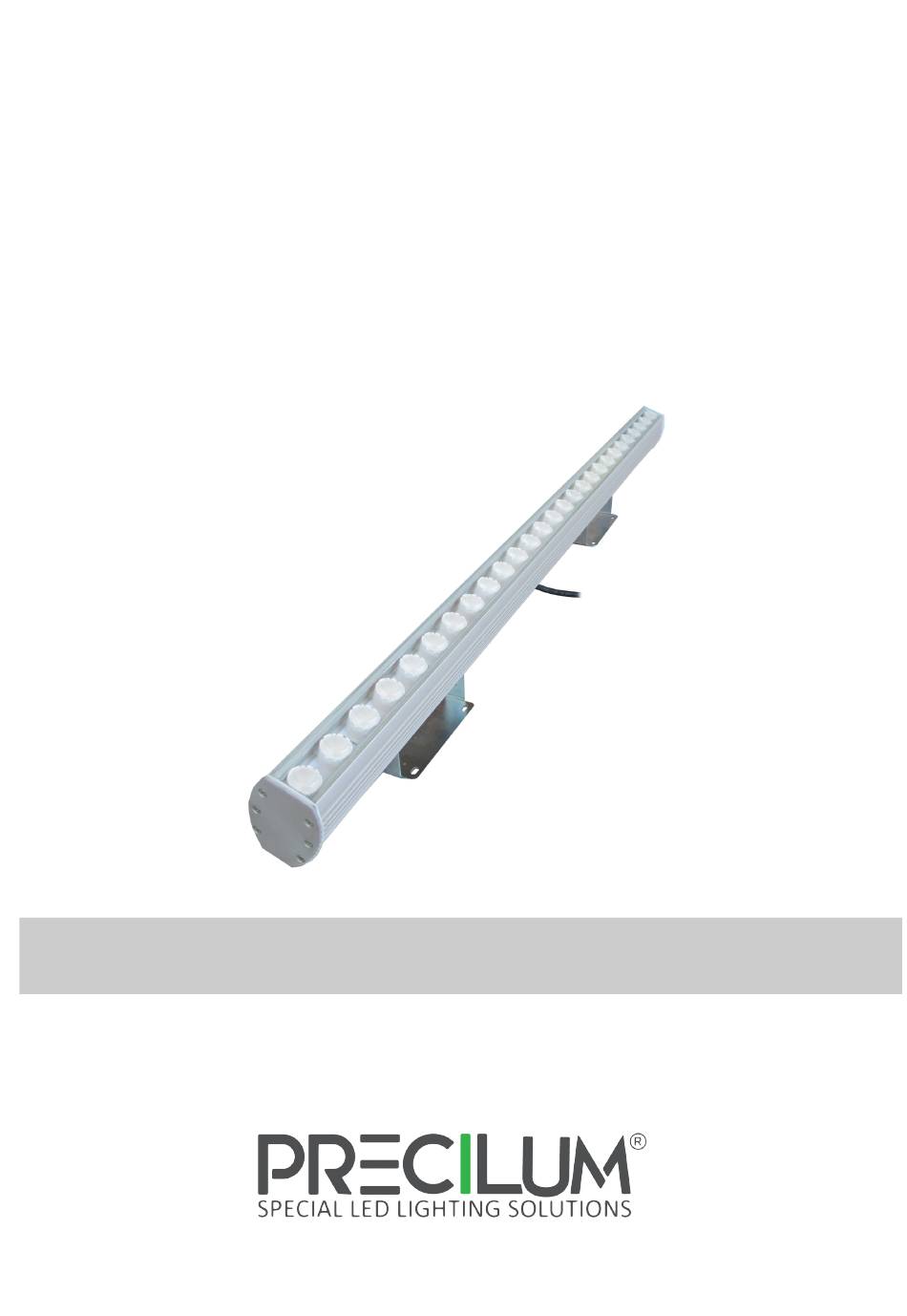

- Page 1 TRILOBIT RGB/RGBW/RGBA DMX/RDM electronic on board Lenght = 600/900/1200 INSTRUCTIONS MANUAL...
-
Page 2: Table Of Contents
4. CONNECTION DIAGRAMS 5. CARE AND MAINTENANCE 6. TECHNICAL SPECIFICATION 7. WARRANTY STATEMENT Electrostatic Sensitive Device (EDS) FOR YOUR OWN SAFETY PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE BEGINNING SETUP AND INSTALLATION. TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1... -
Page 3: Introduction
This powerful lighting fixture is ideally suited to use in landscape and building illumination and IP66 ensures safe operation in even the most demanding areas. TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1... - Page 4 1. INTRODUCTION 1.2 Dimensions of fixture Lenght = 600 mm Lenght = 900 mm Lenght = 1200 mm 1200 1200 TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1...
- Page 5 1.3 Dimensions of hanging bracket 1.3.1 Fixed bracket (Standard zinced or on request stainless steel) Bracket 40 mm: Bracket 25 mm: 113,5 1.3.2 Adjustable bracket Bracket 200 - 300 mm: TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1...
- Page 6 1. INTRODUCTION 1.3.3 Fixation methodes Bracket 25 mm: Bracket 40 mm: Bracket 200 - 300 mm: TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1...
-
Page 7: Safety And Operation
The manufacturer shall not be liable for any modifications of the ● product of incorrect installation of the product. Never install the luminaire on rain, fog or high humidity. ● TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1... -
Page 8: Installation
Mount the hanging bracket with dowels and screws. (Fig. 1) ● First attach the top of the bracket, then turn the luminaire and attach ● the other side. (Fig. 2) Make sure it is mounted firmly. ● TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1... - Page 9 Stabilize the angle by tightening the screws. (Fig. 3) ● Attach the cable from the luminaire to the bracket using cable zip ● ties in such a way that it does not touch the wall. (Fig. 4) TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1...
- Page 10 MALE (IN) – Rear view (soldering) FEMALE (OUT) – Rear view (soldering) + 48V - 48V - 48V + 48V POWER + (red) + 48V (red) - (blue) - 48V (black) GND (grey) TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1...
- Page 11 FEMALE MALE MALE (IN) – Front view FEMALE (OUT) – Front view MALE (IN) – Rear view (soldering) FEMALE (OUT) – Rear view (soldering) + (red) - (blue) GND (grey) TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1...
- Page 12 FEMALE MALE (IN) – Front view FEMALE (OUT) – Front view MALE (IN) – Rear view (soldering) FEMALE (OUT) – Rear view (soldering) 120 OHM 120 OHM Resistor 120 OHM TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1...
-
Page 13: Connection Diagrams
4. CONNECTION DIAGRAMS 4.1 RGB, RGBW, RGBA option TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1... -
Page 14: Care And Maintenance
5. CARE AND MAINTENANCE PRECILUM™ PRODUCTS ARE OF SUPERIOR DESIGN AND QUALITY AND SHOULD BE TREATED WITH CARE. THE RECOMMENDATIONS BELOW WILL HELP FULFILL GAIN GOOD USE AND LONGEVITY FROM THE PRODUCTS. Clean the front transparent cover at least every 6 months. Use a moist, lint-free cloth. -
Page 15: Technical Specification
Materials: Housing: extruded aluminium Cover: clear tempered glass Dimensions: See dimensional drawing Enviroment: IP66 Weight: TRILOBIT 600: 1,9 kg TRILOBIT 900: 3,0 kg TRILOBIT 1200: 3,9 kg Accesories: See website TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1... -
Page 16: Warranty Statement
7. WARRANTY STATEMENT Precilum provides a product warranty for a period of five (5) years from date of purchase. Please refer www.precillum.com for all warranty terms and conditions. TRILOBIT RGB / RGBW / RGBA INSTRUCTIONS WWW.PRECILUM.COM MANUAL v1.1... - Page 20 Please check for latest updates and changes on the Precilum website. ©2021 PRECILUM s.r.o ALL RIGHT RESERVED. All specifications subject to change without notice. WWW.PRECILUM.COM...
