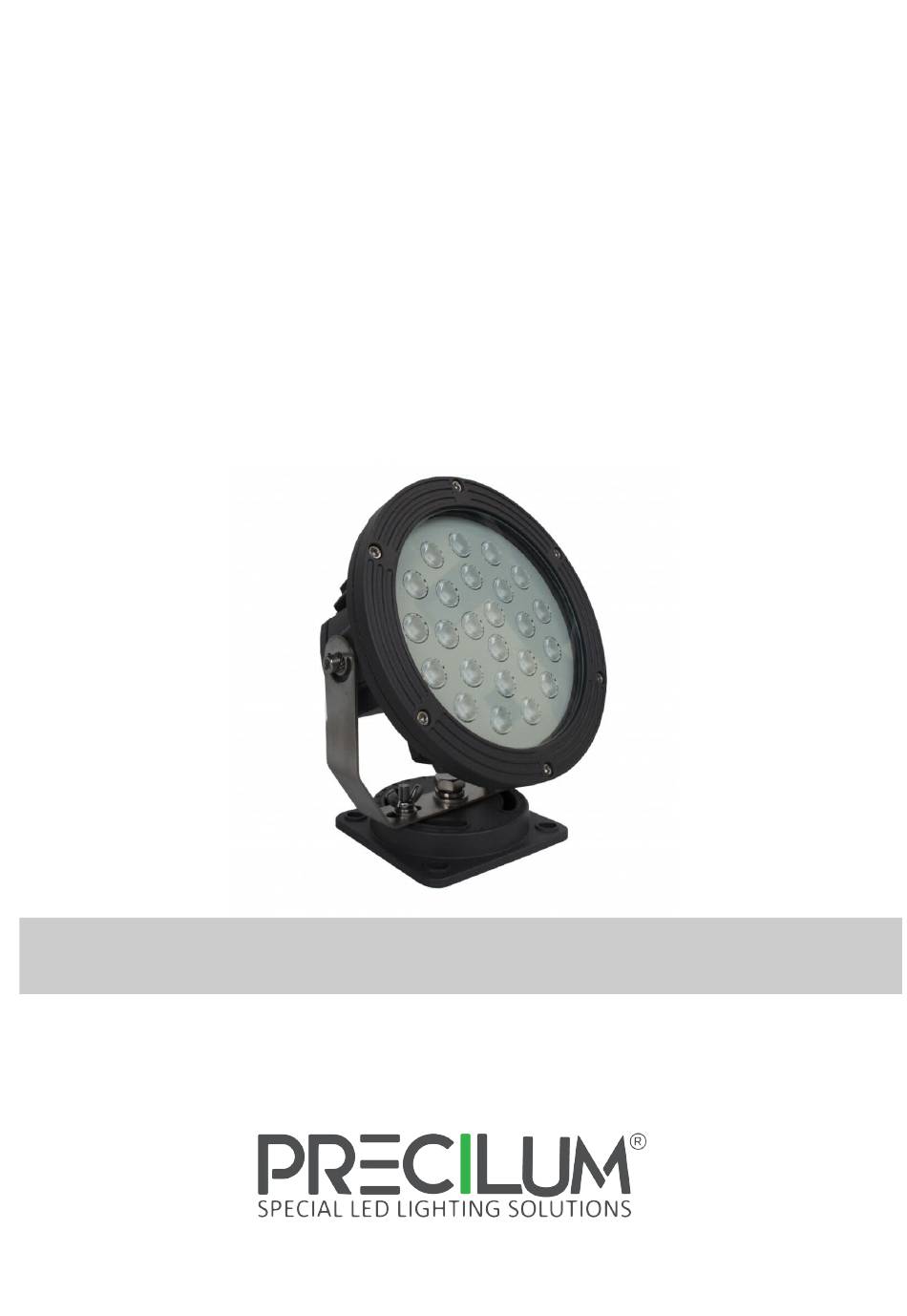

- Page 1 SOPHIA 15 WHITE SOPHIA 24 WHITE SOPHIA 30 WHITE SOPHIA 54 WHITE ON/OFF or DALI INSTRUCTIONS MANUAL...
-
Page 2: Table Of Contents
2. SAFETY AND OPERATION 3. INSTALLATION 4. CONNECTION DIAGRAMS 5. CARE AND MAINTENANCE 6. TECHNICAL SPECIFICATION 7. WARRANTY STATEMENT Electrostatic Sensitive Device (EDS) FOR YOUR OWN SAFETY PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE BEGINNING SETUP AND INSTALLATION. SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM... -
Page 3: Introduction
The product in basic form is not suitable for environments with elevated salt content (seaside environments, winter salting, etc.). Products from the "Marine" range are designed for this environment. It is also possible to coat this base product with a protective coating. SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM... - Page 4 1. INTRODUCTION 1.2 Dimensions of fixture Sophia 15 86,5 Ø200 10,5 Sophia 24/Sophia 30 Ø 242 149,5 SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
- Page 5 1. INTRODUCTION 1.2 Dimensions of fixture Sophia 54 315,3 90° 169,5 SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
-
Page 6: Safety And Operation
The light fixture must be wired according to respective electrical ● standards. The manufacturer shall not be liable for any modifications of the ● product of incorrect installation of the product. Never install the luminaire on rain, fog or high humidity. ● SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM... -
Page 7: Installation
Drill the holes into the surface according to the holes in the bracket. ● (Fig.1) Mount the bracket according Fig.2. Use dowels and screws. (Fig. 2) ● Make sure it is mounted firmly and precicely. ● SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM... - Page 8 3. INSTALLATION Fig. 3 Adjust required angle of the luminaire. (Fig. 3) ● Stabilize the angle by tightening the screws. (Fig. 3) ● SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
- Page 9 3. INSTALLATION 3.2 Connection 3.2.1 Wiring - ON/OFF option Wire L (Live) – brown (black) Wire N (Neutral) – blue Wire PE (Earth) – yellow/green SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
- Page 10 3.2 Connection 3.2.2 Wiring - DALI option DALI DALI Wire L (Live) – brown (black) Wire N (Neutral) – blue Wire PE (Earth) – yellow/green Wire DA1 (Dali) – white Wire DA2 (Dali) - white SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
- Page 11 3. INSTALLATION 3.3 IP connection PRECILUM requirement: Use a SCAME IP box or similar (not included). Must be made a waterproof connection of at least IP68. We strongly recommend to use special two components silicone GEL for sealing junction boxes containing electrical connections. If the IP rating of the...
- Page 12 3. INSTALLATION 3.3 IP connection PRECILUM recommendation: Use a TECHNO® IP circular junction connector (TeeTube®) or TECHNO® IP juction box (TeeBox®). Not included! TeeTube® TeeBox® 3 poles (ON/OFF) TeeTube® (THR.390.S3T): ● 5 poles (DALI) TeeTube® (THB.402.C1F.R): ● 3 poles (ON/OFF) TeeBox® (THR.200.S3M): ●...
-
Page 13: Connection Diagrams
4. CONNECTION DIAGRAMS 4.1 ON/OFF or DALI option SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM... -
Page 14: Care And Maintenance
5. CARE AND MAINTENANCE PRECILUM™ PRODUCTS ARE OF SUPERIOR DESIGN AND QUALITY AND SHOULD BE TREATED WITH CARE. THE RECOMMENDATIONS BELOW WILL HELP FULFILL GAIN GOOD USE AND LONGEVITY FROM THE PRODUCTS. Clean the front transparent cover at least every 6 months. Use a moist, lint-free cloth. -
Page 15: Technical Specification
-30°C/+45°C Materials: Housing: extruded aluminium Cover: clear tempered glass Dimensions: See dimensional drawing Enviroment: IP66 Weight: SOPHIA 15: 2,8 kg SOPHIA 24: 4,5 kg SOPHIA 30: 4,5 kg SOPHIA 54: 7,5 kg Accesories: See website SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM... -
Page 16: Warranty Statement
7. WARRANTY STATEMENT Precilum provides a product warranty for a period of five (5) years from date of purchase. Please refer www.precillum.com for all warranty terms and conditions. SOPHIA INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM... - Page 20 Please check for latest updates and changes on the Precilum website. ©2021 PRECILUM s.r.o ALL RIGHT RESERVED. All specifications subject to change without notice. WWW.PRECILUM.COM...
