INGROUND 15 RGB

INGROUND 24 RGB

INGROUND 31 RGBW

DMX/RDM electronic on board

Round

Square

INGROUND Q 7 RGBW

DMX/RDM electronic on board

Square

Round

INSTRUCTIONS MANUAL

Table of Contents

Need help?

Do you have a question about the INGROUND 15 RGB and is the answer not in the manual?

Questions and answers

Summary of Contents for PRECILUM INGROUND 15 RGB

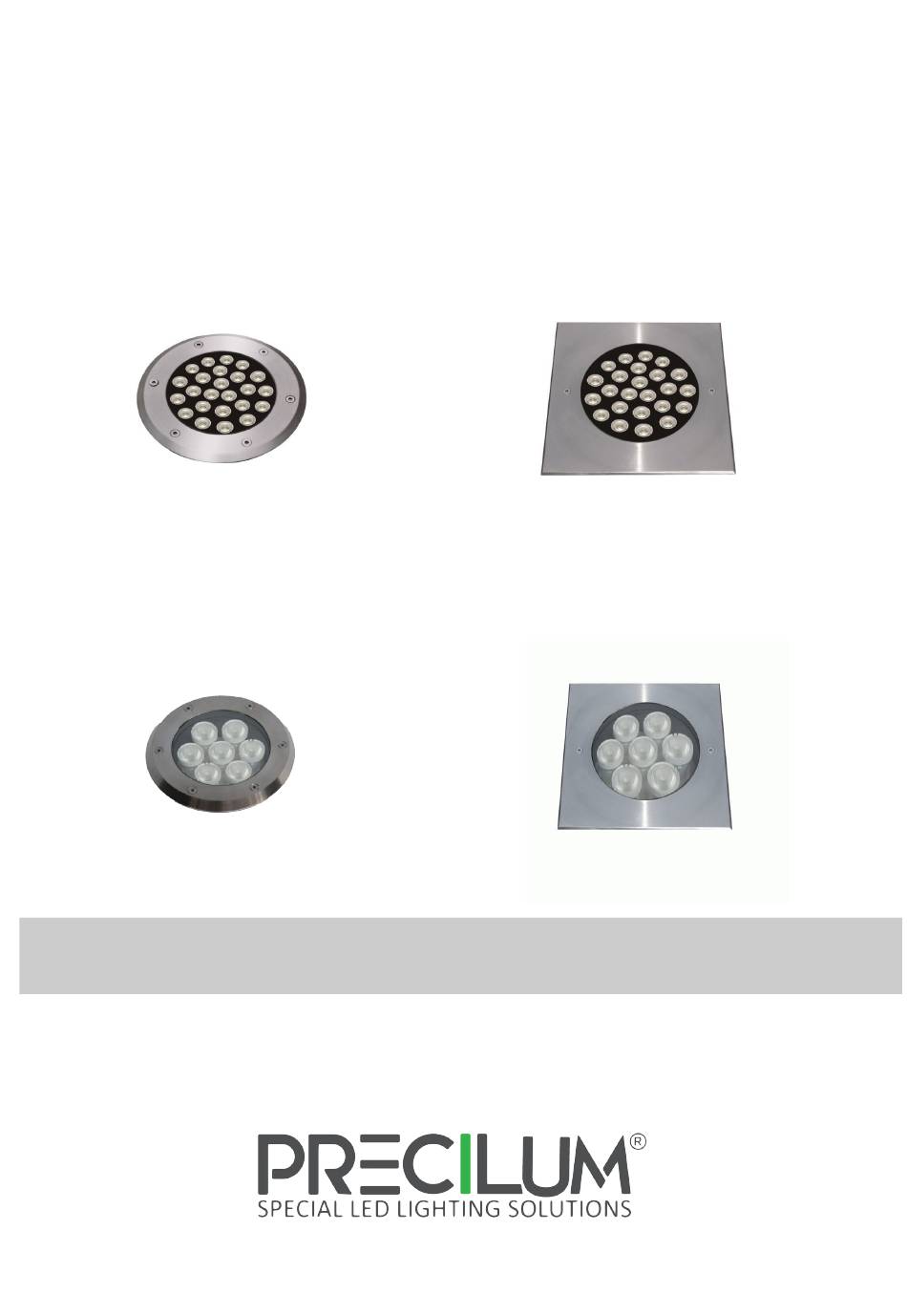

Page 1 INGROUND 15 RGB INGROUND 24 RGB INGROUND 31 RGBW DMX/RDM electronic on board Round Square INGROUND Q 7 RGBW DMX/RDM electronic on board Square Round INSTRUCTIONS MANUAL...
Page 2: Table Of Contents
7. WARRANTY STATEMENT Electrostatic Sensitive Device (EDS) FOR YOUR OWN SAFETY PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE BEGINNING SETUP AND INSTALLATION. INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 3: Introduction
1. INTRODUCTION 1.1 About the product The PRECILUM Inground range brings the INGROUND to the outdoor world of exterior lighting. With IP67 rating and drive over capability these Inground fixtures are capable of meeting most exterior applications. The refined thermal management system incorporates a sleek and robust heat-sink directly into the fixture to ensure maximum heat transfer and long life-time.
Page 4 1. INTRODUCTION 1.2 Dimensions INGROUND 15 RGB INGROUND QUATTRO 7 RGBW SQUARE SHAPE 216x216 ROUND SHAPE Ø216 Ø164 Ø187 Ø207 INGROUND 24 RGB INGROUND 31 RGBW SQUARE SHAPE 260x260 ROUND SHAPE Ø260 Ø218 Ø249 INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM...
Page 5: Safety And Operation
The manufacturer shall not be liable for any modifications of the ● product of incorrect installation of the product. Never install the luminaire on rain, fog or high humidity. ● INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 6: Installation
30 min. If it doesn’t work study a further drainage system. Aluminum sleeve must be installed on drainage layers, surrounding ● concrete layers and leveled with external finish. INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 7 Fig. 3 Fig. 3 ALLOWED Edges of the plastic ● sleeve must not be installed under the surrounding floor. INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 8 (more about IP connection in 3.3 IP BOX connection). CONNECTORS /IP 68 BOX Put the luminaire into the ● plastic sleeve. INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 9 Put on and tighten the ● screws which you removed in step 4 (Fig.4). Check if the screws are ● tight properly! INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 10 3. INSTALLATION ALLOWED MAX. 500kg ALLOWED ALLOWED INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 11 - 48V + 48V + 48V - 48V POWER + (red/white) + 48V (red) - (blue) - 48V (black) GND (grey) INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 12 FEMALE (OUT) – Front view MALE (IN) – Rear view (soldering) FEMALE (OUT) – Rear view (soldering) + (red) + (red/white) - (blue) GND (grey) INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 13 FEMALE (OUT) – Front view MALE (IN) – Rear view (soldering) FEMALE (OUT) – Rear view (soldering) 120 OHM 120 OHM Resistor 120 OHM INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 14 Wire + (DMX): white/red Wire N (Neutral): dark blue Wire – (DMX): light blue Wire PE (Earth): yellow/green Wire GND (DMX): grey INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 15 3. INSTALLATION 3.3 IP BOX connection PRECILUM requirement: If it is not a version with IP68 connectors use a SCAME IP box or similar (not included). Must be made a waterproof connection of at least IP68. We strongly recommend to use special two components silicone GEL for sealing junction boxes containing electrical connections.
Page 16: Connection Diagrams
4. CONNECTION DIAGRAMS 4.1 IP 68 CONNECTOR, 48V DC option INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 17 4. CONNECTION DIAGRAMS 4.2 Open cable, 230V AC option INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 18: Care And Maintenance
5. CARE AND MAINTENANCE PRECILUM™ PRODUCTS ARE OF SUPERIOR DESIGN AND QUALITY AND SHOULD BE TREATED WITH CARE. THE RECOMMENDATIONS BELOW WILL HELP FULFILL GAIN GOOD USE AND LONGEVITY FROM THE PRODUCTS. Clean the front transparent cover at least every 6 months. Use a moist, lint-free cloth.
Page 19: Technical Specification
See dimensional drawing Enviroment: IP67 Weight: INGROUND 15 RGB + INGROUND Q 7 RGBW: 2,8 kg INGROUND 24 RGB + INGROUND 31 RGBW: 4,9 kg Accesories: See website INGR. 15 RGB + INGR. 24 RGB + INGR. 31 RGBW + INGR. Q7 RGBW WWW.PRECILUM.COM...
Page 20: Warranty Statement
7. WARRANTY STATEMENT Precilum provides a product warranty for a period of five (5) years from date of purchase. The product is not suitable for environments with elevated salt content (seaside environments, winter salting, etc.). Products from the "Marine" range or stainless steel products are designed for this environment.

This manual is also suitable for:

Inground 24 rgb Inground 31 rgbw Inground q 7 rgbw
